lamborghini revuelto coupe (2024) wheel housing trim rear parts diagram

821.03.00 - WHEEL HOUSING TRIM REAR

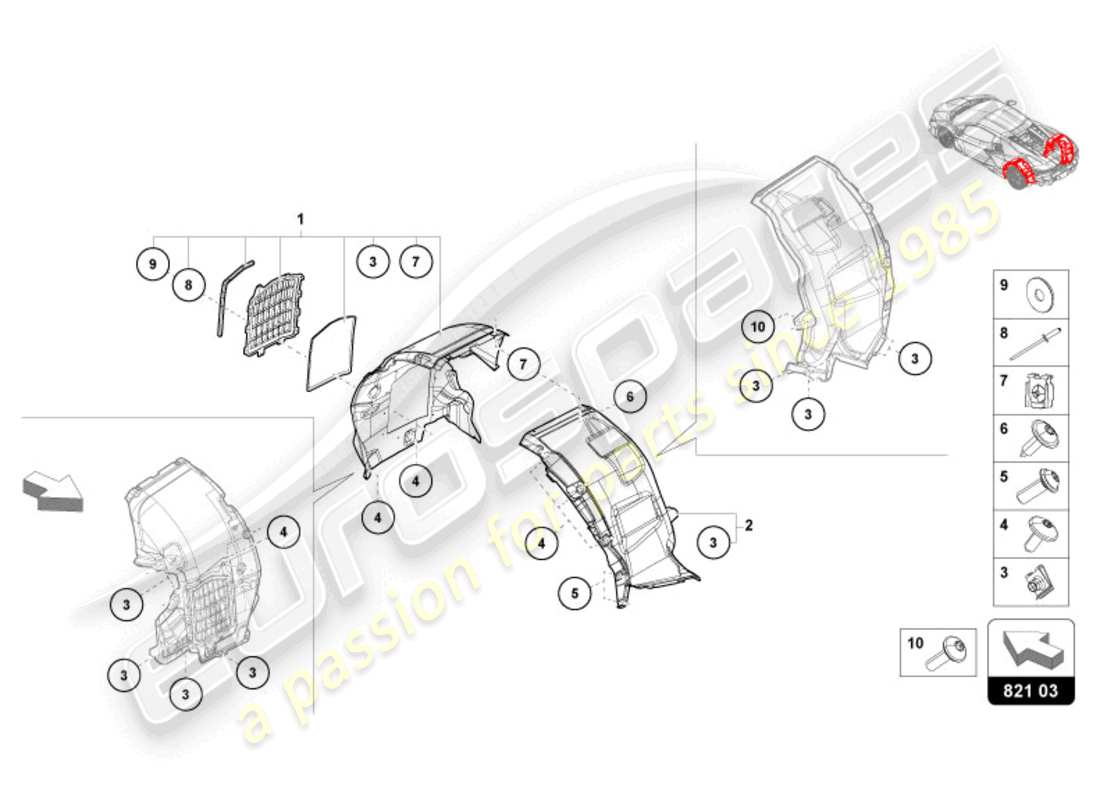

Lamborghini Revuelto Coupe (2024) WHEEL HOUSING TRIM REAR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 47B810981A
      WHEEL HOUSING LINER
      LEFT
      from £453.42
      from £453.42
      WHEEL HOUSING Genuine Lamborghini - New (to order)
      # 001
      MPN: 47B810982A
      WHEEL HOUSING LINER
      RIGHT
      from £453.42
      from £453.42
      WHEEL HOUSING Genuine Lamborghini - New (to order)
      # 002
      MPN: 47B810985A
      WHEEL HOUSING LINER
      LEFT
      from £153.15
      from £153.15
      WHEEL HOUSING Genuine Lamborghini - New (to order)
      # 002
      MPN: 47B810986A
      WHEEL HOUSING LINER
      RIGHT
      from £153.15
      from £153.15
      WHEEL HOUSING Genuine Lamborghini - New (to order)
      # 003
      MPN: N90475903
      SPEED NUT
      M5X13,6X11,5
      from £0.78
      from £0.78
      SNAP NUT CLAMP M5X13.6X11.5 Genuine Lamborghini - New In stock
      SPEED NUT Genuine Porsche Part - New (to order)
      # 004
      MPN: N91042302
      OVAL HEXAGON SOCKET HEAD BOLT
      M6X16
      from £0.61
      from £0.61
      HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New (to order)
      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
      # 005
      MPN: N10620801
      OVAL HEAD PANEL SCREW
      3,5X6,5
      from £0.50
      from £0.50
      FILLISTER HEAD Genuine Lamborghini - New (to order)
      tapping screw Genuine Porsche Part - New (to order)
      # 005
      MPN: N90953005
      OVAL HEXAGON SOCKET HEAD BOLT
      M5X14
      from £1.47
      from £1.47
      VITE ESAG. SCREW WM5X14 Genuine Lamborghini - New (to order)
      # 006
      MPN: N90986803
      HEXAGON SOCKET HEAD PANEL BOLT
      4,2X13
      from £0.61
      from £0.61
      This part replaces part number N90986801
      HEXAGON SOCKET HEAD PANEL BOLT, 4.2 X 13 Genuine Lamborghini - New In stock
      HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
      # 007
      MPN: N90698803
      SPEED NUT
      4,2X16X12
      from £0.64
      from £0.64
      SNAP NUT CLAMP ST4.2X16X12.3 Genuine Lamborghini - New In stock
      # 008
      MPN: N90994202
      POP RIVET
      from £31.04
      from £31.04
      BLIND RIVET 4.8X10.4 Genuine Lamborghini - New (to order)
      # 009
      MPN: N0116929
      WASHER
      from £0.50
      from £0.50
      WASHER 5.1X15X1 Genuine Lamborghini - New (to order)
      # 010
      MPN: N10661002
      HEX SOCKET OVAL HEAD COLLARED
      M6X20
      from £0.53
      from £0.53
      HEXALOBULAR SOCKET M6 x 20 Genuine Lamborghini - New In stock
      HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
