lamborghini revuelto coupe (2024) led headlight front parts diagram

941.02.00 - LED HEADLIGHT FRONT

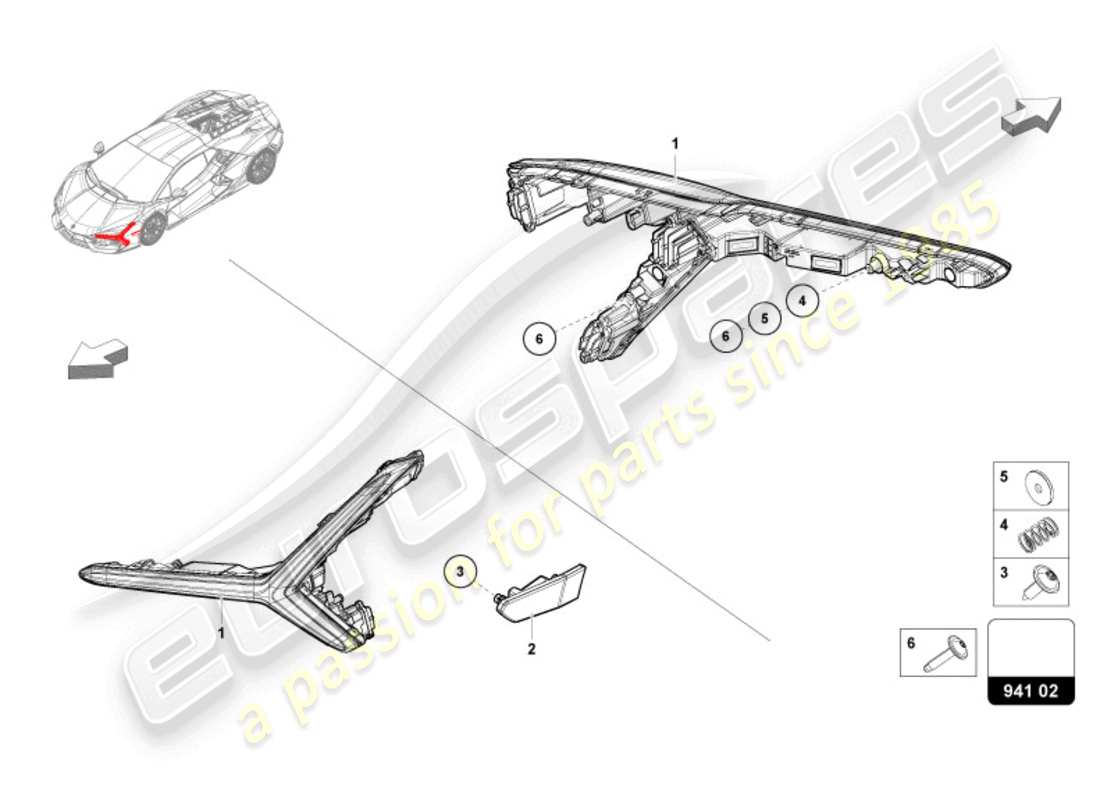

Lamborghini Revuelto Coupe (2024) LED HEADLIGHT FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 47B941055
      LED DAYTIME RUNNING LIGHT WITH TURN SIGNAL
      from £1,618.02
      from £1,618.02
      Running Light Genuine Lamborghini - New (to order)
      # 001
      MPN: 47B941056
      LED DAYTIME RUNNING LIGHT WITH TURN SIGNAL
      from £1,618.02
      from £1,618.02
      RUNNING LIGHT Genuine Lamborghini - New (to order)
      # 002
      MPN: 47B945119
      SIDE MARKER LIGHT
      (EUROPE, UK spec vehicles)
      from £138.26
      from £138.26
      LH SIDE MARKER LIGHT Genuine Lamborghini - New (to order)
      # 002
      MPN: 47B945119A
      SIDE MARKER LIGHT
      (USA spec vehicles)
      from £95.95
      from £95.95
      LUCE SMR/POSIZ.LAT Genuine Lamborghini - New (to order)
      # 002
      MPN: 47B945120
      SIDE MARKER LIGHT
      (EUROPE, UK spec vehicles)
      from £138.26
      from £138.26
      LH SIDE MARKER LIGHT Genuine Lamborghini - New (to order)
      # 002
      MPN: 47B945120A
      SIDE MARKER LIGHT
      (USA spec vehicles)
      from £95.95
      from £95.95
      LUCE SMR/POSIZ.LAT Genuine Lamborghini - New (to order)
      # 003
      MPN: N90986802
      HEXAGON SOCKET HEAD PANEL BOLT
      4,2X13
      from £0.47
      from £0.47
      FLANGE TAPPING Genuine Lamborghini - New (to order)
      HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New (to order)
      HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
      # 004
      MPN: 47B941127
      SPRING
      from £8.84
      from £8.84
      SPRING Genuine Lamborghini - New (to order)
      # 005
      MPN: N90225901
      WASHER
      6,2X24X2 N902259
      from £0.78
      from £0.78
      WASHER 6.2X24X2 Genuine Lamborghini - New In stock
      WASHER Genuine Porsche Part - New (to order)
      WASHER Genuine Bentley Part - New (to order)
      # 006
      MPN: N91207701
      TORX LENS FLANGE SCREW
      M5X25
      from £0.47
      from £0.47
      HEXALOBULAR SOCKETM5X25 Genuine Lamborghini - New In stock
      TORX Genuine Porsche Part - New (to order)
