lamborghini urraco p300 front brakes parts diagram

018 - Front Brakes

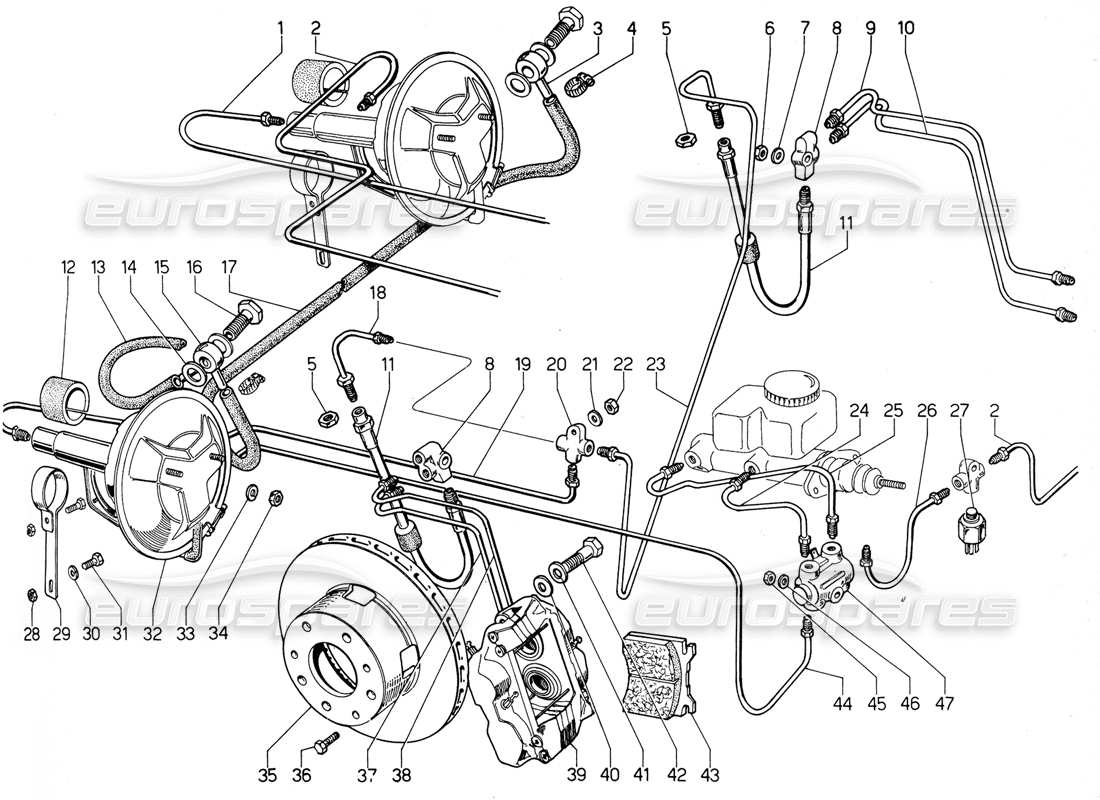

Lamborghini Urraco P300 Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 003211424
                                                                                              Hose from right brake booster to pressure regulator
                                                                                              # 002
                                                                                              MPN: 003211427
                                                                                              Hose from right brake booster to 3 way
                                                                                              # 003
                                                                                              MPN: 003204607
                                                                                              UNION
                                                                                              from £64.35
                                                                                              from £64.35
                                                                                              # 004
                                                                                              MPN: 008830205
                                                                                              JUBILEE CLIP
                                                                                              from £4.27
                                                                                              from £4.27
                                                                                              # 005
                                                                                              MPN: 008201004
                                                                                              NUT
                                                                                              from £0.58
                                                                                              from £0.58
                                                                                              # 006
                                                                                              MPN: 008200606
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 007
                                                                                              MPN: 008400606
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 008
                                                                                              MPN: 003108672
                                                                                              UNION 3-WAY
                                                                                              from £36.67
                                                                                              from £36.67
                                                                                              # 009
                                                                                              MPN: 003108674
                                                                                              HOSE FROM RIGHT CALIPER TO 3 WAY
                                                                                              from £12.74
                                                                                              from £12.74
                                                                                              # 010
                                                                                              MPN: 003108673
                                                                                              HOSE FROM RIGHT CALIPER TO 3 WAY
                                                                                              from £39.06
                                                                                              from £39.06
                                                                                              # 011
                                                                                              MPN: 003208683
                                                                                              FLEXIBLE PIPE
                                                                                              from £31.20
                                                                                              from £31.20
                                                                                              # 012
                                                                                              MPN: 001708593
                                                                                              RUBBER PIECE
                                                                                              from £15.35
                                                                                              from £15.35
                                                                                              # 013
                                                                                              MPN: 003211466
                                                                                              Hose from brake booster to rear 3 way
                                                                                              # 014
                                                                                              MPN: 003101513
                                                                                              WASHER
                                                                                              from £0.97
                                                                                              from £0.97
                                                                                              # 015
                                                                                              MPN: 003204975
                                                                                              UNION
                                                                                              from £32.21
                                                                                              from £32.21
                                                                                              # 016
                                                                                              MPN: 003201511
                                                                                              BOLT
                                                                                              from £28.98
                                                                                              from £28.98
                                                                                              # 017
                                                                                              MPN: 003211465
                                                                                              tubo collegemento to servofreni
                                                                                              # 018
                                                                                              MPN: 003111431
                                                                                              TUBO DAL 3 VIE AL FLESSIBILE SINISTRO
                                                                                              from £11.53
                                                                                              from £11.53
                                                                                              # 019
                                                                                              MPN: 003111433
                                                                                              HOSE FROM 3 WAY TO THE LEFT BRAKE SERVO
                                                                                              # 020
                                                                                              MPN: 003208682
                                                                                              UNION 3-WAY
                                                                                              from £34.66
                                                                                              from £34.66
                                                                                              # 021
                                                                                              MPN: 008400606
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 022
                                                                                              MPN: 008200606
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 023
                                                                                              MPN: 003111432
                                                                                              TUBO DAL 3 VIE AL FLESSIBILE DESTRO
                                                                                              from £11.53
                                                                                              from £11.53
                                                                                              # 024
                                                                                              MPN: 003211425
                                                                                              HOSE FROM PUMP TO SAFETY DEVICES
                                                                                              from £39.06
                                                                                              from £39.06
                                                                                              # 025
                                                                                              MPN: 003111430
                                                                                              HOSE FROM PUMP TO SAFETY DEVICE
                                                                                              from £10.87
                                                                                              from £10.87
                                                                                              # 026
                                                                                              MPN: 003211426
                                                                                              PIPE FROM SAFETY DEVICES TO 3 WAY
                                                                                              from £39.06
                                                                                              from £39.06
                                                                                              # 027
                                                                                              MPN: 003208693
                                                                                              CONTATTO GER STOP
                                                                                              from £85.39
                                                                                              from £85.39
                                                                                              # 028
                                                                                              MPN: 008200606
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 029
                                                                                              MPN: 003111405
                                                                                              BRAKE SERVO FIXING CLAMP
                                                                                              from £11.90
                                                                                              from £11.90
                                                                                              # 030
                                                                                              MPN: 008400606
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 031
                                                                                              MPN: 008100604
                                                                                              BOLT
                                                                                              from £1.58
                                                                                              from £1.58
                                                                                              # 032
                                                                                              MPN: 003110013
                                                                                              Brake Servo
                                                                                              from £722.84
                                                                                              from £722.84
                                                                                              # 033
                                                                                              MPN: 008410806
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 034
                                                                                              MPN: 008200813
                                                                                              NUT
                                                                                              from £1.58
                                                                                              from £1.58
                                                                                              # 035
                                                                                              MPN: 003106919
                                                                                              FRONT BRAKE DISC
                                                                                              from £985.69
                                                                                              from £985.69
                                                                                              # 036
                                                                                              MPN: N01029315
                                                                                              BOLT
                                                                                              from £0.82
                                                                                              from £0.82
                                                                                              # 037
                                                                                              MPN: 003108675
                                                                                              PIPE FROM LEFT CALIPER TO 3 WAY
                                                                                              from £39.06
                                                                                              from £39.06
                                                                                              # 038
                                                                                              MPN: 003108676
                                                                                              PIPE FROM LEFT CALIPER TO 3 WAY
                                                                                              from £12.74
                                                                                              from £12.74
                                                                                              # 039
                                                                                              MPN: 003112007
                                                                                              RIGHT FRONT BRAKE CALIPER
                                                                                              (exchange required)
                                                                                              from £1,185.64
                                                                                              from £1,185.64
                                                                                              # 039
                                                                                              MPN: 003112008
                                                                                              LEFT FRONT BRAKE CALIPER
                                                                                              (exchange required)
                                                                                              from £889.23
                                                                                              from £889.23
                                                                                              # 040
                                                                                              MPN: 008401305
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 041
                                                                                              MPN: 008411303
                                                                                              WASHER
                                                                                              from £1.80
                                                                                              from £1.80
                                                                                              # 042
                                                                                              MPN: 008101223
                                                                                              BOLT
                                                                                              from £8.17
                                                                                              from £8.17
                                                                                              # 043
                                                                                              MPN: 003111053

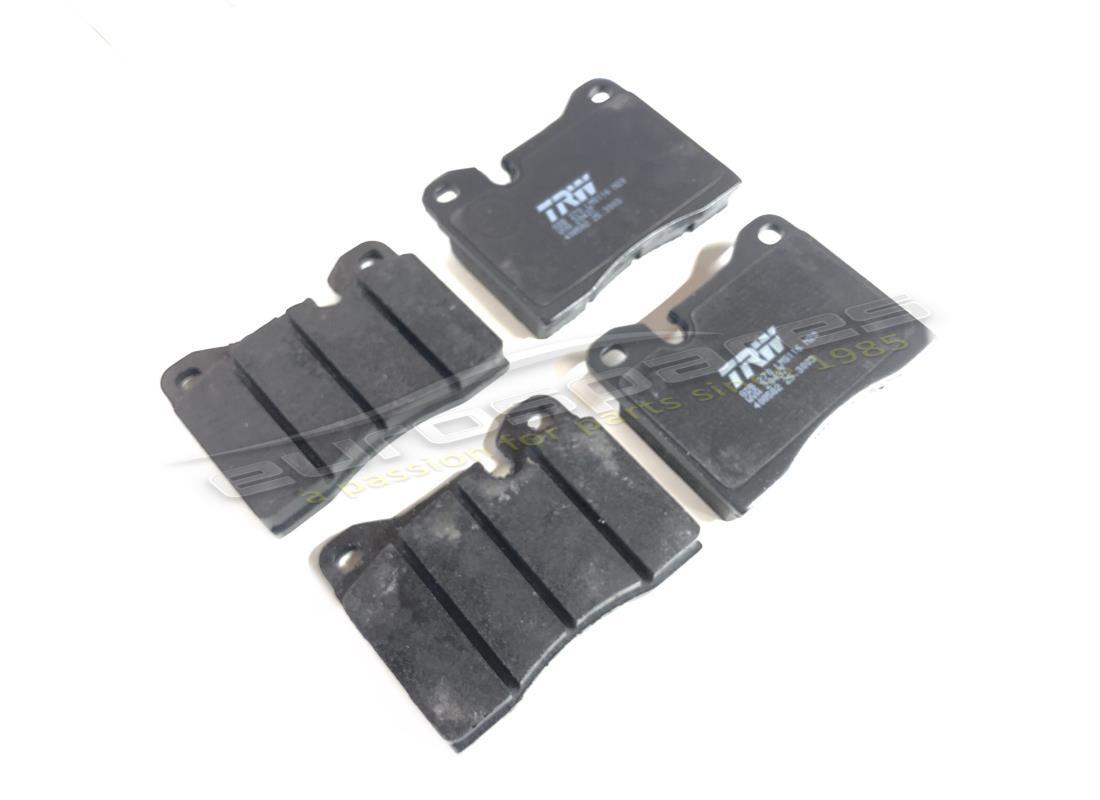

                                                                                              FRONT BRAKE PADS SET
                                                                                              from £83.95
                                                                                              from £83.95
                                                                                              This part replaces part number 003107427
                                                                                              # 044
                                                                                              MPN: 003111429
                                                                                              HOSE FROM DTS SAFETY DEVICE TO LEFT BRAKE SERVO
                                                                                              # 045
                                                                                              MPN: 008200606
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 046
                                                                                              MPN: 008400606
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 047
                                                                                              MPN: 003111243
                                                                                              DISPOSITIVO DI SICUREZZA
                                                                                              from £131.87
                                                                                              from £131.87
