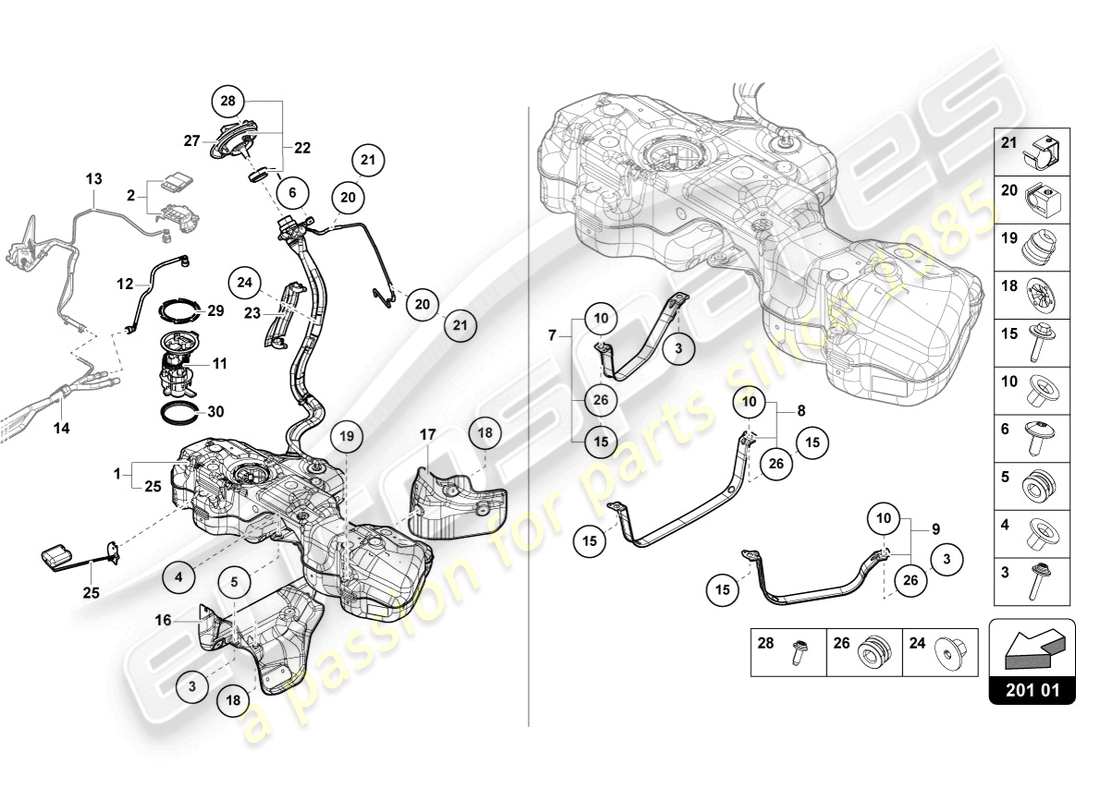

201.01.00 - FUEL TANK

Lamborghini Urus S (2024) FUEL TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 4M0201060DJ
            FUEL TANK
            75 LTR.
            from £1,305.61
            from £1,305.61
            # 001
            MPN: 4M0201060GK
            FUEL TANK
            FOR EMISSION CLASS LEV3, C6B-85 LTR.
            from £1,305.61
            from £1,305.61
            # 002
            -
            CONTROL UNIT FOR FUEL TANK LEAK DIAGNOSIS
            # 003
            MPN: N91247301
            INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT)
            M8X50
            from £2.43
            from £2.43
            # 004
            MPN: 8K0201693D
            BUSH
            RIGHT
            from £2.77
            from £2.77
            # 005
            MPN: 8K0201840D
            RUBBER BUSH
            RIGHT
            from £0.99
            from £0.99
            # 006
            MPN: N91042301
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X16
            from £0.63
            from £0.63
            # 007
            MPN: 4M0201392C
            TENSIONING STRAP
            RIGHT
            from £16.53
            from £16.53
            # 008
            MPN: 4M0201392F
            TENSIONING STRAP
            center
            from £16.53
            from £16.53
            # 009
            MPN: 4M0201391C
            TENSIONING STRAP
            LEFT
            from £16.53
            from £16.53
            # 010
            MPN: 8K0201693C
            BUSH
            FRONT
            from £2.77
            from £2.77
            # 011
            MPN: 4M0919087BP
            FUEL DELIVERY MODULE
            W/O AUXILIARY HEATER - ORDER ALSO REF 29 AND 30
            from £197.36
            from £197.36
            # 012
            MPN: 4M0201220K
            FUEL LINE
            FEED
            from £27.68
            from £27.68
            # 013
            -
            RESUPPLY PIPE
            # 014
            -
            1 SET FUEL PIPES
            # 015
            MPN: N91237201
            HEXAGON HEAD BOLT (COMBI)
            M8X40
            from £2.01
            from £2.01
            # 016
            MPN: 4M0201308H
            HEAT SHIELD
            center
            from £12.60
            from £12.60
            # 017
            MPN: 4M0201308G
            HEAT SHIELD
            LEFT
            from £12.60
            from £12.60
            # 018
            MPN: N90335004
            CLAMPING WASHER
            5X30
            from £0.87
            from £0.87
            # 019
            MPN: 8K0201274B
            DAMPING
            from £3.28
            from £3.28
            # 020
            -
            CLIP
            # 021
            MPN: 8J0201449E
            BRACKET
            from £0.53
            from £0.53
            # 022
            MPN: 4ML201550E
            CAP WITH RETAINING STRAP FOR FUEL TANK
            NAR AND SOUTH KOREA - CARBON
            from £998.67
            from £998.67
            # 022
            MPN: 4ML201550F
            CAP WITH RETAINING STRAP FOR FUEL TANK
            NAR AND SOUTH KOREA - STD
            from £80.38
            from £80.38
            # 023
            MPN: 4M0201974A
            GUARD PLATE FOR FUEL PIPE
            ONLY FOR USA AND SOUTH KOREAN MARKETS (EUROPE, USA spec vehicles)
            from £13.98
            from £13.98
            # 024
            MPN: N90757901
            HEXAGON COLLAR NUT
            5
            from £1.16
            from £1.16
            # 025
            MPN: 4M0919047
            SENDER FOR FUEL GAUGE
            from £112.40
            from £112.40
            # 026
            MPN: 8K0201840C
            RUBBER BUSH
            from £7.61
            from £7.61
            # 027
            -
            REMOVABLE LID
            # 028
            -
            SCREWED SOCKET
            # 029
            MPN: 1K0201375
            UNION NUT
            from £2.68
            from £2.68
            # 030
            MPN: 1J0919133B
            SEAL RING
            red
            from £6.18
            from £6.18
