007 - LH cylinder head

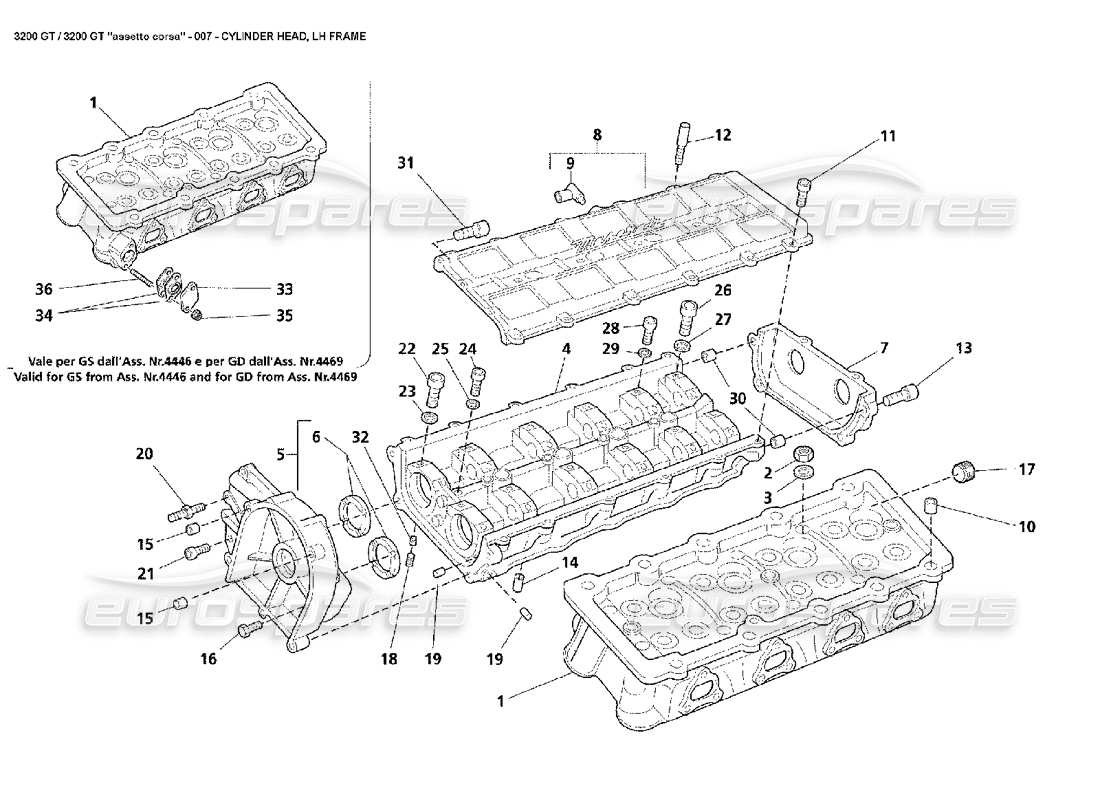

Maserati 3200 GT/GTA/Assetto Corsa LH Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 585000101
LH cylinder head
-Valid till engine Nr.3688-
from £1,110.27
from £1,110.27
This part replaces part number 585000100 - and 1 more. Click to view details
# 001
MPN: 585000103
LH cylinder head
-Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 - Not for BRA,GOL,J and AUS-
from £442.08
from £442.08
This part replaces part number 585000102 - and 1 more. Click to view details
# 002
MPN: 475005401
NUT
from £10.95
from £10.95
This part replaces part number 475005400 which we have in stock
# 003
MPN: 13507563
WASHER
Supersession
Supersession
This part replaces part number 479009000
# 004
MPN: 585007902
LH CYLINDER HEAD FRAME
from £678.89
from £678.89
This part replaces part number 585007702
# 005
MPN: 479000600
RH FRONT COVER
from £39.95
from £39.95
This part replaces part number 391050001 which we have in stock - and 1 more. Click to view details
# 006
MPN: 475003000
RING
from £11.44
from £11.44
# 007
MPN: 479001400
HEAD REAR COVER LH
from £54.55
from £54.55
# 008
MPN: 585008701

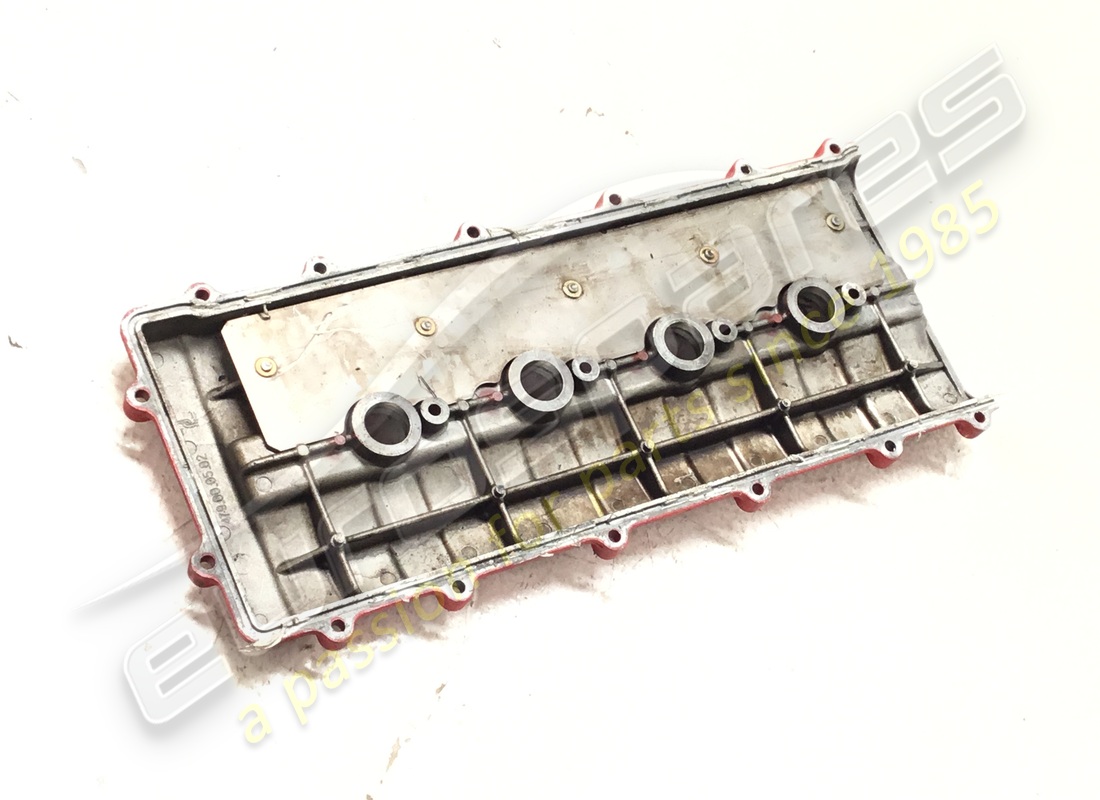

HEAD UPPER COVER LH
from £52.82
from £52.82
This part replaces part number 479008701 which we have in stock - and 1 more. Click to view details
# 009
MPN: 479008001
OIL VENT UNION
from £2.60
from £2.60
# 010
MPN: 310620369
DOWEL
from £2.17
from £2.17
# 011
MPN: 14433121
SCREW
from £1.13
from £1.13
# 012
MPN: 479001500
STUD BOLT
from £35.84
from £35.84
# 013
MPN: 14306521
SCREW
Supersession
Supersession
# 014
MPN: 585002400
OIL ADJUSTMENT DOWEL
from £2.42
from £2.42
# 015
MPN: 83302
DOWEL
from £9.02
from £9.02
# 016
MPN: 96601
SCREW
from £3.30
from £3.30
# 017
MPN: 585411800
PLUG
-Valid from Ass. Nr.1712-
from £2.51
from £2.51
# 018
MPN: 10393020
PLUG
from £1.13
from £1.13
# 019
MPN: 96617
DOWEL
Supersession
Supersession
# 020
MPN: 573003300
STUD BOLT
from £37.38
from £37.38
# 021
MPN: 14306421
SCREW
Supersession
Supersession
# 022
MPN: 14306920
SCREW
from £1.13
from £1.13
# 023
MPN: 14496527
WASHER
from £0.62
from £0.62
# 024
MPN: 14305920
SCREW
from £0.47
from £0.47
# 025
MPN: 14496400
WASHER
from £0.88
from £0.88
# 026
MPN: 14306421
SCREW
Supersession
Supersession
# 027
MPN: 311053307
WASHER
from £1.13
from £1.13
# 028
MPN: 14305620
SCREW
from £1.13
from £1.13
# 029
MPN: 479005800
WASHER
from £0.81
from £0.81
# 030
MPN: 311820308
DOWEL
from £0.73
from £0.73
# 031
MPN: 14433121
SCREW
from £1.20
from £1.20
# 032
MPN: 585002400
ADJUSTMENT DOWEL
from £2.42
from £2.42
# 033
MPN: 585005500
FLANGE
-Valid for BRA,J,GOL and AUS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500-
from £97.06
from £97.06
# 034
MPN: 172303
GASKET
-Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-
from £0.90
from £0.90
# 035
MPN: 14058429
NUT
-Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-
from £1.13
from £1.13
# 036
MPN: 11500224
STUD
-Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 - Valid for GD from Ass. Nr.4469 not for Ass. Nr.4451 and 4454-
from £0.51
from £0.51
