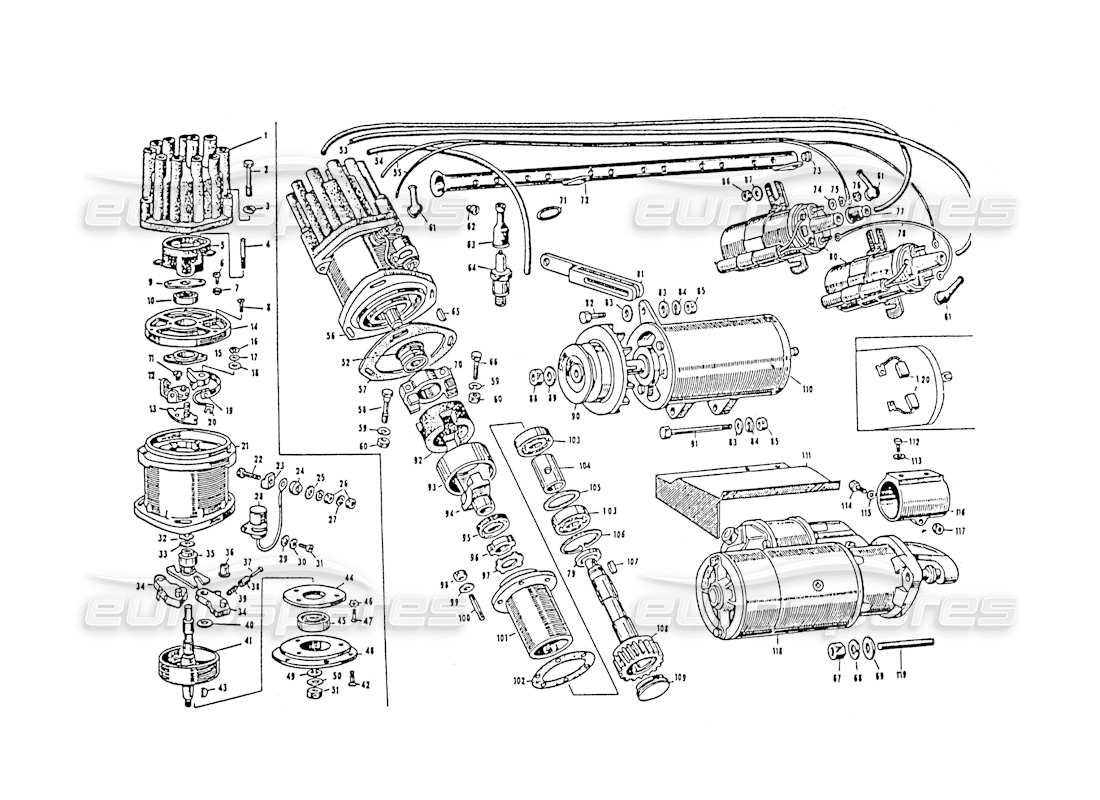

Maserati 3500 GT Electrical Equipment, Engine Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
MHT001

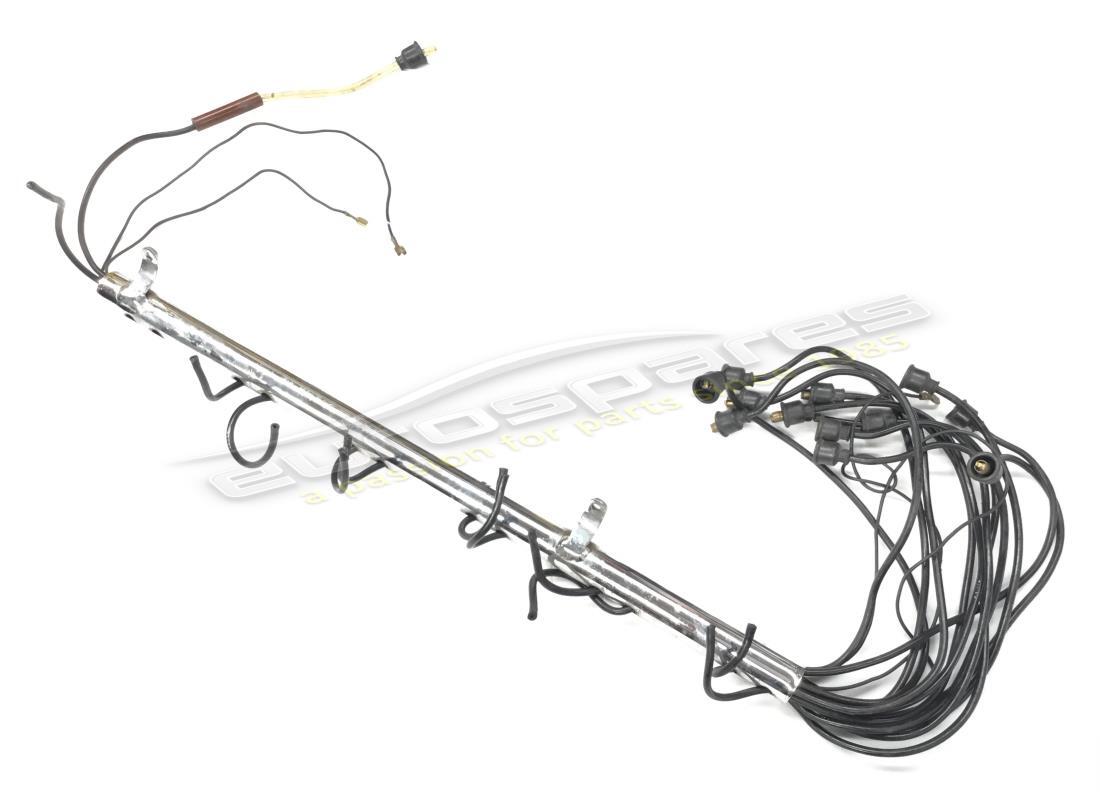

Complete HT Lead Set
(valid for cars with injection)
from
£530.98
from
£530.98
#
000
MPN:
MHT002
Complete HT Lead Set
(valid for carburettor cars)
from
£521.74
from
£521.74
#
001
MPN:
ME61867
DISTRIBUTOR CAP
from
£556.52
from
£556.52
#
002
MPN:
Mar ST.111DTM/515
SCREW
#
003
MPN:
Mar 90024-6
WASHER
#
004
MPN:
Mar 566/47
CARBONCINO CON MOLLA
#
005
MPN:
ME61868
ROTOR ARM
from
£339.12
from
£339.12
#
006
MPN:
Mar 90010-191
SCREW
#
007
MPN:
Mar 90052-31
WASHER
#
008
MPN:
Mar 90029-51
SCREW
#
009
MPN:
Mar ST.100DTEM/141
FLANGETTA RITEGNO CUSCINETTO
#
010
MPN:
Mar CSC-48953
CUSCINETTO A SFERE
#
011
MPN:
Mar ST.111DTEM/301
SCREW
#
012
MPN:
Mar ST.111DTEM/41-42
BRACKET WITH RIGHT AND LEFT CONTACT
#
013
MPN:
Mar ST.111DTEM/31
PLATE WITH FIXED PARTS
#
014
MPN:
Mar ST.207DTEM/14
SUPPORT
#
015
MPN:
Mar ST.100DTEM/142
FLANGETTA RITEGNO CUSCINETTO
#
016
MPN:
Mar 90070-6
WASHER
#
017
MPN:
Mar 90055-301
WASHER
#
018
MPN:
Mar 95012/68
WASHER
#
019
MPN:
Mar ST.111DTEM-60
LONG ROTOR CONNECTION 25 TO 100 MM
#
020
MPN:
Mar 9579-17
TERMINAL FOR CONNECTION
#
021
MPN:
Mar ST.111DTEM/10
CORPO
#
022
MPN:
Mar ST.111DTEM/100
SCREW
#
023
MPN:
Mar ST.100DTEM/101
PIASTRRINA ISOLANTE
#
024
MPN:
Mar ST,I00DTEM/710
INSULATING BLOCK
#
025
MPN:
Mar 90021-51
WASHER
#
026
MPN:
Mar 90001-51
NUT
#
027
MPN:
Mar 90024-5
WASHER
#
028
MPN:
Mar CE 1 E
CONDENSOR
#
029
MPN:
Mar 90021-51
WASHER
#
030
MPN:
Mar 90024-5
WASHER
#
031
MPN:
Mar 90028-21
SCREW
#
032
MPN:
Mar 90046-061
SEEGER RING
#
033
MPN:
Mar 90056-18
WASHER
#
034
MPN:
Mar ST.100DTEM/25C
MASSA DALL'ANTICIPO
#
035
MPN:
Mar ST.111DTEM/27A
CAM WITH FORK
#
036
MPN:
Mar AS.17/503
RULLINA PER PERNO MASSA ANTICIPO
#
037
MPN:
Mar ST,100DTEM/212
PUNTALINO CON MOLLA
#
038
MPN:
Mar ST.100DTEM/211
BUSSOLA GUIDA MOLLA
#
039
MPN:
Mar ST.1000TEM/216C
SPRING
#
040
MPN:
Mar 90056/76
WASHER
#
041
MPN:
Mar ST100DTEM/21A
SHAFT WITH COMPLETE EARTH BOX
#
042
MPN:
Mar MVE108/112
SCREW
#
043
MPN:
Mar 90071871
CHIETTA PER ALBERO
#
044
MPN:
Mar ST.100DTEM/151
BEARING RETAINING FLANGE
#
045
MPN:
Mar CSC-48952
CUSCINETTO A SFERE
#
046
MPN:
Mar 90052-61
WASHER
#
047
MPN:
Mar 90028-51
SCREW
#
048
MPN:
Mar ST.100DTEM/15
SUPPORT
#
049
MPN:
Mar 90064-11
SEEGER RING
#
050
MPN:
Mar Norm. 18115/12
WASHER
#
051
MPN:
Mar 20875
NUT
#
052
MPN:
Mar 5350/43531
SPARK JOINT BUSH
#
053
MPN:
Mar CSN/47376
HIGH VOLTAGE CABLE FROM THE COIL TO THE DISTRIBUTOR
#
054
MPN:
Mar CSN/47374
FILO CONDUTTORI CANDALE
#
055
MPN:
Mar CSN/47377
LOW VOLTAGE WIRE BETWEEN COIL AND DISTRIBUTOR
#
056
MPN:
Mar 5260/45128
SPINTEROGENO MARELLI ST. 111DTEM ROTAZIONE DESTRA
#
057
MPN:
Mar 5349/46218
SPACER BETWEEN SUPPORT AND DISTRIBUTOR
#
058
MPN:
Mar BN/50324
BOLT
#
059
MPN:
Mar RNT/47210
WASHER
#
060
MPN:
Mar DC/35730
NUT
#
061
MPN:
Mar CPN/32934
Capuccio di protezione
#
062
MPN:
Mar PFN/47440
GROMMET
#
063
MPN:
Mar 5462/47458
Innesto di condotti per candale d'accensione
#
064
MPN:
Mar 5300/32916
CANDELE PER USO NORMALE LODGE 3HLN; USO SPORTIVO LODGE RL47
#
065
MPN:
Mar LN/42318
LINGUETTA 3X3X10 GIUNTO SPINTEROGNENE
#
066
MPN:
Mar BN/50325
BOLT
#
067
MPN:
Mar DN/48127
NUT
#
068
MPN:
Mar RSN/33667
WASHER
#
069
MPN:
Mar RN/32423
WASHER
#
070
MPN:
Mar 5351/50210
Spark joint body
#
071
MPN:
Mar GOM/46824
RUBBER 22X16X3 FOR SPARK PLUG WIRING HARNESS AT THE MANIFOLD OUTLET
#
072
MPN:
MC47123
HT LEADS SET
from
£419.95
from
£419.95
#
073
MPN:
Mar PFN/45173
GROMMET
#
074
MPN:
Mar RN/49273
WASHER 5X12X0,5 FOR COIL TERMINALS
#
075
MPN:
Mar RSN/32497
WASHER
#
076
MPN:
Mar DN/47046
NUT
#
077
MPN:
Mar 5360/32926
CAPPUCCIA GOMMA PER BOBINA
#
078
MPN:
Mar CSN/47377
Low voltage wire between the two coils
#
079
MPN:
Mar 5275/48043
WASHER
#
080
MPN:
Mar 5360/48137
BOBINA D'ACCENSIONE MARELLI TIPO 58 11 DTEM
#
081
MPN:
Mar 7128/48035
PUNTALINO PER FISSAGGIO DINEMO
#
083
MPN:
RNT47075
WASHER
This part replaces part number 47075
#
084
MPN:
RSN 3 2 6 3 5
WASHER
#
085
MPN:
DNT. 47031
NUT
#
086
MPN:
DNT. 47031
NUT 8X1.25X8
#
087
MPN:
RNT47075
WASHER
This part replaces part number 47075
#
088
MPN:
Marelli 90004-31
NUT
#
089
MPN:
Marelli 90024-10
WASHER
#
090
MPN:
7110-48026
PULLEY FOR FAN AND DYNAMO CONTROL
#
091
MPN:
BN/48939
BOLT
#
092
MPN:
5353/42983
MANICOTTO DI TRASCINEMENTO SPINTEROGENO
#
093
MPN:
5343/50326
RING
#
094
MPN:
5345/50327
DRIVING SLEEVE FOR SPARK JOINT
#
095
MPN:
ANT/45168
SEALING RING
#
096
MPN:
G.H.N/42625
RING 20X1X7 FOR FIXING THE THRUST CONTROL DRIVEN GEAR.
#
097
MPN:
RL/47252
WASHER
#
098
MPN:
DN/42890
NUT
#
099
MPN:
RAT/45679
WASHER
#
100
MPN:
PN48700
THREADED STUD
#
101
MPN:
5264/49659
SUPPORT
#
102
MPN:
5266/47216
GASKET OR SEAL
#
103
MPN:
CSC43806
BEARING 20X42X12 FOR GENERATOR CONTROL GEAR
#
104
MPN:
5262/49660
SPACER FOR GENERATOR CONTROL GEAR BEARING
#
105
MPN:
RN/49657
WASHER
#
106
MPN:
ART/47948
SEEGER RING
#
107
MPN:
LN/42318
Linguetta 3X3X10 sull'ingranaggio comando spinterogeno
#
108
MPN:
5274/48025
GENERATOR CONTROL GEAR
#
109
MPN:
TN/49661
TAPPO 34X1,5X14 SULL'INGRANAGGIO COMANDO SPINTEROGENO
#
110
MPN:
7110/48041
DINEMO MORELLI Y 250W 12V
#
111
MPN:
7006/49993
LIMIERA DI PROTEZIONE MOTORINO D'AVVIAMENTO
#
112
MPN:
BNT 50309
BOLT
#
113
MPN:
RSN 3 2 4 9 7
WASHER
#
114
MPN:
BNT/50460
BOLT
#
115
MPN:
RSN/32690
WASHER
#
116
MPN:
7004/49991
STARTER MOTOR PROTECTION SHEET METAL BAND
#
117
MPN:
DNT/42890
NUT
#
118
MPN:
7000/45521
MOTORINO D'AWIAMENTO MARELLL MT 23 A 12 D9
#
119
MPN:
PN48126
THREADED STUD
#
120
MPN:
Marelll MDSK 2.162
Dynamo brush
