029 - 5 Speed Gear Box

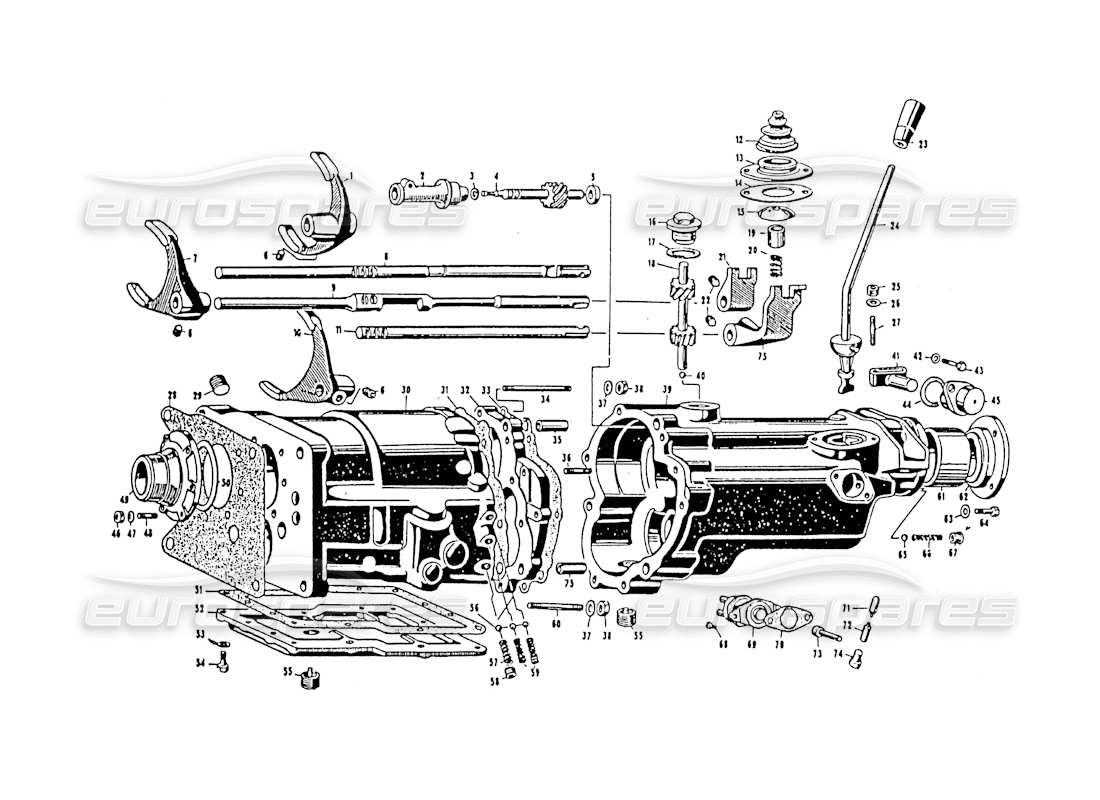

Maserati 3500 GT 5 Speed Gear Box Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
101/9 - TC 60549
SELECTOR FORK 1ª AND 2ª SPEED UPTO GEARBOX NO. 1600
#
001
MPN:
101/9 TC 60550
SELECTOR FORK 1ª and 2ª SPEED from gearbox No. 1601
#
002
MPN:
101/9 TC 60551
UNION
#
003
MPN:
GOM 60654
RUBBER Ø 6X10X2 FOR KM COUNT CONTROL SHAFT.
#
004
MPN:
101/9 TC 60552
Alberina comando conta Km. .
#
005
MPN:
101/9 - TC 60553
DISTENZIALE PER DETTO
#
006
MPN:
101/9 - TC 60555
CONTROL FORK FIXING SCREW BRAND FROM GEARBOX NO. 1601
#
006
MPN:
107 TC 58861
CONTROL FORK FIXING GRAIN BRAND
#
007
MPN:
101/9 - TC 60556
SELECTOR FORK 3ª AND 4ª SPEED FROM GEARBOX NO 1601
#
007
MPN:
101/9 TC 60554
SELECTOR FORK 3ª AND 4ª SPEED
#
008
MPN:
101/9 - TC 60557
ASTA COMANDO 1ª E 2ª VELOCITÀ
#
008
MPN:
101/9 TC 60558
Asta comando 1ª e 2ª velocitÀ dal cambio No 1601
#
009
MPN:
101/9 TC 60559
ASTA COMANDO 3ª E 4ª VELOCITÀ
#
010
MPN:
101/9 - TC 60560
SELECTOR FORK Rª AND 5ª SPEED
#
011
MPN:
101/9 - TC 60561
ASTA COMANDO Rª E 5ª VELOCITÀ
#
012
MPN:
101/9 TC 60562
Parapolvere leva comado cambio
#
013
MPN:
101/9 TC 60563
FLANGIA TENUTA PARAPOLVERE
#
014
MPN:
101/9 - TC 60564
GASKET OR SEAL
#
015
MPN:
101/9 - TC 60565
CALOTTO SFERICA TENUTA MOLLA LEVA COMADO CAMBIO
#
016
MPN:
101/9 TC 60566
Cap on the Km control shaft box.
#
017
MPN:
GN 60655
GASKET OR SEAL
#
018
MPN:
101/9 TC 60567
Km counting control gear shaft assembly.
#
019
MPN:
101/9 TC 60568
BUSH
#
020
MPN:
101/9 TC 60569
SPRING
#
021
MPN:
101/9 - TC 60570
NOTTOLINO PER ASTE COMANDO 3ª E 4ª VELOCITÀ
#
022
MPN:
101/9 - TC 60555
BRAND CONTROL PATCH FIXING GRAIN
#
023
MPN:
10/7 TC 54380
Pomello per leva comando cambio
#
024
MPN:
101/9 - TC 60571
LEVER
#
025
MPN:
DNT 62558
NUT
#
026
MPN:
RAT/45680
WASHER
#
027
MPN:
PN 43733
STUD
#
028
MPN:
101/9 - TC 60572
GASKET OR SEAL
#
029
MPN:
107TC58907
TAPPO INTRODUZIONE OLIO
#
030
MPN:
101/9 - TC 60573
SCATOLA CAMBIO
#
031
MPN:
101/9 - TC 60574
GASKET OR SEAL
#
032
MPN:
101/9 TC 60575
GEARBOX INTERMEDIATE FLANGE
#
033
MPN:
101/9 - TC 60576
GASKET OR SEAL
#
034
MPN:
PN 45888
STUD
#
035
MPN:
101/9 TC 60577
CENTERING DUTCH FOR SAID
#
036
MPN:
PN 45843
STUD
from
£10.44
from
£10.44
#
037
MPN:
RAT/45680
WASHER
#
038
MPN:
DNT. 47031
NUT
#
039
MPN:
101/9 TC 60578
COVER
#
040
MPN:
PartNo]
SPHERE Ø 10 SUPPORT FOR KM COUNTER SHAFT
#
041
MPN:
101/9 TC 60579
Pawl for recalling neutral position rods
#
043
MPN:
BNT 54585
BOLT
#
044
MPN:
101/9 - TC 60658
GASKET OR SEAL
#
045
MPN:
101/9 TC 60580
BUSHING ASSEMBLY SEALING PAWL RECALL AND COM. REVERSE GEAR
#
046
MPN:
DNT 47047
NUT
#
047
MPN:
RAT/45679
WASHER
#
048
MPN:
PN 32658
THREADED STUD
#
049
MPN:
101/9 TC 60581
Mozzo mper albero presa continua
#
050
MPN:
101/9 TC 60582
RING
#
051
MPN:
101/9 TC 60583
GASKET OR SEAL
#
052
MPN:
101/9 - TC 60584
COVER
#
055
MPN:
107TC58907
TAPPO SCARICO OLIO
#
056
MPN:
PartNo]
BALL FOR FORK ROD STOP SPRING
#
057
MPN:
101/9 - TC 60587
SPRING
#
058
MPN:
101/9 TC 60586
SPRING SEAL CAP AND FORK ROD STOP BALL
#
059
MPN:
101/9 TC 60585
SPRING
#
060
MPN:
PN 56066
THREADED STUD
#
061
MPN:
101/9 - TC 60588
BUSH FOR SLIDING SHAFT
#
062
MPN:
101/9 - TC 60589
FLANGE ON THE REAR COVER
#
063
MPN:
RAT/45679
WASHER
#
064
MPN:
BNT 54585
BOLT
#
065
MPN:
SFN 60657
SPHERE Ø 6,5 FOR NEUTRAL LEVER RETURN SPRING
#
066
MPN:
101/9 TC 60590
SPRING
#
067
MPN:
101/9 TC 60586
SPRING SEAL CAP AND FORK ROD STOP BALL
#
068
MPN:
VNT48934
SCREW
#
069
MPN:
8828 49536
INTERRUTTORE RETROMARCIA
#
070
MPN:
101 - TC 58848
GASKET OR SEAL
#
071
MPN:
101/9 TC 60591
Brand control rod plug
#
072
MPN:
101/9 - TC 60592
PIECE FOR SAID
#
073
MPN:
101/9 - TC 60593
GRIN FOR REVERSE SWITCH CONTROL
#
074
MPN:
101/9 TC 60586
Tappo tenuta tasseli per asta
#
075
MPN:
101/9 TC 60594
NOTTOLINO COMANDO 5ª E RETROMARCIA
