033 - Fuel Tank, Handbrake, Water Radiator

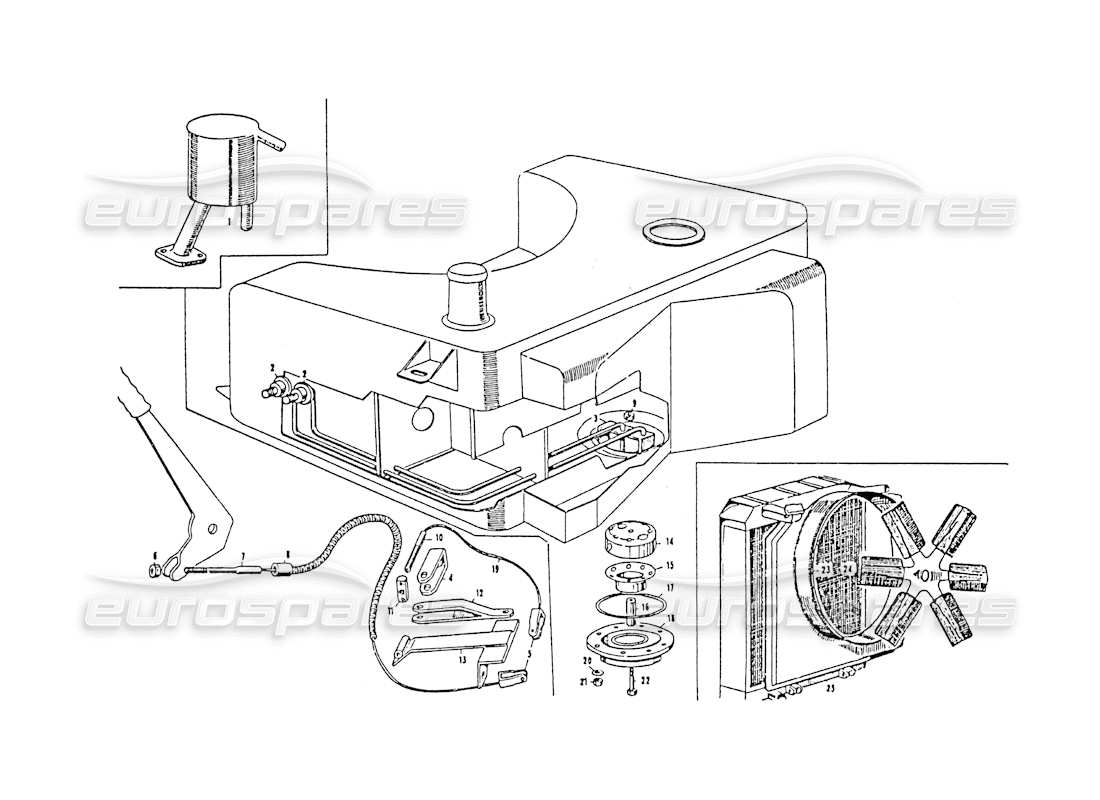

Maserati 3500 GT Fuel Tank, Handbrake, Water Radiator Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4322/52763
SOFFIANTE PER MOTORE INIEZIONE
# 002
MPN: 16050/32646
FUEL EXHAUST FITTING ASSEMBLY
# 003
MPN: 16123/52170
SEAL JUMPER Tubi PETROL EXHAUST SOCKET
# 004
MPN: 15670/52611
CAVALOTTO PER SNODO CAVI
# 005
MPN: 15650/52615
FORK
# 006
MPN: DN/47047
NUT
# 007
MPN: 15685/52612
TIE ROD
# 008
MPN: 15675/52616
COMPLETE CABLE FROM THE LEVER TO THE REAR BRAKES
# 009
MPN: DST/45666
NUT
# 010
MPN: 15689/52614
TIRENTE SUL LATO POSTERIORE DESTRO
# 011
MPN: 15681/52613
PIVOT FASTENING
# 012
MPN: 15684/52610
LEVER
# 013
MPN: 15502/52608
BRACKET / SUPPORT
# 014
MPN: 16117/52171
CAGE FOR PETROL INTAKE AND EXHAUST PIPE
# 015
MPN: 16119/52172
RING FOR CAGE Tubi PETROL INTAKE AND DISCHARGE
# 016
MPN: 16121/52173
SPACER BETWEEN THE COCKPIT AND THE PETROL INTAKE AND EXHAUST CAGE
# 017
MPN: GOM 52319
RUBBER Ø 80X75X2,5 FLANGE AND SOCKET SEAL
# 018
MPN: 16125/52169
PETROL INTAKE AND EXHAUST SOCKET
# 019
MPN: 15686/52609
COMPLETE CABLE FROM JOINT TO REAR BRAKE
# 020
MPN: RAT/45679
RONDALLA Ø 6,4X11X0,5 FISSAGGIO FLANGIA E POZZETTO
# 021
MPN: D5T/45669
NUT
# 022
MPN: BNT/52215
BOLT
# 023
MPN: 16256/52863
TUNNEL ON RADIATOR FOR FAN
# 024
MPN: 5002/52787
SIX BLADE FAN
# 025
MPN: 16254/50182
RADIATORE ACQUA
# 026
MPN: 16119/52216
INJECTION FUEL TANK
