Maserati 4200 Coupe (2002) Part Diagrams

000

SPARE ASSEMBLY UNITS

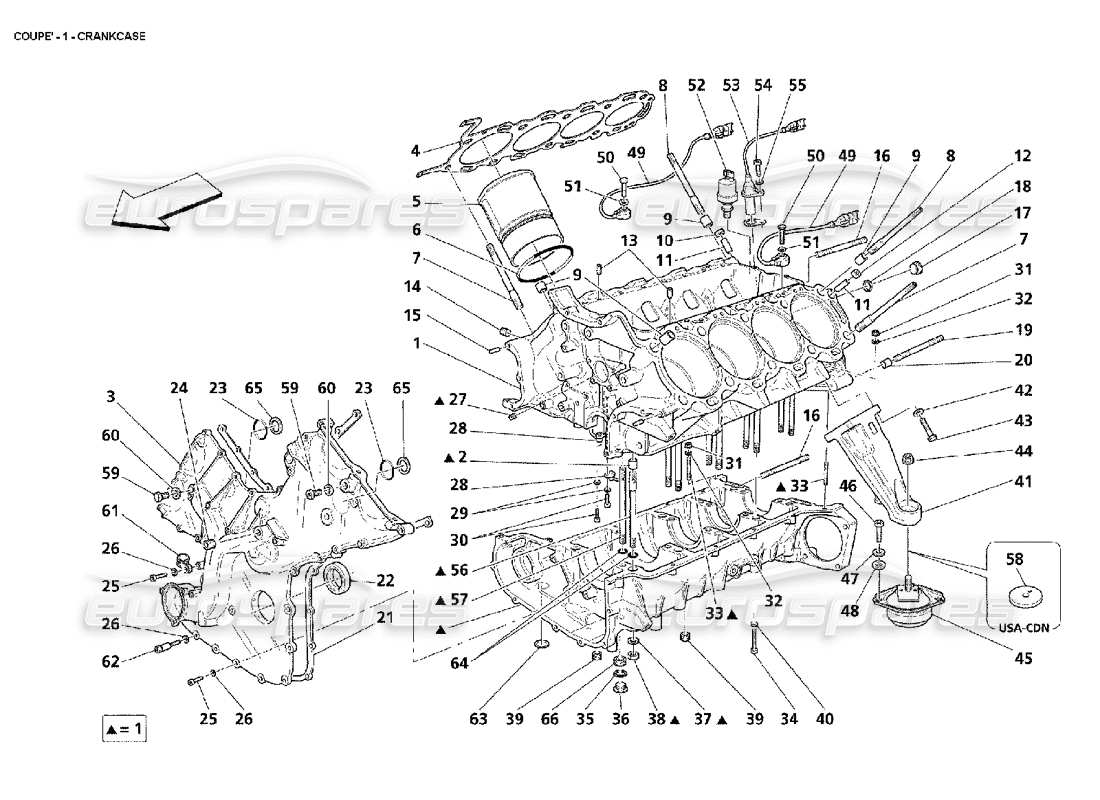

001

CRANKCASE

002

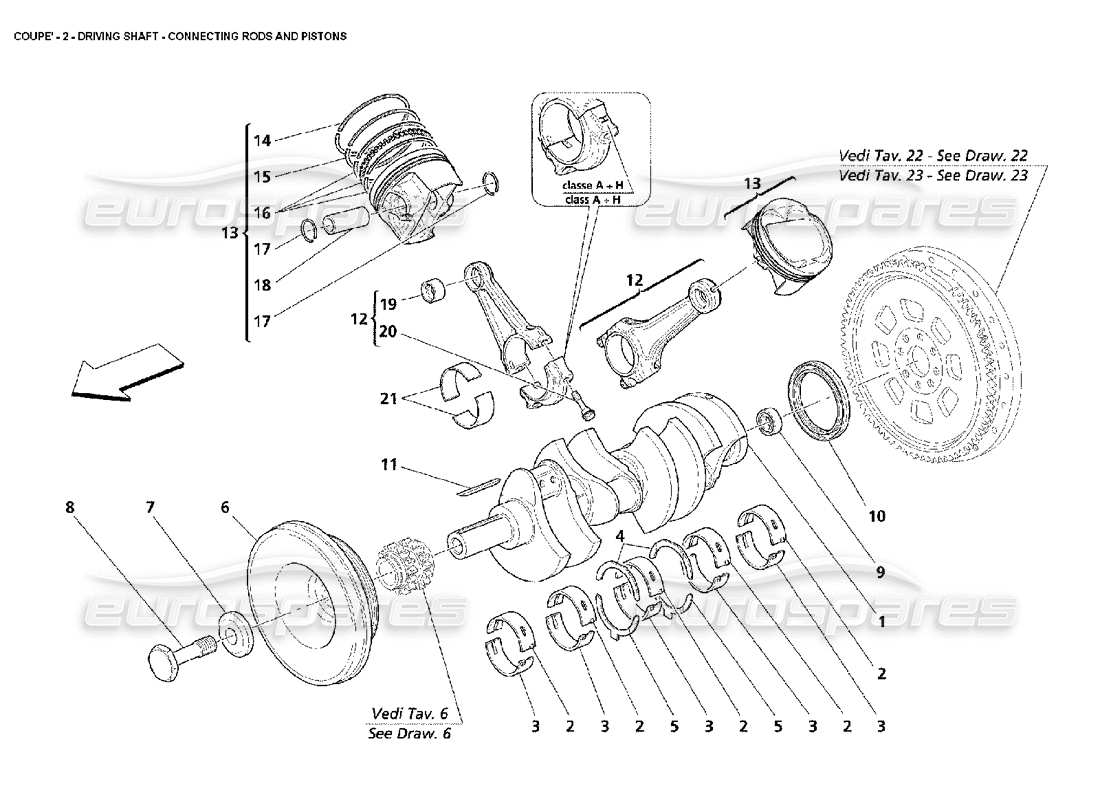

CRANKSHAFT CONRODS AND PISTONS

003

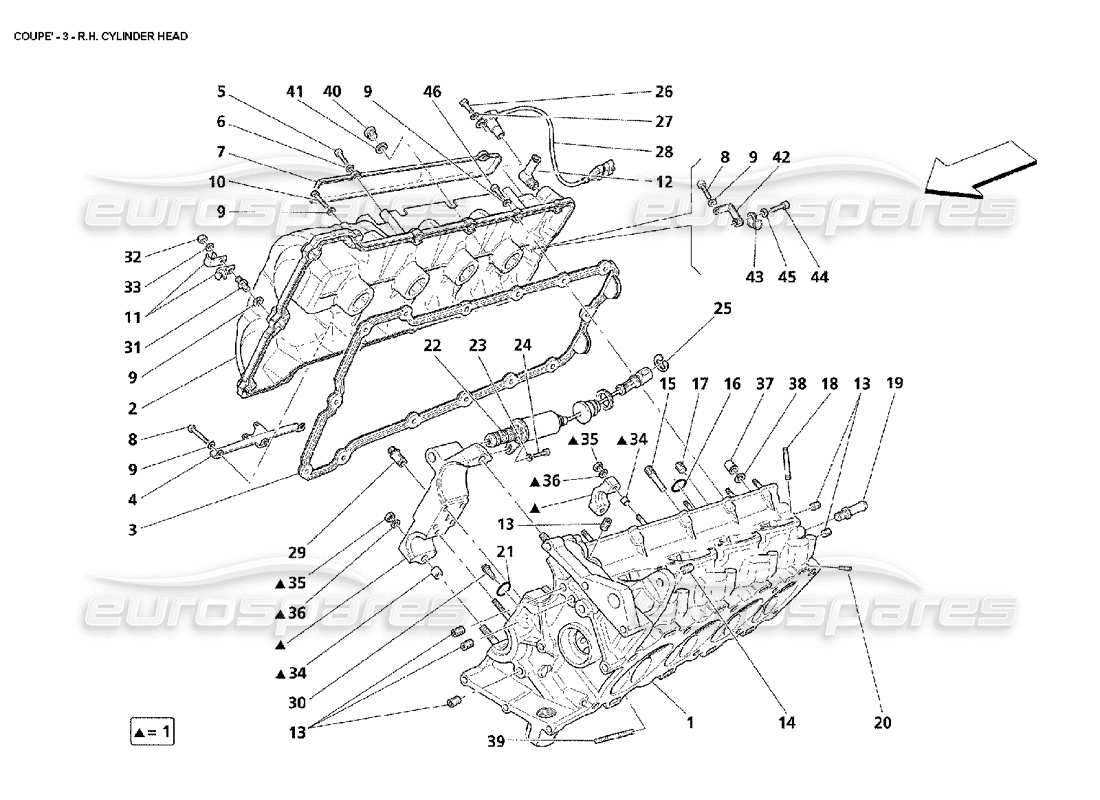

RH CYLINDER HEAD

004

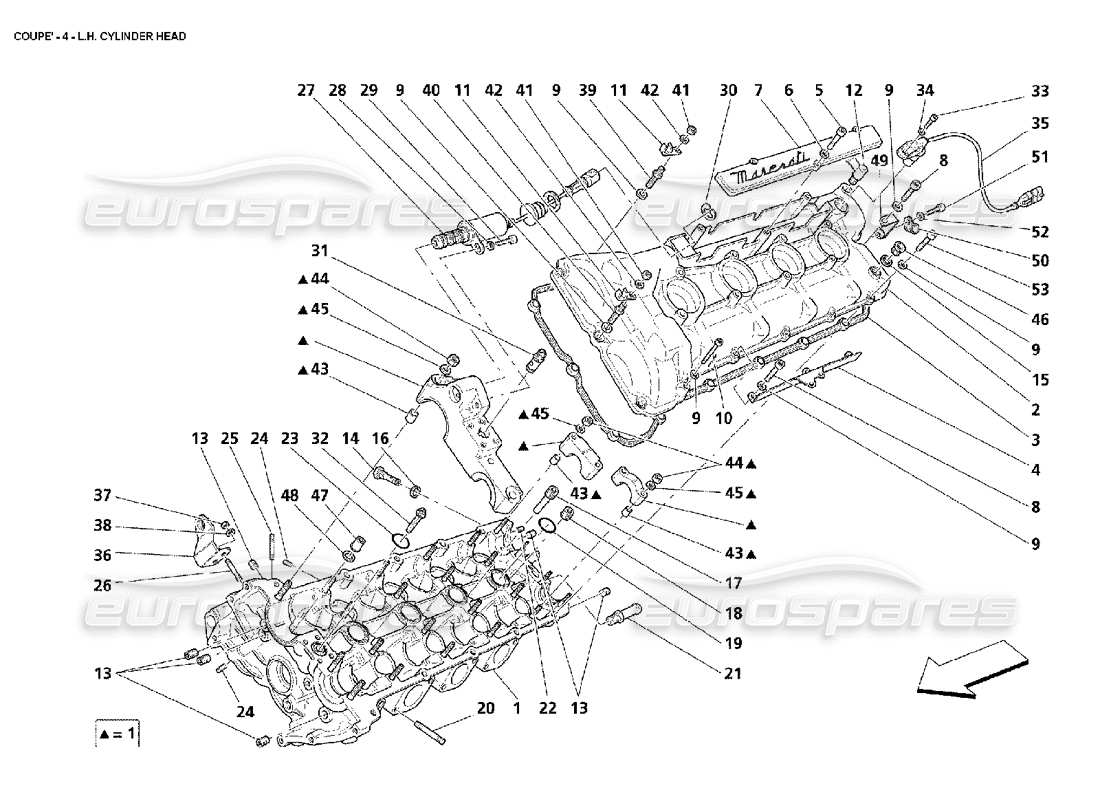

LH CYLINDER HEAD

005

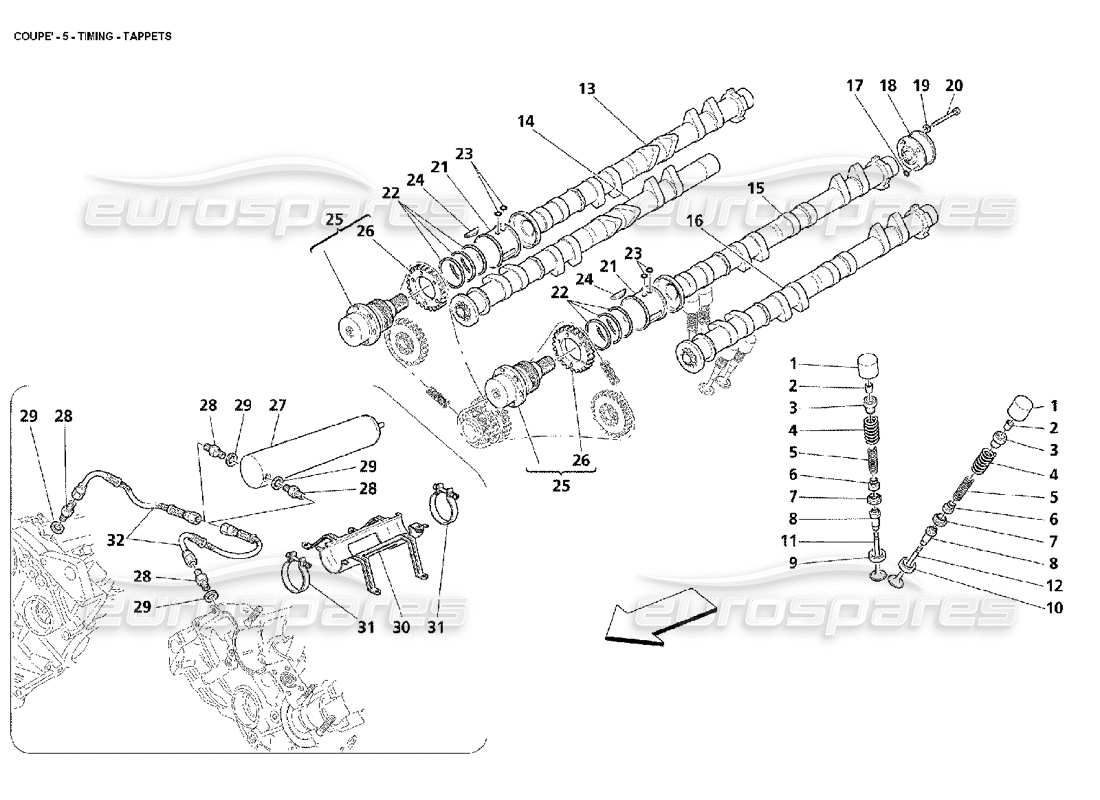

TIMING - TAPPETS

006

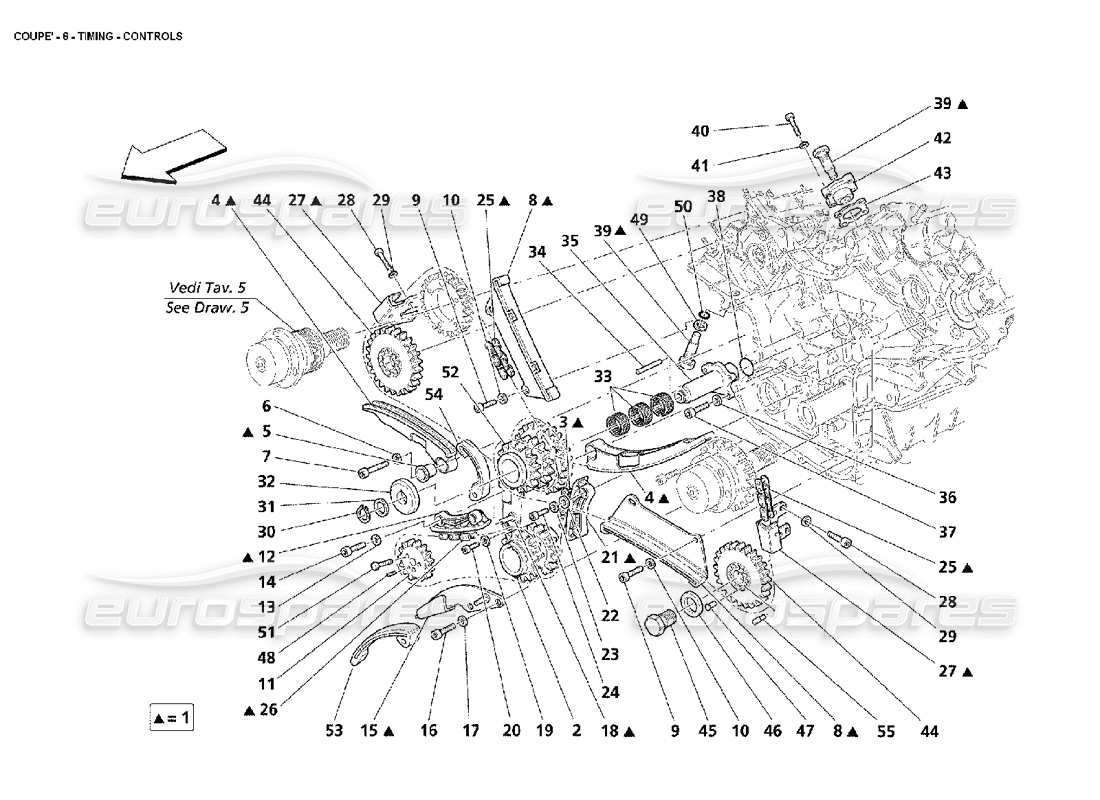

TIMING - CONTROLS

007

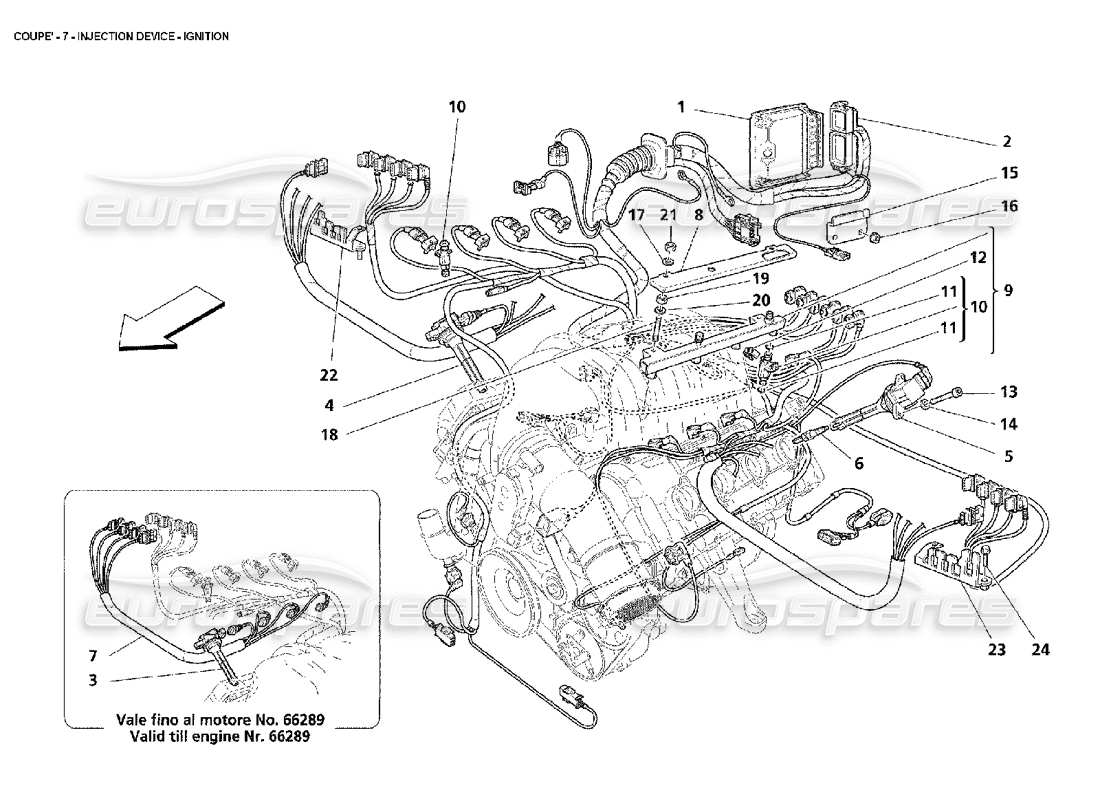

INJECTION DEVICE - IGNITION

008

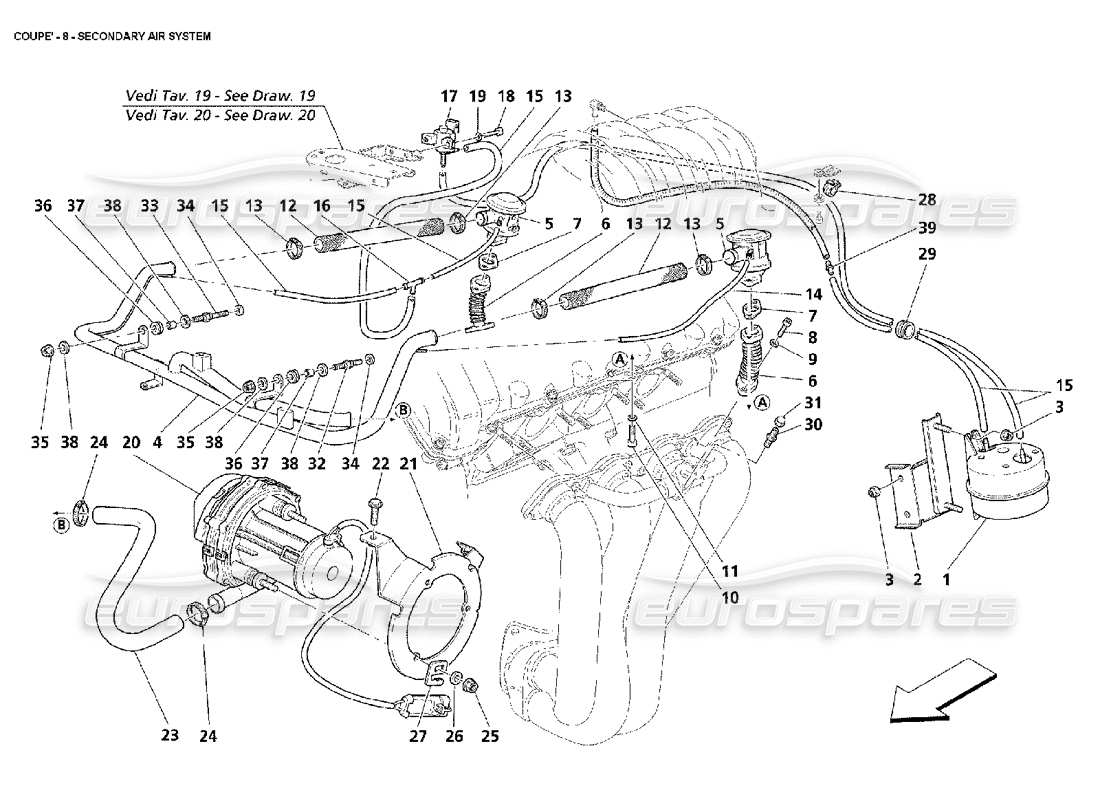

SECONDARY AIR SYSTEM

009

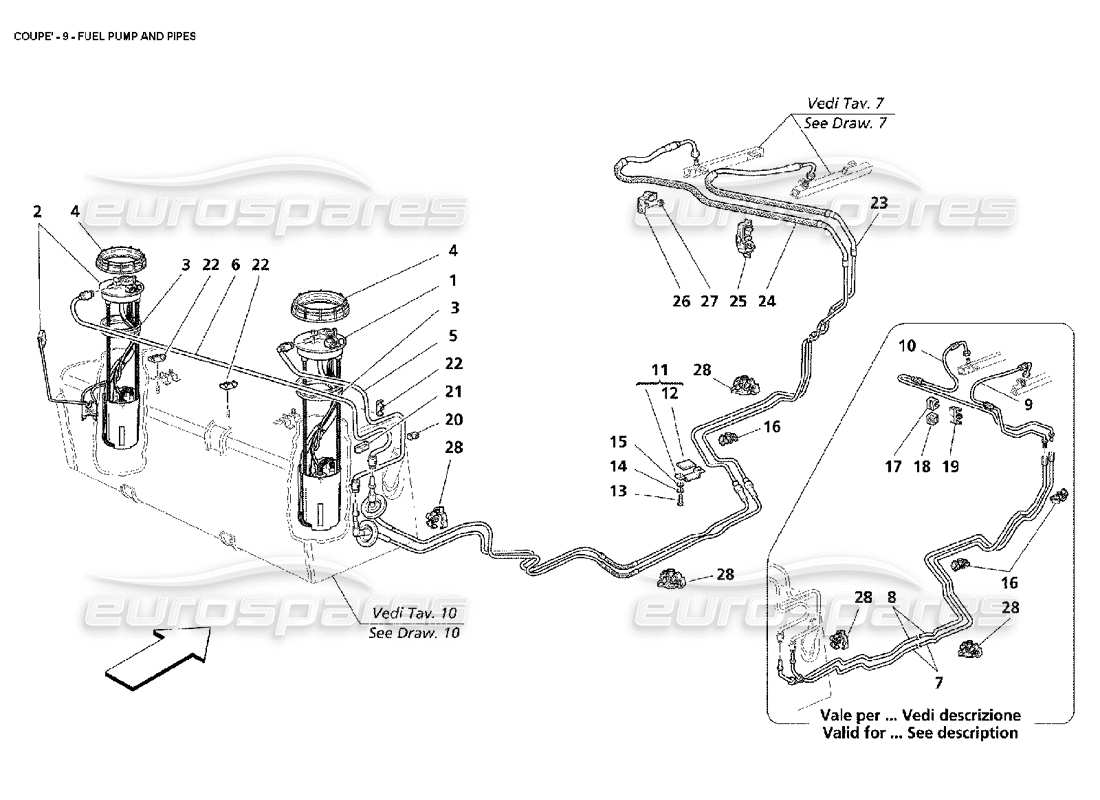

FUEL PUMP AND PIPES

010

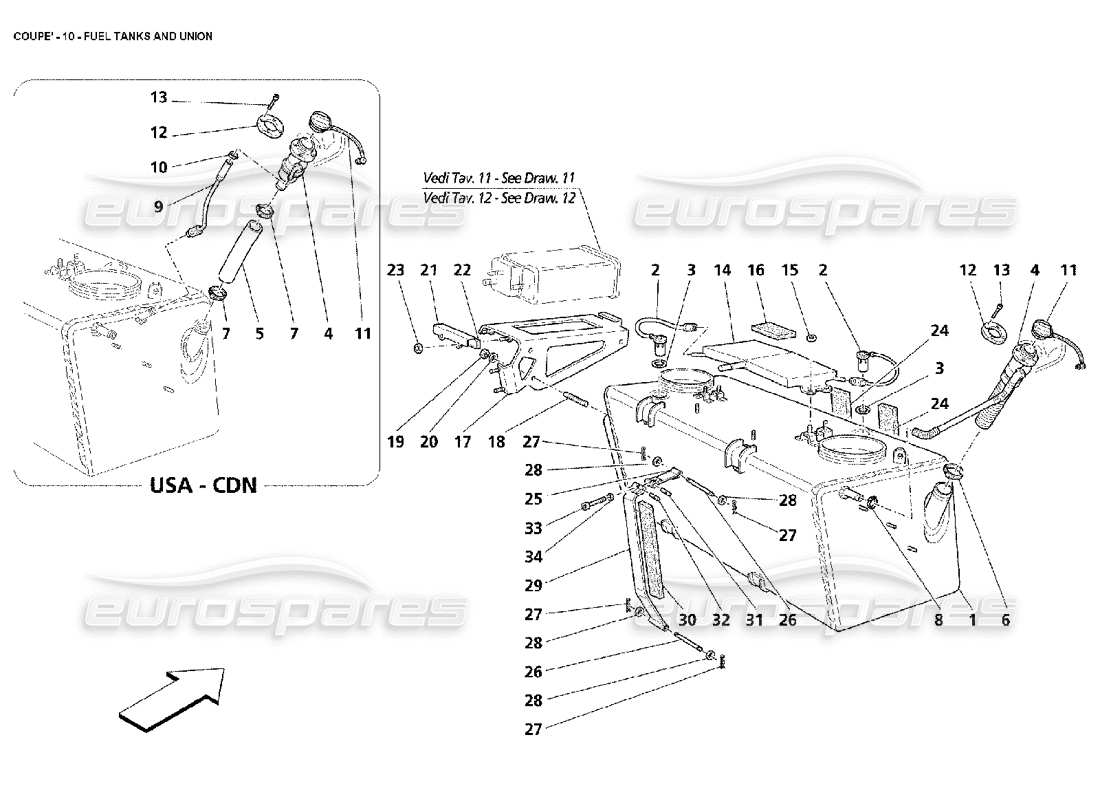

FUEL TANKS AND UNION

011

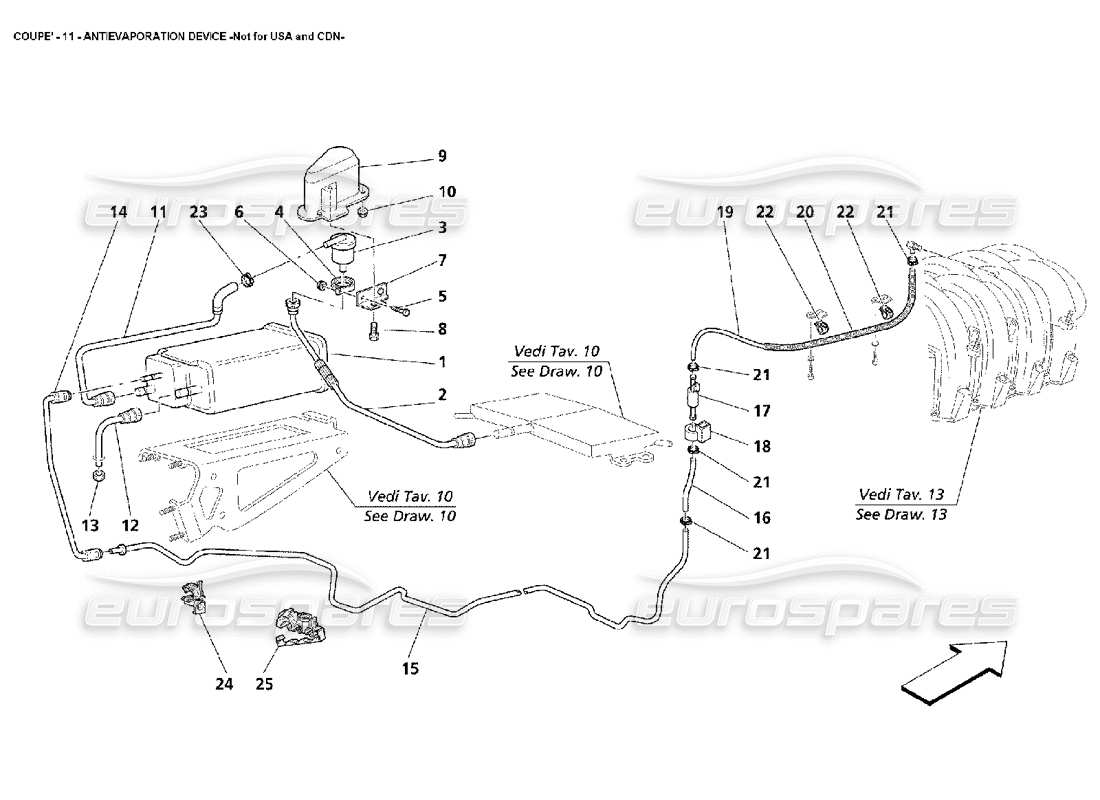

ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN

012

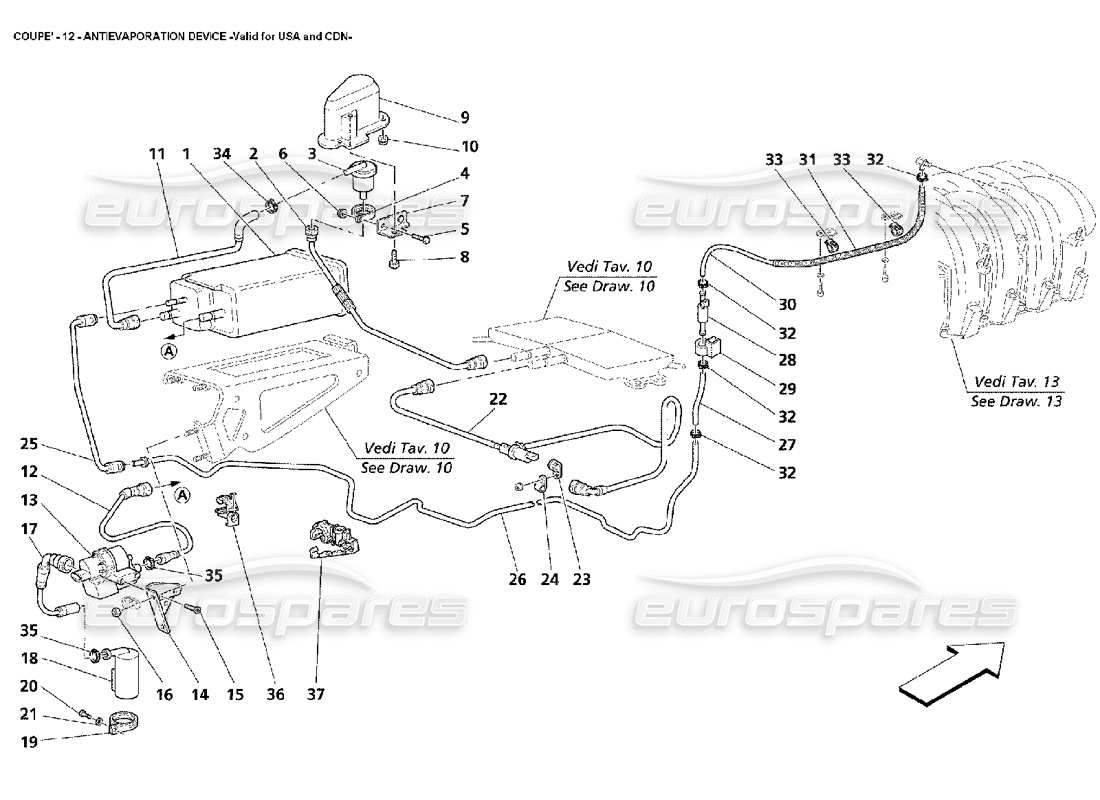

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN

013

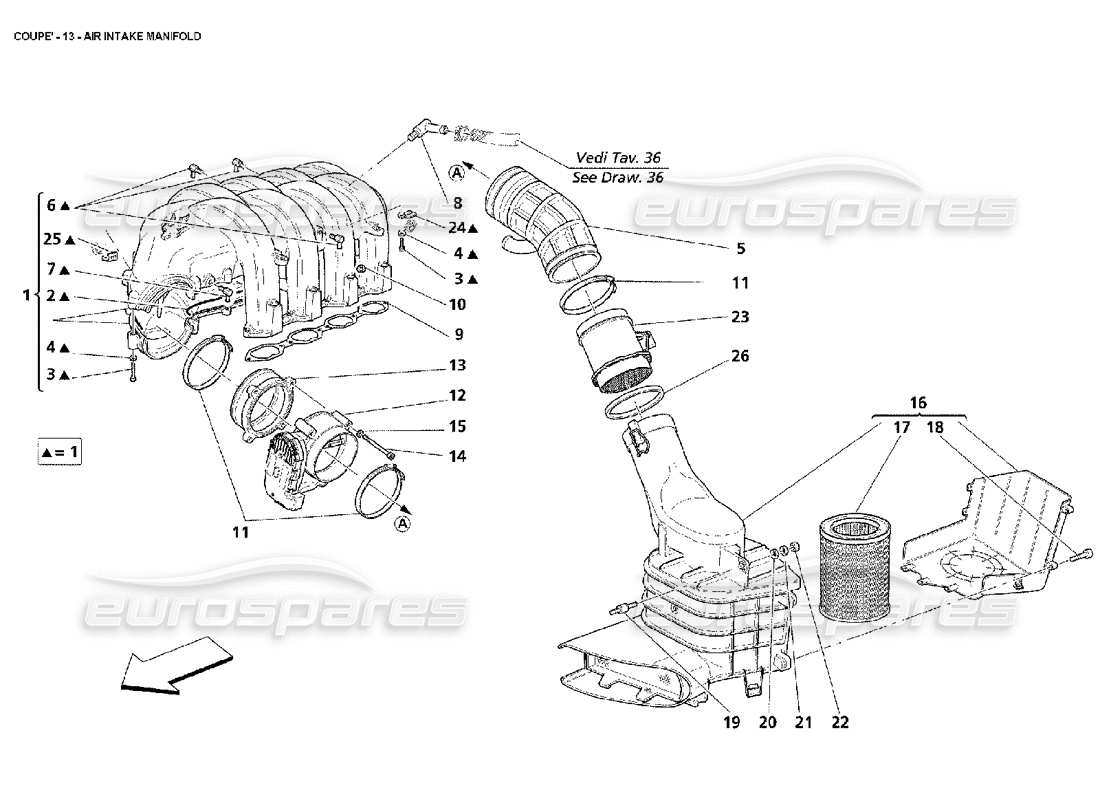

AIR INTAKE MANIFOLD

014

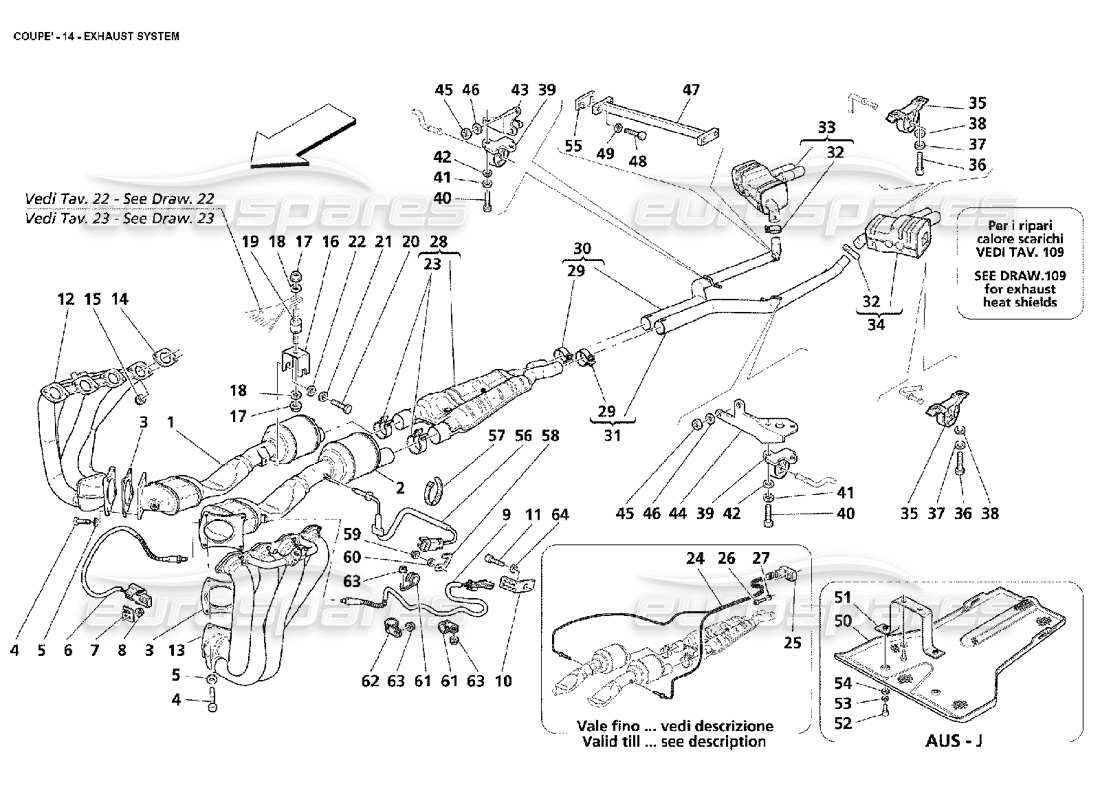

EXHAUST SYSTEM

015

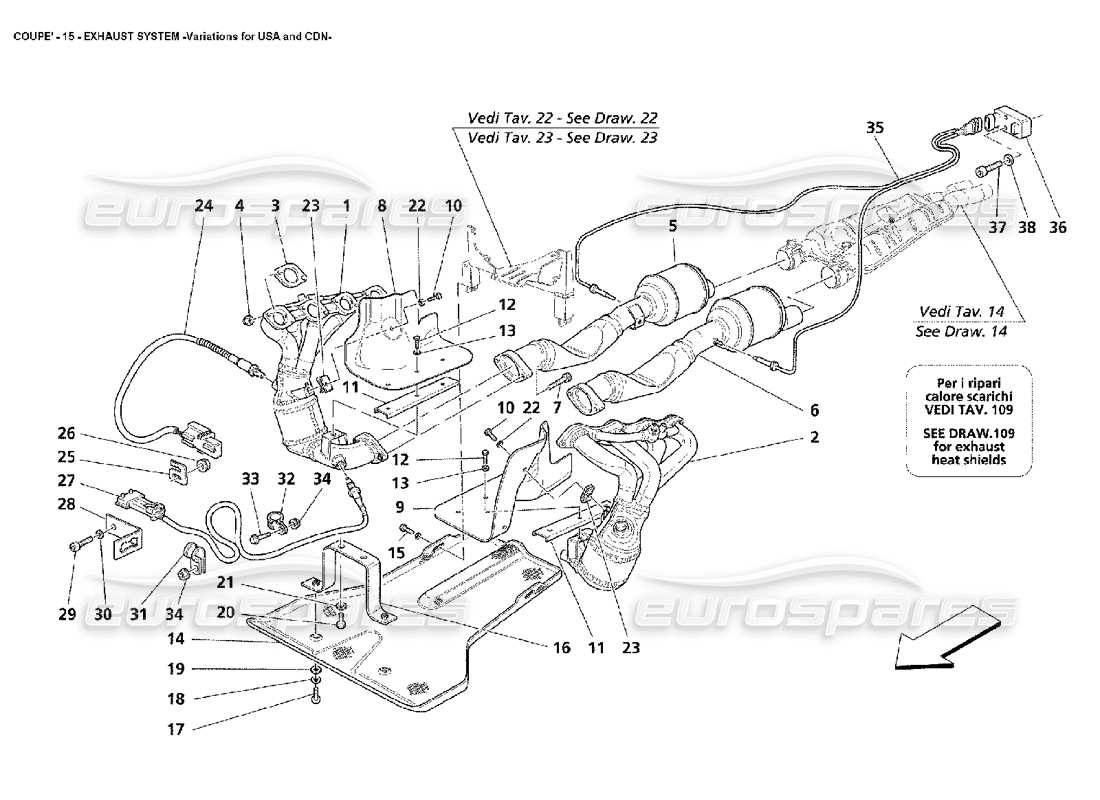

EXHAUST SYSTEM -VARIATIONS FOR USA AND CDN

016

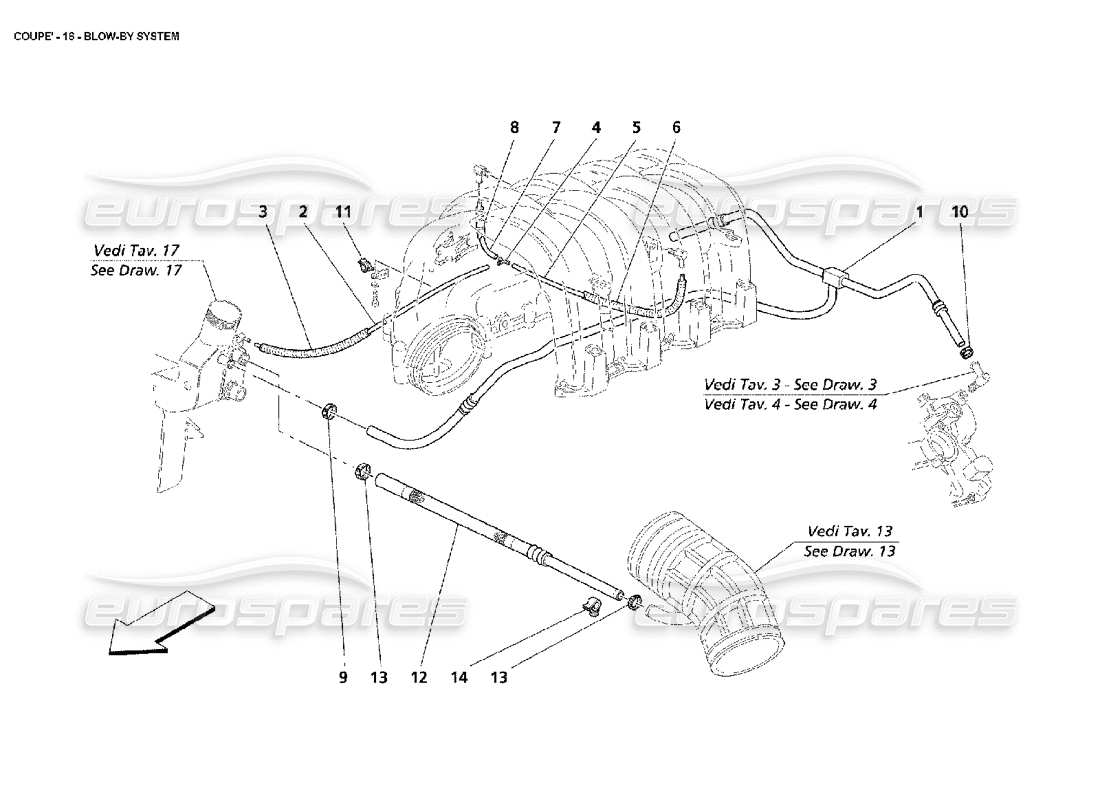

BLOW - BY SYSTEM

017

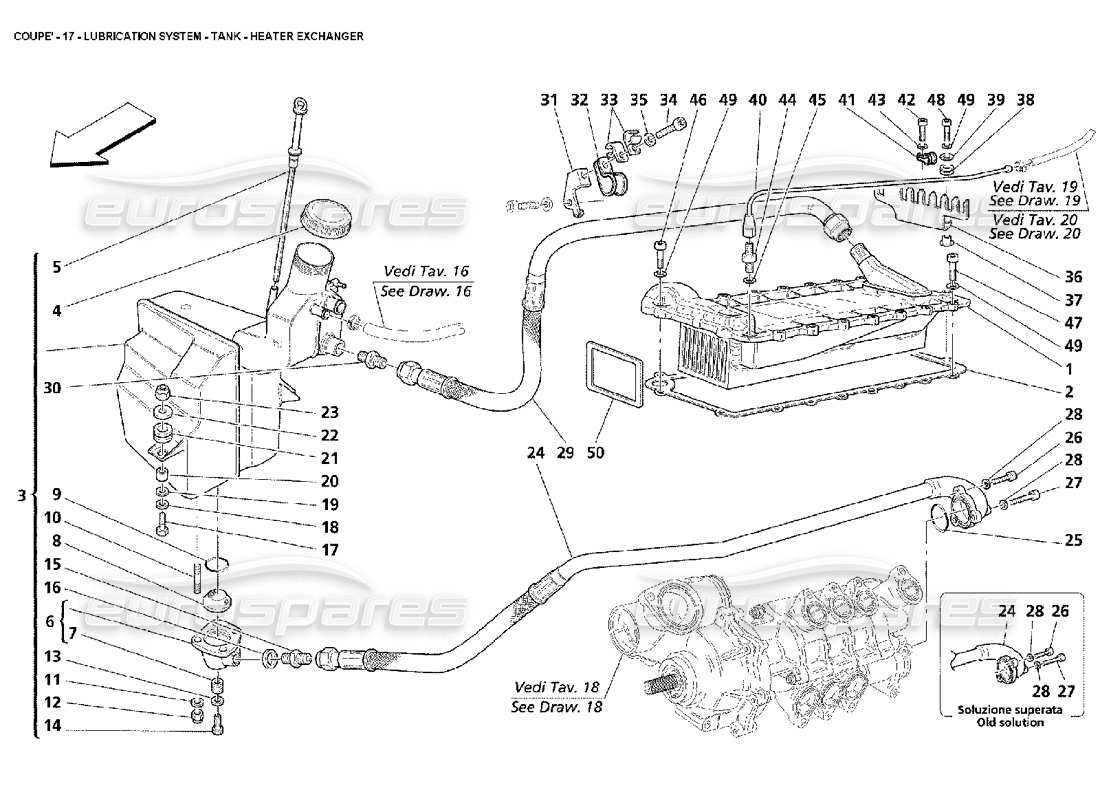

LUBRICATION SYSTEM - TANK - HEATER EXCHANGER

018

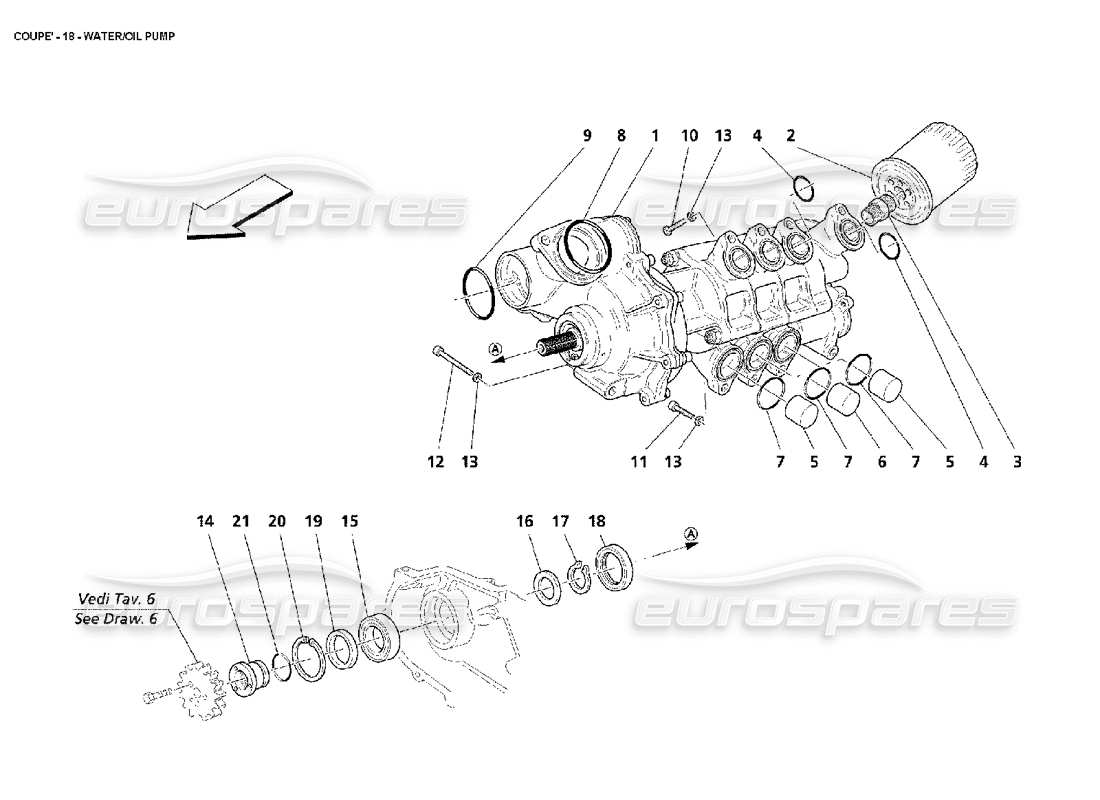

WATER-OIL PUMP

019

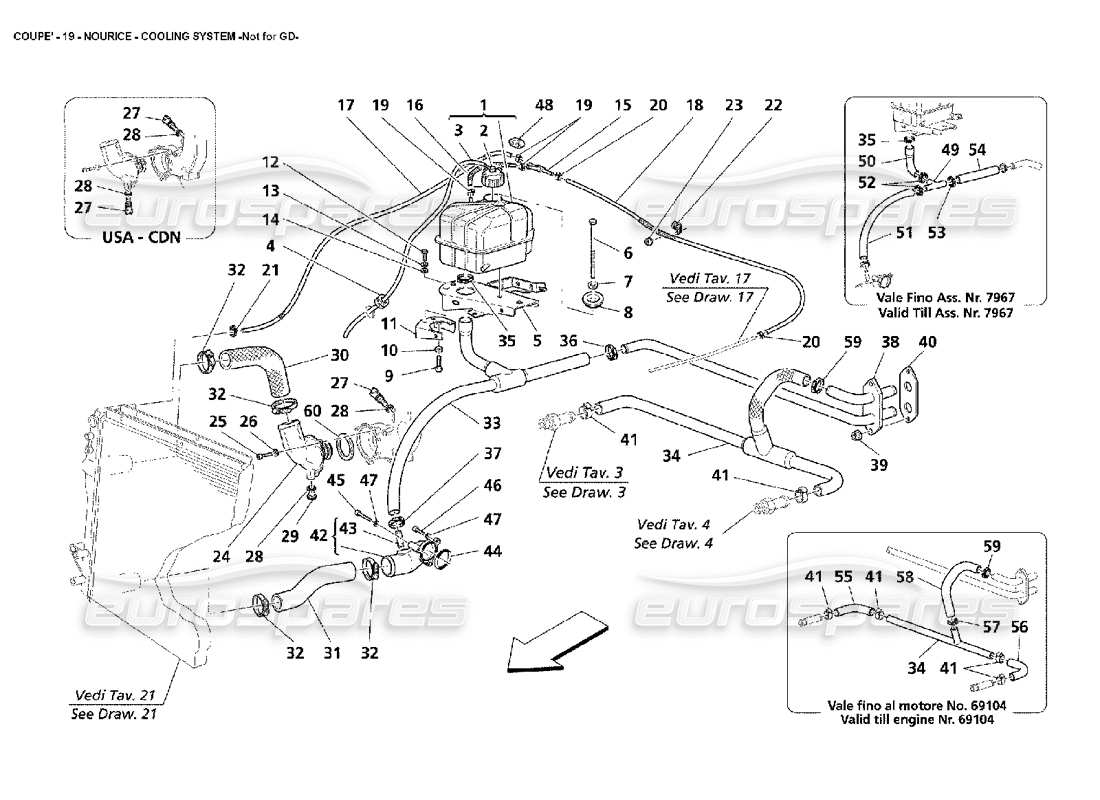

NOURICE - COOLING SYSTEM -NOT FOR GD

020

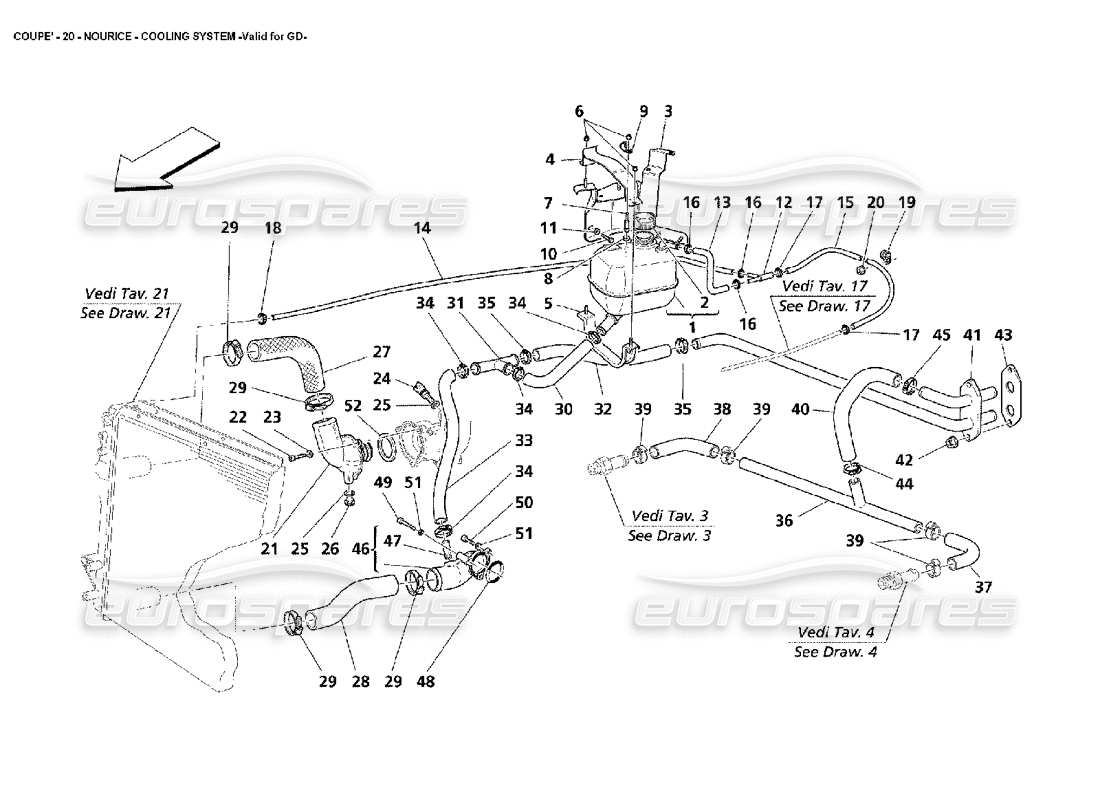

NOURICE - COOLING SYSTEM -VALID FOR GD

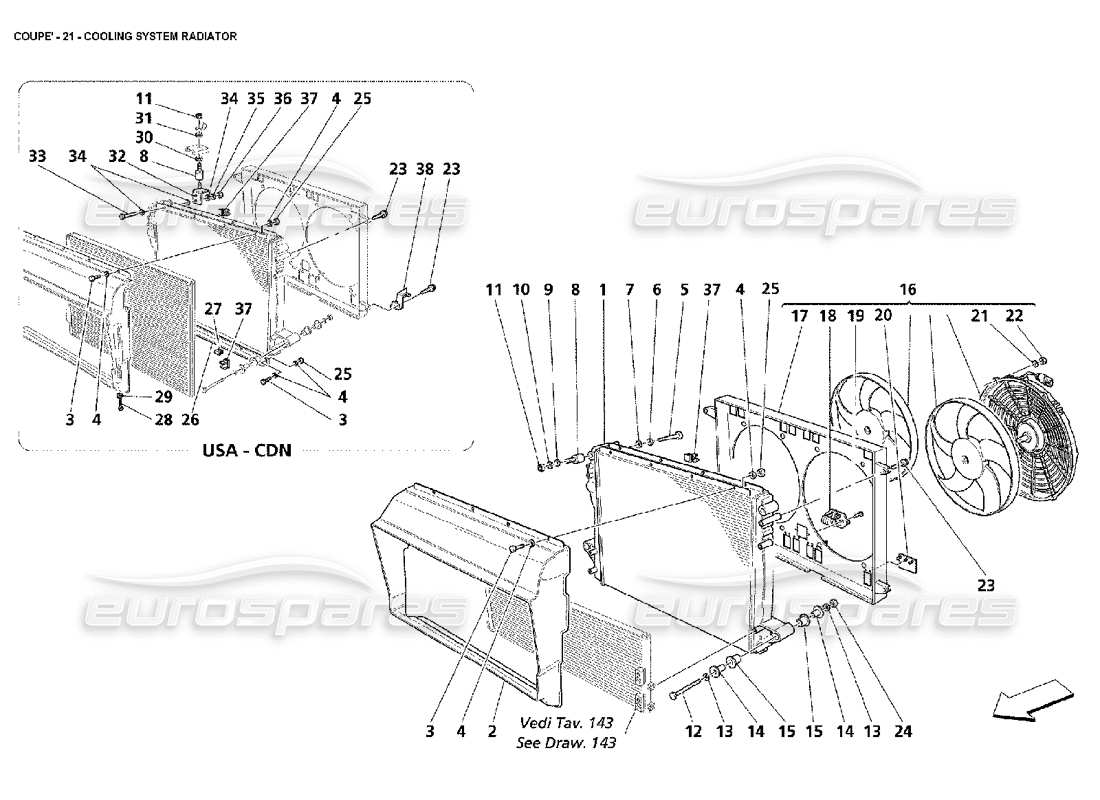

021

COOLING SYSTEM RADIATOR

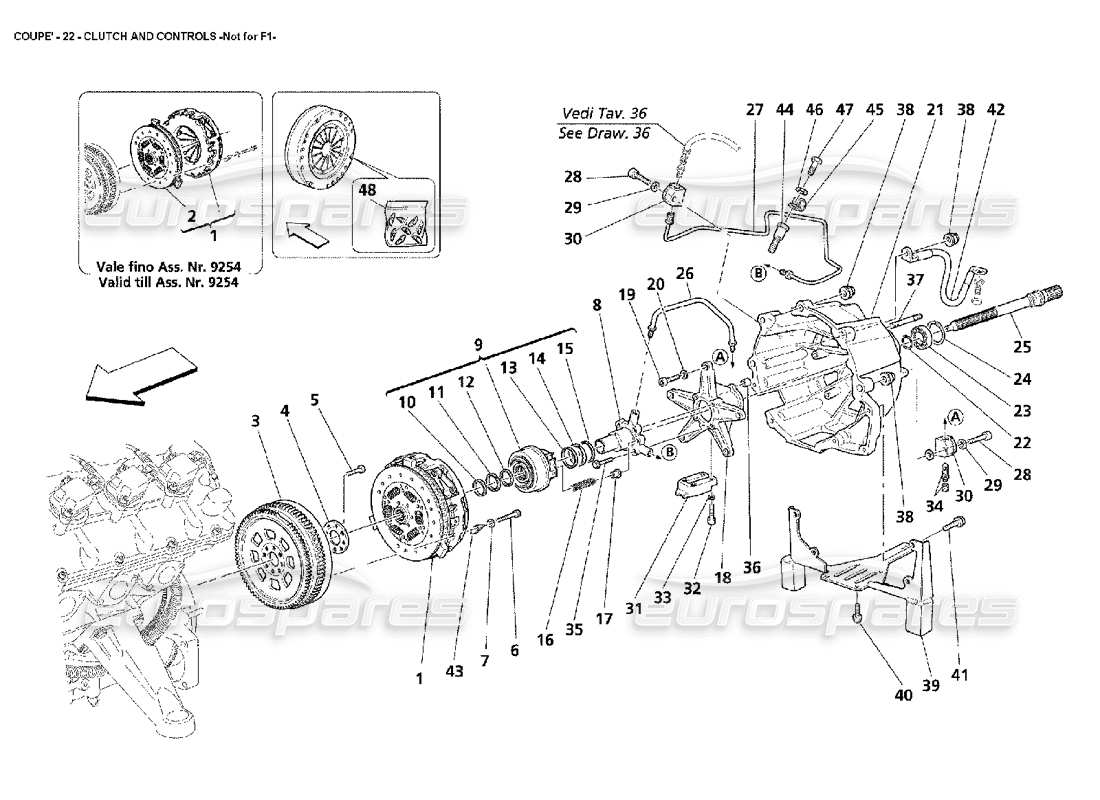

022

CLUTCH AND CONTROLS -NOT FOR F1

023

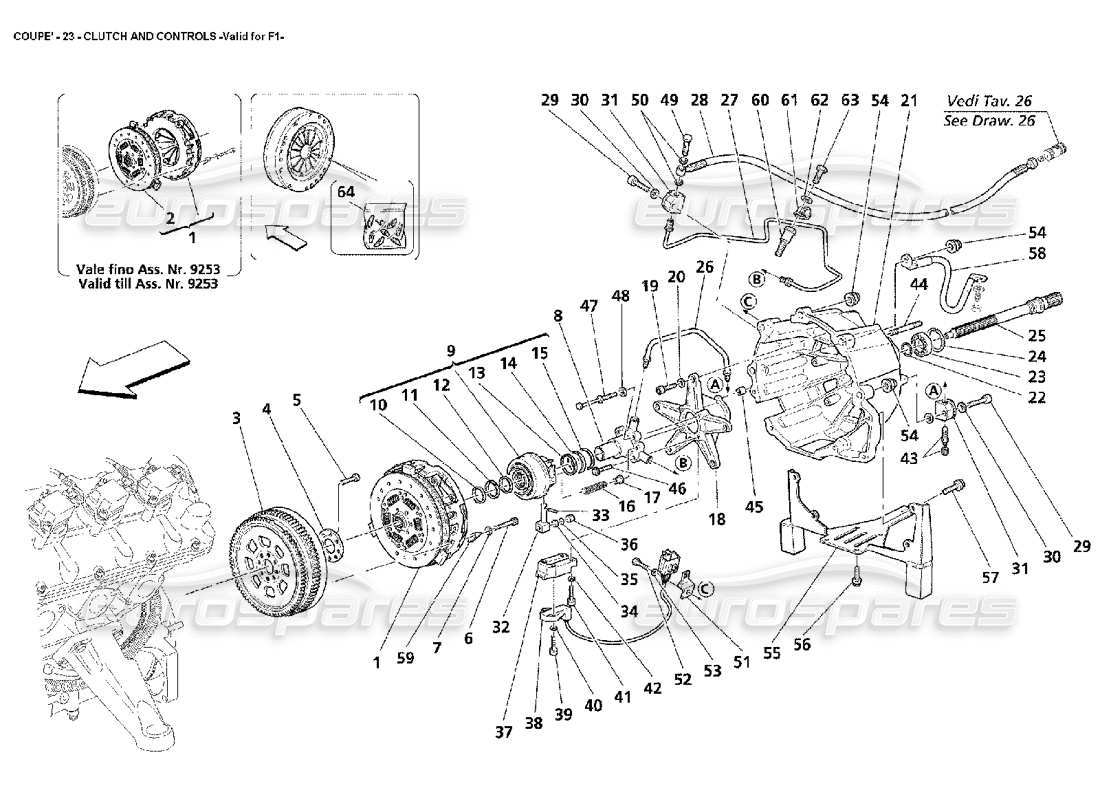

CLUTCH AND CONTROLS -VALID FOR F1

024

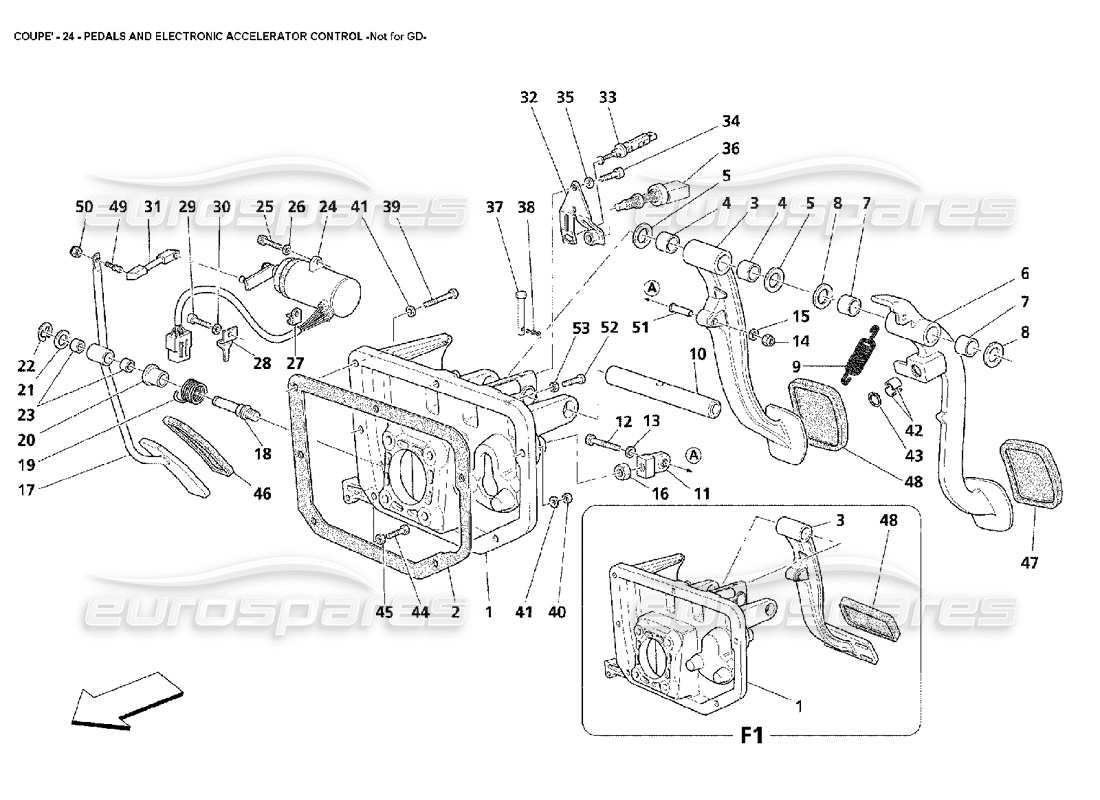

PEDALS AND ELECTRONIC ACCELERATOR CONTROL -NOT FOR GD

025

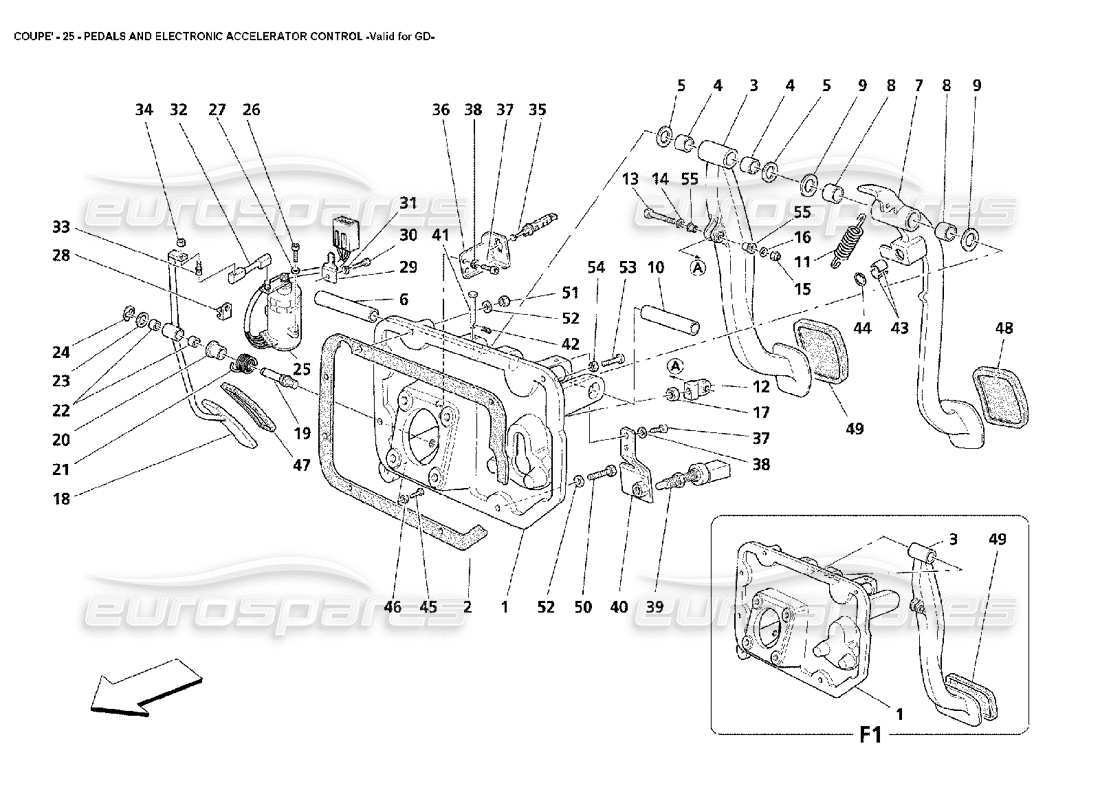

PEDALS AND ELECTRONIC ACCELERATOR CONTROL -VALID FOR GD

026

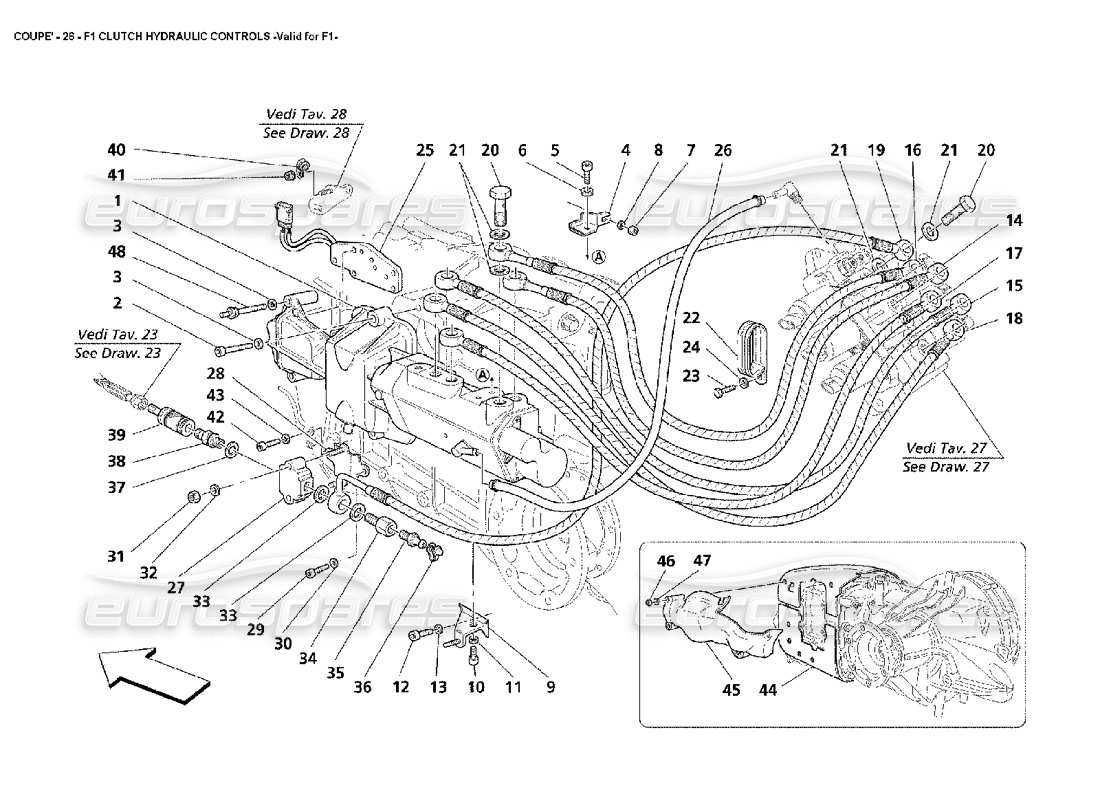

F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1

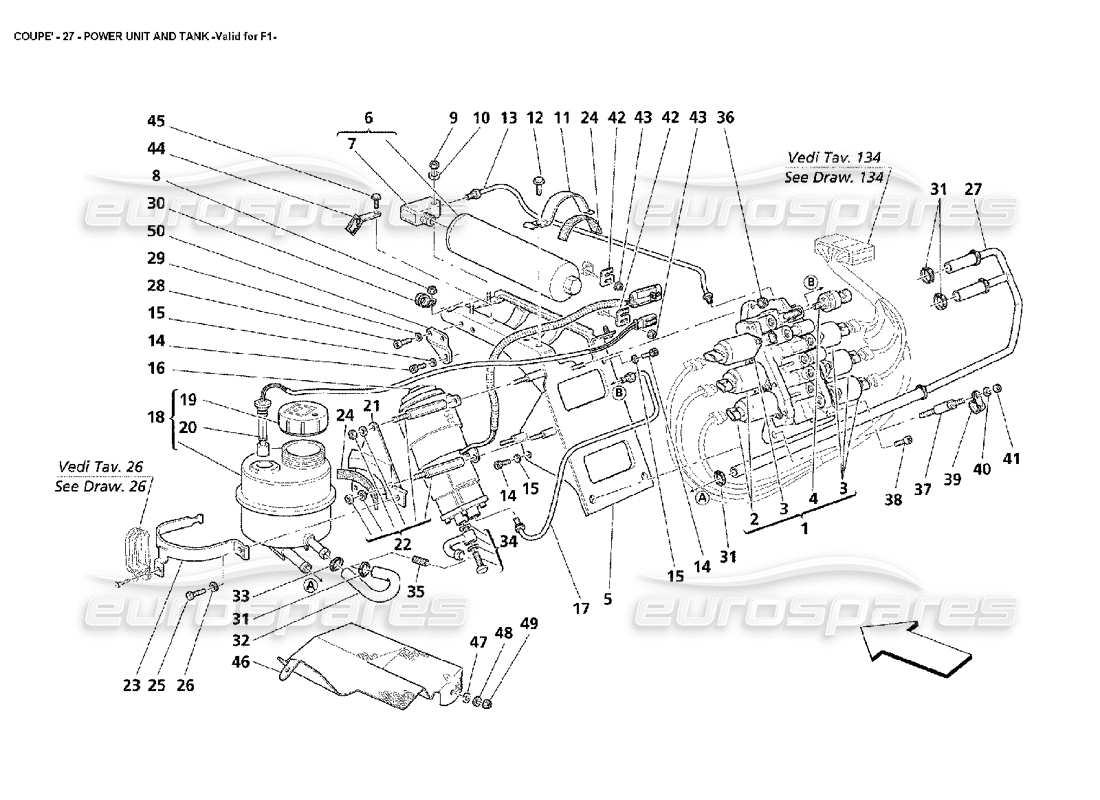

027

POWER UNIT AND TANK -VALID FOR F1

028

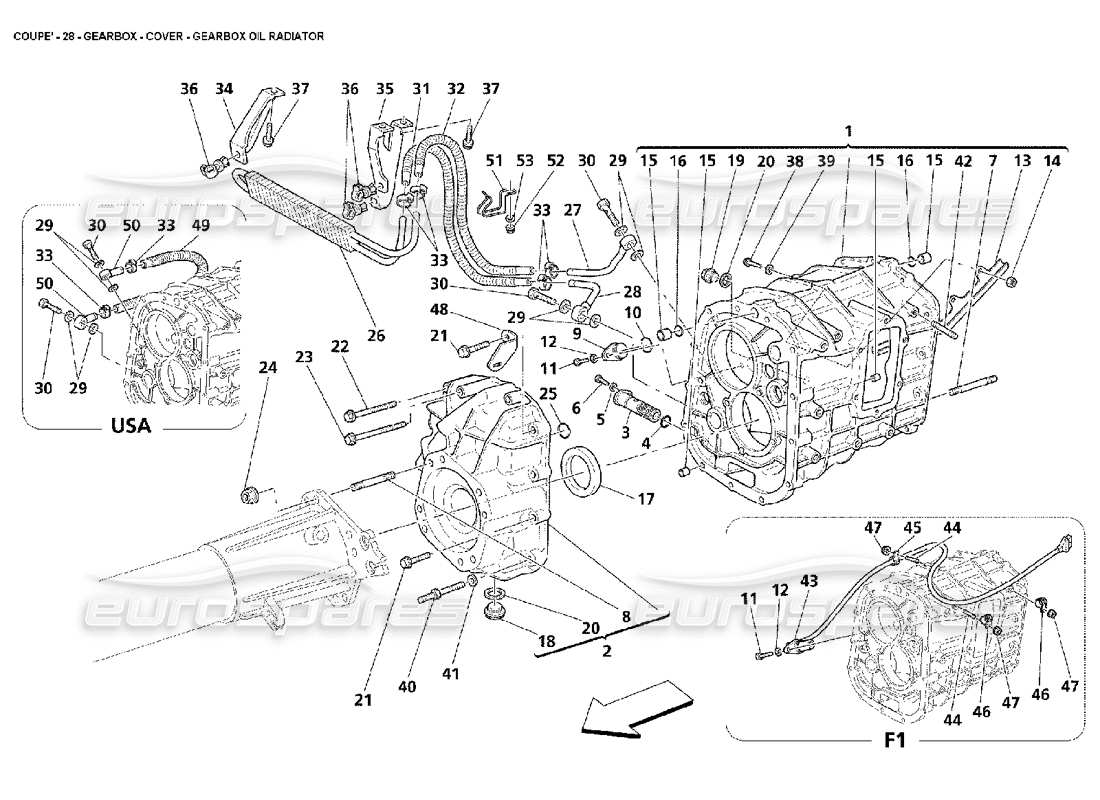

GEARBOX - COVER - GEARBOX OIL RADIATOR

029

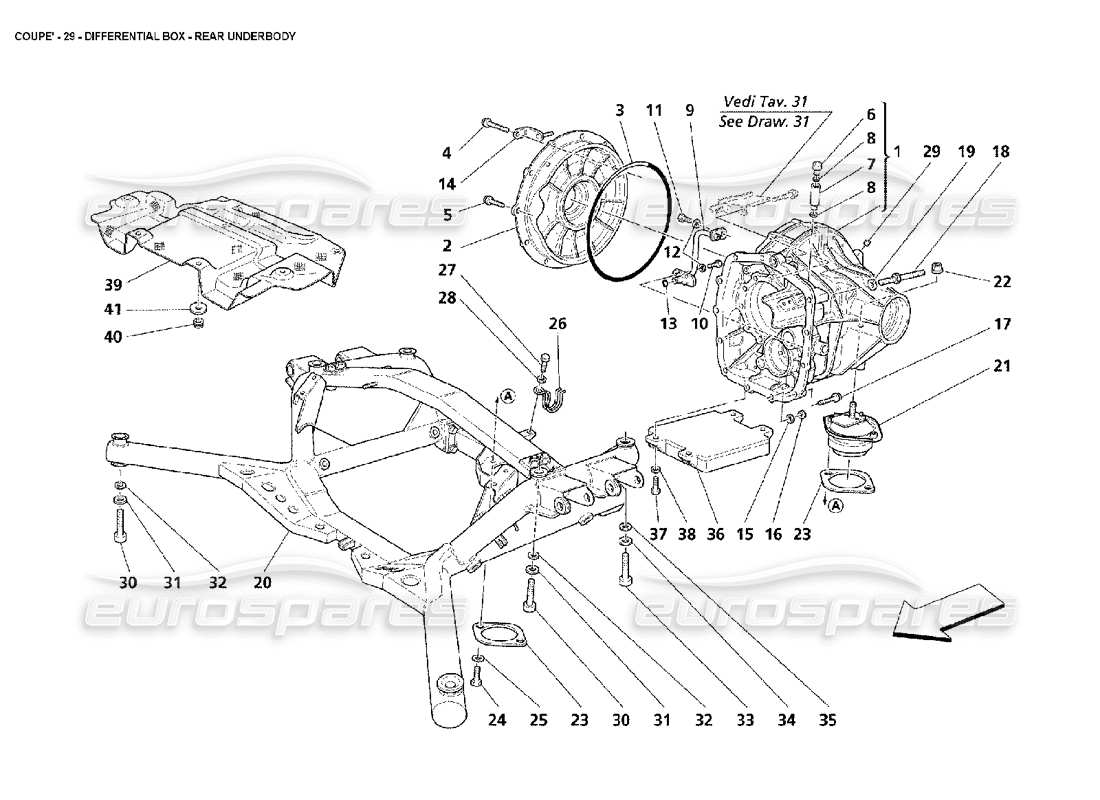

DIFFERENTIAL BOX - REAR UNDERBODY

030

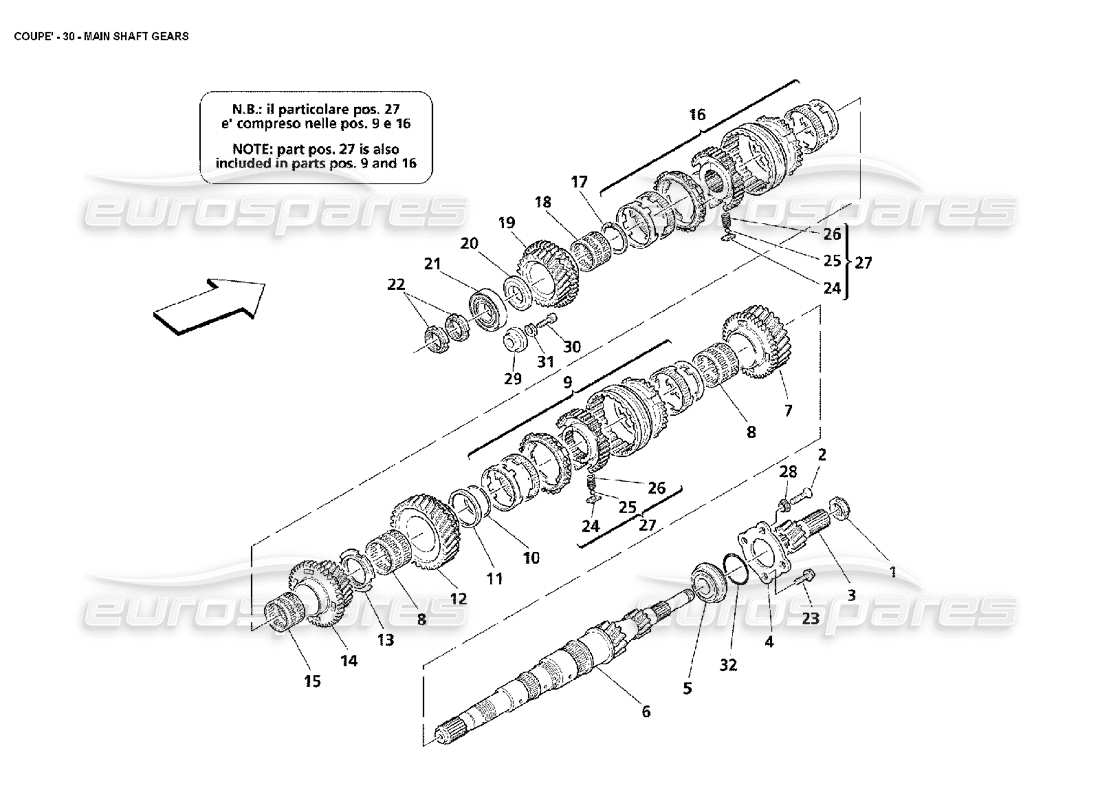

MAIN SHAFT GEARS

031

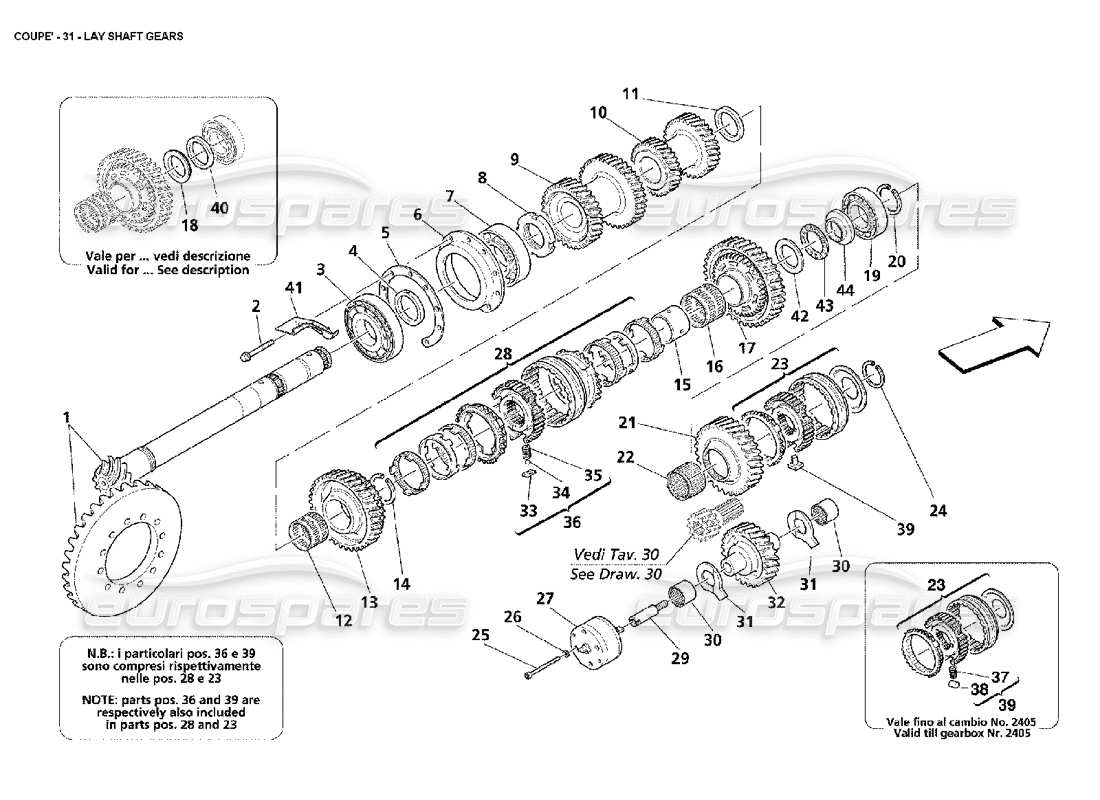

LAY SHAFT GEARS

032

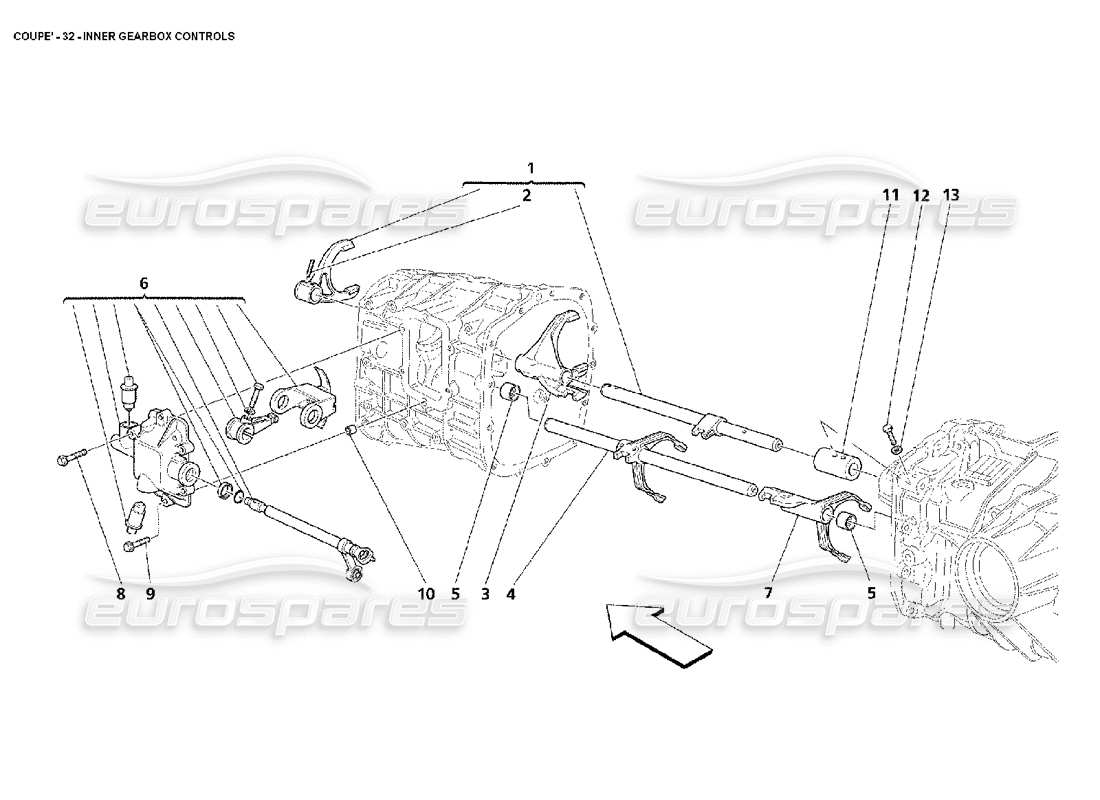

INNER GEARBOX CONTROLS

033

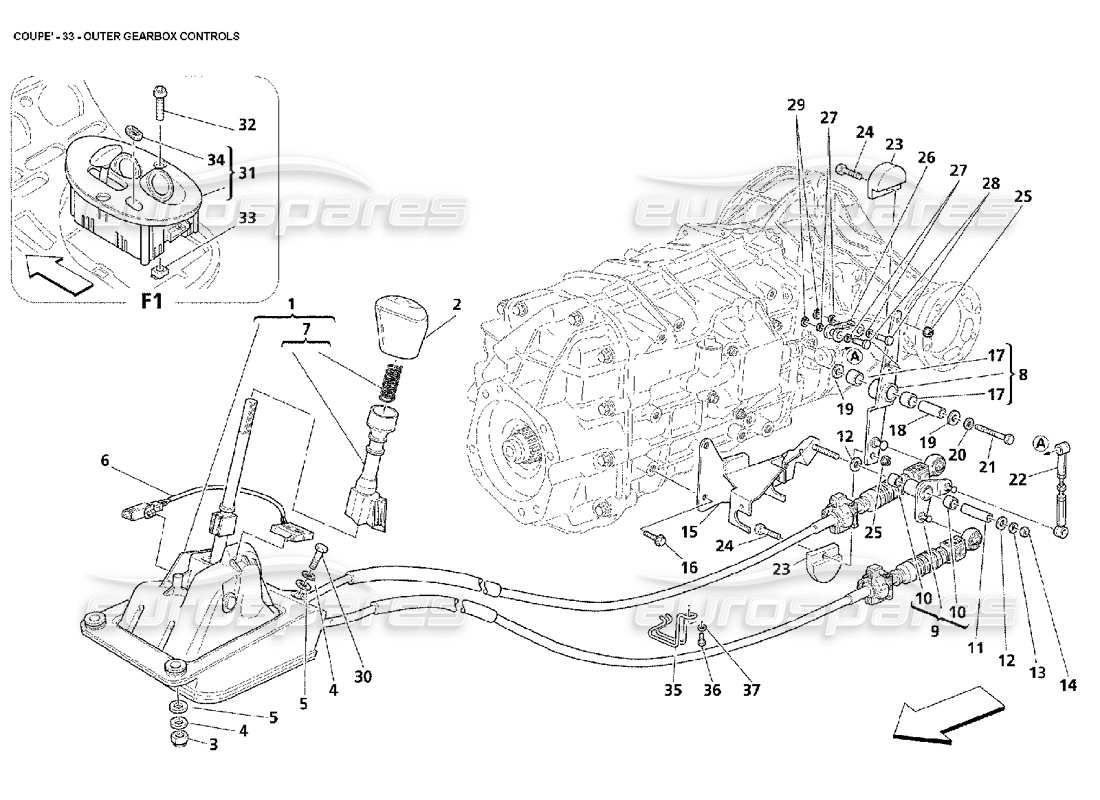

OUTER GEARBOX CONTROLS

034

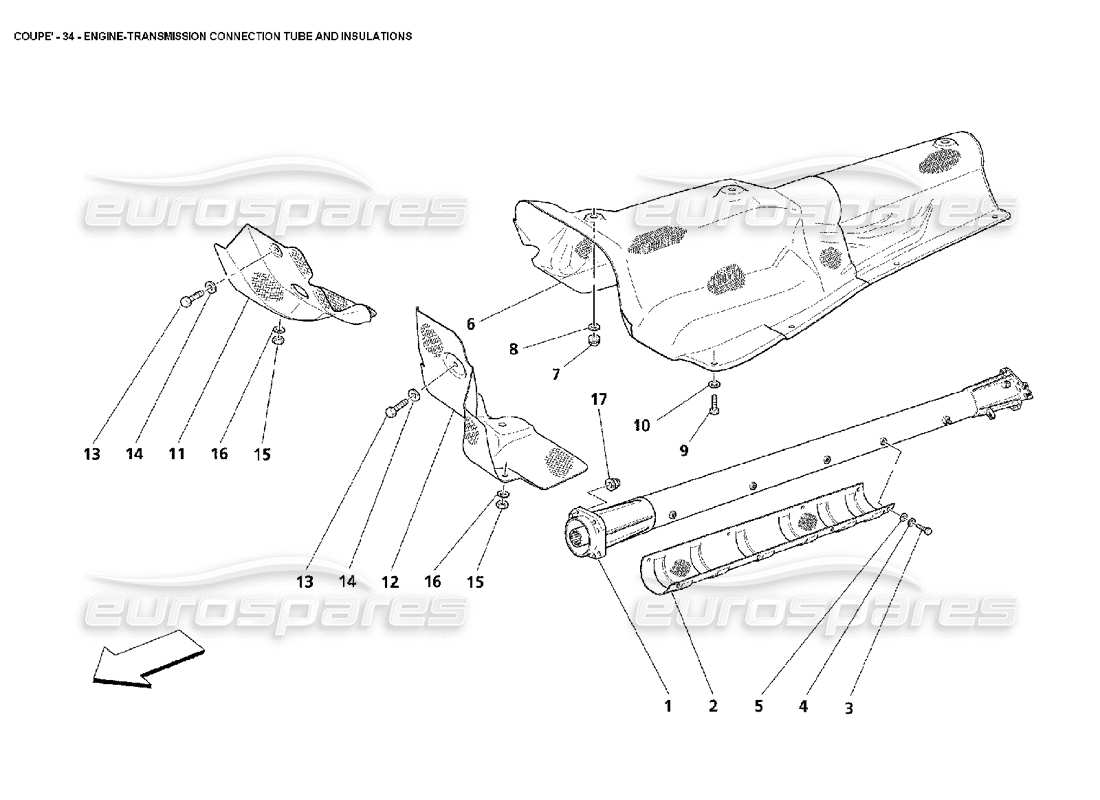

ENGINE-TRANSMISSION CONNECTION TUBE AND INSULATIONS

035

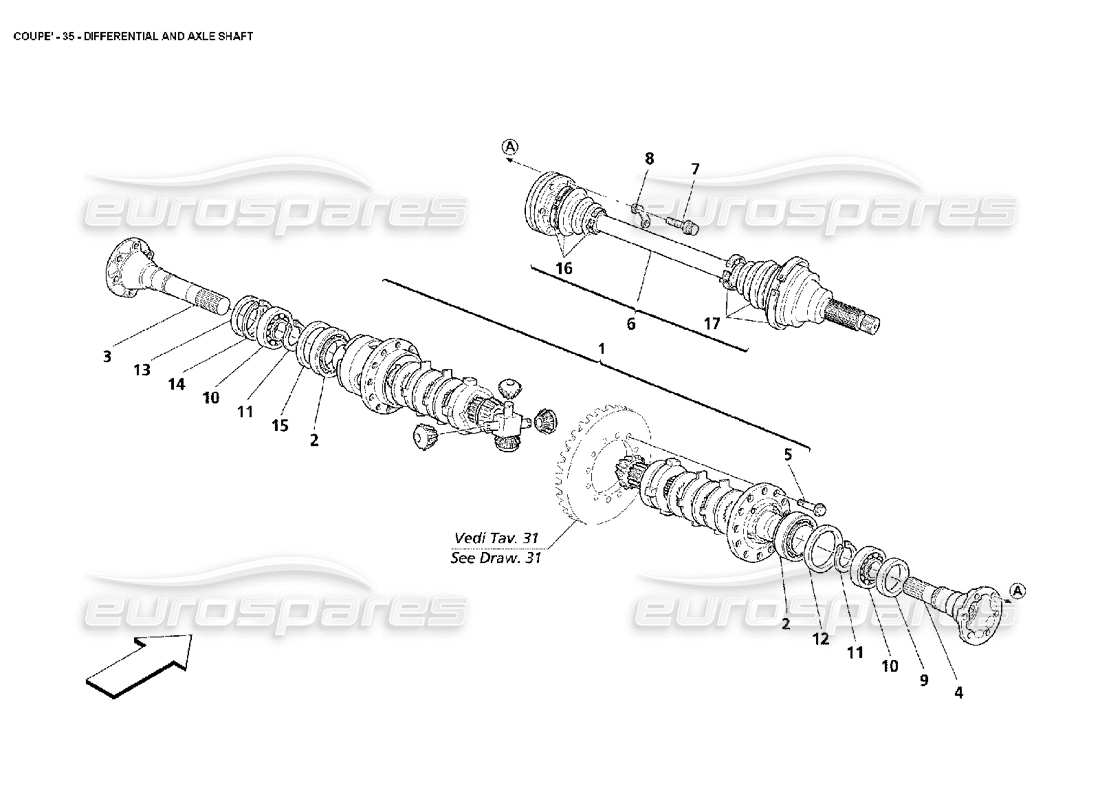

DIFFERENTIAL & AXLE SHAFTS

036

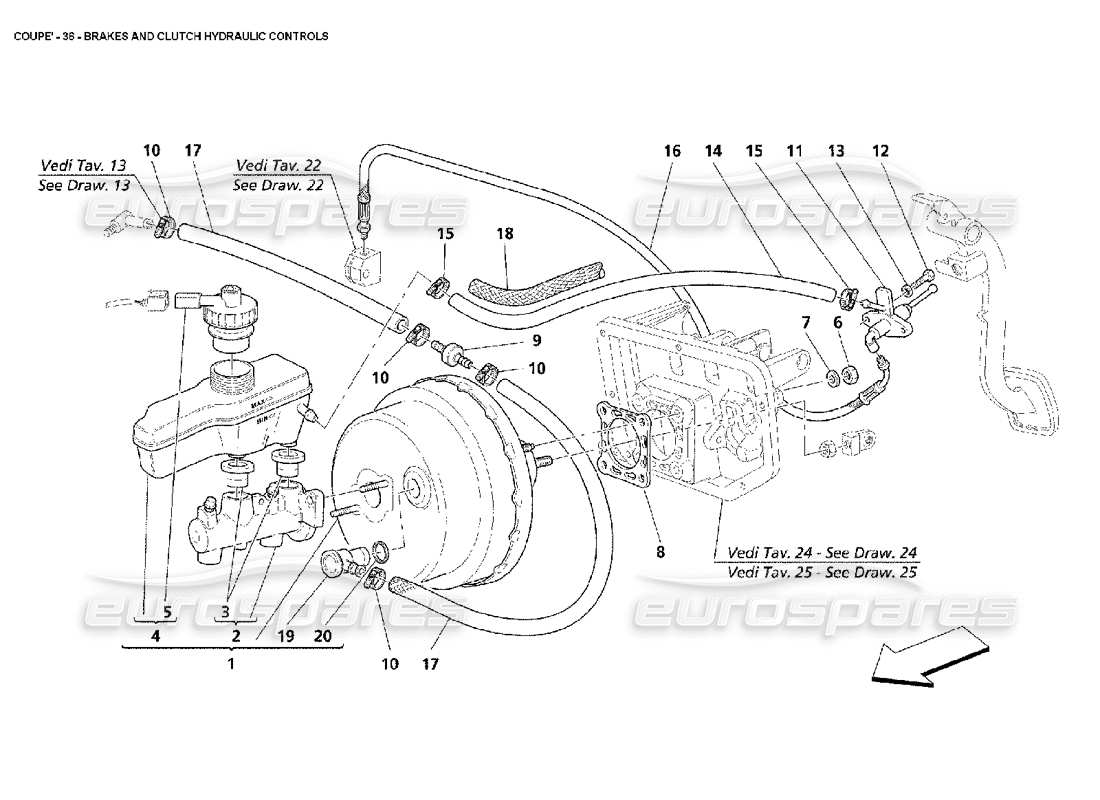

BRAKES AND CLUTCH HYDRAULIC CONTROLS

037

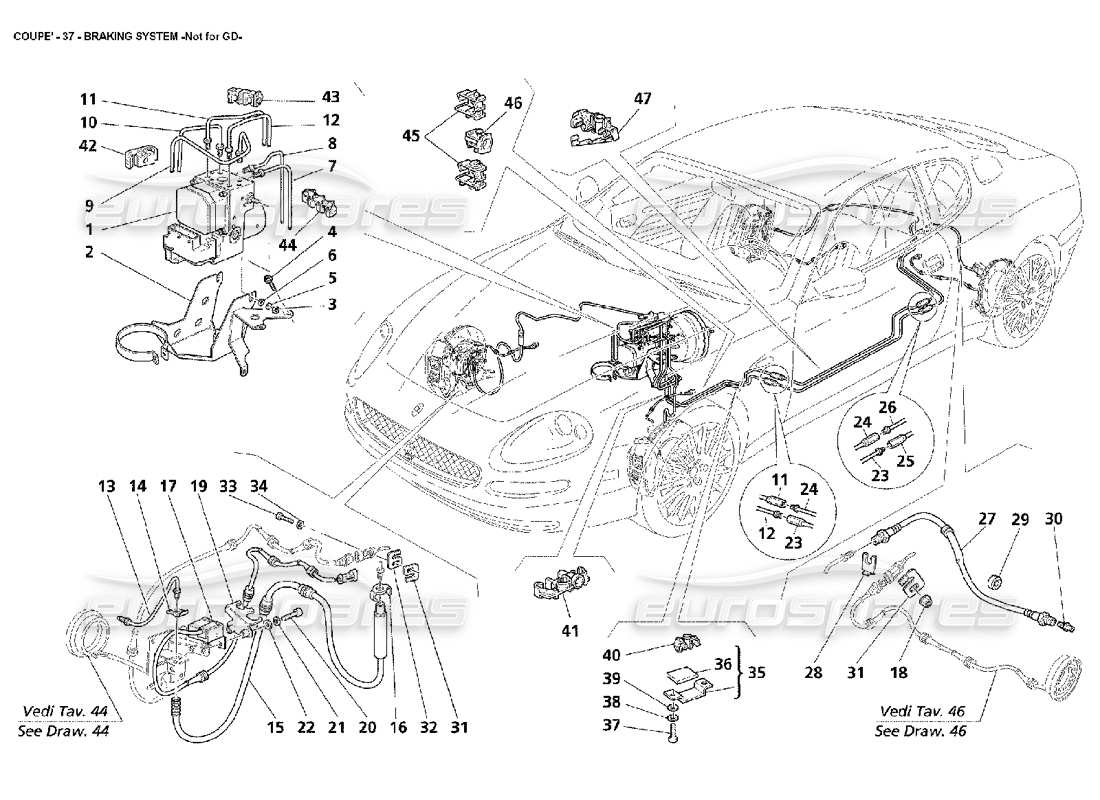

BRAKING SYSTEM -NOT FOR GD

038

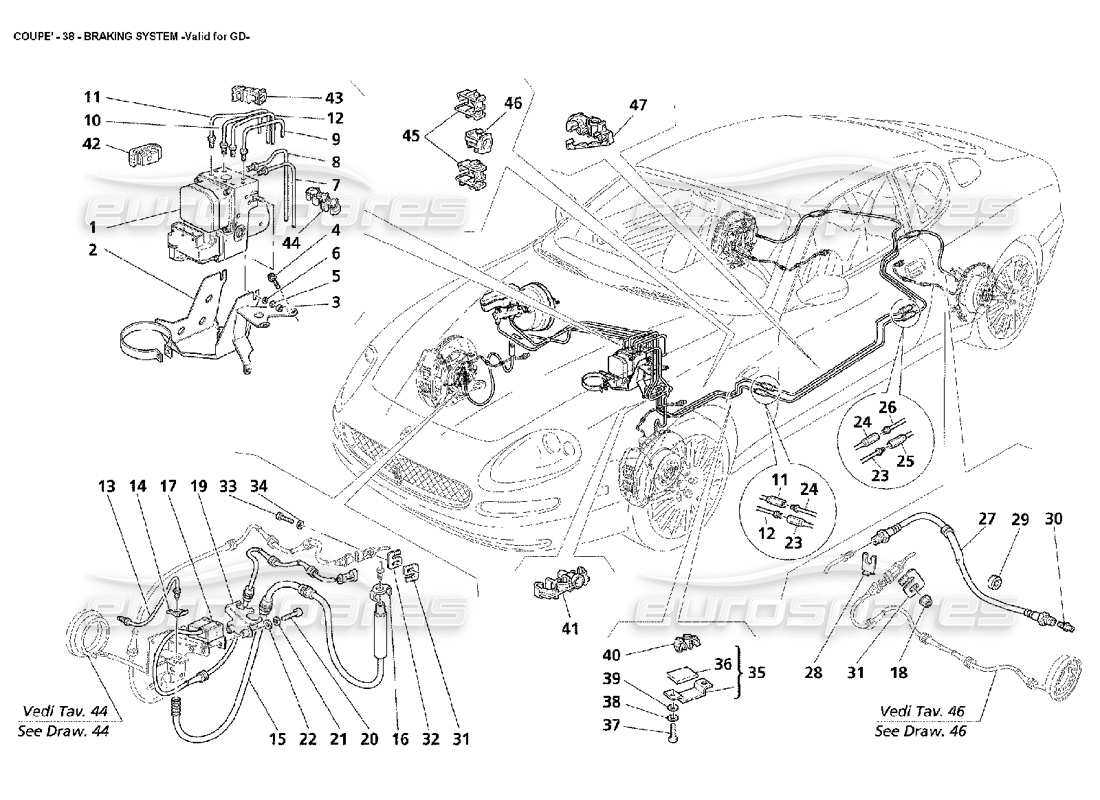

BRAKING SYSTEM -VALID FOR GD

039

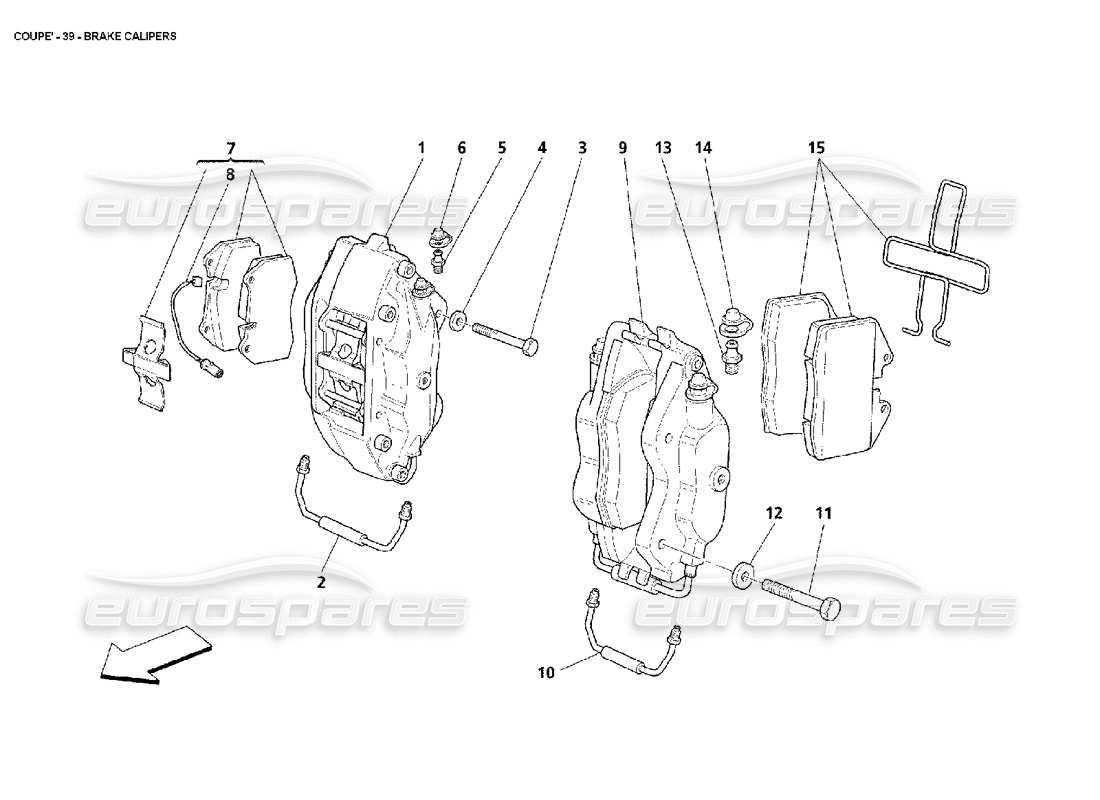

BRAKE CALIPERS

040

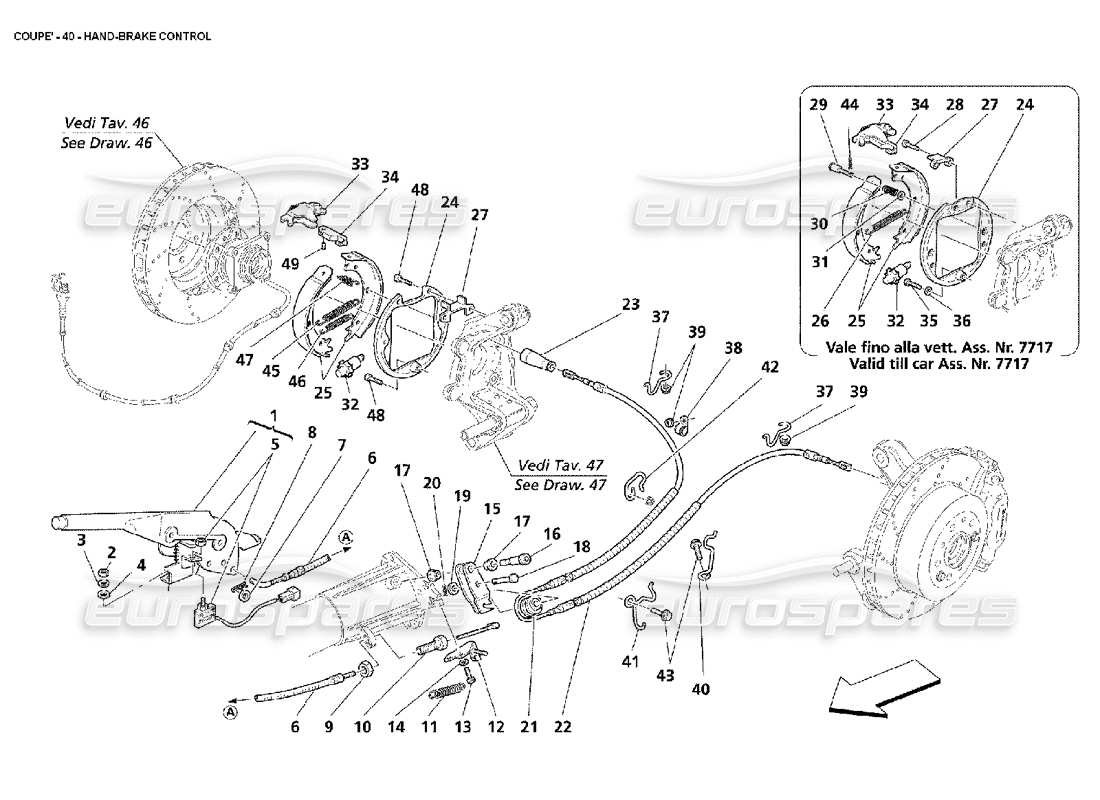

HAND-BRAKE CONTROL

041

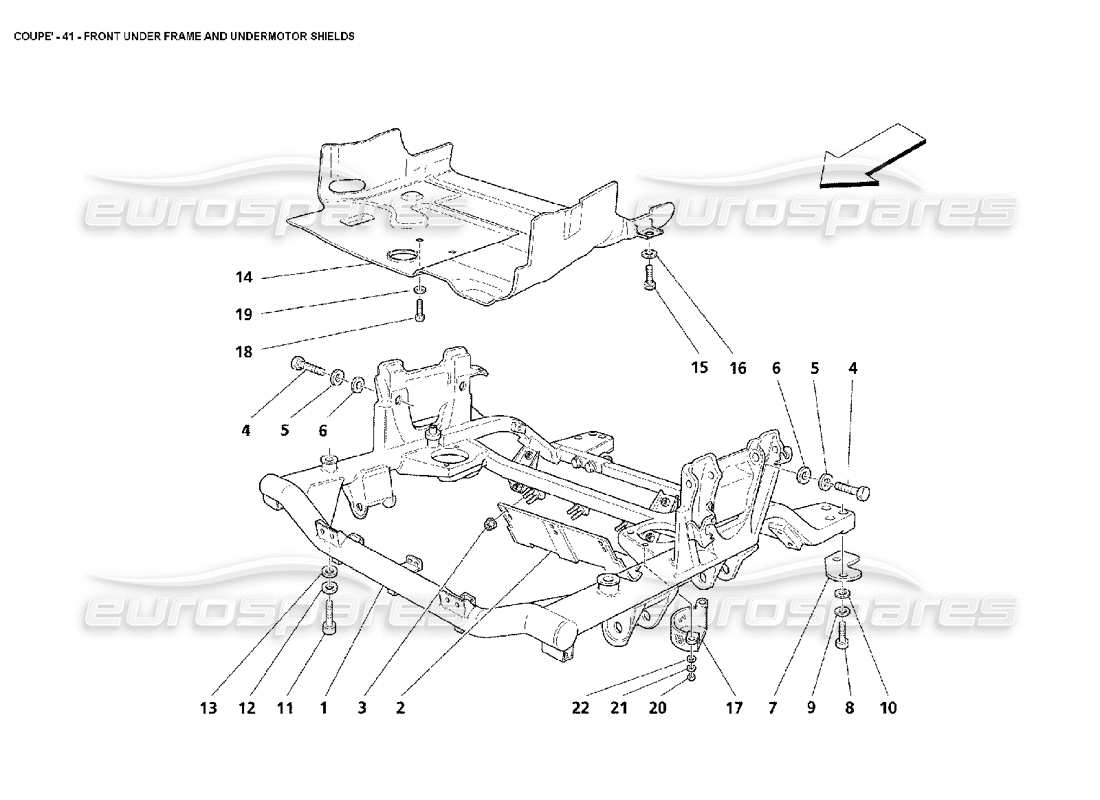

FRONT UNDER FRAME AND UNDERMOTOR SHIELDS

042

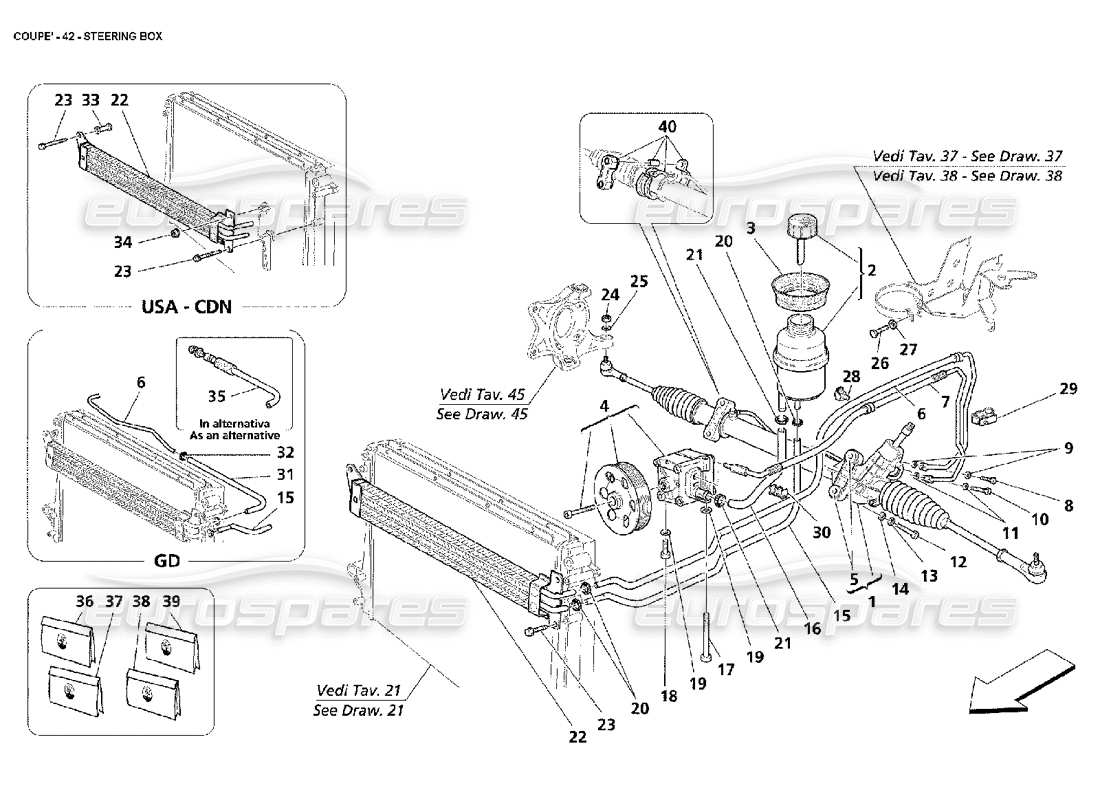

STEERING BOX

043

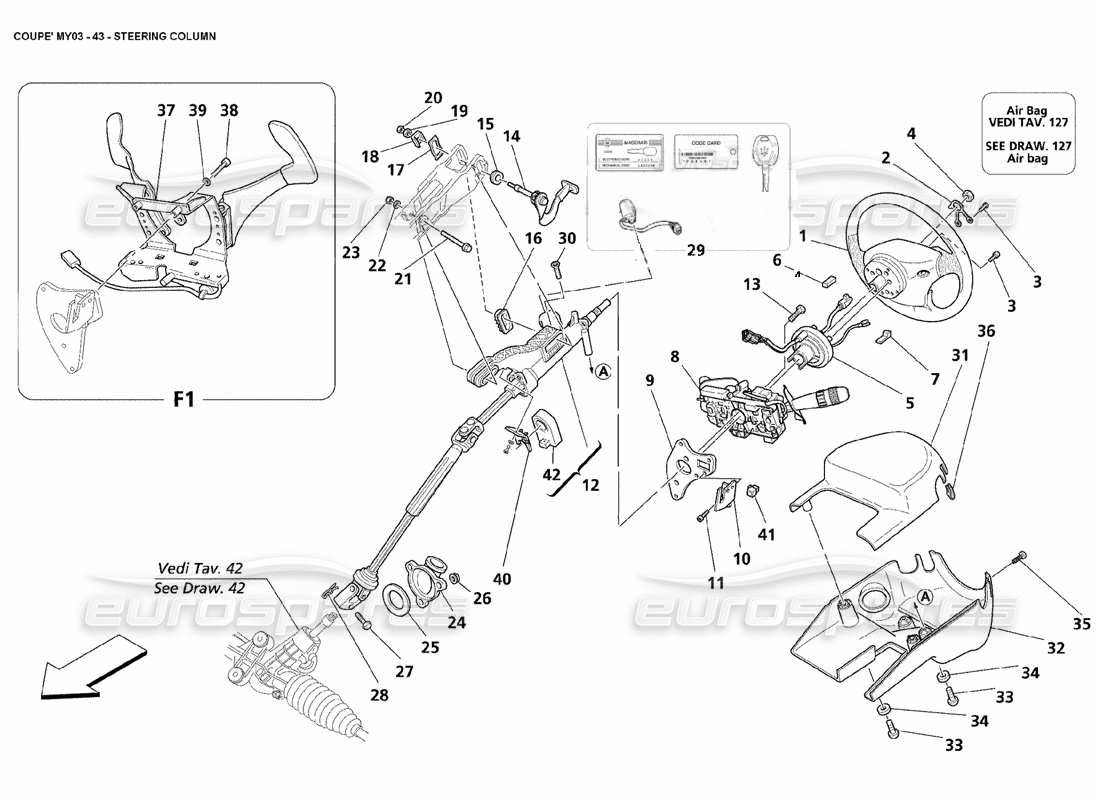

STEERING COLUMN

044

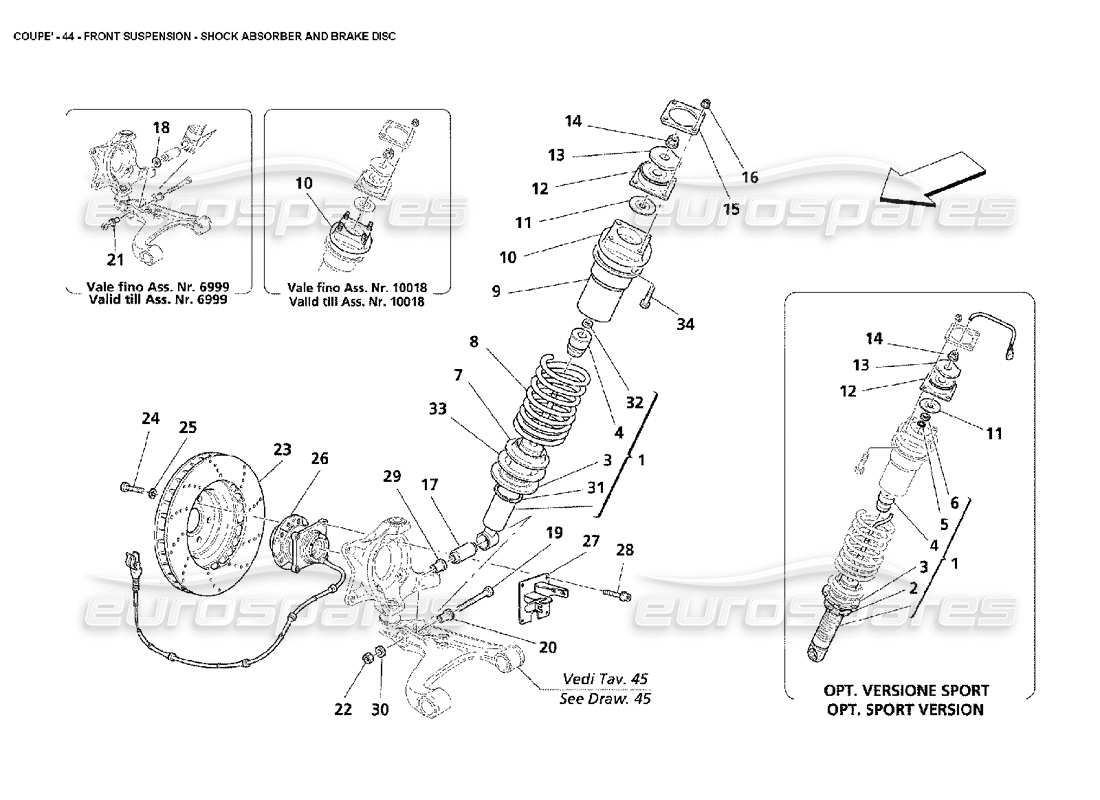

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

045

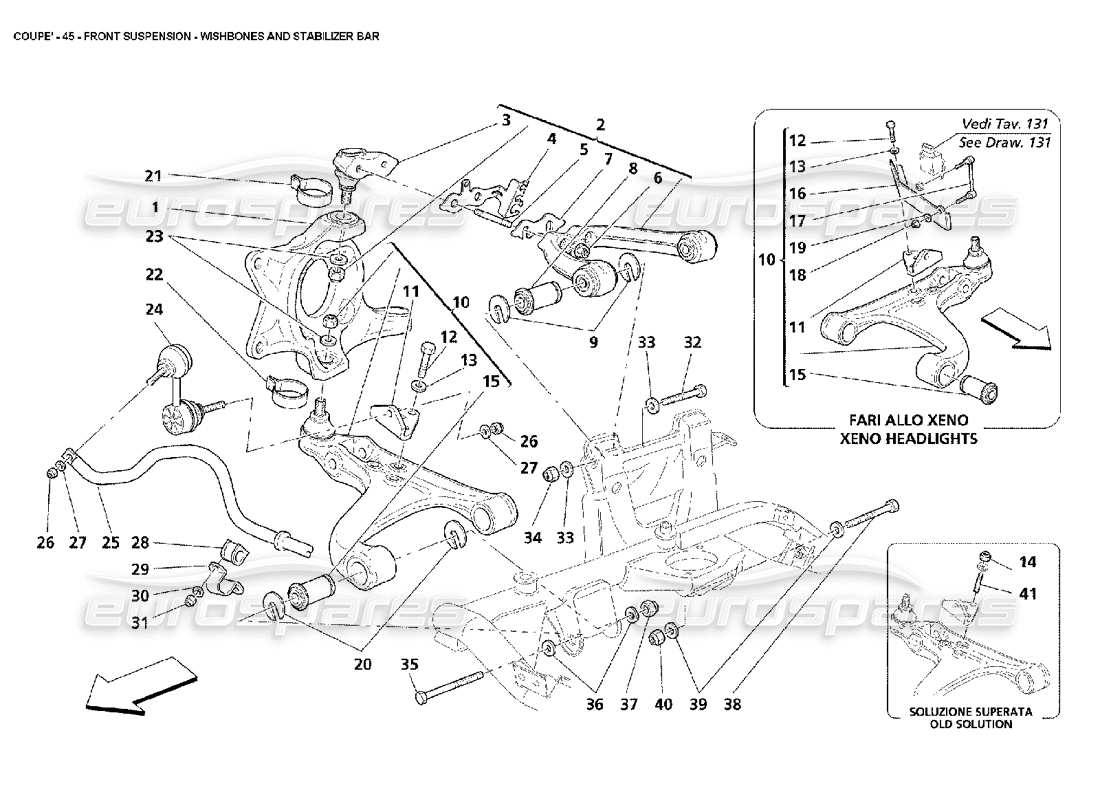

FRONT SUSPENSION - WISHBONES AND STABILIZER BAR

046

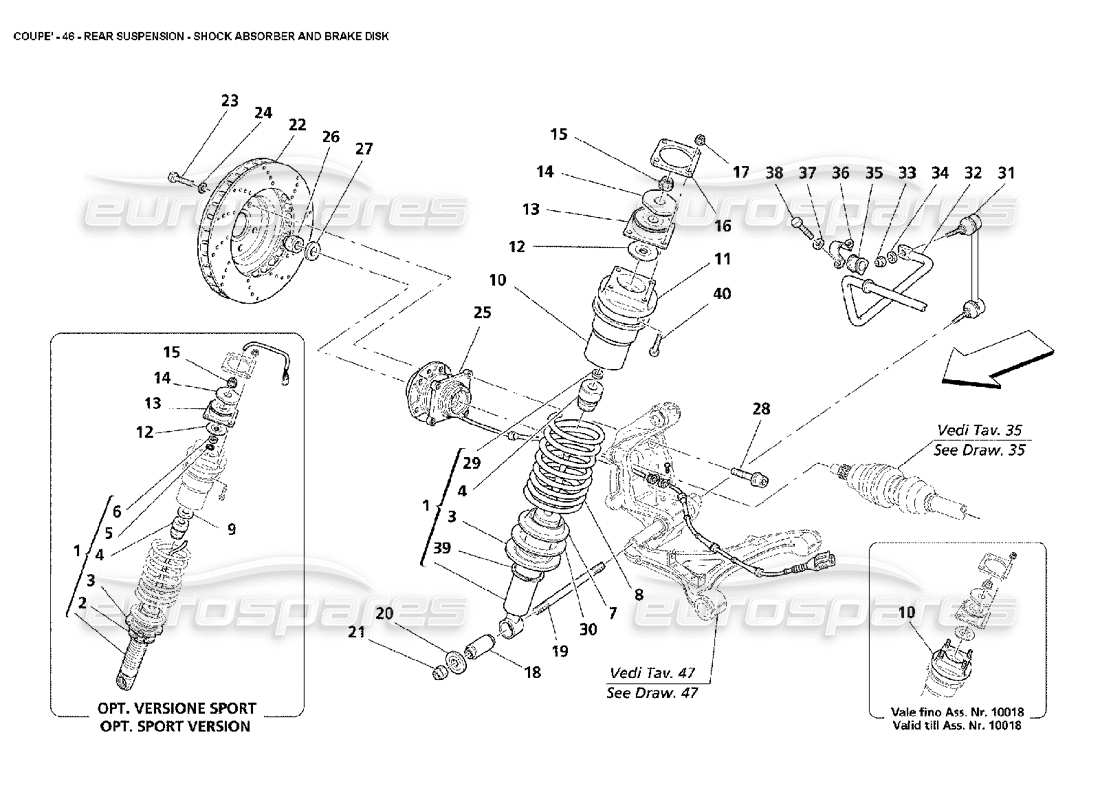

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK

047

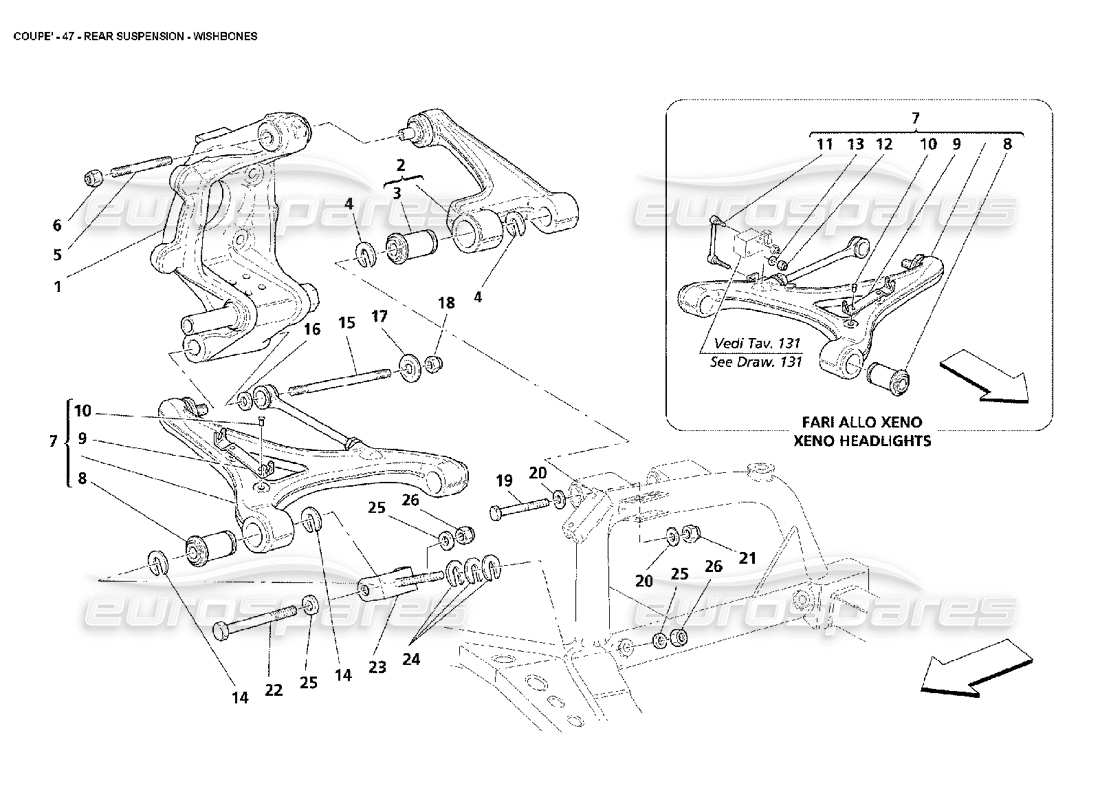

REAR SUSPENSION - WISHBONES

048

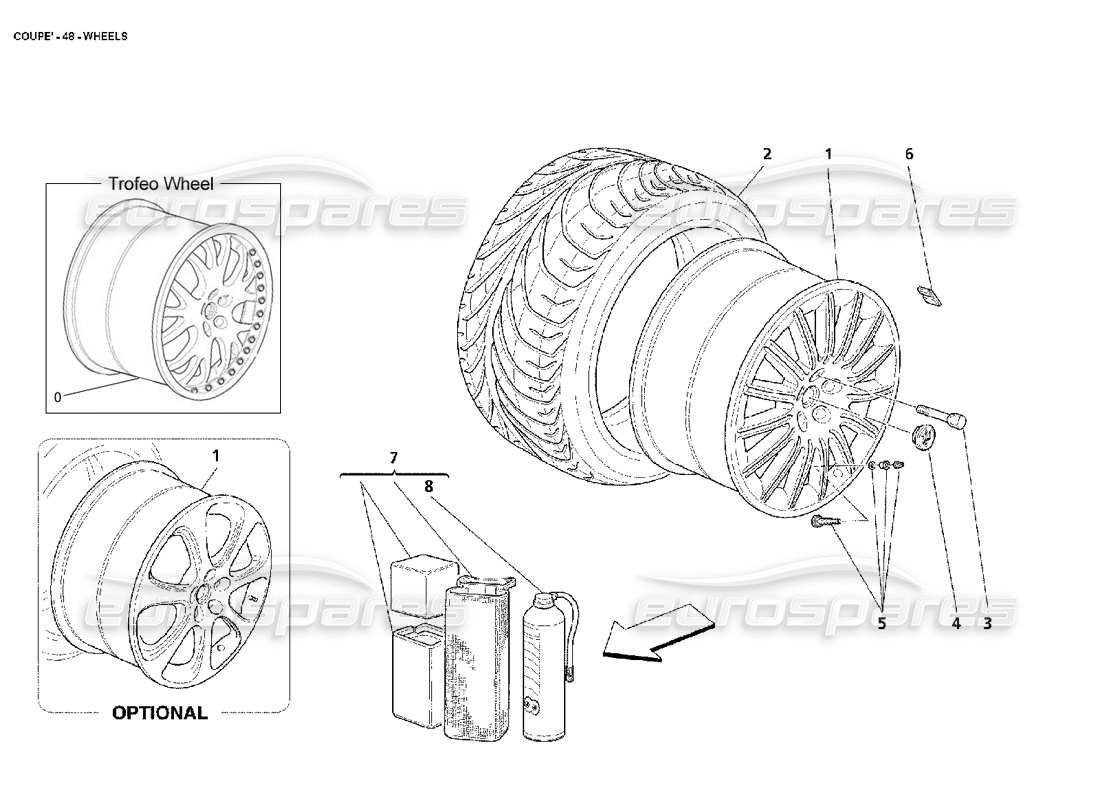

WHEELS

049

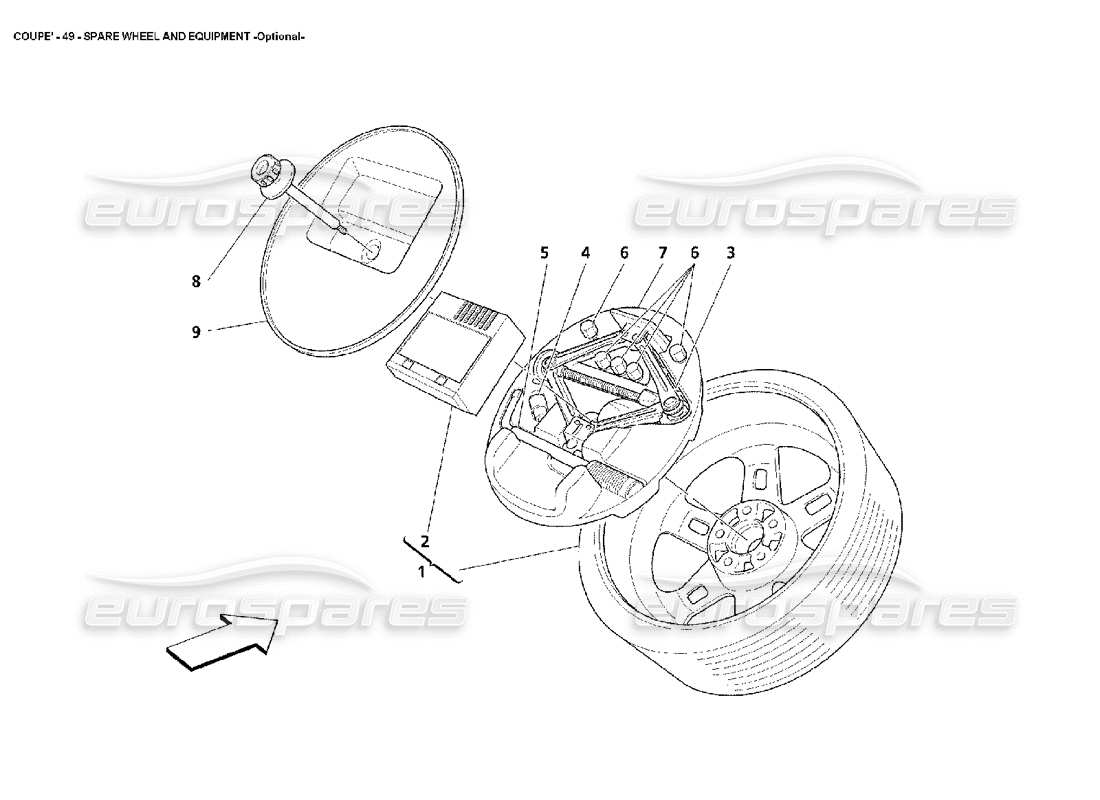

SPARE WHEEL AND EQUIPMENT -OPTIONAL

050

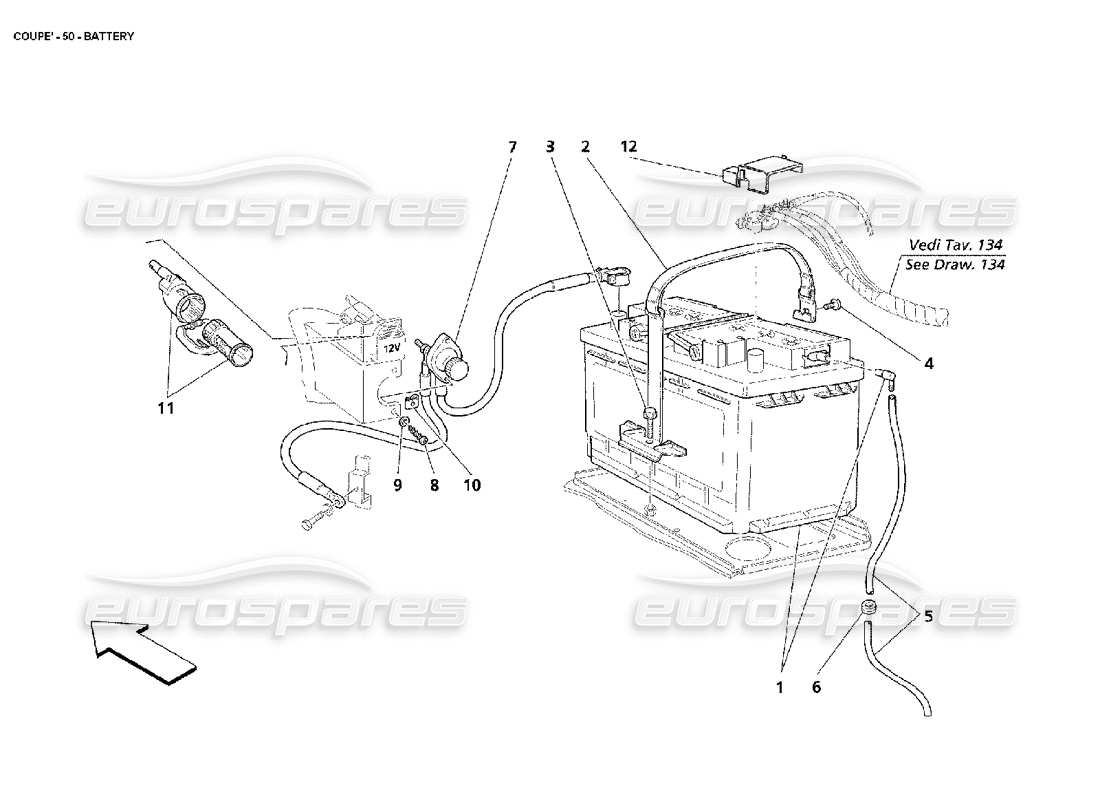

BATTERY

051

CURRENT GENERATOR-STARTING MOTOR

052

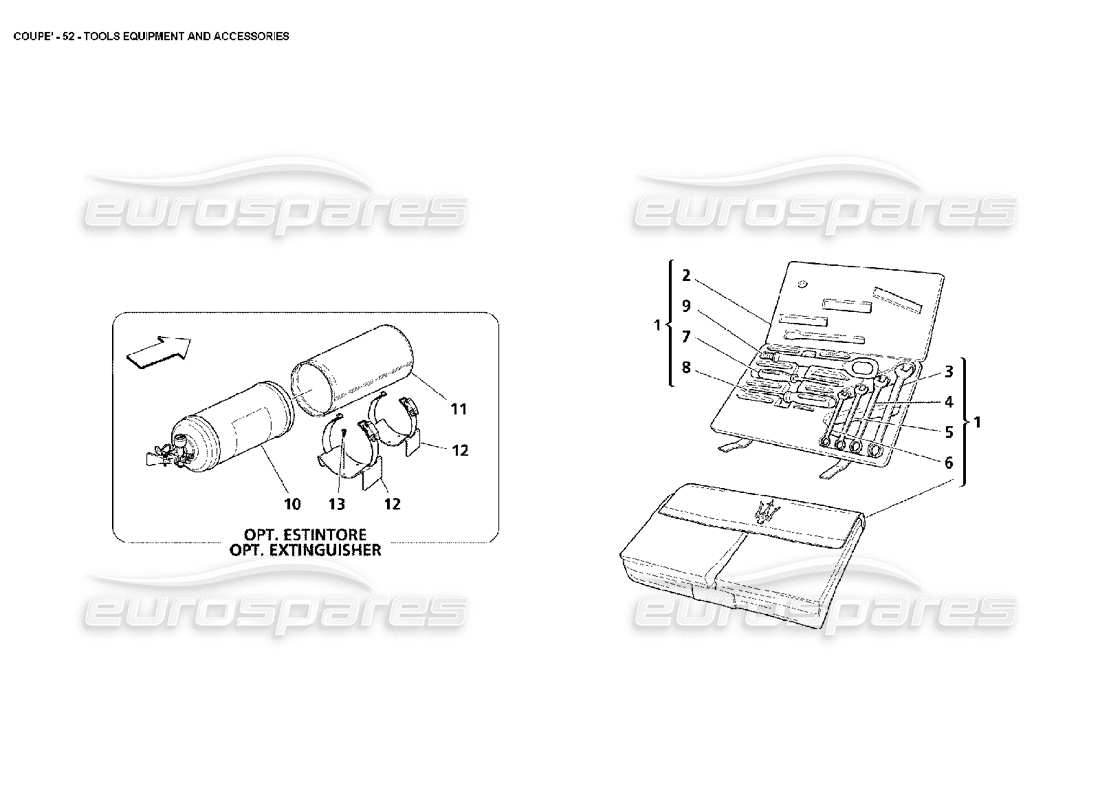

TOOLS EQUIPMENT AND ACCESSORIES

100

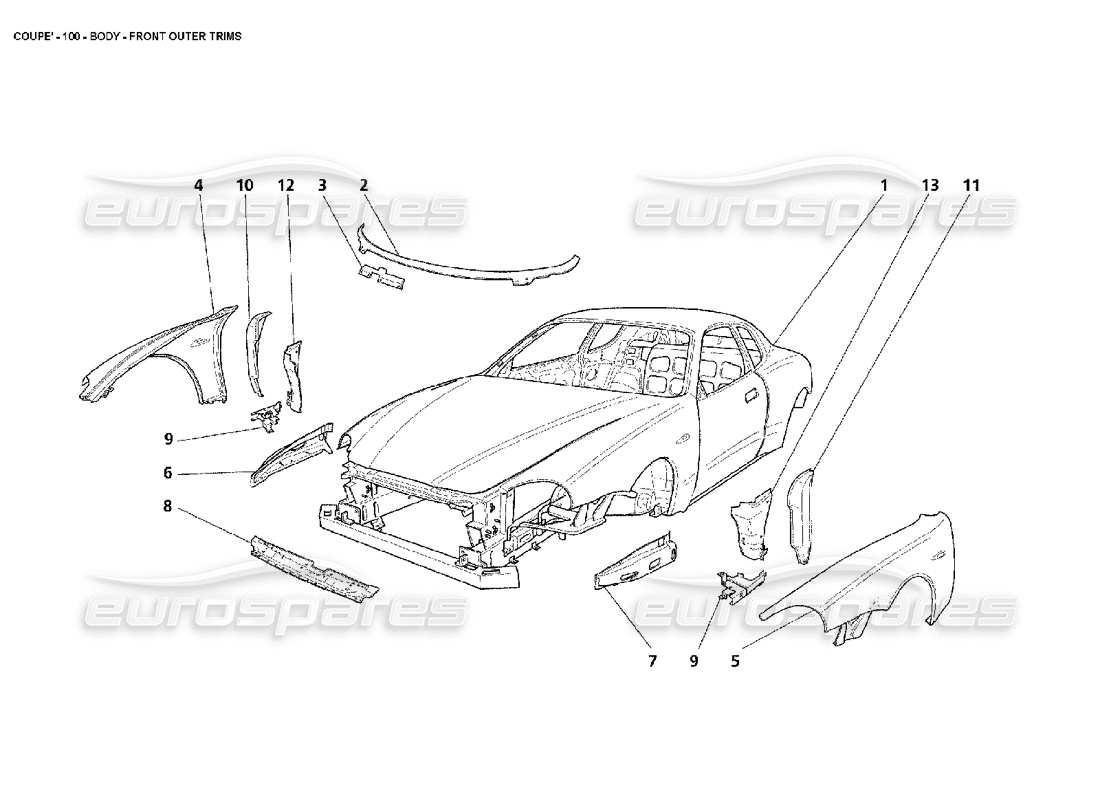

BODY - FRONT OUTER TRIMS

101

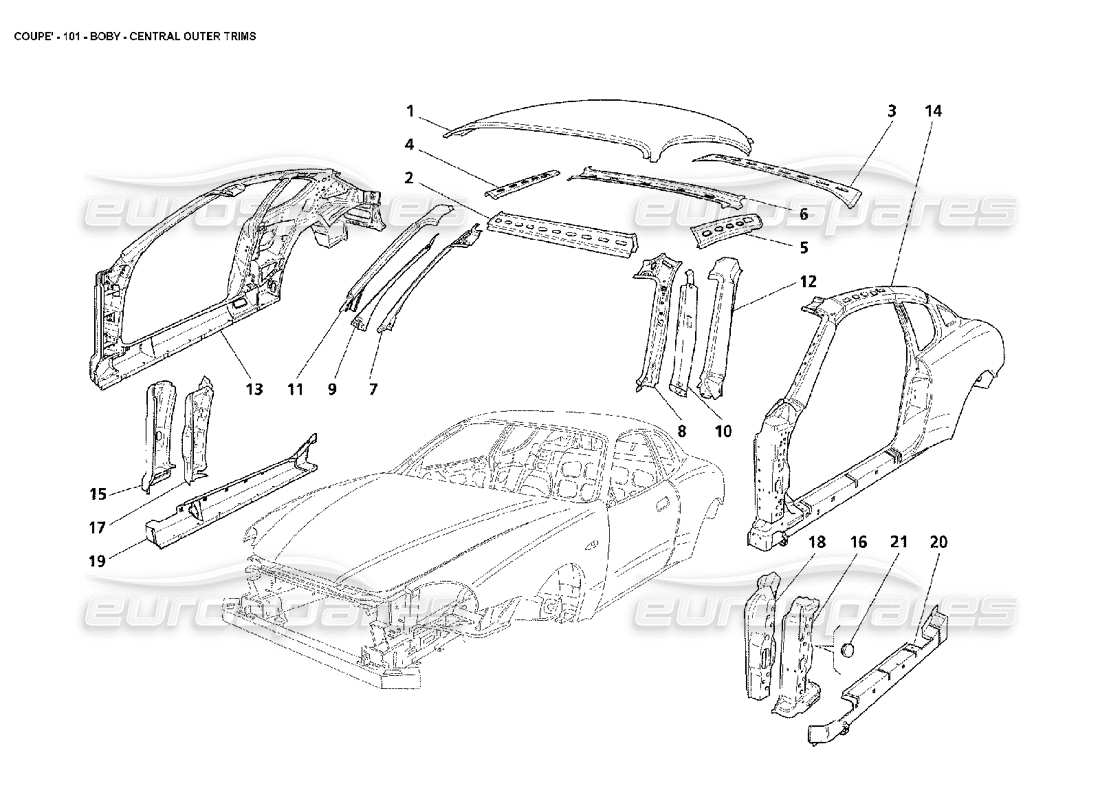

BODY CENTRAL OUTER TRIMS

102

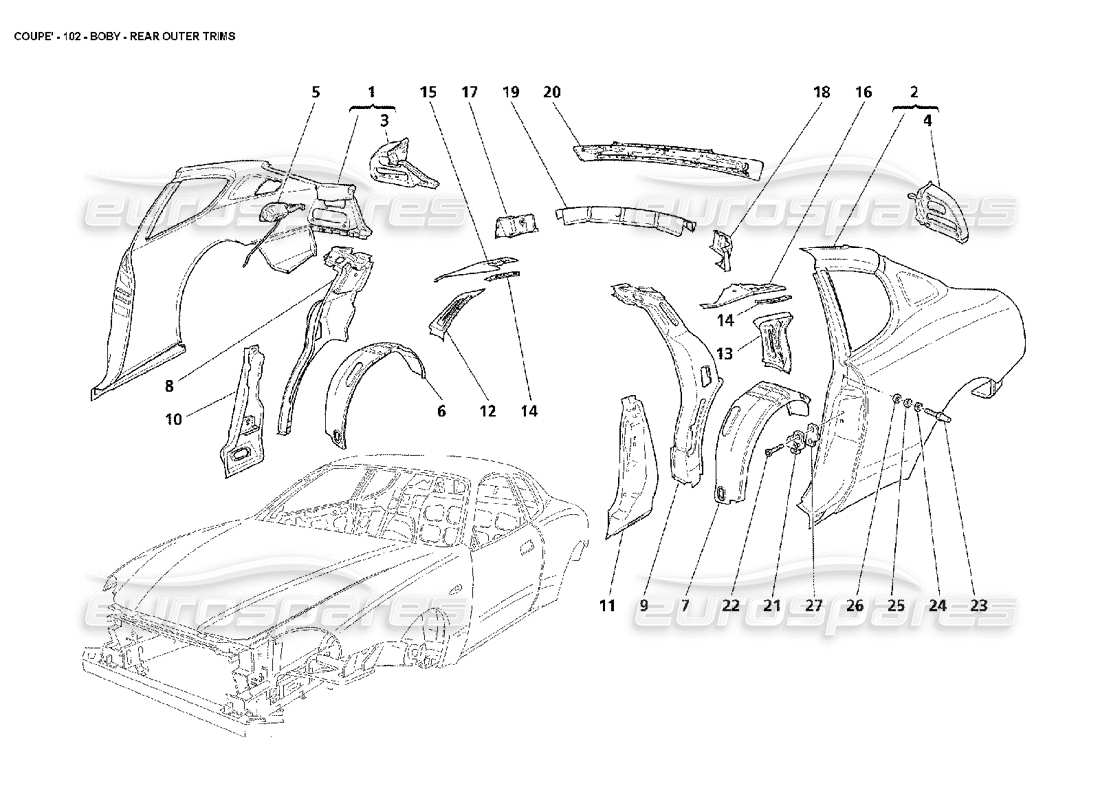

BODY REAR OUTER TRIMS

103

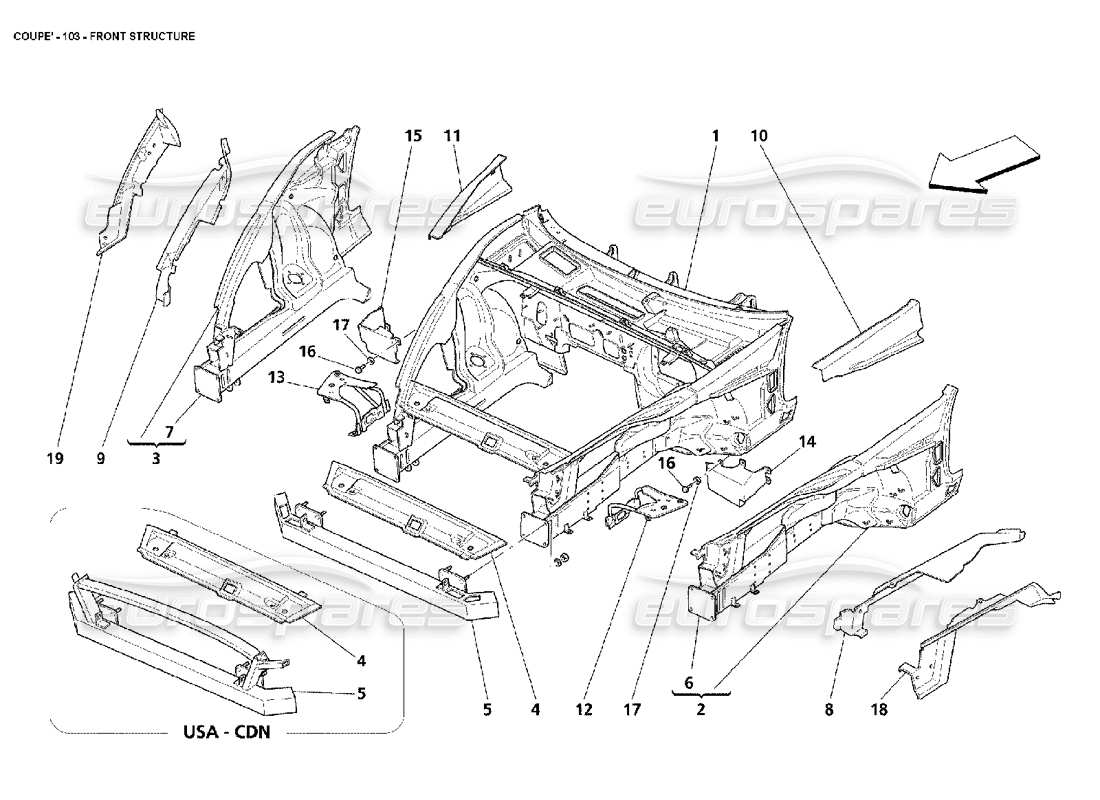

FRONT STRUCTURE

104

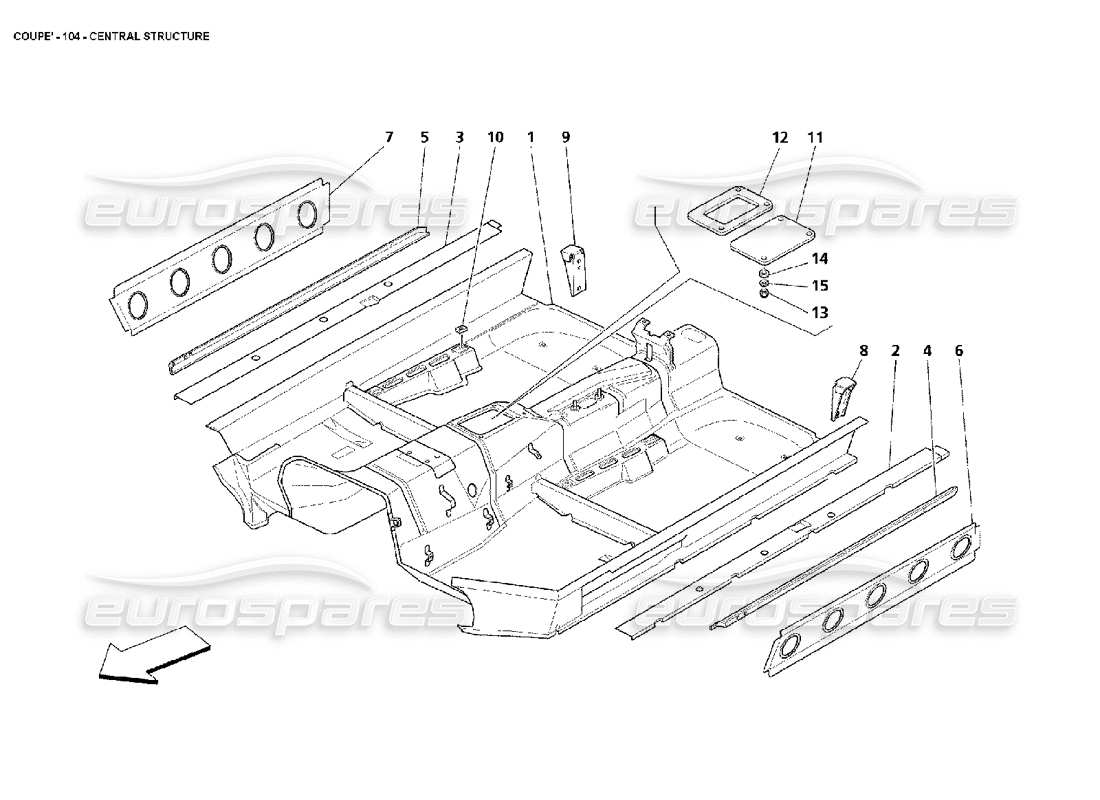

CENTRAL STRUCTURE

105

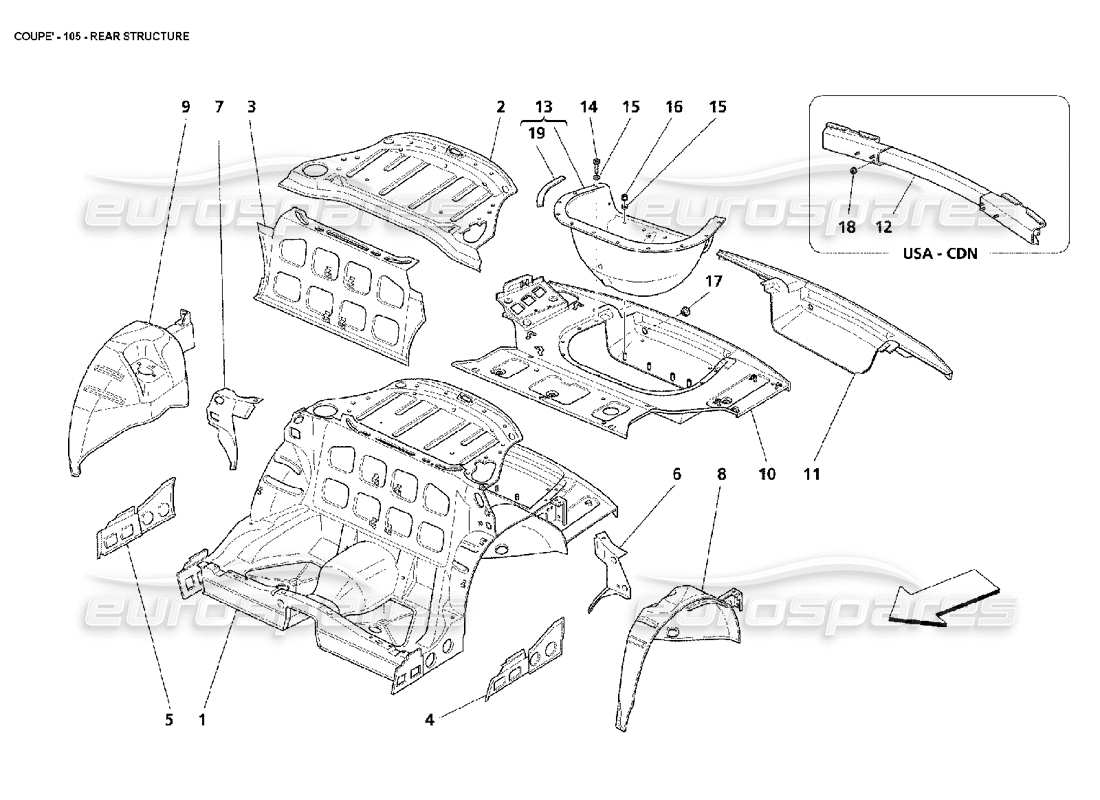

REAR STRUCTURE

106

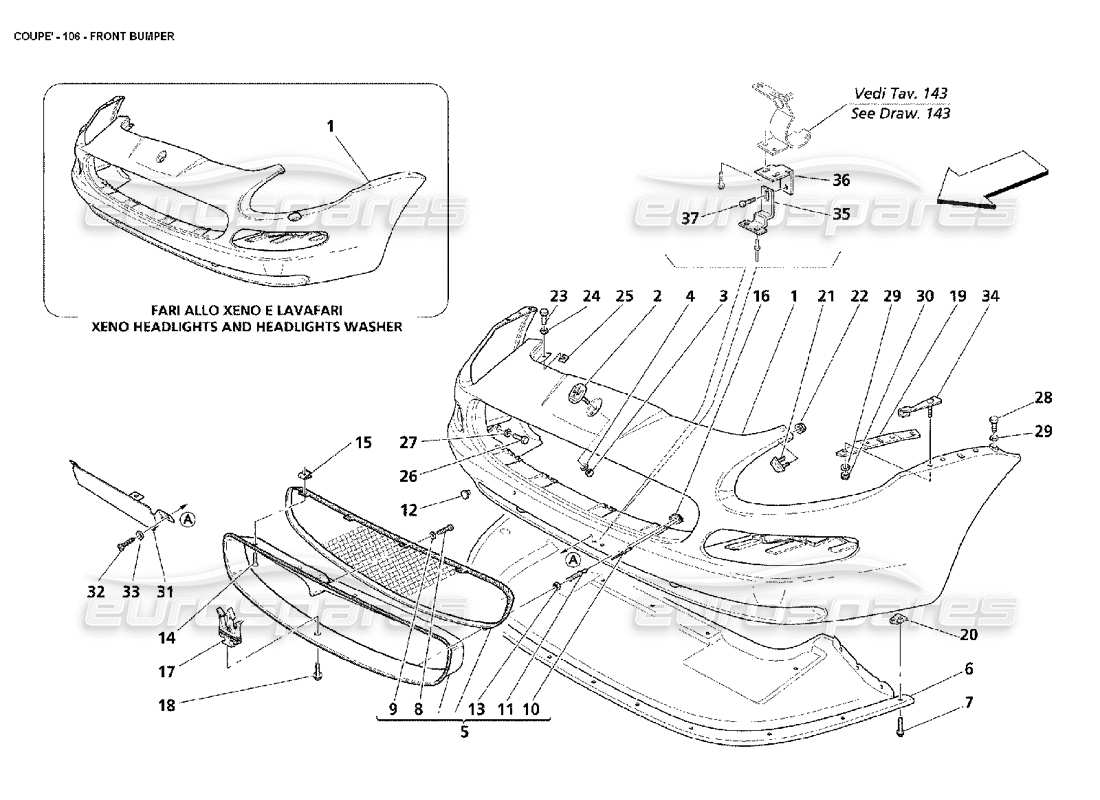

FRONT BUMPER

107

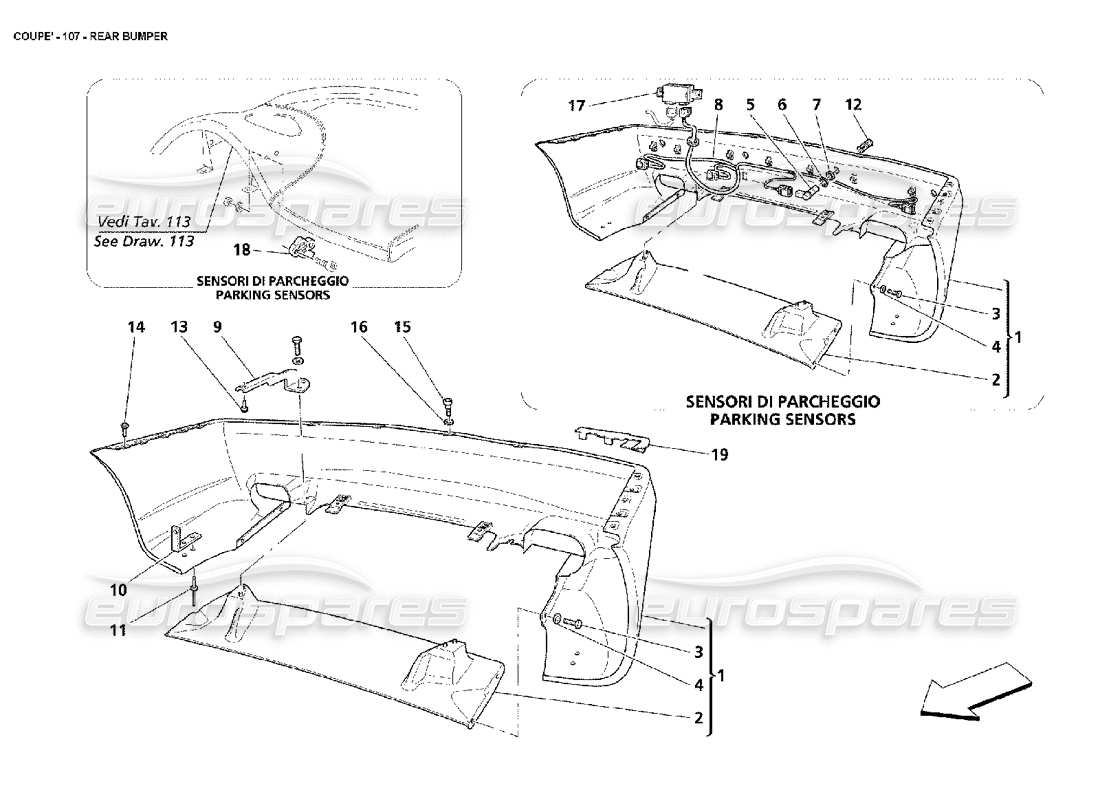

REAR BUMPER

108

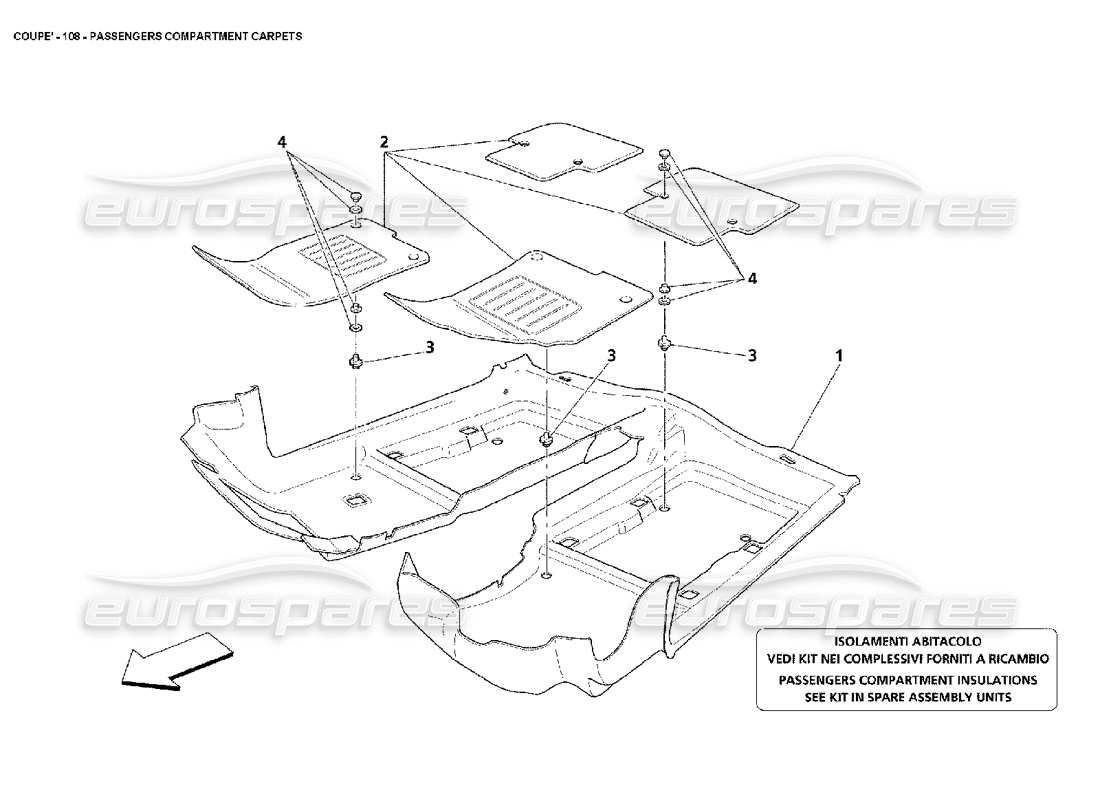

PASSENGERS COMPARTMENT CARPETS

109

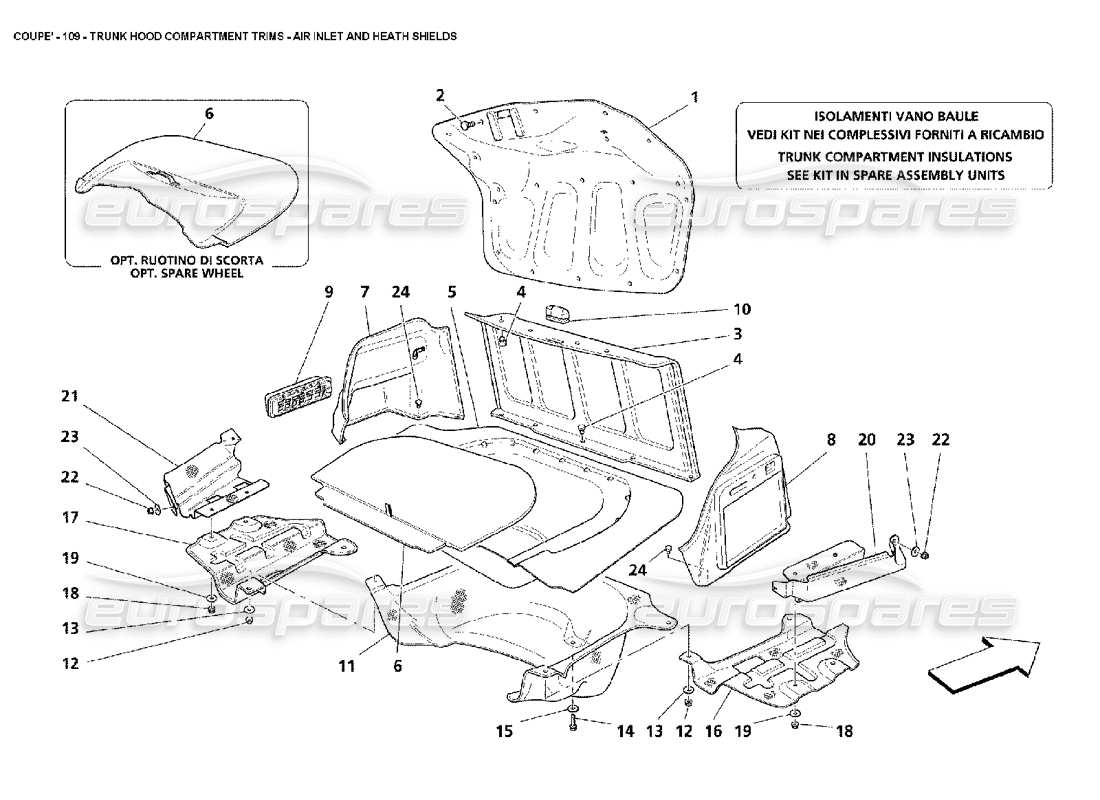

TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS

110

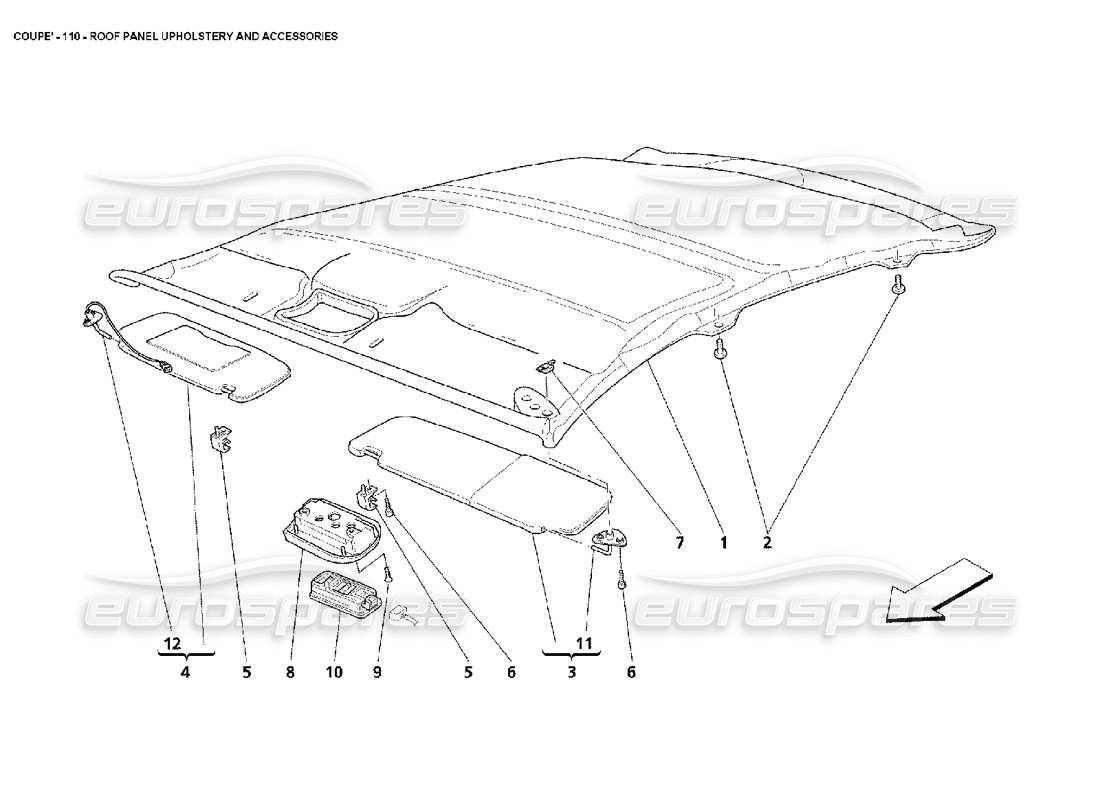

ROOF PANEL UPHOLSTERY AND ACCESSORIES

111

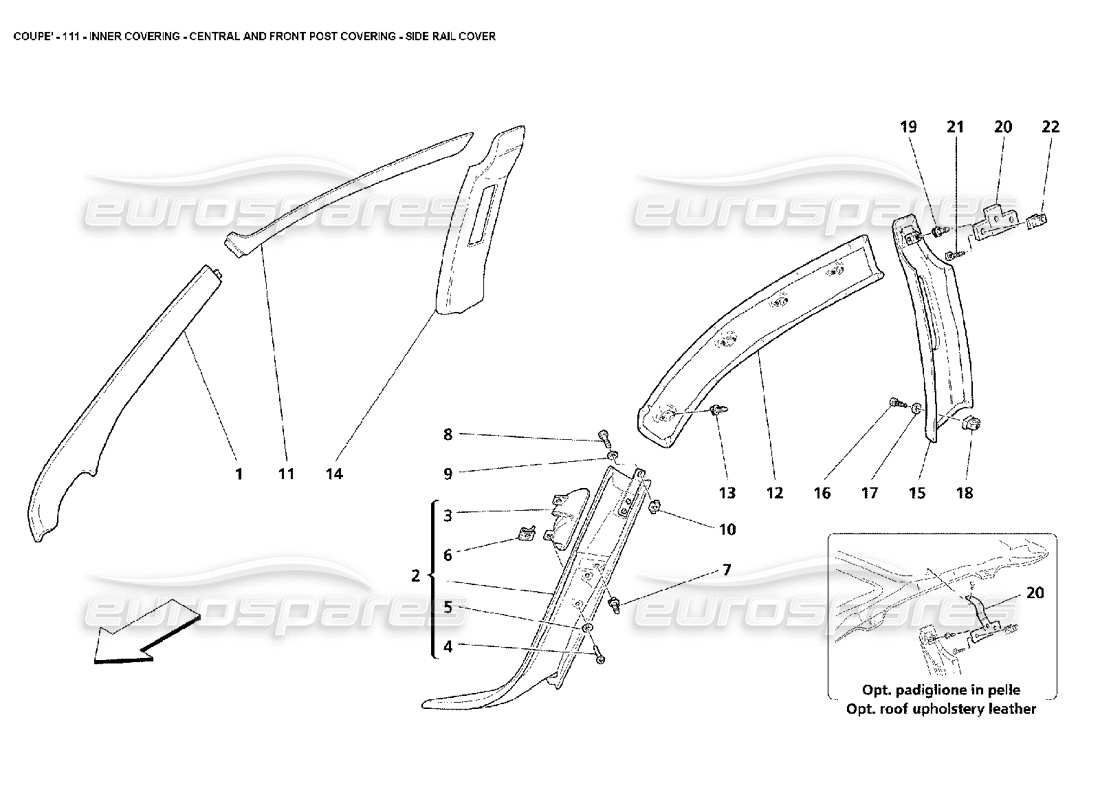

INNER COVERING - CENTRAL AND FRONT POST COVERING - SIDE RAIL COVER

112

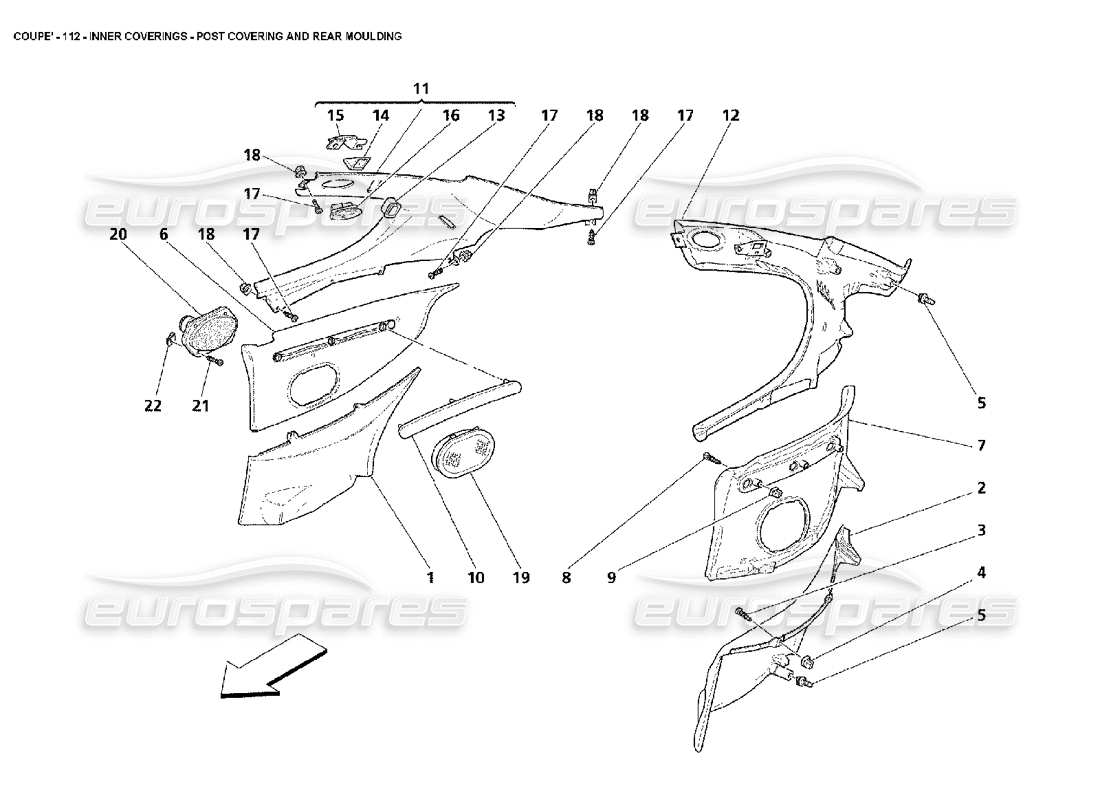

INNER COVERINGS - POST COVERING AND REAR MOULDING

113

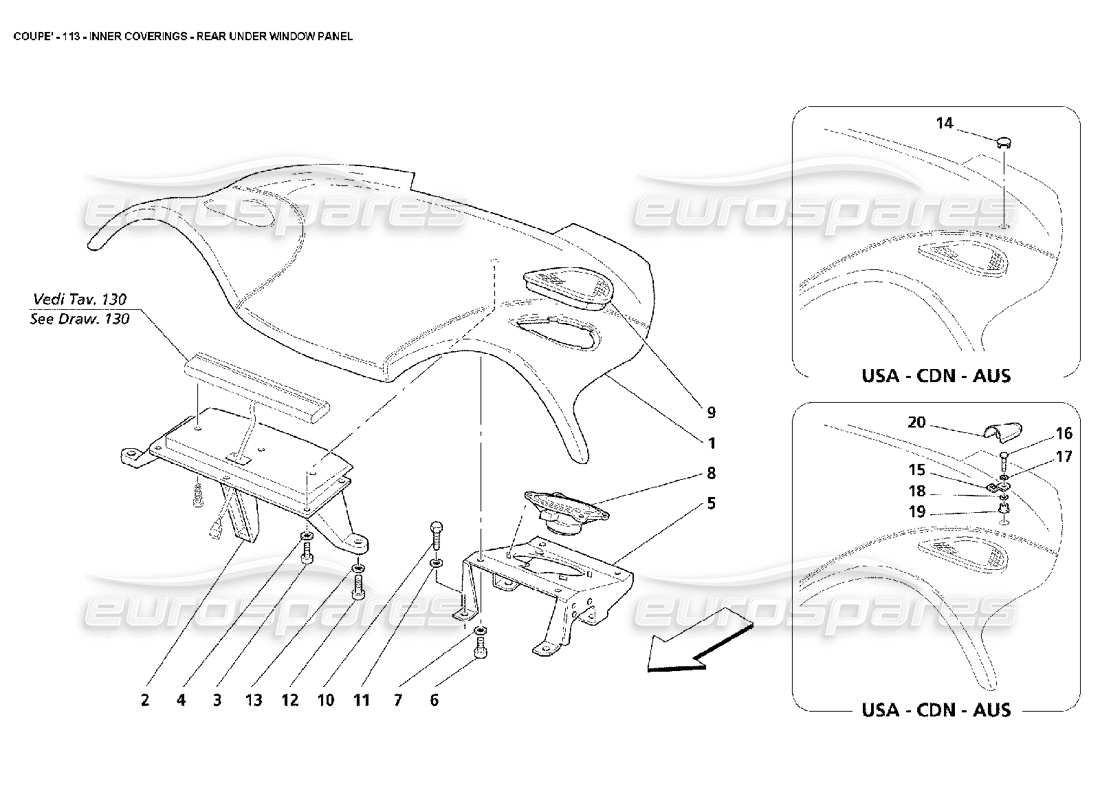

INNER COVERINGS - REAR UNDER WINDOW PANEL

114

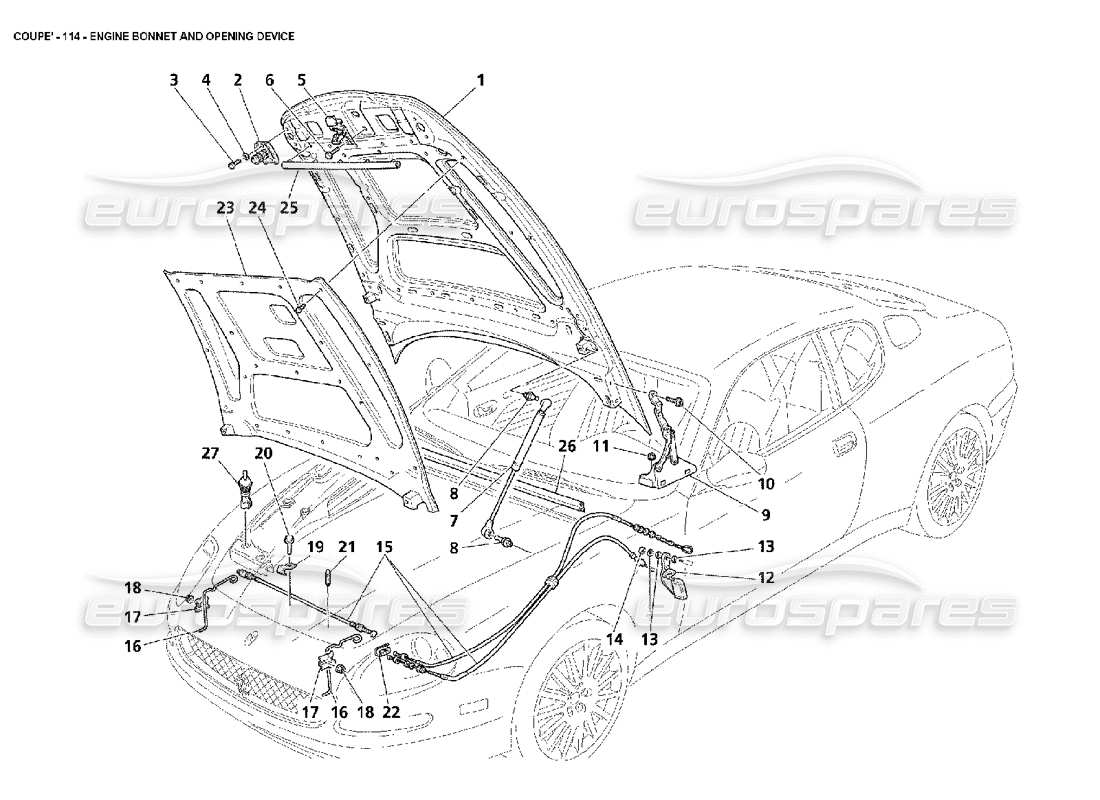

ENGINE BONNET AND OPENING DEVICE

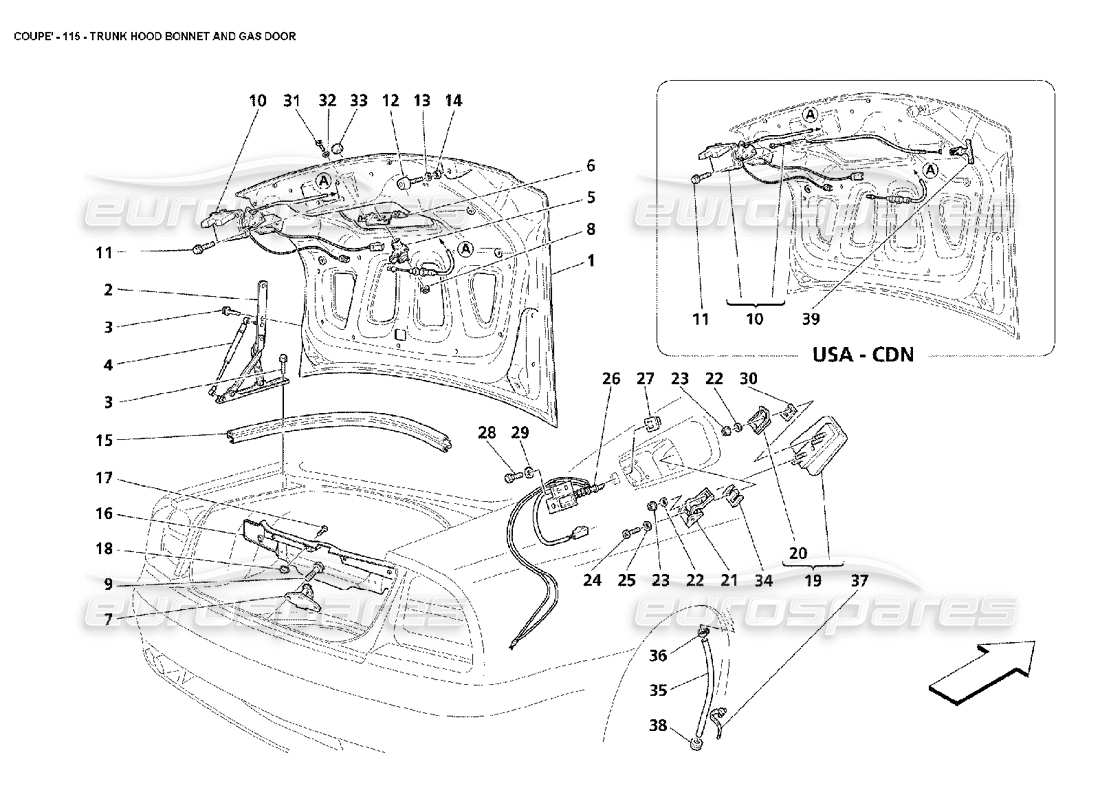

115

TRUNK HOOD BONNET AND GAS DOOR

116

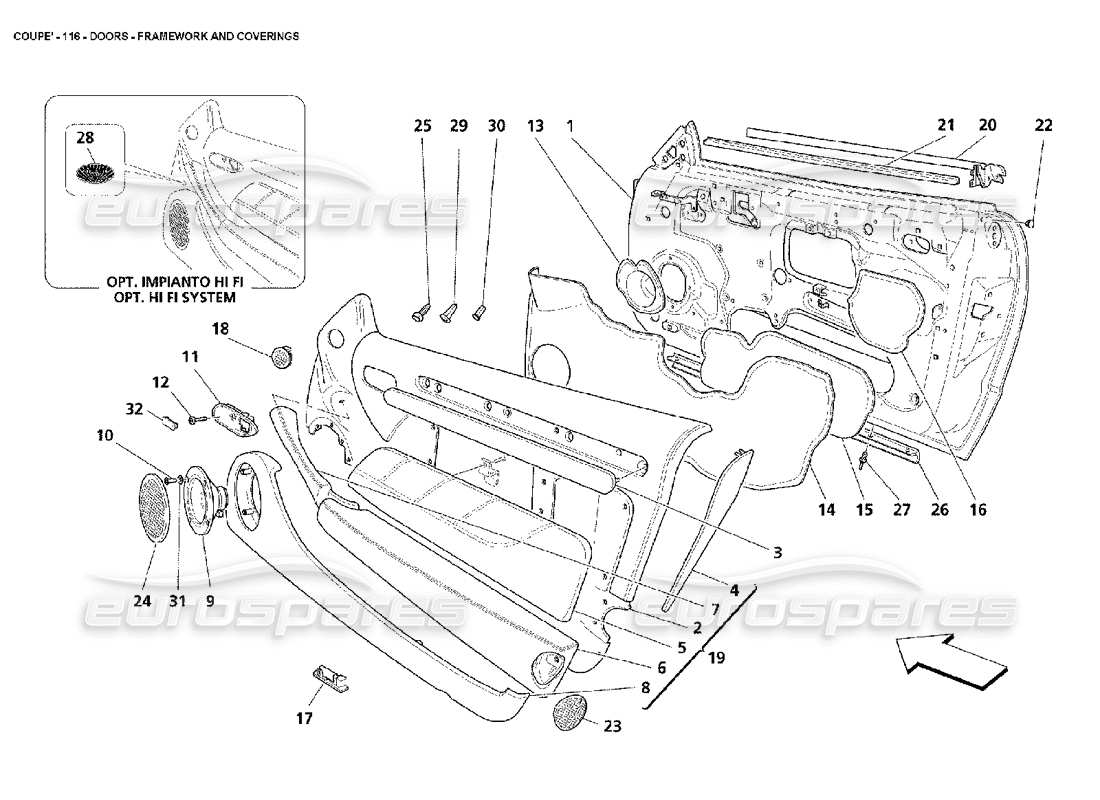

DOORS - FRAMEWORK AND COVERINGS

117

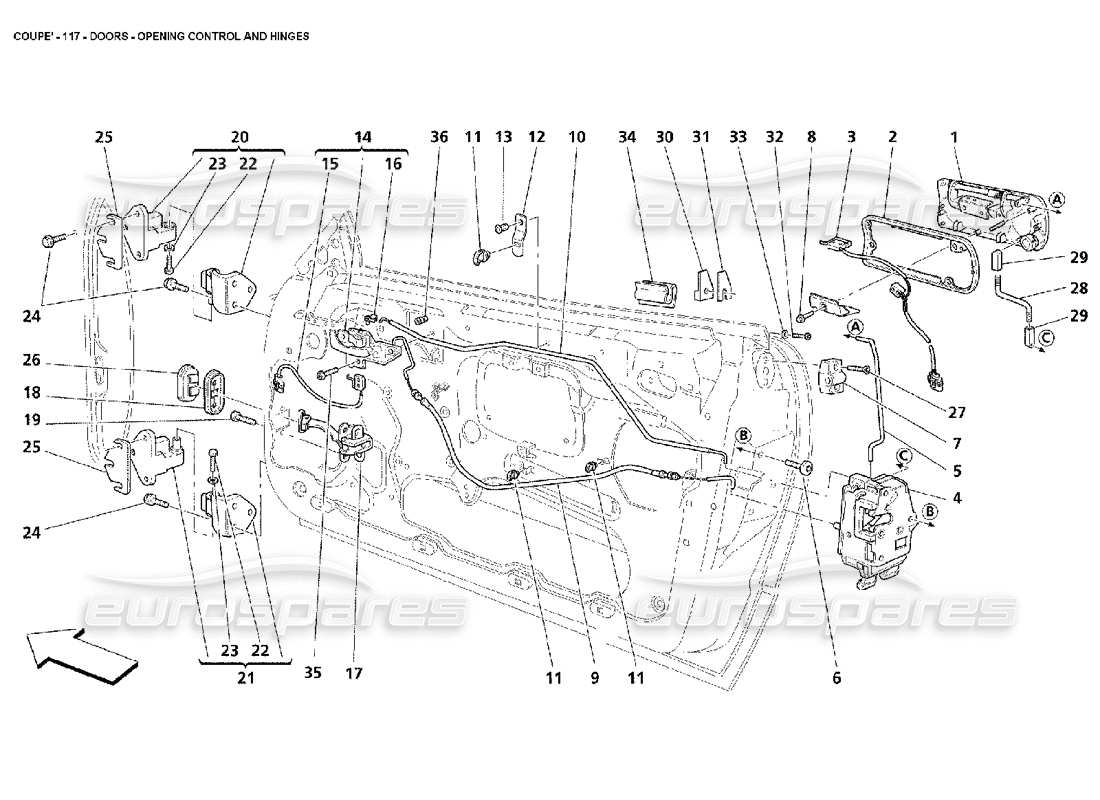

DOORS - OPENING CONTROL AND HINGES

118

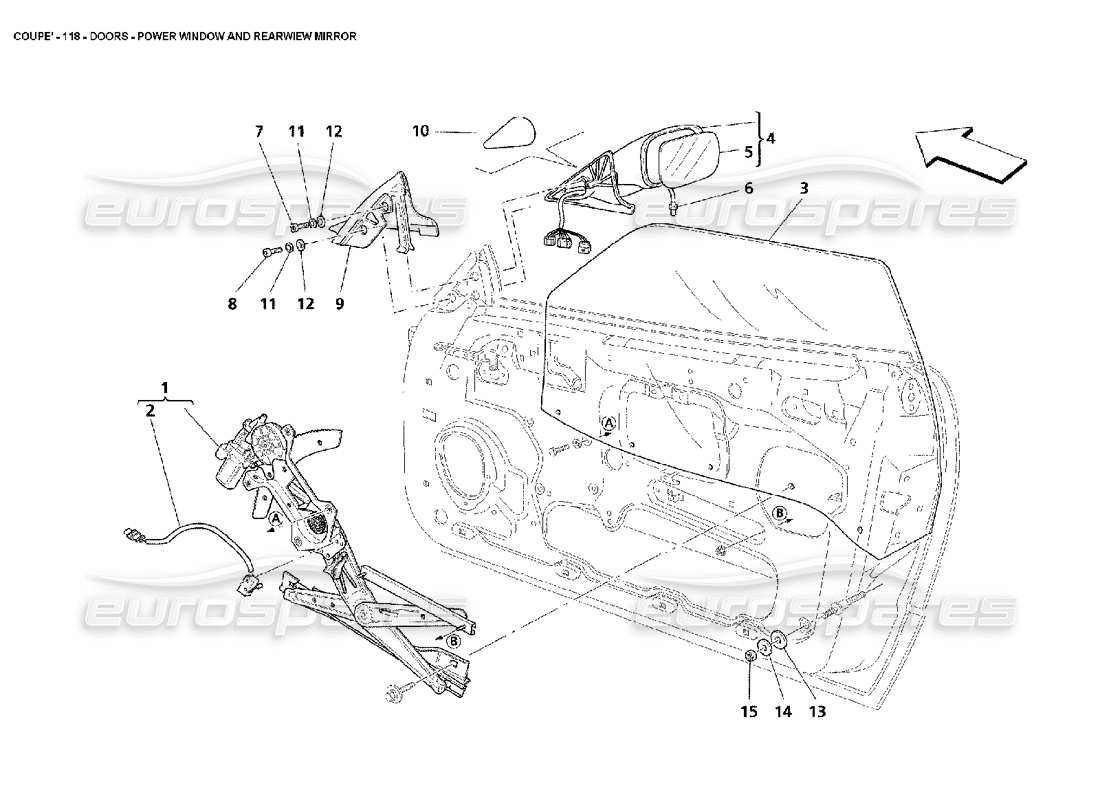

DOORS - POWER WINDOW AND REARWIEW MIRROR

119

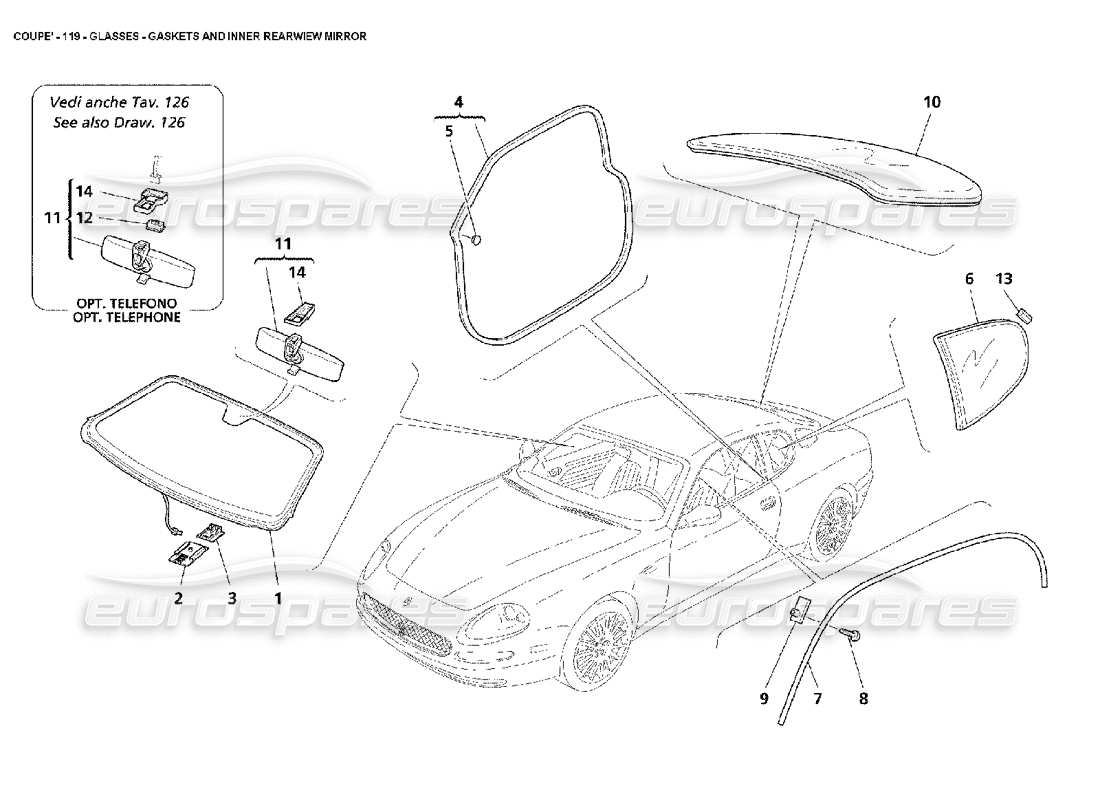

GLASSES - GASKETS AND INNER REARWIEW MIRROR

120

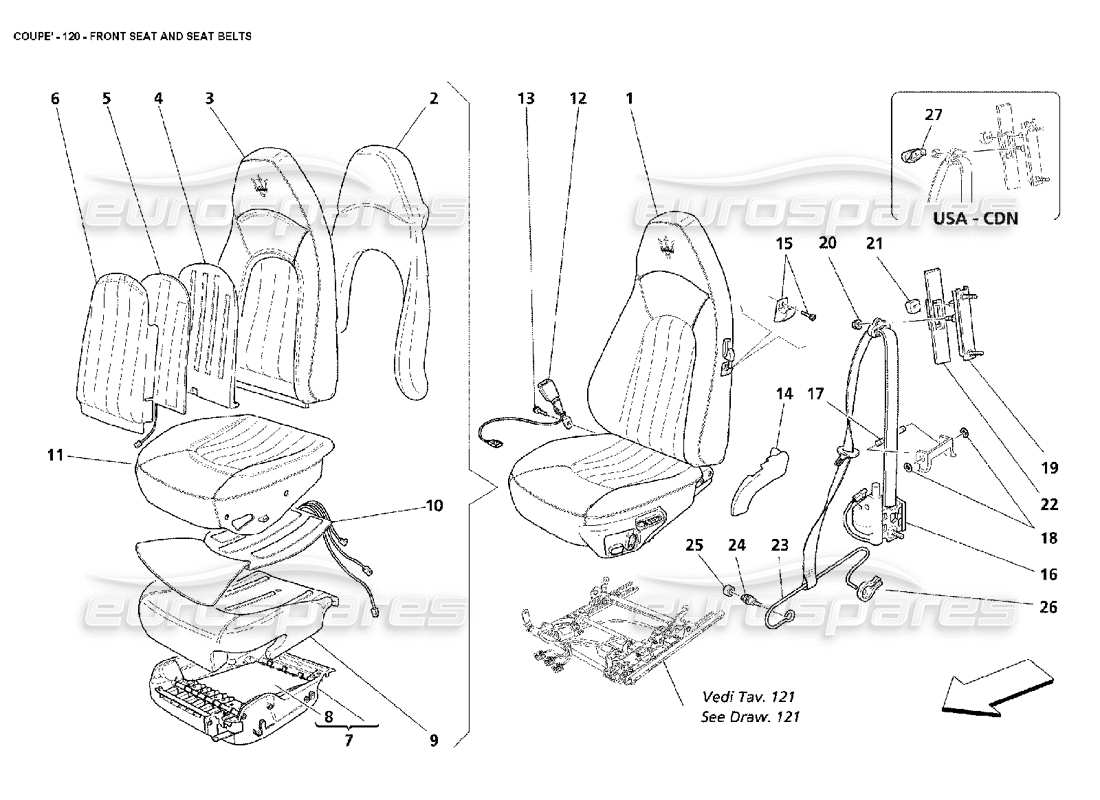

FRONT SEAT AND SEAT BELTS

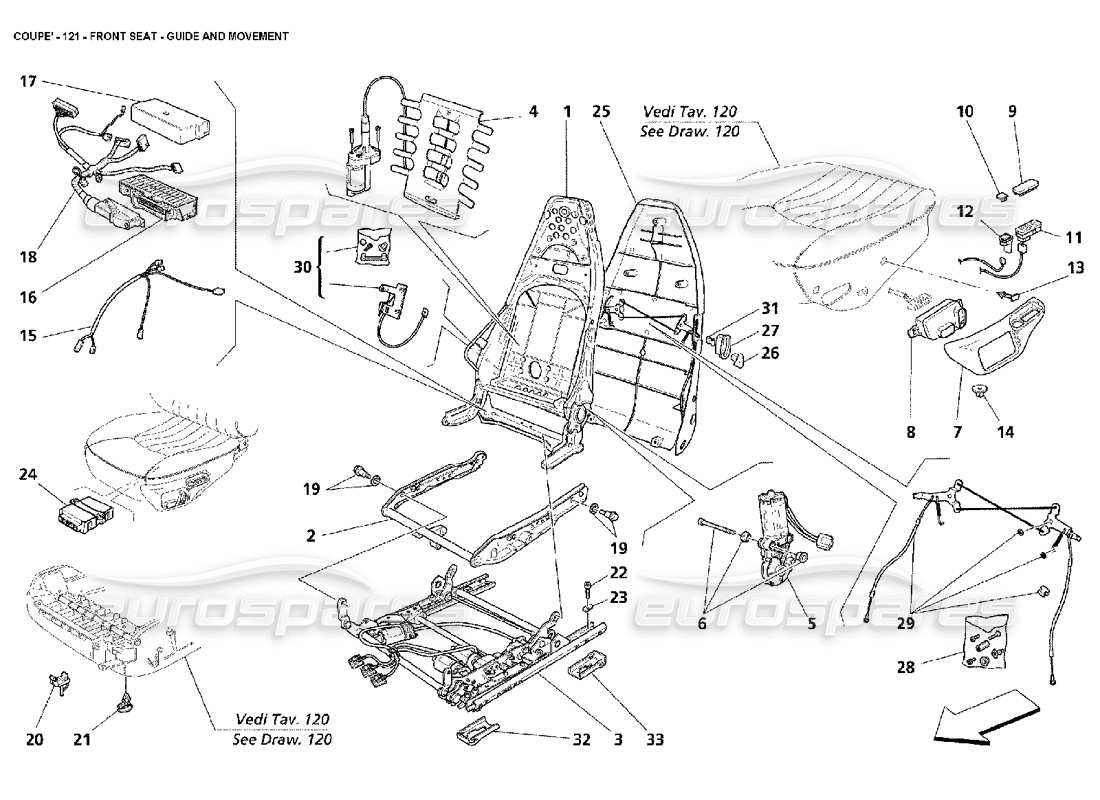

121

FRONT SEAT - GUIDE AND MOVEMENT

122

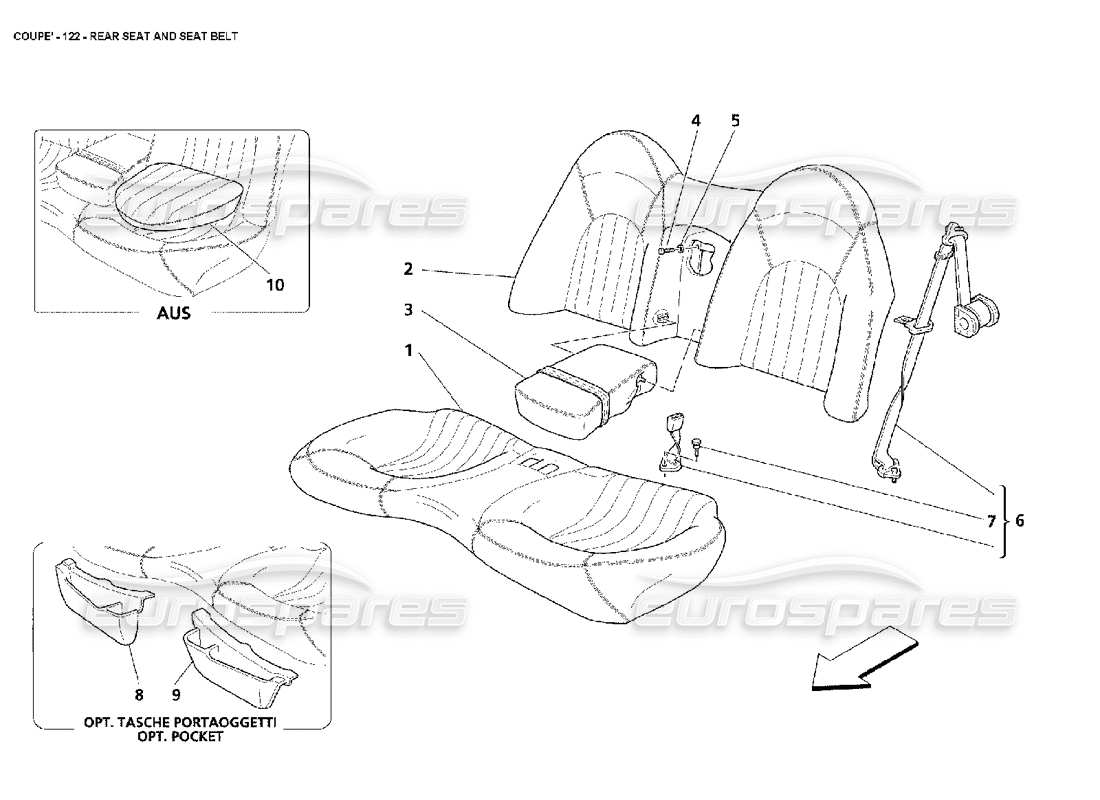

REAR SEAT AND SEAT BELT

123

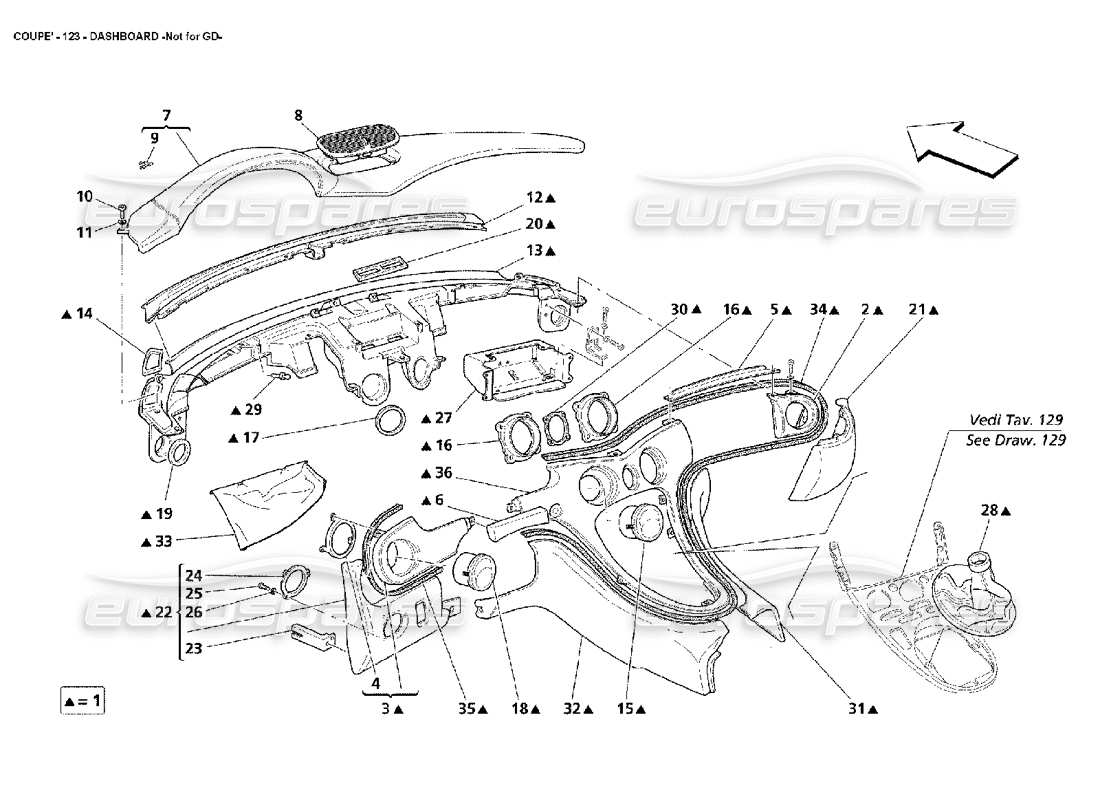

DASHBOARD -NOT FOR GD

124

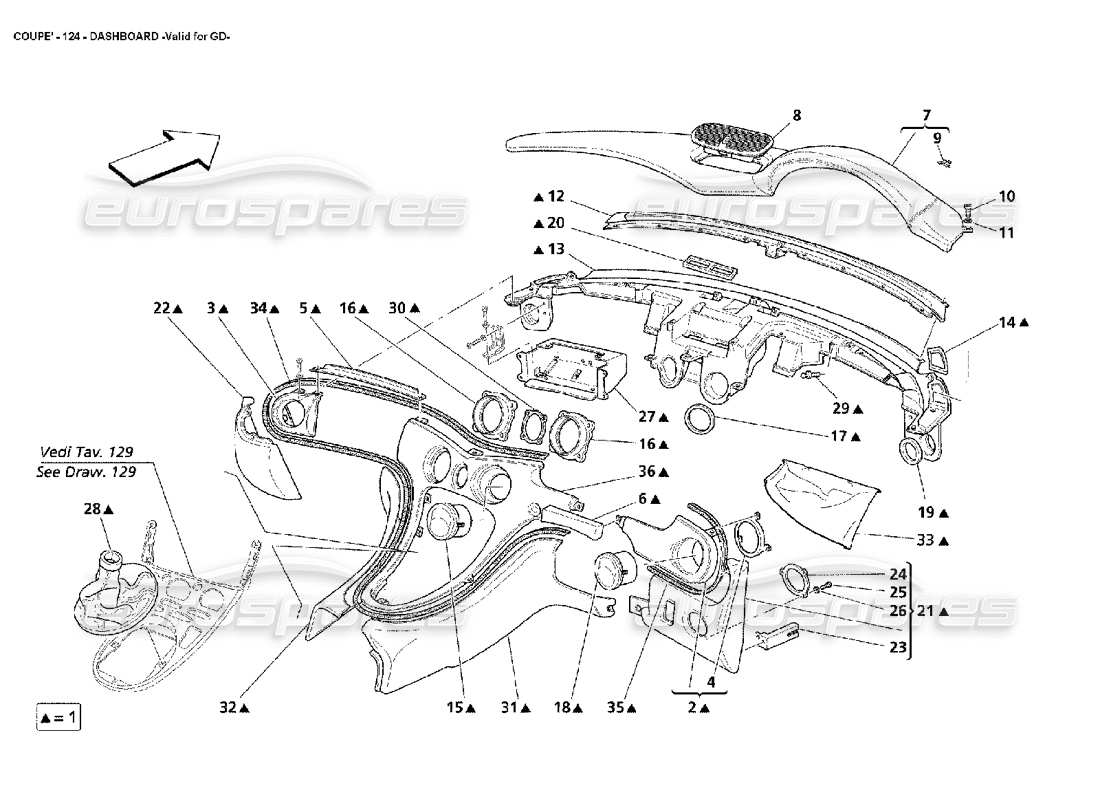

DASHBOARD -VALID FOR GD

125

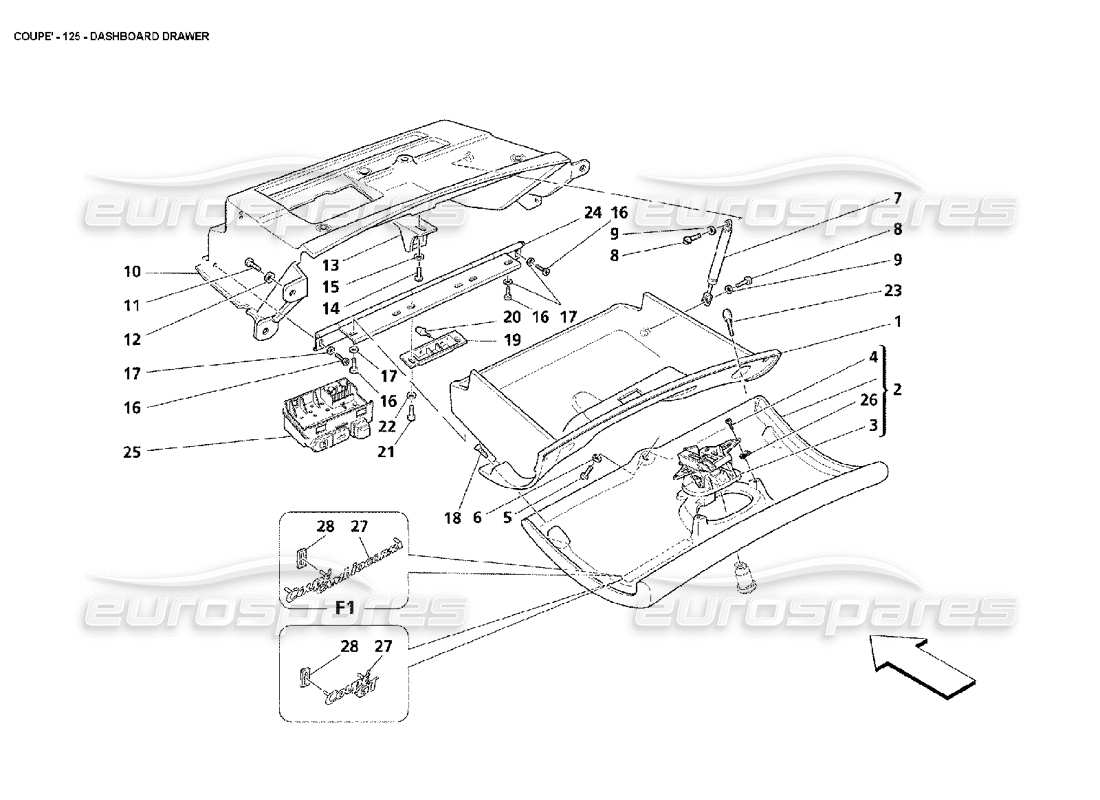

DASHBOARD DRAWER

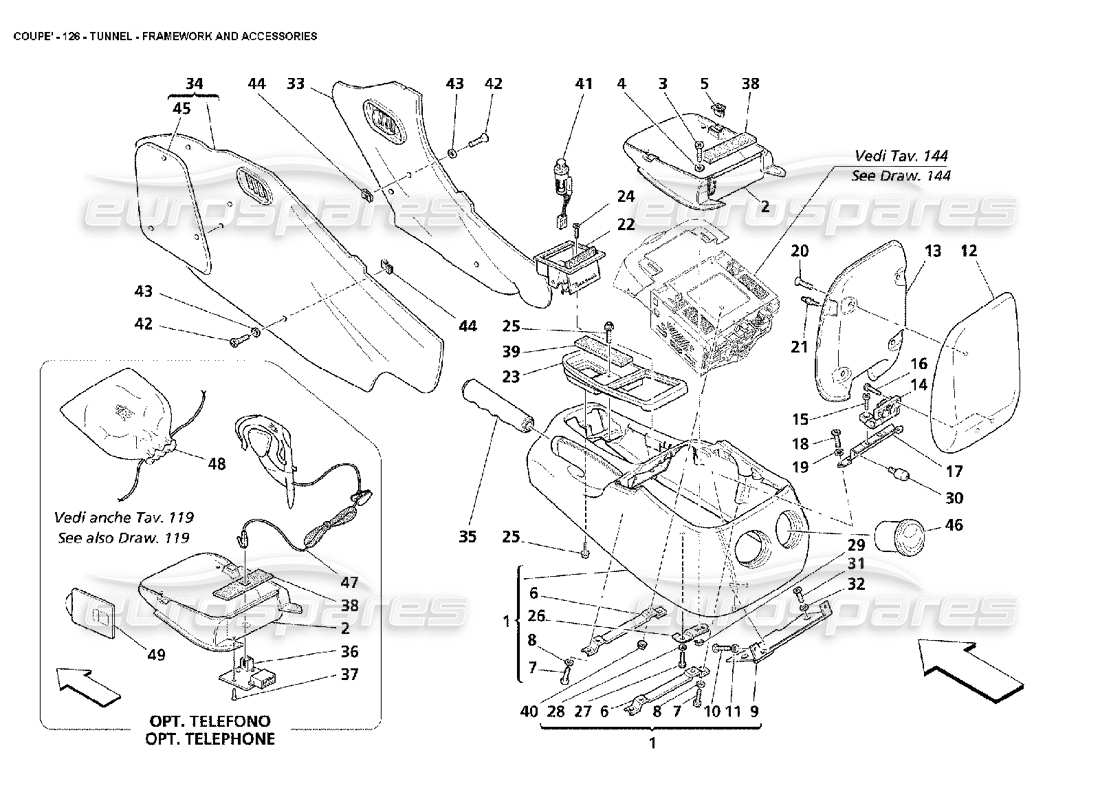

126

TUNNEL - FRAMEWORK AND ACCESSORIES

127

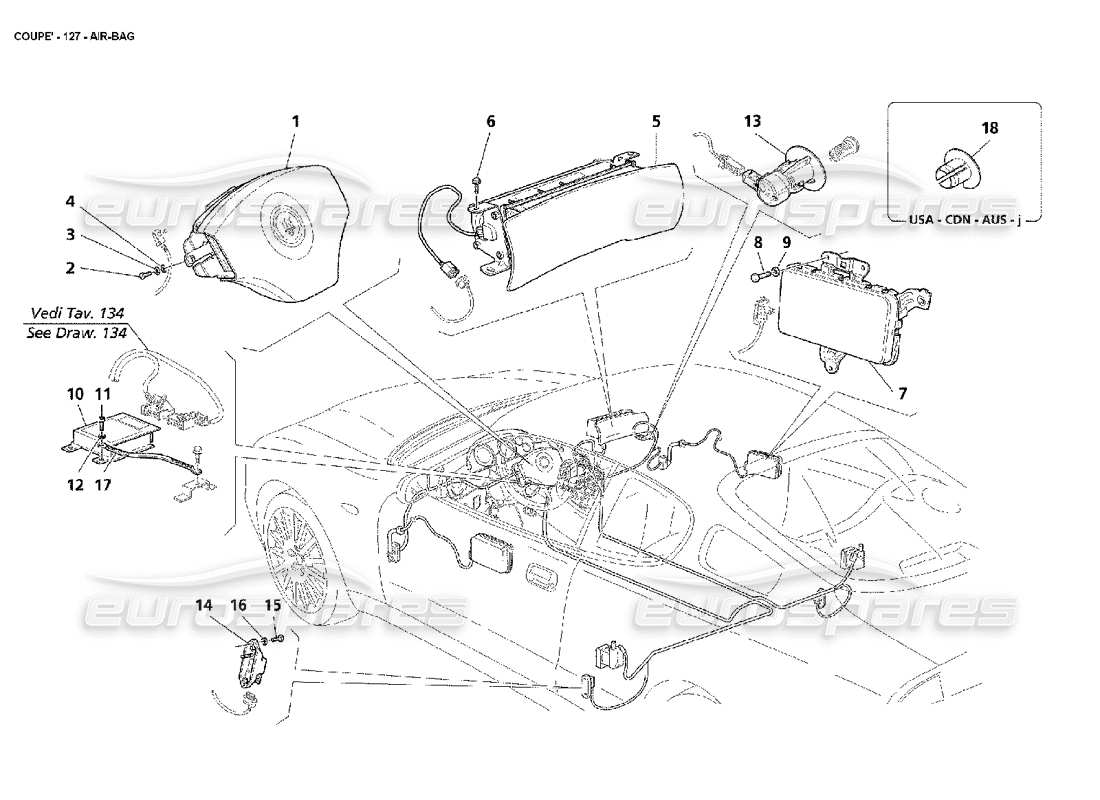

AIR-BAGS

128

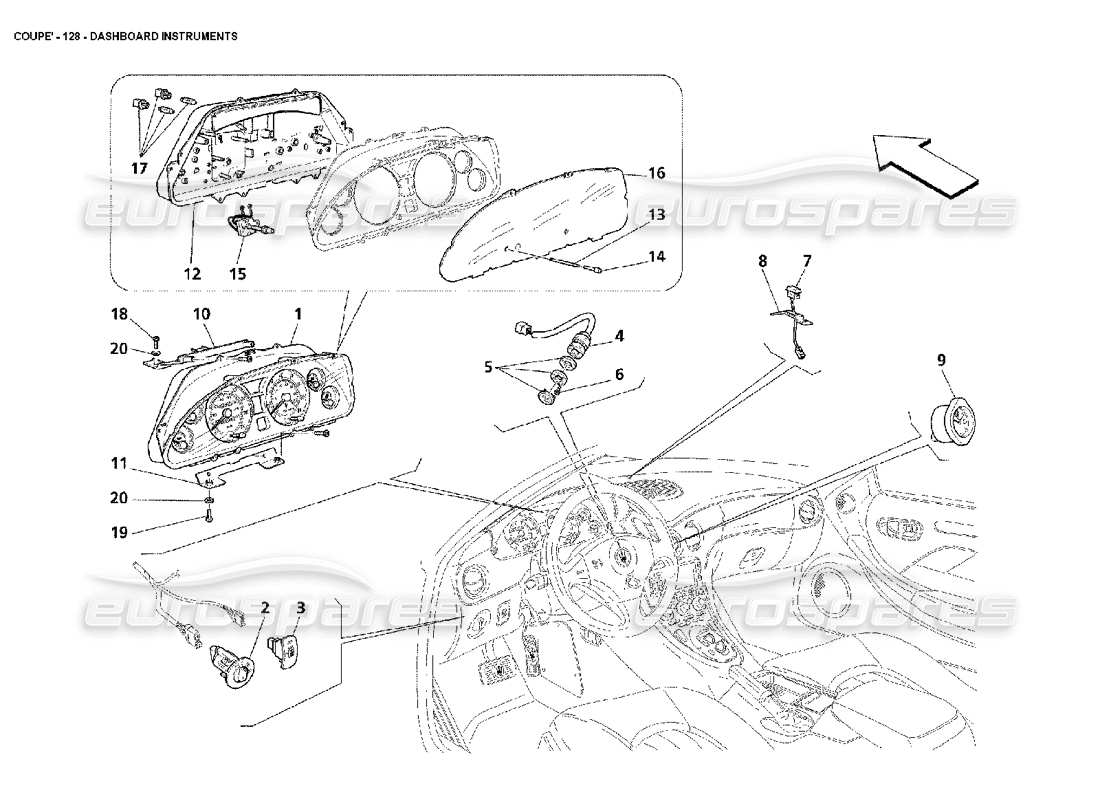

DASHBOARD INSTRUMENTS

129

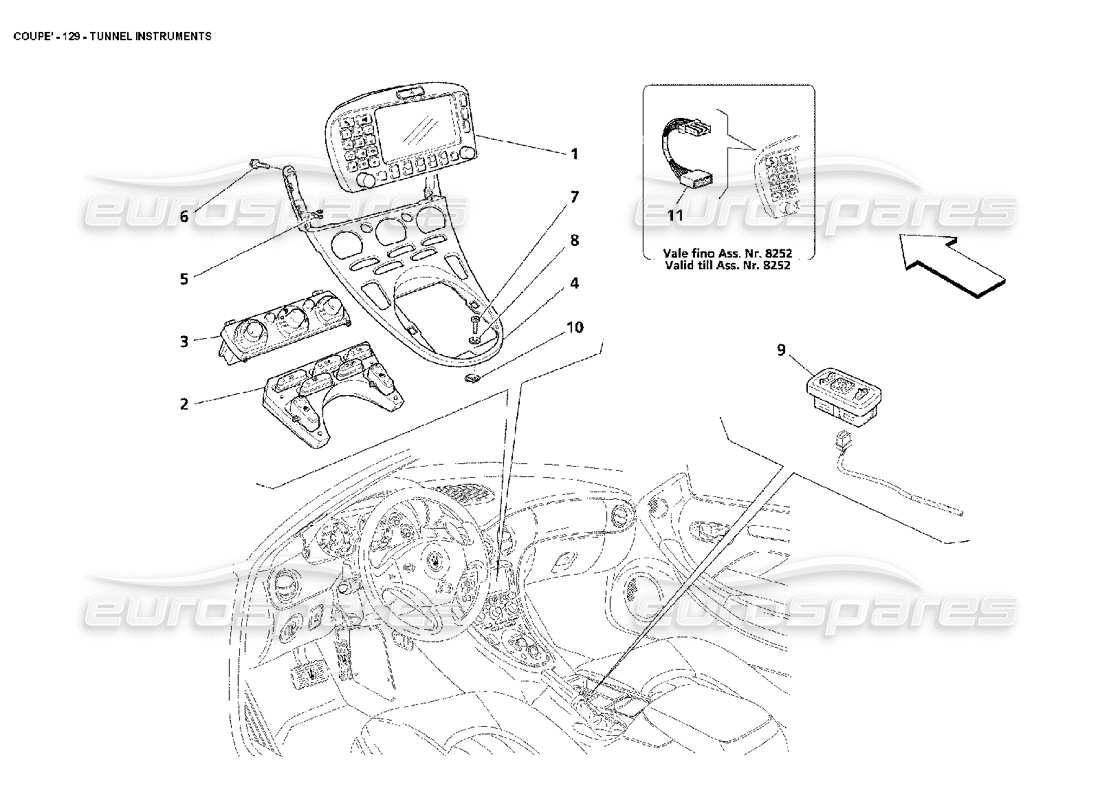

TUNNEL INSTRUMENTS

130

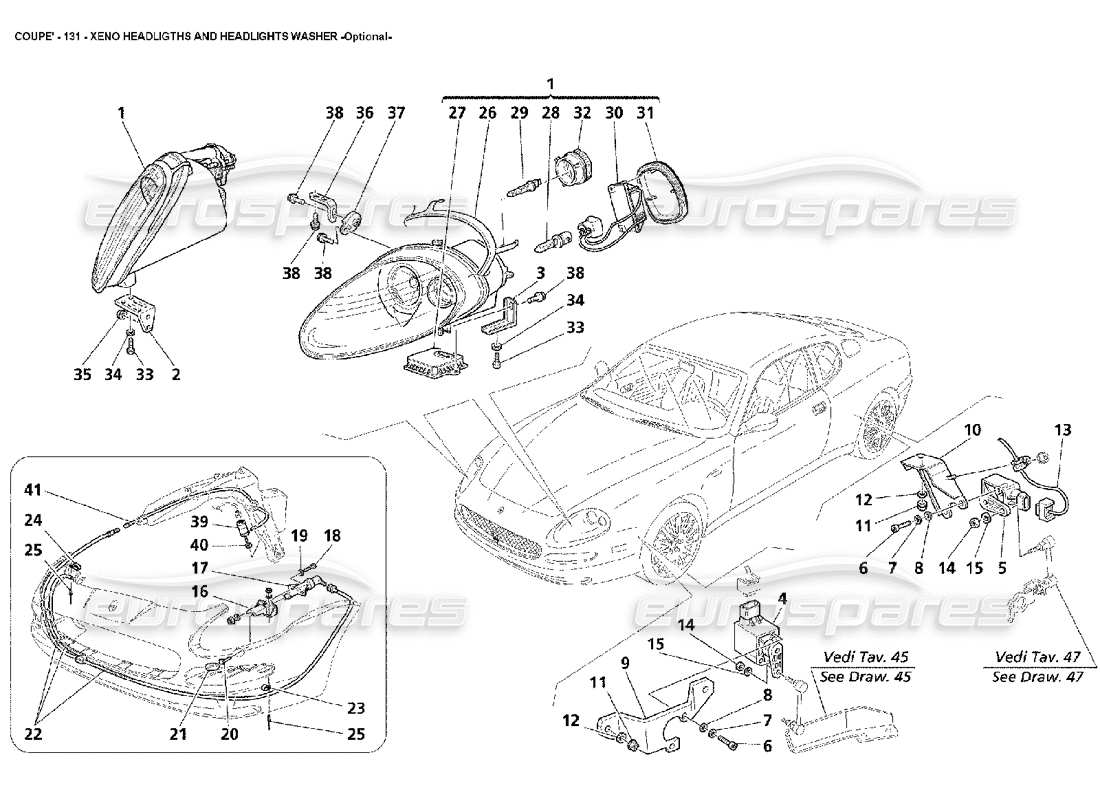

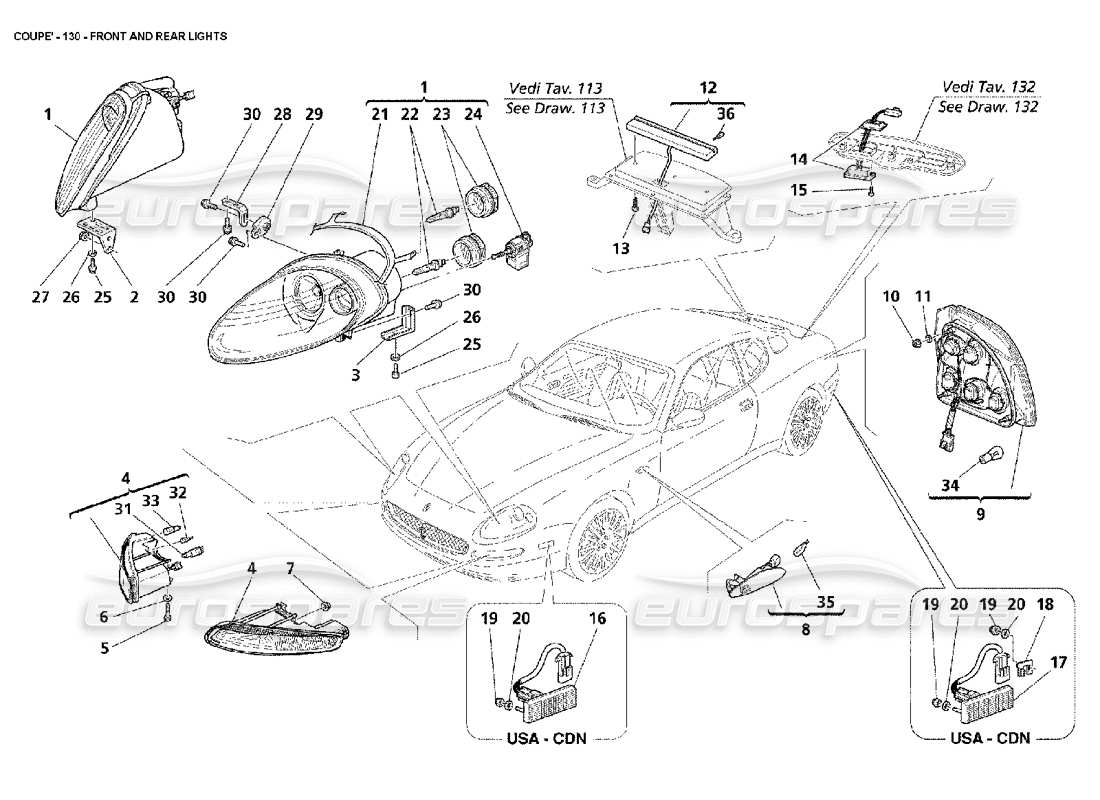

FRONT AND REAR LIGHTS

131

XENON HEADLIGHTS AND WASHER -OPTIONAL

132

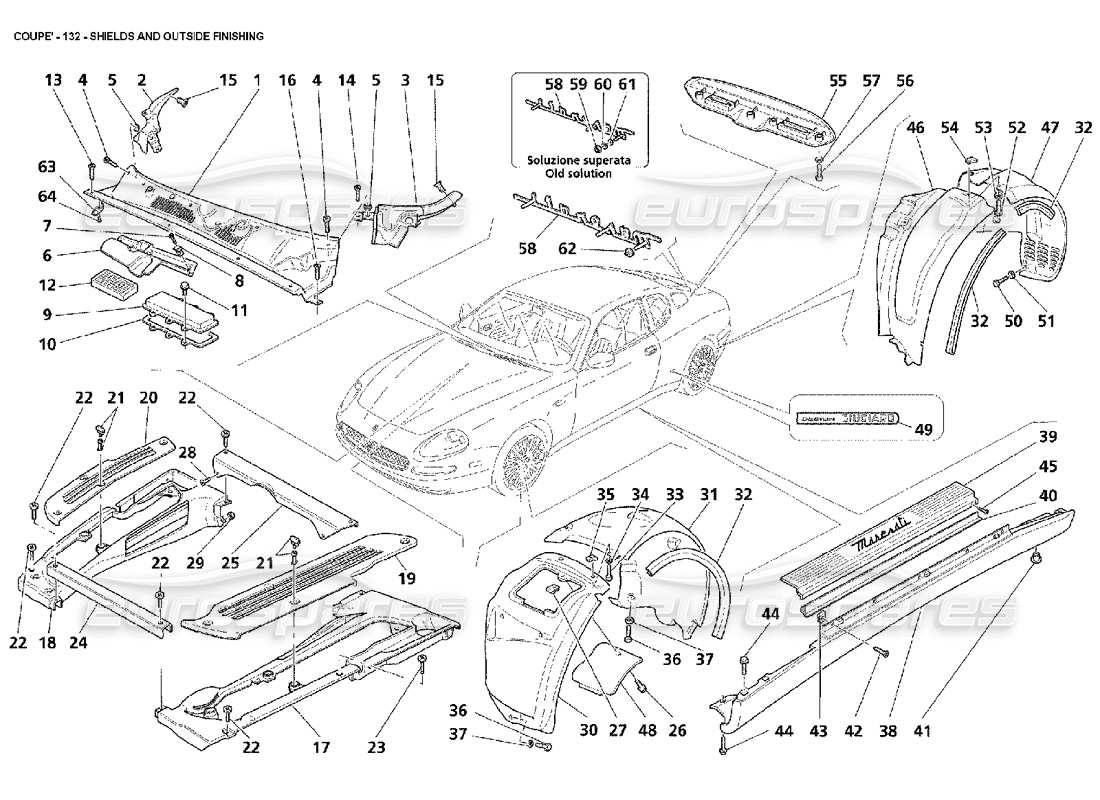

SHIELDS AND OUTSIDE FINISHING

133

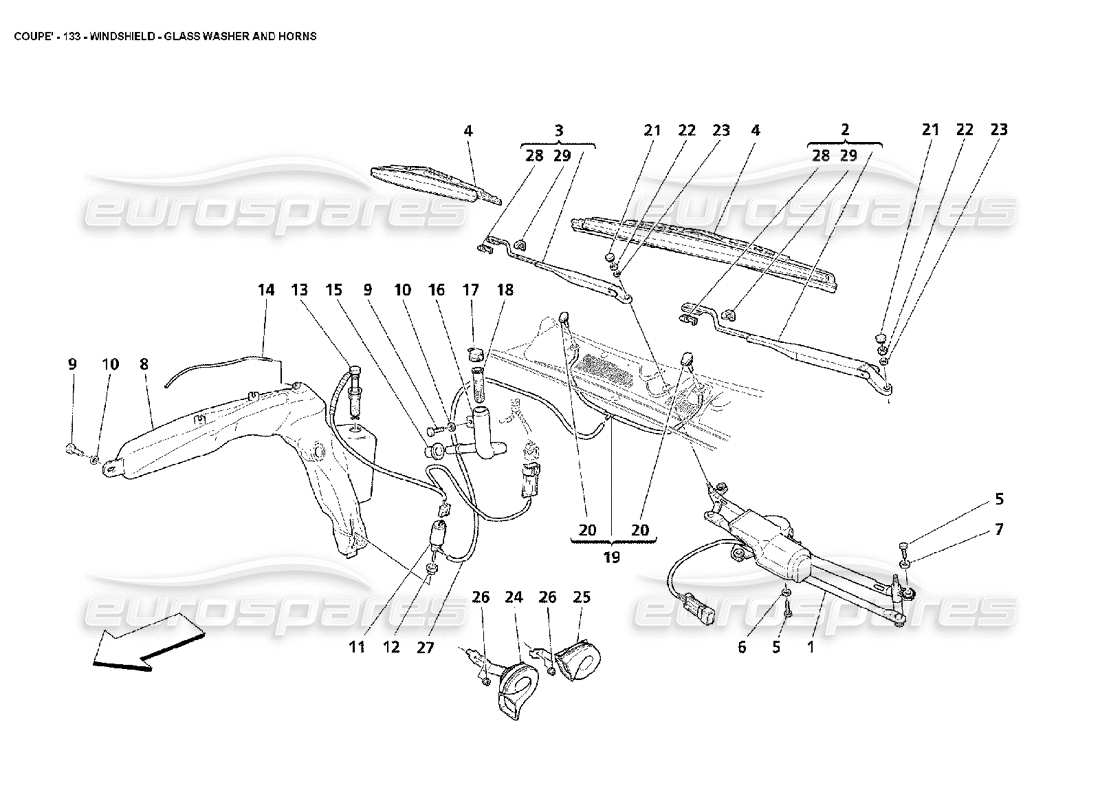

WINDSHIELD - GLASS WASHER AND HORNS

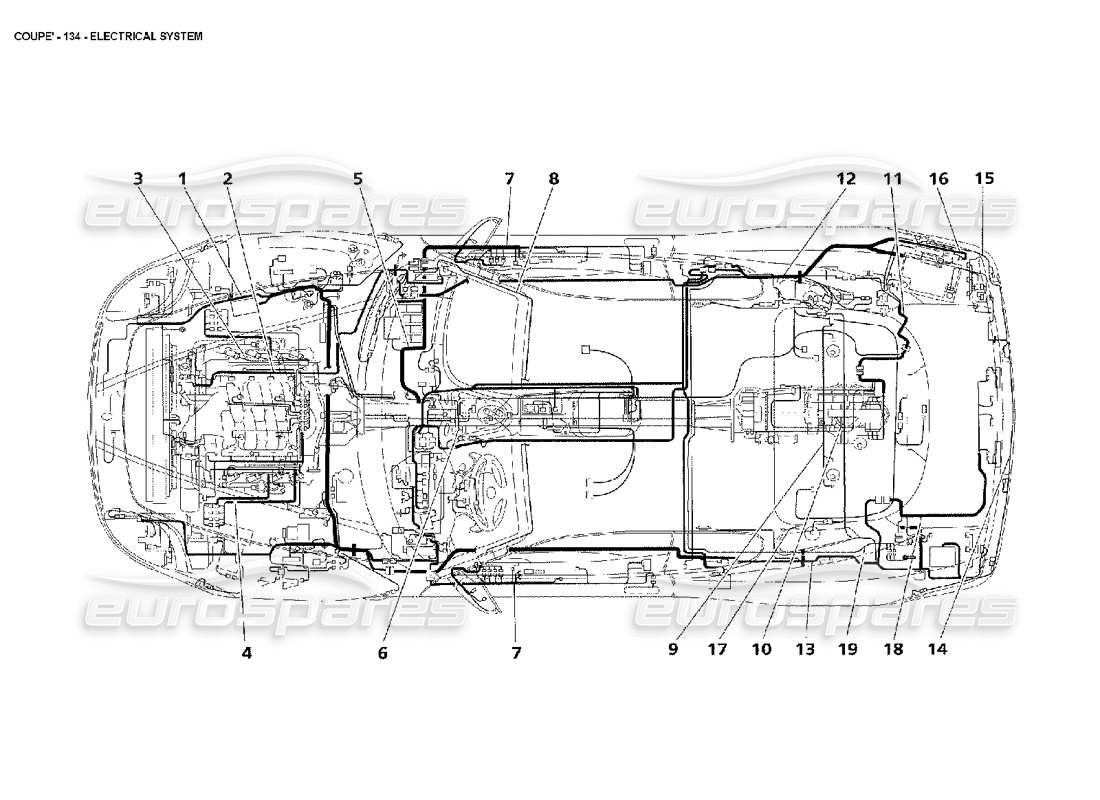

134

ELECTRICAL SYSTEM

135

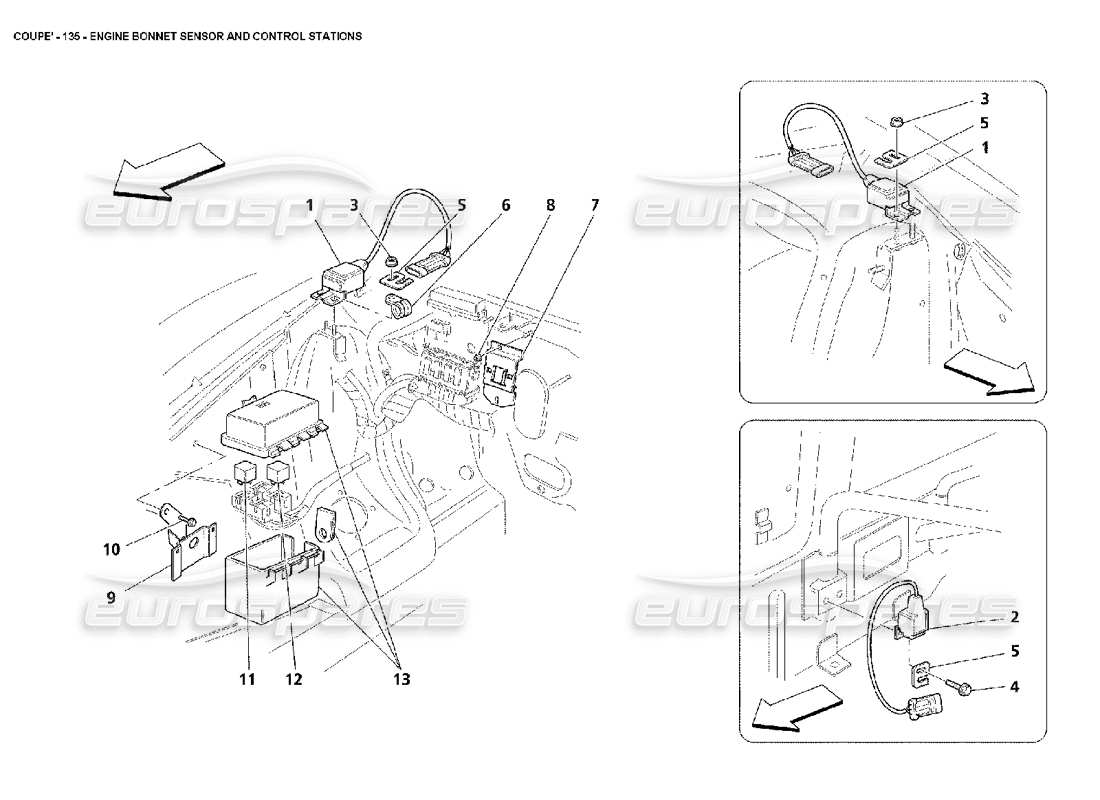

ENGINE BONNET SENSOR AND CONTROL STATIONS

136

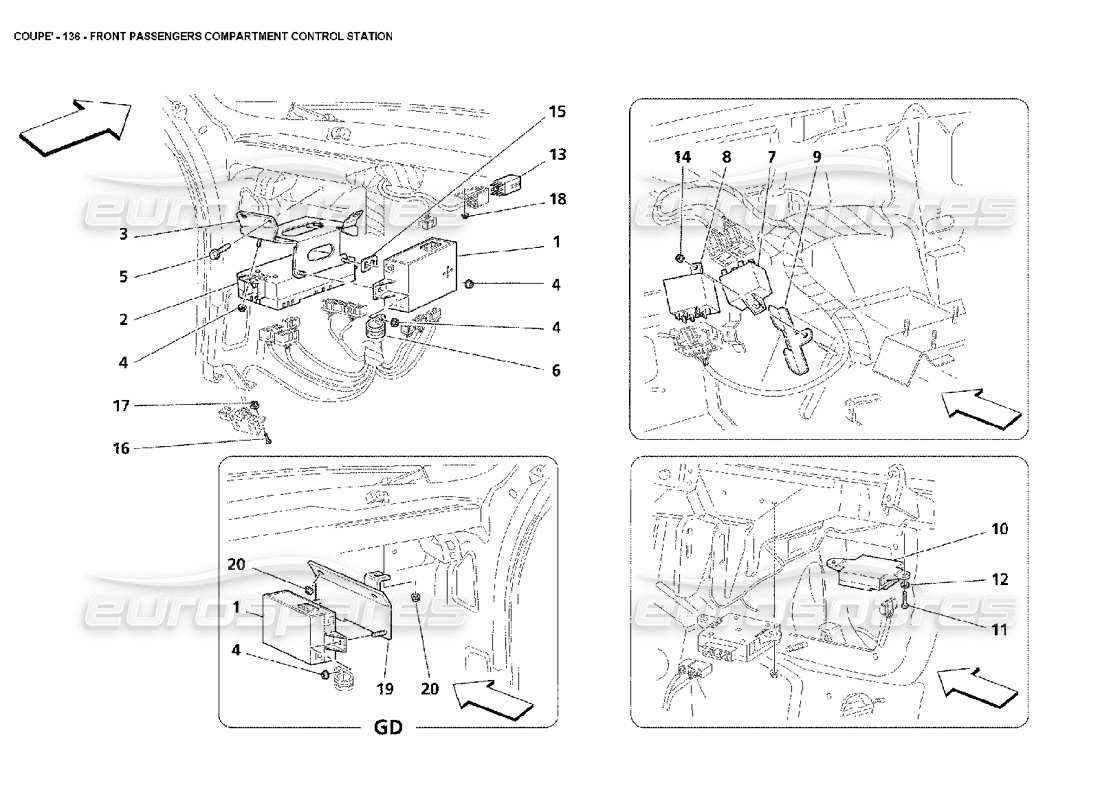

FRONT PASSENGERS COMPARTMENT CONTROL STATION

137

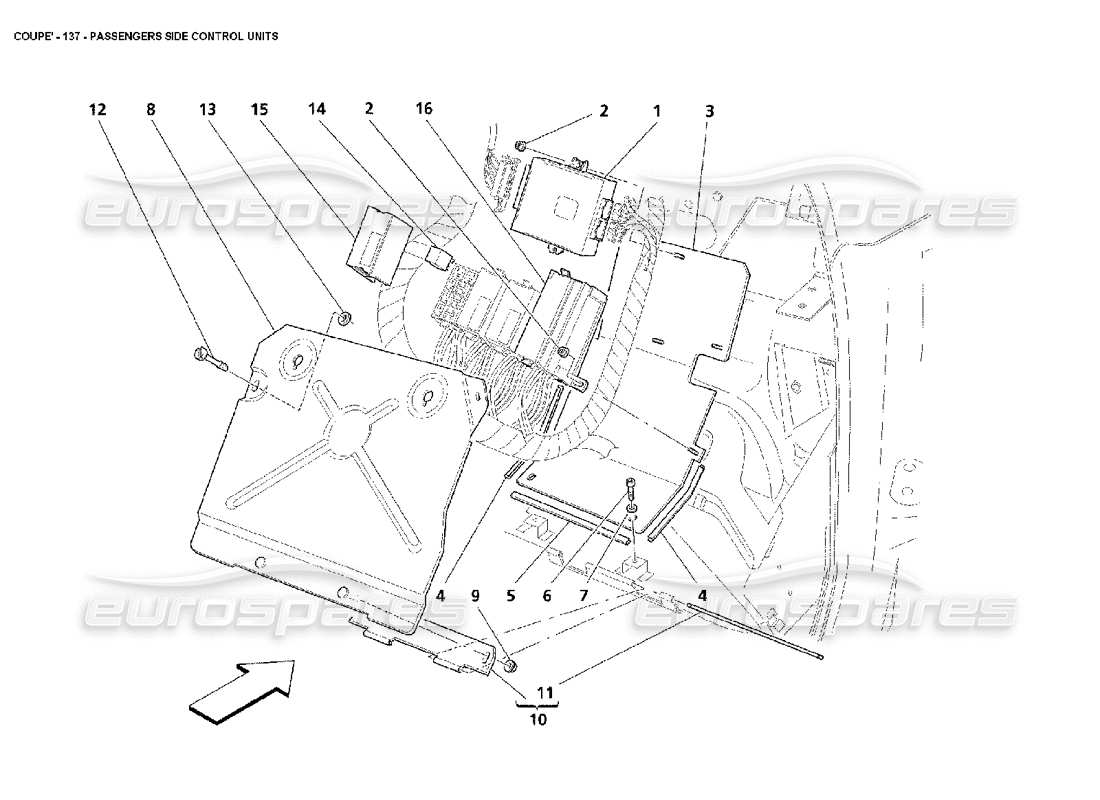

PASSENGERS SIDE CONTROL UNITS

138

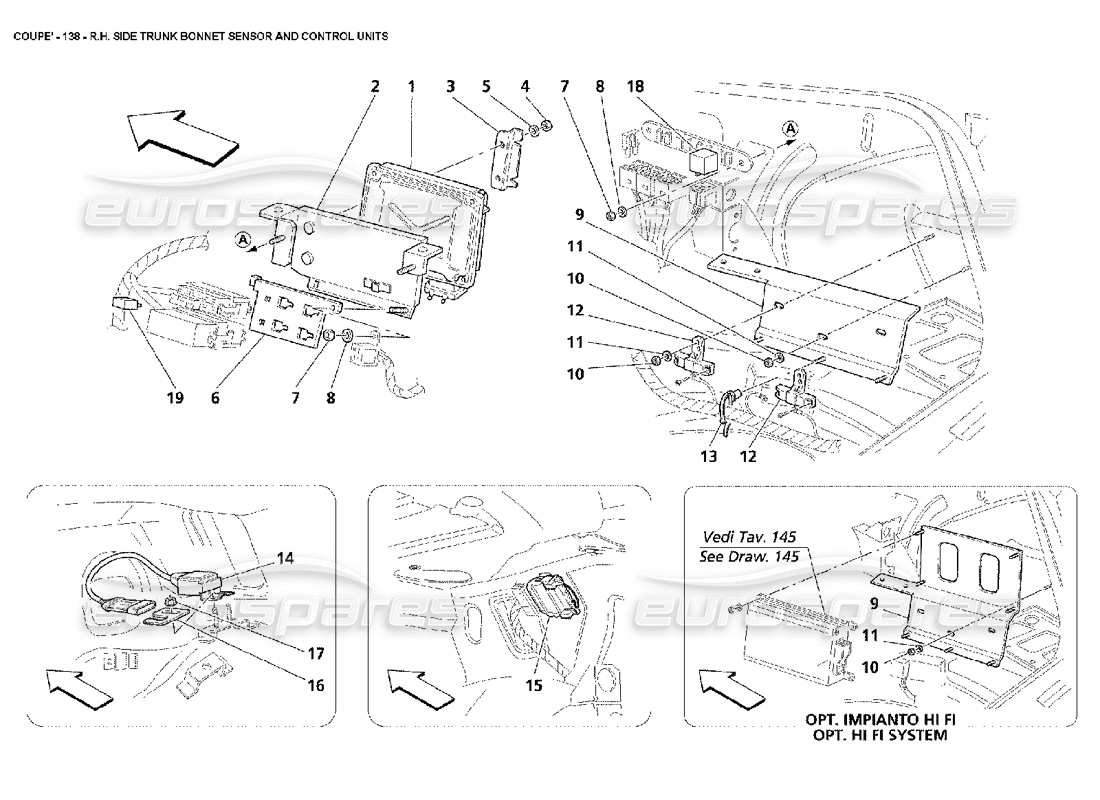

RH SIDE TRUNK BONNET SENSOR AND CONTROL UNITS

139

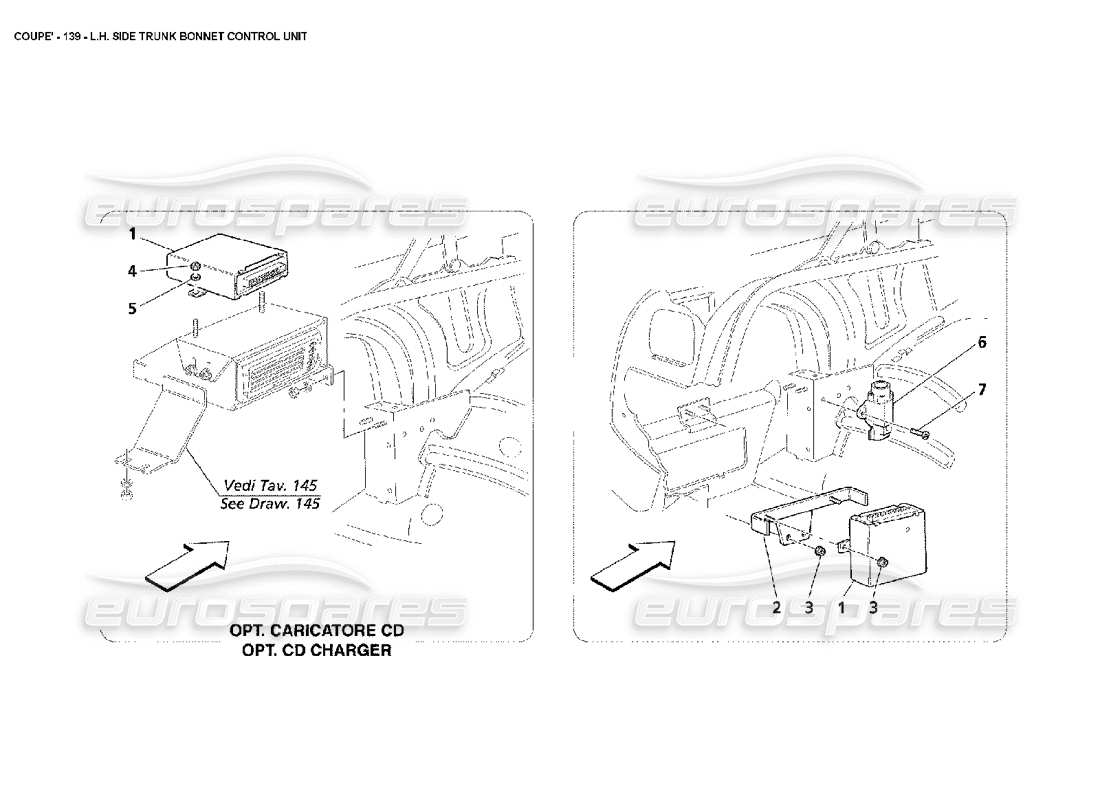

LH SIDE TRUNK BONNET CONTROL UNIT

140

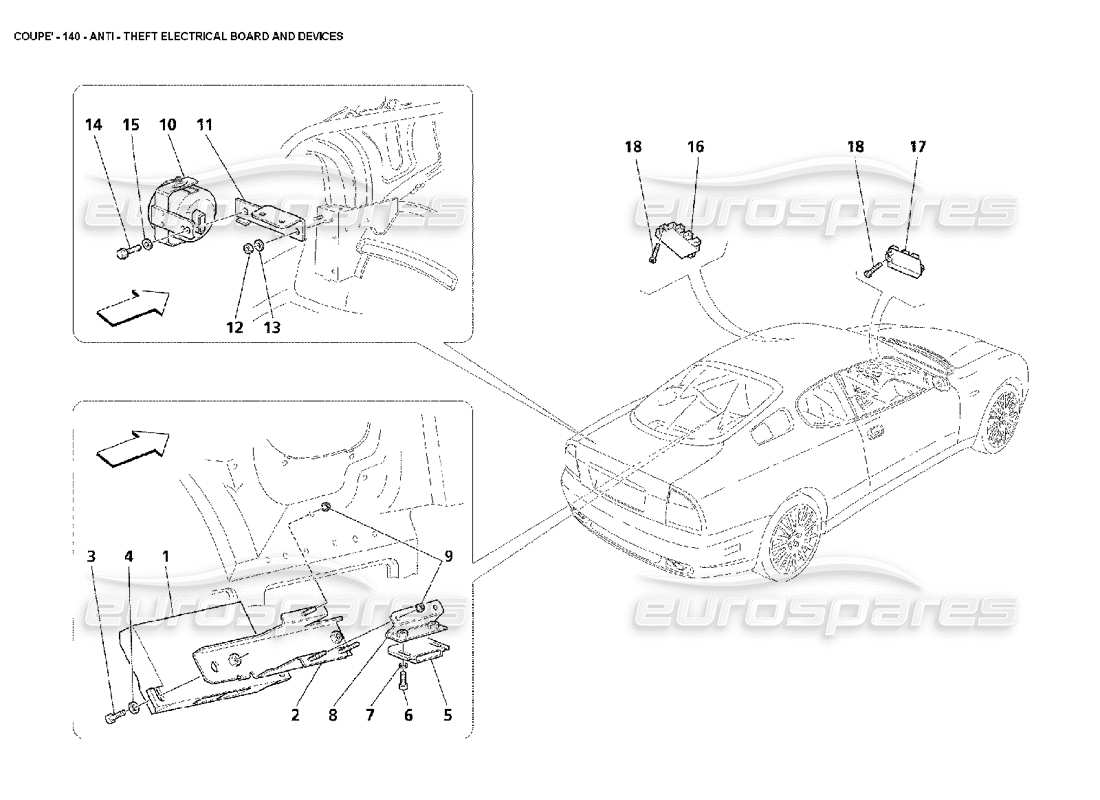

ANTI THEFT ELECTRICAL BOARDS AND DEVICES

141

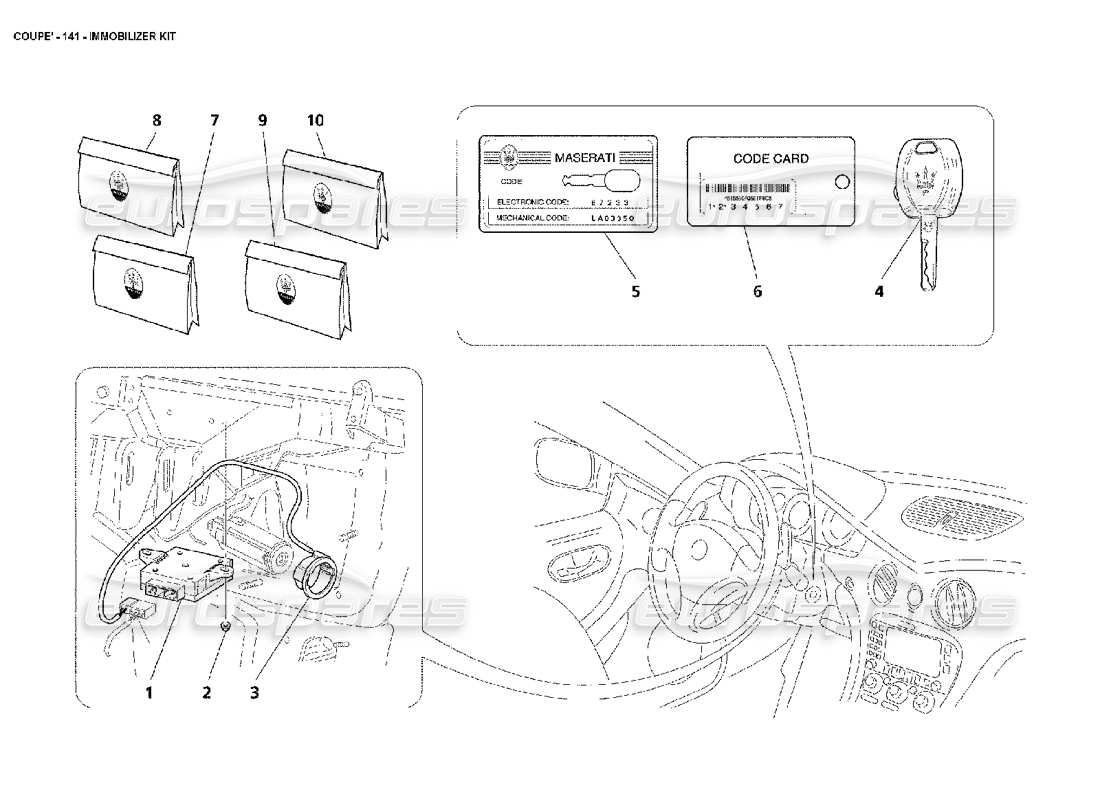

IMMOBILIZER KIT

142

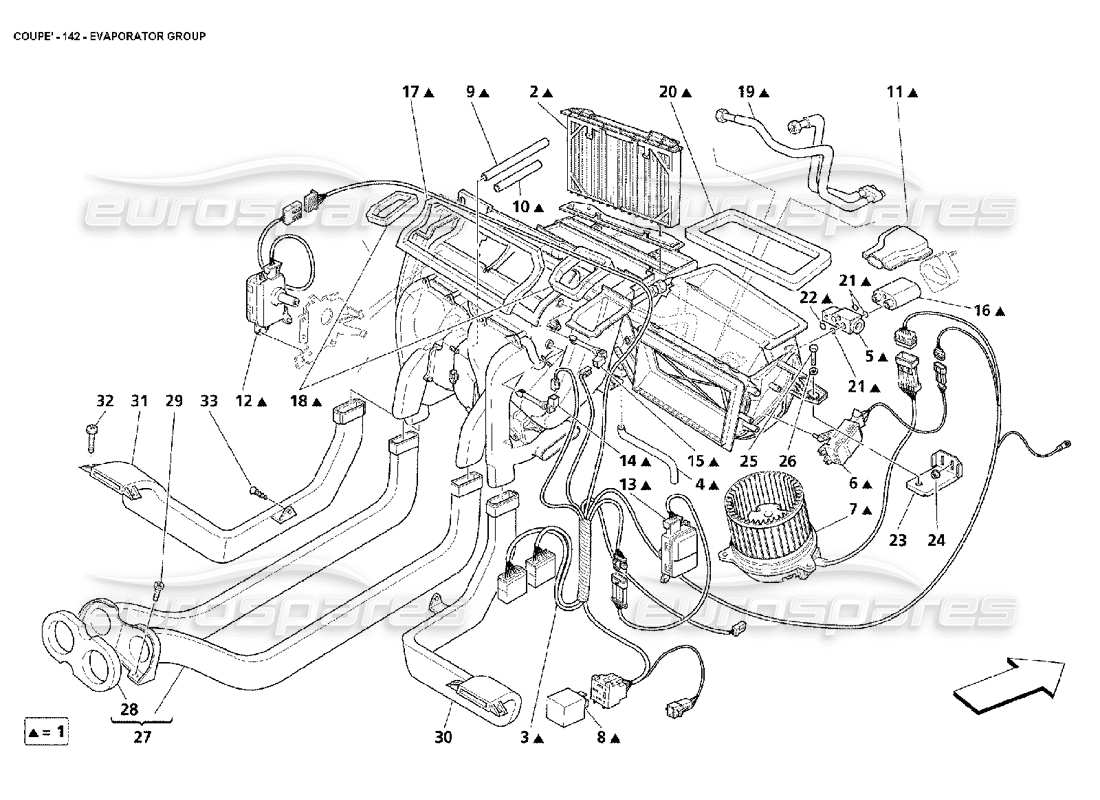

EVAPORATOR GROUP

143

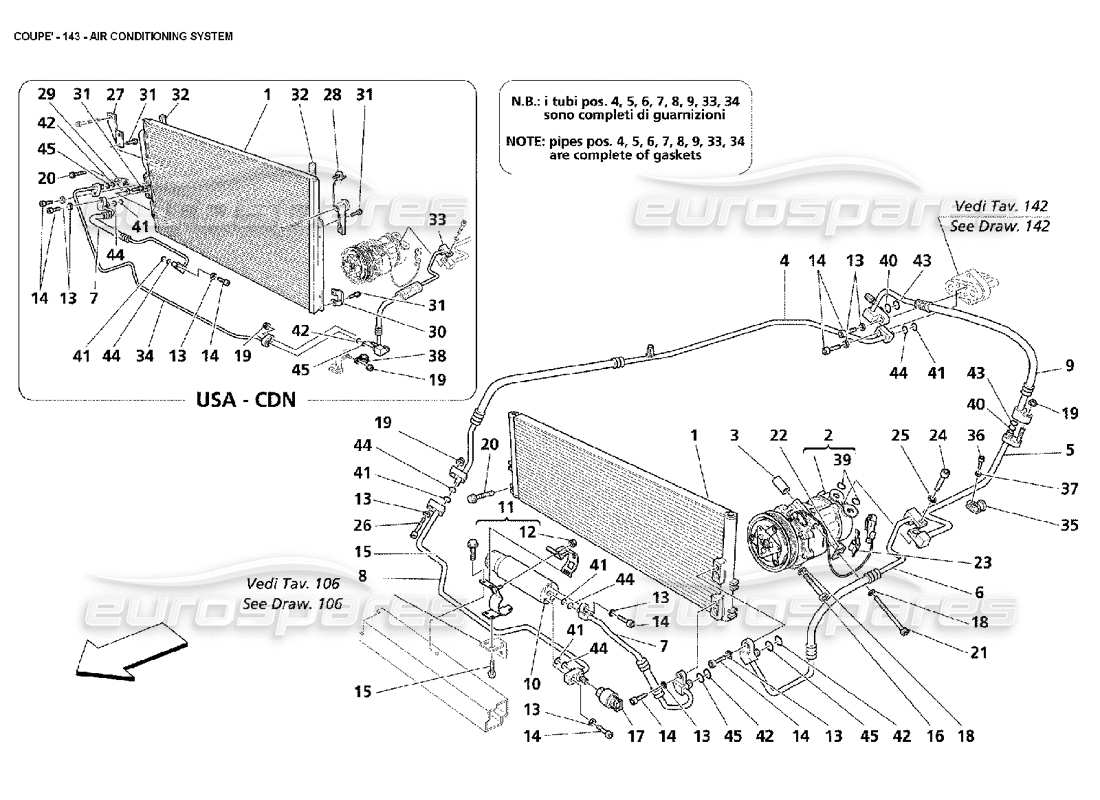

AIR CONDITIONING SYSTEM

144

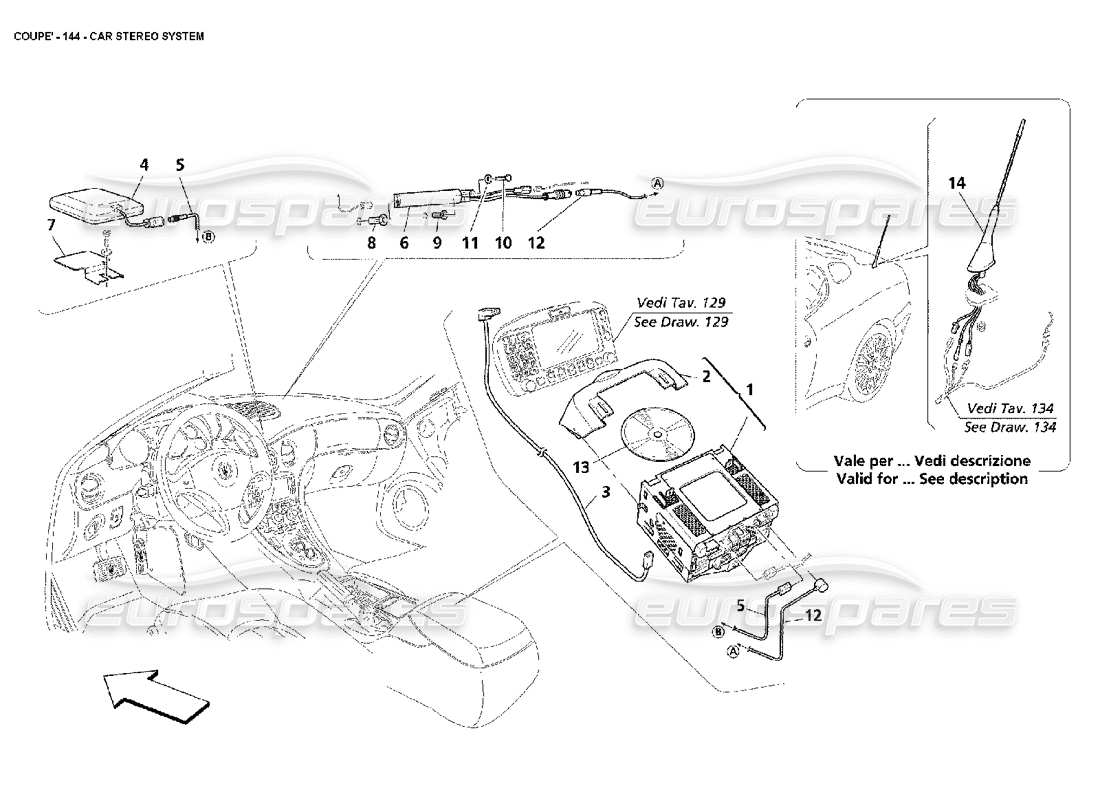

CAR STEREO SYSTEM

145

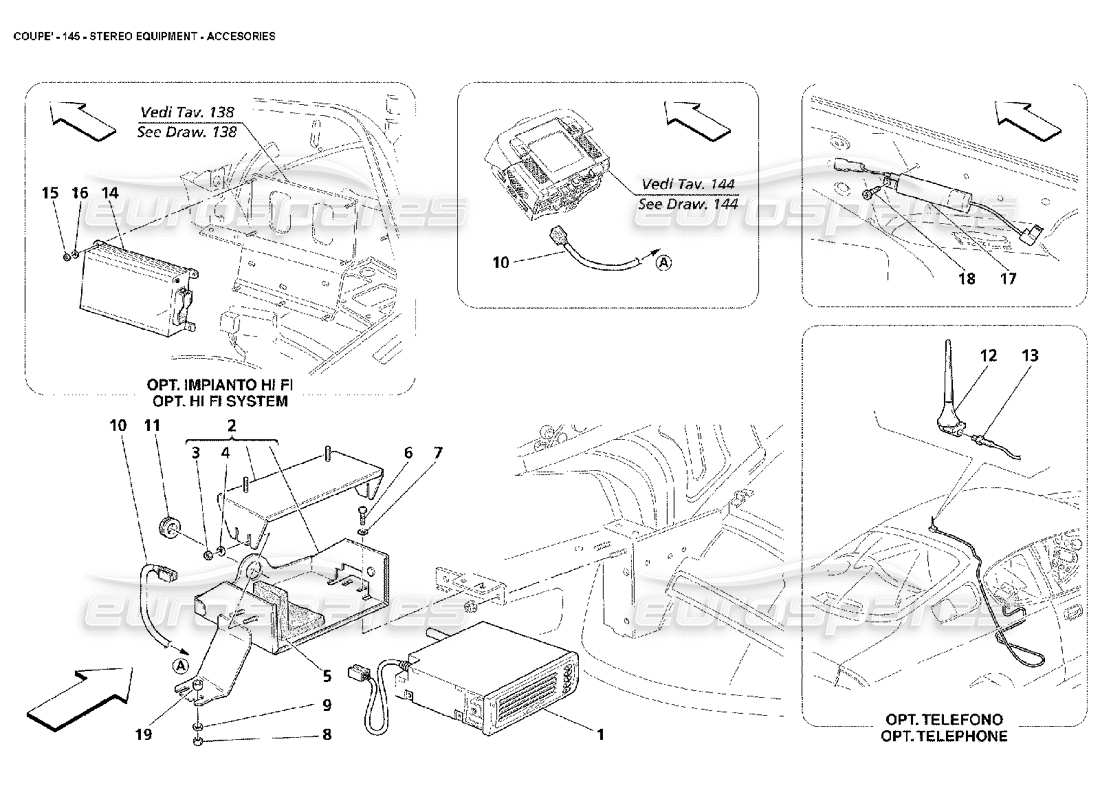

STEREO EQUIPMENT - ACCESORIES

146

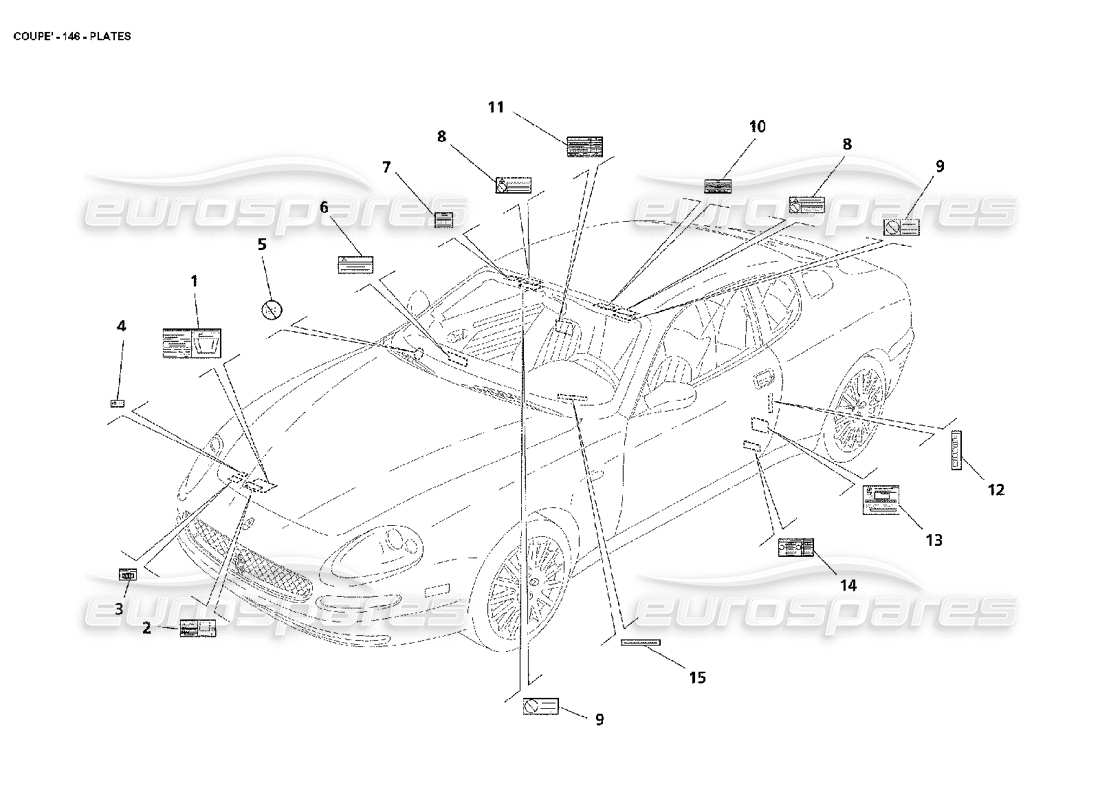

PLATES
