maserati 4200 coupe (2002) crankshaft conrods and pistons parts diagram

002 - crankshaft conrods and pistons

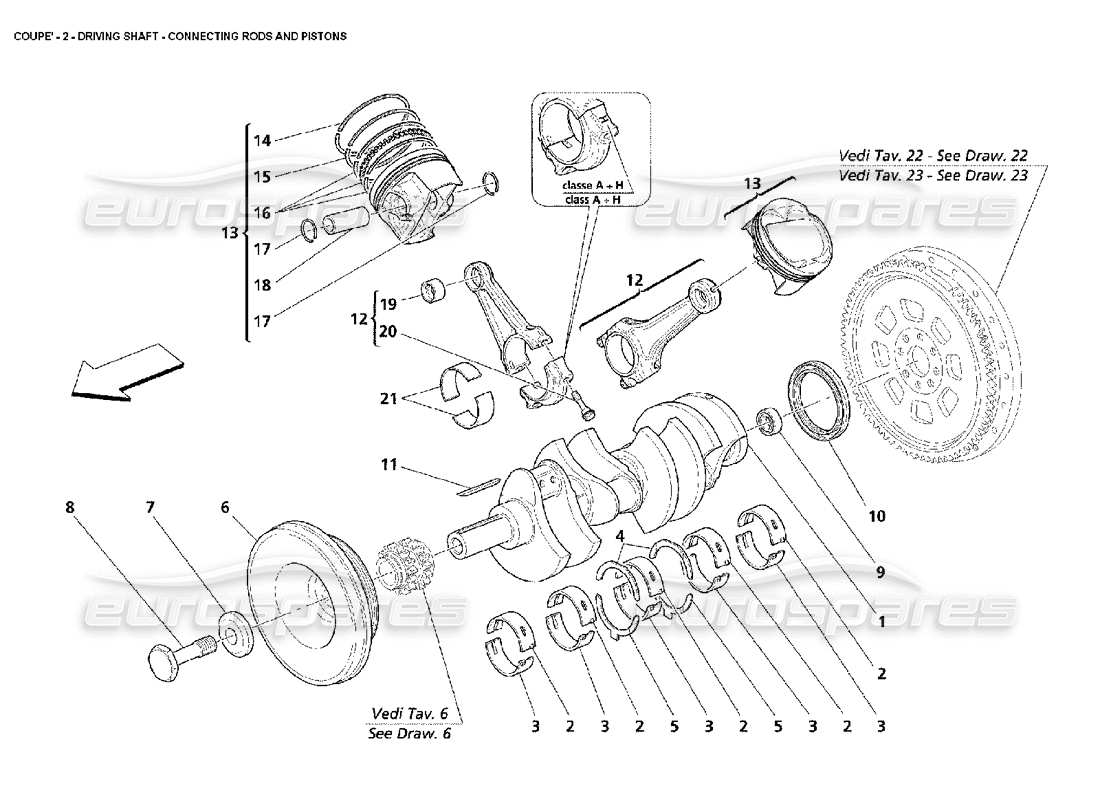

Maserati 4200 Coupe (2002) Crankshaft Conrods and Pistons Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 192006
                      crankshaft
                      - For 8 classes of connecting rod - Valid till engine Nr. 67575
                      from £1,995.00
                      from £1,995.00
                      # 001
                      MPN: 193169
                      crankshaft
                      - For connecting rod unique class - Valid from engine Nr. 67576
                      from £976.27
                      from £976.27
                      # 002
                      MPN: 182969
                      UPPER HALF BEARING
                      - Blue
                      from £7.83
                      from £7.83
                      # 002
                      MPN: 182970
                      UPPER HALF BEARING
                      - Yellow
                      from £7.19
                      from £7.19
                      # 002
                      MPN: 188517
                      UPPER HALF BEARING
                      - Green - Standard
                      from £36.71
                      from £36.71
                      This part replaces part number 174716
                      # 003
                      MPN: 182971
                      LOWER HALF BEARING
                      - Blue
                      from £6.49
                      from £6.49
                      # 003
                      MPN: 182972
                      LOWER HALF BEARING
                      - Yellow
                      from £25.44
                      from £25.44
                      # 003
                      MPN: 188516
                      LOWER HALF BEARING
                      - Green - Standard
                      from £41.49
                      from £41.49
                      This part replaces part number 174739
                      # 004
                      MPN: 179539
                      UPPER SHIM
                      - Standard
                      from £22.95
                      from £22.95
                      # 004
                      MPN: 179540
                      UPPER SHIM
                      - Standard - 1st Oversize
                      from £42.69
                      from £42.69
                      # 004
                      MPN: 179541
                      UPPER SHIM
                      - 2nd Oversize
                      from £42.69
                      from £42.69
                      # 005
                      MPN: 179536
                      LOWER SHIM
                      - 2nd Oversize
                      from £42.69
                      from £42.69
                      # 005
                      MPN: 179537
                      LOWER SHIM
                      - 1st Oversize
                      from £42.69
                      from £42.69
                      # 005
                      MPN: 179538
                      LOWER SHIM
                      - Standard
                      from £23.18
                      from £23.18
                      # 006
                      MPN: 187469
                      torsion damper
                      from £930.25
                      from £930.25
                      # 007
                      MPN: 192106
                      WASHER
                      from £3.67
                      from £3.67
                      # 008
                      MPN: 196216
                      SCREW FOR DAMPER FIXING
                      from £25.12
                      from £25.12
                      This part replaces part number 192005 - and 1 more. Click to view details
                      # 009
                      MPN: 103877
                      PILOT BEARING
                      not as spare part - use part number: 235062
                      from £18.43
                      from £18.43
                      This part replaces part number 235062
                      # 009
                      MPN: 235062
                      BEARING
                      (replaces: 103877)
                      Supersession
                      Supersession
                      # 010
                      MPN: 200323
                      SEAL RING
                      from £24.95
                      from £24.95
                      # 011
                      MPN: 186201
                      Key
                      from £0.69
                      from £0.69
                      # 012
                      MPN: 175360
                      COMPLETE CONNECTING ROD AND CAP
                      - Specify the class (from A to H) - Se bay - Valid till engine Nr. 67575
                      from £89.25
                      from £89.25
                      # 012
                      MPN: 192402
                      COMPLETE CONNECTING ROD
                      - Unique class - Valid from engine Nr. 67576
                      from £139.35
                      from £139.35
                      This part replaces part number 175360 which we have in stock - and 1 more. Click to view details
                      # 013
                      MPN: 187199
                      LH PISTON WITH RINGS
                      Supersession
                      Supersession
                      This part replaces part number 187957
                      # 013
                      MPN: 198410
                      RH PISTON WITH RINGS
                      from £110.68
                      from £110.68
                      This part replaces part number 187198 - and 2 more. Click to view details
                      # 014
                      MPN: 175612
                      SEAL RING
                      - 1st groove
                      from £64.38
                      from £64.38
                      This part replaces part number 187955
                      # 015
                      MPN: 187201
                      SEAL RING
                      - 2nd groove
                      from £18.47
                      from £18.47
                      # 016
                      MPN: 175614
                      OIL SCRAPING RING
                      - 3nd groove
                      from £62.51
                      from £62.51
                      This part replaces part number 180022
                      # 017
                      MPN: 178890
                      STOP RING
                      from £3.24
                      from £3.24
                      # 018
                      MPN: 175367
                      PIN
                      from £38.71
                      from £38.71
                      # 019
                      MPN: 184909
                      BUSHING
                      from £23.11
                      from £23.11
                      # 020
                      MPN: 177159
                      CONNECTING ROD TIGHTENING SCREW
                      from £22.16
                      from £22.16
                      # 021
                      MPN: 188520
                      CONNECTING ROD HALF BEARING
                      - Brouwn
                      from £4.51
                      from £4.51
                      This part replaces part number 176151
                      # 021
                      MPN: 188521
                      CONNECTING ROD HALF BEARING
                      - Green - Standard
                      from £6.64
                      from £6.64
                      This part replaces part number 176150
                      # 021
                      MPN: 190265
                      CONNECTING ROD HALF BEARING
                      - Yellow
                      from £9.58
                      from £9.58
                      This part replaces part number 176152
