maserati 4200 coupe (2002) timing - tappets parts diagram

005 - timing - tappets

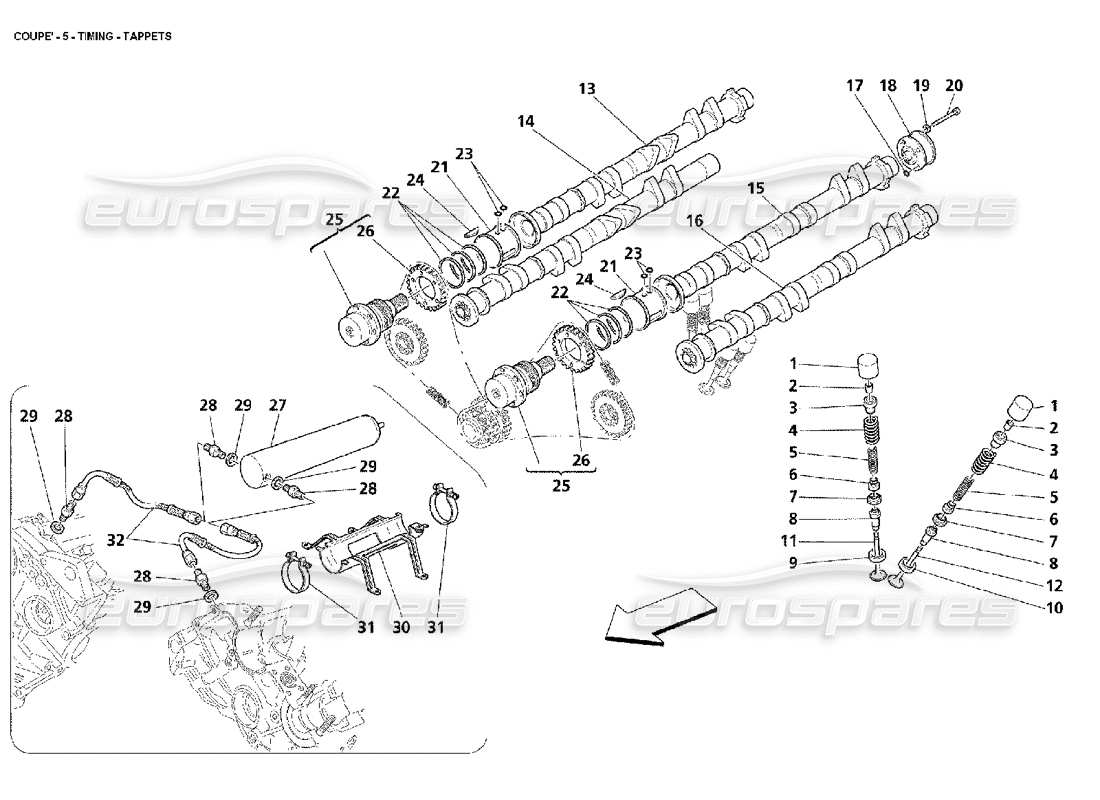

Maserati 4200 Coupe (2002) Timing - Tappets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 194700
                                                      TAPPET FOR VALVE CONTROL
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 187657 - and 1 more. Click to view details
                                                      # 002
                                                      MPN: 179763
                                                      COTTER FOR VALVE SPRING
                                                      from £0.27
                                                      from £0.27
                                                      # 003
                                                      MPN: 187489
                                                      UPPER CUP
                                                      from £5.06
                                                      from £5.06
                                                      # 004
                                                      MPN: 184054
                                                      OUTER SPRING FOR VALVE RETURN
                                                      from £6.86
                                                      from £6.86
                                                      # 005
                                                      MPN: 184055
                                                      INNER SPRING FOR VALVE RETURN
                                                      from £27.64
                                                      from £27.64
                                                      # 006
                                                      MPN: 148153
                                                      OIL RING
                                                      - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                      from £1.90
                                                      from £1.90
                                                      # 007
                                                      MPN: 190388
                                                      LOWER CUP
                                                      from £4.38
                                                      from £4.38
                                                      This part replaces part number 184594 which we have in stock
                                                      # 007
                                                      MPN: 190408
                                                      LOWER CUP
                                                      - Oversized
                                                      from £35.87
                                                      from £35.87
                                                      This part replaces part number 184596
                                                      # 008
                                                      MPN: 172452
                                                      INTAKE VALVE GUIDE
                                                      - Oversized
                                                      Supersession
                                                      Supersession
                                                      # 008
                                                      MPN: 176437
                                                      INTAKE VALVE GUIDE
                                                      from £48.00
                                                      from £48.00
                                                      This part replaces part number 172328
                                                      # 009
                                                      MPN: 175381
                                                      INTAKE VALVE SEAT
                                                      from £7.84
                                                      from £7.84
                                                      # 010
                                                      MPN: 179959
                                                      EXHAUST VALVE SEAT
                                                      Supersession
                                                      Supersession
                                                      # 011
                                                      MPN: 175395
                                                      INTAKE VALVE
                                                      from £5.78
                                                      from £5.78
                                                      # 012
                                                      MPN: 189351
                                                      EXHAUST VALVE
                                                      from £60.58
                                                      from £60.58
                                                      This part replaces part number 181568 which we have in stock
                                                      # 013
                                                      MPN: 190656
                                                      RH INDUCTION DISTRIBUTION CAM SHAFT
                                                      from £1,340.12
                                                      from £1,340.12
                                                      RH INDUCTION DISTRIB.CAN Genuine Maserati Part - Used In stock
                                                      COMPLETE WITH PHASE VARIATOR /TOOTHED WHEEL
                                                      # 014
                                                      MPN: 190658
                                                      RH EXHAUST CAM SHAFT
                                                      from £1,191.66
                                                      from £1,191.66
                                                      # 015
                                                      MPN: 190657
                                                      LH INDUCTION DISTRIBUTION CAM SHAFT
                                                      from £1,308.62
                                                      from £1,308.62
                                                      LH INTAKE CAMSHAFT Genuine Maserati Part - Used In stock
                                                      COMPLETE WITH PHASE VARIATOR /TOOTHED WHEEL
                                                      # 016
                                                      MPN: 190659
                                                      LH EXHAUST CAM SHAFT
                                                      from £1,191.66
                                                      from £1,191.66
                                                      # 017
                                                      MPN: 134701
                                                      O.R. GASKET
                                                      from £0.53
                                                      from £0.53
                                                      # 018
                                                      MPN: 189541
                                                      OIL PUMP VARIATOR
                                                      from £54.22
                                                      from £54.22
                                                      This part replaces part number 185409 - and 1 more. Click to view details
                                                      # 019
                                                      MPN: 184731
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      # 020
                                                      MPN: 14303523
                                                      SCREW
                                                      from £1.08
                                                      from £1.08
                                                      This part replaces part number 14303526
                                                      # 021
                                                      MPN: 198668
                                                      PHASE VARIATOR SUPPORTNG BUSHING
                                                      from £173.96
                                                      from £173.96
                                                      This part replaces part number 190393
                                                      # 022
                                                      MPN: 214742
                                                      RING
                                                      from £13.68
                                                      from £13.68
                                                      This part replaces part number 179926
                                                      # 023
                                                      MPN: 134701
                                                      O.R. GASKET
                                                      from £0.53
                                                      from £0.53
                                                      # 024
                                                      MPN: 10617520
                                                      Key
                                                      from £2.32
                                                      from £2.32
                                                      This part replaces part number 10617580
                                                      # 025
                                                      MPN: 190012
                                                      PHASE VARIATOR
                                                      from £602.38
                                                      from £602.38
                                                      # 026
                                                      MPN: 189576
                                                      TOOTHED WHEEL
                                                      from £202.69
                                                      from £202.69
                                                      This part replaces part number 188357
                                                      # 027
                                                      MPN: 190163
                                                      OIL ACCUMULATOR FOR VARIATOR
                                                      from £388.23
                                                      from £388.23
                                                      This part replaces part number 185334 - and 2 more. Click to view details
                                                      # 028
                                                      MPN: 189452
                                                      THREADED UNION
                                                      - Valid till stock exhaustion
                                                      from £3.94
                                                      from £3.94
                                                      # 028
                                                      MPN: 193738
                                                      THREADED UNION
                                                      - Valid after stock exhaustion of 189452
                                                      from £4.51
                                                      from £4.51
                                                      # 029
                                                      MPN: 10261060
                                                      GASKET
                                                      from £0.51
                                                      from £0.51
                                                      This part replaces part number 274036
                                                      # 030
                                                      MPN: 189950
                                                      OIL ACCUMULATOR SEAT
                                                      - Valid till stock exhaustion
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 186836
                                                      # 030
                                                      MPN: 193406
                                                      OIL ACCUMULATOR SEAT
                                                      - Valid after stock exhaustion of 189950
                                                      from £40.77
                                                      from £40.77
                                                      This part replaces part number 189950 - and 2 more. Click to view details
                                                      # 032
                                                      MPN: 189949
                                                      PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
                                                      - Valid till stock exhaustion
                                                      Supersession
                                                      Supersession
                                                      # 032
                                                      MPN: 194710
                                                      PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
                                                      - Valid after stock exhaustion of 189949
                                                      from £37.82
                                                      from £37.82
                                                      This part replaces part number 189949 - and 1 more. Click to view details
