maserati 4200 coupe (2002) secondary air system parts diagram

008 - secondary air system

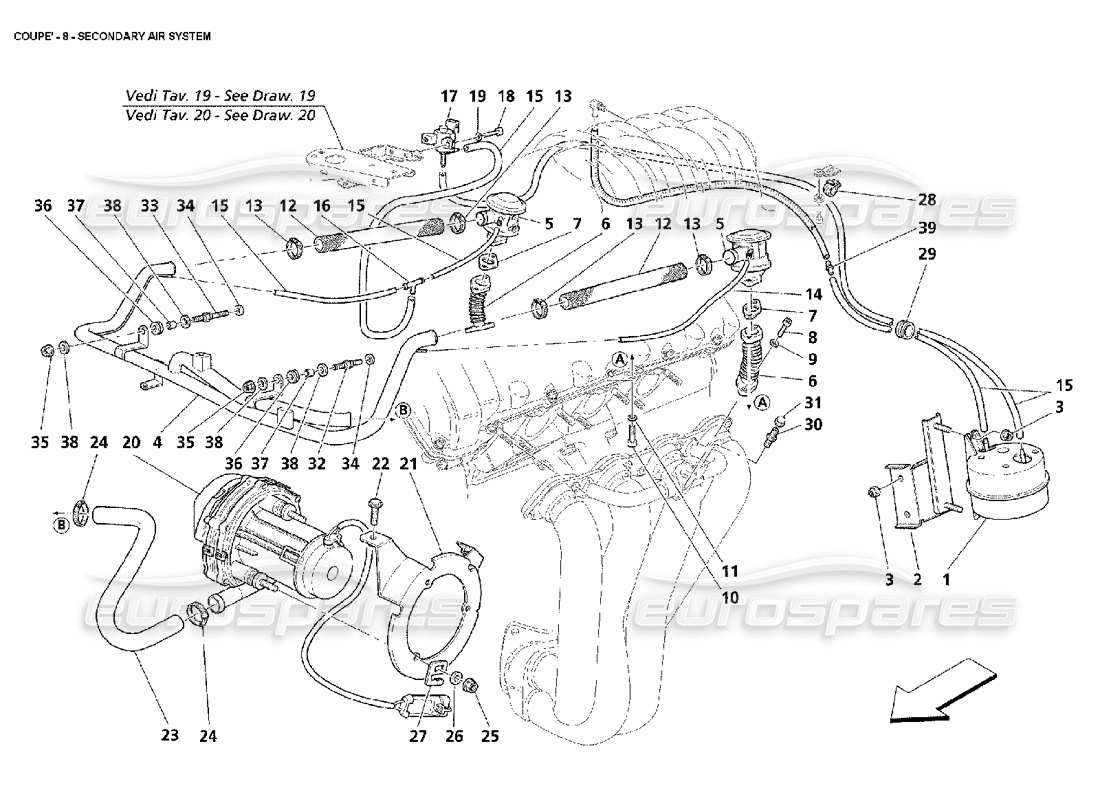

Maserati 4200 Coupe (2002) Secondary Air System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 330328400
                                                              VACUUM TANK
                                                              from £9.16
                                                              from £9.16
                                                              # 003
                                                              MPN: 14059211
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 675000181
                                                              # 004
                                                              MPN: 186281
                                                              AIR DELIVERY TUBE TO VALVES
                                                              - Not for GD - Valid till car Ass. Nr. 9670
                                                              from £91.17
                                                              from £91.17
                                                              # 004
                                                              MPN: 191319
                                                              AIR DELIVERY TUBE TO VALVES
                                                              - Valid for GD - Valid till car Ass. Nr. 9688
                                                              from £227.54
                                                              from £227.54
                                                              # 004
                                                              MPN: 195065
                                                              AIR DELIVERY TUBE TO VALVES
                                                              - Valid for GD - Valid from car Ass. Nr. 9689
                                                              from £124.72
                                                              from £124.72
                                                              # 004
                                                              MPN: 195066
                                                              AIR DELIVERY TUBE TO VALVES
                                                              - Not for GD - Valid from car Ass. Nr. 9671
                                                              from £128.28
                                                              from £128.28
                                                              # 006
                                                              MPN: 186274
                                                              SECONDARY AIR VALVE PIPE
                                                              from £47.12
                                                              from £47.12
                                                              # 007
                                                              MPN: 186781
                                                              GASKET
                                                              from £2.92
                                                              from £2.92
                                                              # 008
                                                              MPN: 14305724
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 009
                                                              MPN: 127494
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              # 010
                                                              MPN: 14433124
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 011
                                                              MPN: 127494
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              # 013
                                                              MPN: 178054
                                                              CLAMP
                                                              from £0.47
                                                              from £0.47
                                                              # 014
                                                              MPN: 147125
                                                              LH RUBBER HOSE
                                                              from £10.43
                                                              from £10.43

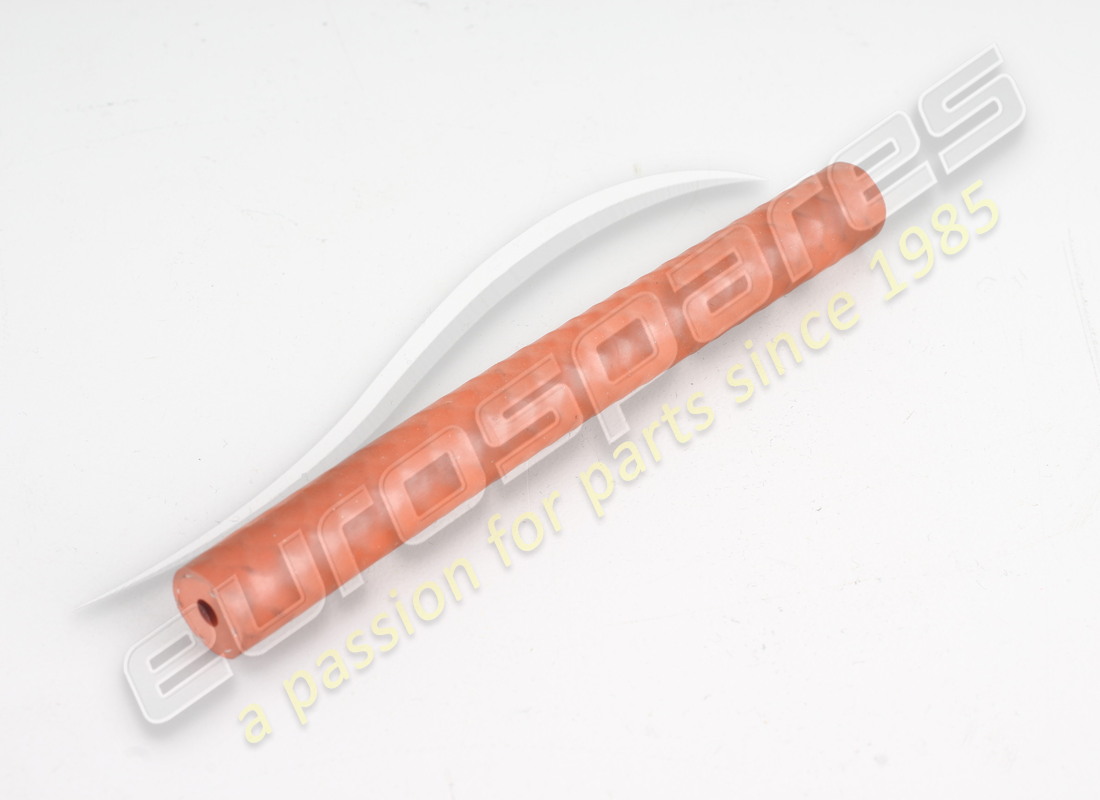

                                                              # 015
                                                              MPN: 300100803
                                                              RUBBER HOSE
                                                              - Supplied in meters - (Minimum quantity 1m. or multiples)
                                                              from £54.95
                                                              from £54.95
                                                              This part replaces part number 318720329
                                                              # 016
                                                              MPN: 146972
                                                              3-WAY UNION
                                                              from £2.78
                                                              from £2.78
                                                              # 017
                                                              MPN: 315769
                                                              ON/OFF SOLENOID VALVE
                                                              from £29.17
                                                              from £29.17
                                                              This part replaces part number 184363
                                                              # 018
                                                              MPN: 14304224
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 019
                                                              MPN: 12601174
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 675000100
                                                              # 021
                                                              MPN: 184837
                                                              BRACKET
                                                              from £14.76
                                                              from £14.76
                                                              # 022
                                                              MPN: 16296924
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 023
                                                              MPN: 187192
                                                              PIPE
                                                              - Valid for GS till car Ass. Nr. 9670 - Valid for GD till car Ass. Nr. 9688 - Valid till stock exhaustion - After stock exhaustion replaced by 190992
                                                              from £13.67
                                                              from £13.67
                                                              # 023
                                                              MPN: 190992
                                                              STUD
                                                              - Valid for GS from car Ass. Nr. 9671 - Valid for GD from car Ass. Nr. 9689
                                                              from £16.27
                                                              from £16.27
                                                              # 024
                                                              MPN: 178054
                                                              CLAMP
                                                              from £0.47
                                                              from £0.47
                                                              # 025
                                                              MPN: 102948
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              # 026
                                                              MPN: 12601274
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12601270
                                                              # 027
                                                              MPN: 162606
                                                              CLIP
                                                              from £0.76
                                                              from £0.76
                                                              # 028
                                                              MPN: 10441490
                                                              BRACKET WITH SHEATH
                                                              - Not for cars with bracket 190509 - (See draw 13 pos. 24)
                                                              from £0.47
                                                              from £0.47
                                                              # 028
                                                              MPN: 159740
                                                              CLIP
                                                              - Valid for cars with bracket 190509 - (See draw 13 pos. 24)
                                                              from £0.47
                                                              from £0.47
                                                              # 029
                                                              MPN: 388100423
                                                              RUBBER
                                                              from £1.55
                                                              from £1.55
                                                              # 030
                                                              MPN: 152630
                                                              THREADED UNION
                                                              from £44.38
                                                              from £44.38
                                                              # 031
                                                              MPN: 150595
                                                              CAP NUT
                                                              from £0.47
                                                              from £0.47
                                                              # 032
                                                              MPN: 190260
                                                              STUD
                                                              - Valid for GS till car Ass. Nr. 9670 - Valid for GD till car Ass. Nr. 9688
                                                              from £21.30
                                                              from £21.30
                                                              # 032
                                                              MPN: 194436
                                                              STUD
                                                              - Valid for GS from car Ass. Nr. 9671 - Valid for GD from car Ass. Nr. 9689
                                                              from £35.40
                                                              from £35.40
                                                              # 033
                                                              MPN: 190858
                                                              STUD
                                                              - Valid for GS till car Ass. Nr. 9670 - Valid for GD till car Ass. Nr. 9688
                                                              from £19.14
                                                              from £19.14
                                                              # 033
                                                              MPN: 194437
                                                              STUD
                                                              - Valid for GS from car Ass. Nr. 9671 - Valid for GD from car Ass. Nr. 9689
                                                              from £10.37
                                                              from £10.37
                                                              # 034
                                                              MPN: 11197774
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              # 035
                                                              MPN: 159601
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              # 036
                                                              MPN: 315520375
                                                              SUPPORT
                                                              - Valid for GS from car Ass. Nr. 9671 - Valid for GD from car Ass. Nr. 9689
                                                              Supersession
                                                              Supersession
                                                              # 037
                                                              MPN: 397850624
                                                              SPACER
                                                              - Valid for GS from car Ass. Nr. 9671 - Valid for GD from car Ass. Nr. 9689
                                                              from £2.39
                                                              from £2.39
                                                              # 038
                                                              MPN: 14498801
                                                              WASHER
                                                              - Valid for GS from car Ass. Nr. 9671 - Valid for GD from car Ass. Nr. 9689
                                                              from £0.47
                                                              from £0.47
                                                              # 039
                                                              MPN: 313620303
                                                              UNION
                                                              from £0.78
                                                              from £0.78
