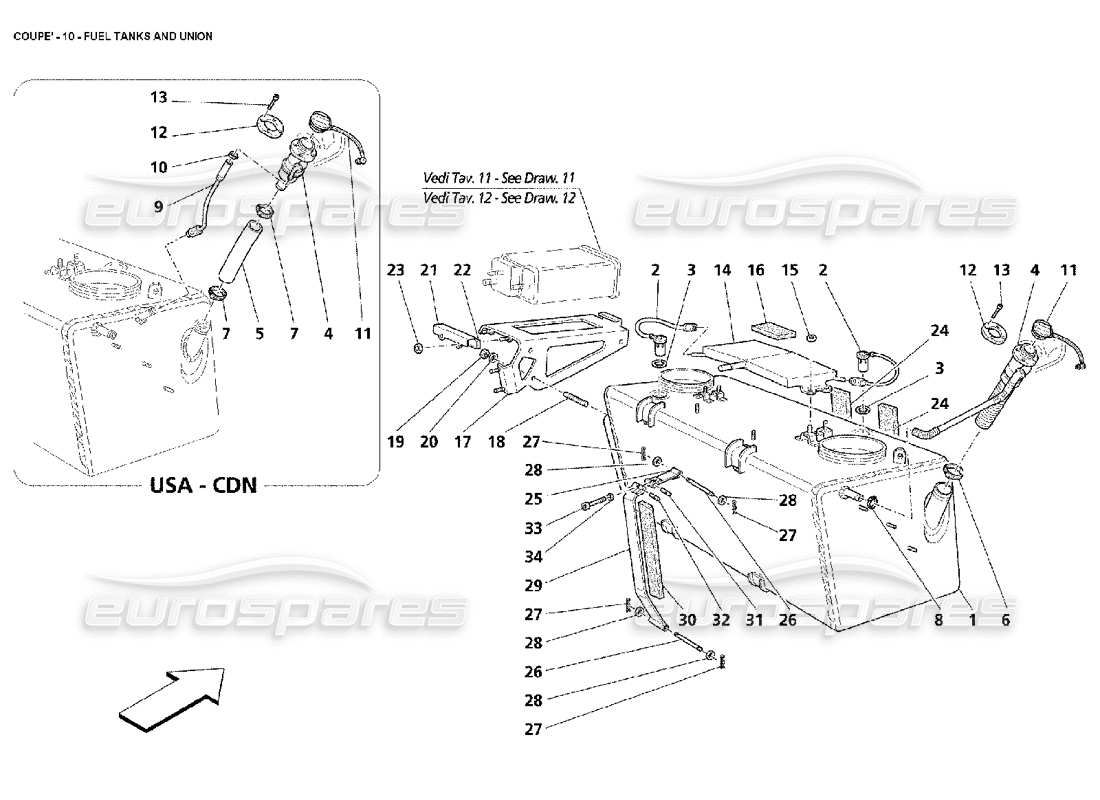

maserati 4200 coupe (2002) fuel tanks and union parts diagram

010 - Fuel Tanks and Union

Maserati 4200 Coupe (2002) Fuel Tanks and Union Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 181194
                                                    FUEL TANK
                                                    - Not for USA and CDN
                                                    from £275.28
                                                    from £275.28
                                                    # 001

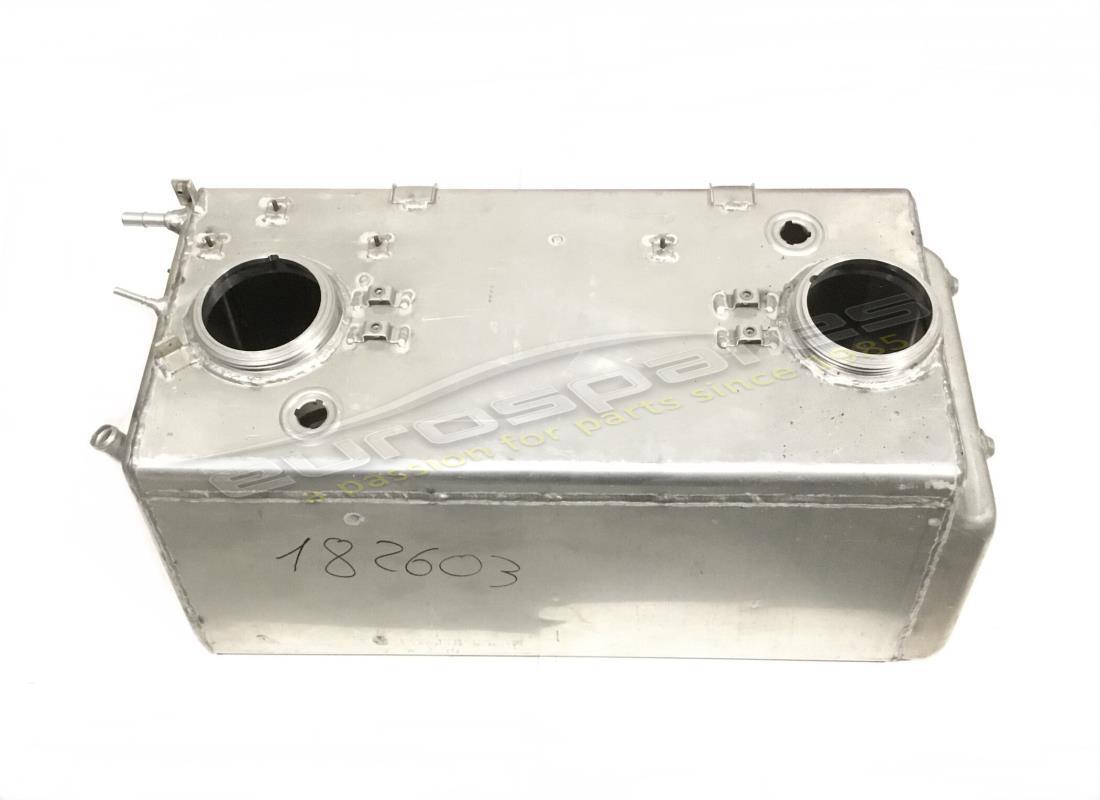

                                                    MPN: 182603
                                                    FUEL TANK
                                                    - Valid for USA and CDN
                                                    from £715.06
                                                    from £715.06
                                                    # 002
                                                    MPN: 181206
                                                    COMPLETE FLOAT VALVE
                                                    from £191.30
                                                    from £191.30
                                                    # 003
                                                    MPN: 169938
                                                    GASKET FOR VALVE
                                                    Supersession
                                                    Supersession
                                                    # 004
                                                    MPN: 183430/A
                                                    FUEL INTAKE TUBE
                                                    - Not for USA and CDN
                                                    # 004
                                                    MPN: 183431
                                                    FUEL UNION
                                                    - Valid for USA and CDN
                                                    from £18.68
                                                    from £18.68
                                                    # 005
                                                    MPN: 182637
                                                    UNION-TANK CONNECTING PIPE
                                                    - Valid for USA and CDN
                                                    from £24.59
                                                    from £24.59
                                                    # 006
                                                    MPN: 13000790
                                                    SCREW COLLAR
                                                    - Not for USA and CDN
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 312420106
                                                    # 007
                                                    MPN: 13000590
                                                    SCREW COLLAR
                                                    - Valid for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    # 008
                                                    MPN: 13000390
                                                    SCREW COLLAR
                                                    - Not for USA and CDN
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 13121170 - and 1 more. Click to view details
                                                    # 009
                                                    MPN: 182586
                                                    VAPOR RECYCLING PIPE
                                                    - Valid for USA and CDN
                                                    from £201.36
                                                    from £201.36
                                                    # 010
                                                    MPN: 13432070
                                                    SCREW COLLAR
                                                    - Valid for USA and CDN
                                                    from £0.53
                                                    from £0.53
                                                    This part replaces part number 13434670
                                                    # 011
                                                    MPN: 190154
                                                    FUEL TANK PLUG
                                                    from £255.96
                                                    from £255.96
                                                    This part replaces part number 186866 which we have in stock
                                                    # 012
                                                    MPN: 980139787
                                                    GASKET
                                                    from £1.08
                                                    from £1.08
                                                    # 013
                                                    MPN: 13289277
                                                    SCREW
                                                    from £1.85
                                                    from £1.85
                                                    # 014
                                                    MPN: 181209
                                                    DISAREATOR
                                                    - Not for USA and CDN
                                                    from £49.07
                                                    from £49.07
                                                    # 014
                                                    MPN: 183011
                                                    DISAREATOR
                                                    - Valid for USA and CDN
                                                    from £119.92
                                                    from £119.92
                                                    # 015
                                                    MPN: 12574211
                                                    NUT
                                                    from £0.71
                                                    from £0.71
                                                    This part replaces part number 128300060
                                                    # 016
                                                    MPN: 127403
                                                    RUBBER THICKNESS
                                                    from £0.79
                                                    from £0.79
                                                    # 017
                                                    MPN: 186510
                                                    VAPOR FILTER SUPPORTING BRACKET
                                                    from £563.72
                                                    from £563.72
                                                    # 018
                                                    MPN: 11500024
                                                    STUD
                                                    from £1.55
                                                    from £1.55
                                                    # 019
                                                    MPN: 12574211
                                                    NUT
                                                    from £0.71
                                                    from £0.71
                                                    This part replaces part number 128300060
                                                    # 020
                                                    MPN: 10523424
                                                    WASHER
                                                    from £0.53
                                                    from £0.53
                                                    # 021
                                                    MPN: 186512
                                                    BRACKET FOR VAPOR FILTER FIXING
                                                    from £18.09
                                                    from £18.09
                                                    # 022
                                                    MPN: 184766
                                                    RUBBER THICKNESS
                                                    from £7.73
                                                    from £7.73
                                                    # 023
                                                    MPN: 12574211
                                                    NUT
                                                    from £0.71
                                                    from £0.71
                                                    This part replaces part number 128300060
                                                    # 024
                                                    MPN: 379200397
                                                    ADHESIVE GASKET
                                                    from £3.09
                                                    from £3.09
                                                    # 025
                                                    MPN: 184208
                                                    FUEL TANK FASTENER
                                                    from £3.75
                                                    from £3.75
                                                    # 026
                                                    MPN: 389200520
                                                    PIN
                                                    from £3.32
                                                    from £3.32
                                                    # 027
                                                    MPN: 58841309
                                                    SAFETY CLIP
                                                    from £1.83
                                                    from £1.83
                                                    This part replaces part number 670000498 - and 2 more. Click to view details
                                                    # 028
                                                    MPN: 12648206
                                                    WASHER
                                                    from £0.48
                                                    from £0.48
                                                    # 029
                                                    MPN: 184209
                                                    FUEL TANK FASTENER
                                                    from £4.76
                                                    from £4.76
                                                    # 030
                                                    MPN: 379200397
                                                    ADHESIVE GASKET
                                                    from £3.09
                                                    from £3.09
                                                    # 033
                                                    MPN: 14306921
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 034
                                                    MPN: 10519624
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
