011 - Antievaporation Device -Not for USA and CDN
Maserati 4200 Coupe (2002) Antievaporation Device -Not for USA and CDN Parts Diagram

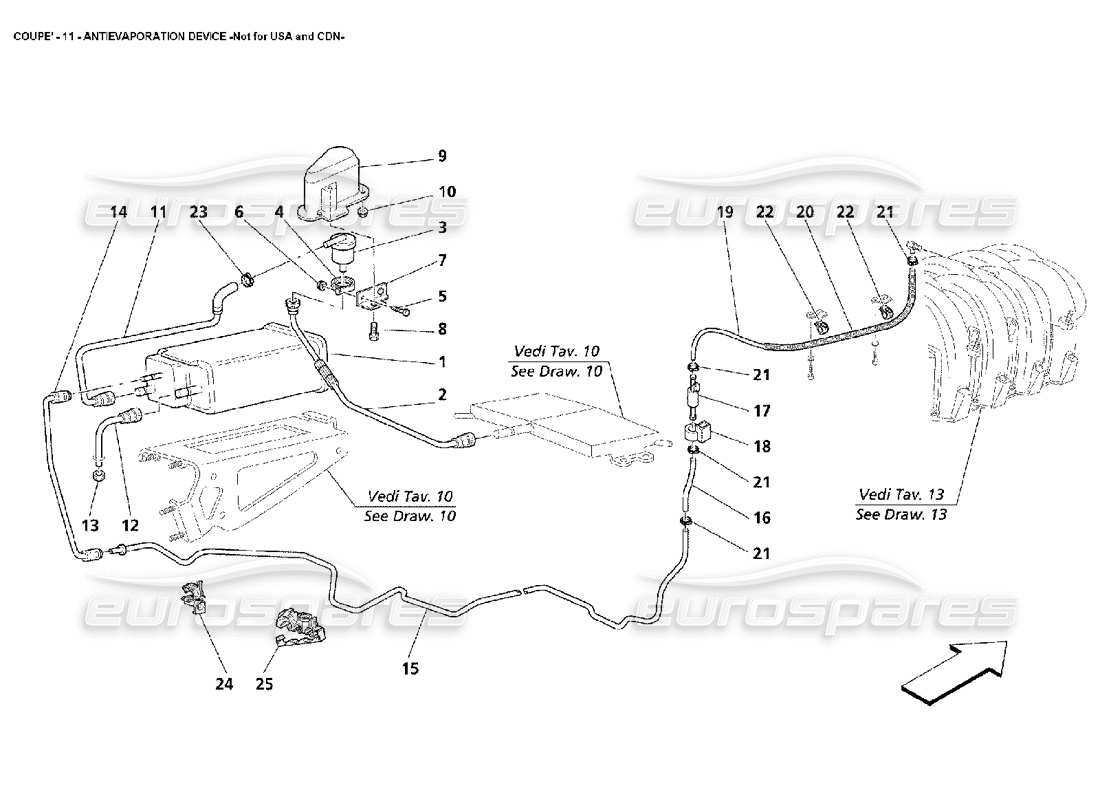

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 220074
FUEL VAPOR FILTER
from £63.15
from £63.15
This part replaces part number 212961 - and 1 more. Click to view details
# 002
MPN: 181705
PIPE FROM DISAREATOR TO ROLL-OVER
from £31.38
from £31.38
# 003
MPN: 180573
ROLL-OVER VALVE
from £37.85
from £37.85
# 004
MPN: 66133600
BRACKET WITH SHEATH
from £7.37
from £7.37
# 005
MPN: 10902424
SCREW
from £0.53
from £0.53
# 006
MPN: 14084211
NUT
from £0.71
from £0.71
This part replaces part number 14084217
# 007
MPN: 66132900
ROLL-OVER VALVE FIXING BRACKET
from £8.41
from £8.41
# 008
MPN: 10979414
SCREW
from £0.47
from £0.47
# 009
MPN: 66294500
ROLL-OVER VALVE COVER
from £8.12
from £8.12
# 010
MPN: 14084211
NUT
from £0.71
from £0.71
This part replaces part number 14084217
# 011
MPN: 181707
PIPE FROM ROLL-OVER TO CANISTER
from £18.10
from £18.10
# 012
MPN: 188124
PIPE FROM CANISTER TO WHELLHOUSE
from £10.62
from £10.62
# 013
MPN: 10396880
RING
from £2.38
from £2.38
# 014
MPN: 181712
PIPE FROM CANISTER TO UNDERFLOOR
from £17.79
from £17.79
# 015
MPN: 190519
COMPLETE UNDERFLOOR TUBE
from £29.21
from £29.21
# 016
MPN: 181703
WASHING VALVE INLET TUBE
from £6.07
from £6.07
# 017
MPN: 180861
WASHING VALVE
from £54.40
from £54.40
# 018
MPN: 174623
BUFFER FOR SUPPORT
from £3.75
from £3.75
# 019
MPN: 181704
WASHING VALVE OUTLET PIPE PIPE
from £21.91
from £21.91
# 020
MPN: 318720333
PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
from £5.28
from £5.28
# 021
MPN: 13432070
SCREW COLLAR
from £0.48
from £0.48
This part replaces part number 13434670
# 022
MPN: 10441790
BRACKET WITH SHEATH
- Not for cars with bracket 190509 - (See draw 13 pos. 24)
from £0.47
from £0.47
# 022
MPN: 178430
CLIP
- Valid for cars with bracket 190509 - (See draw 13 pos. 24)
from £0.47
from £0.47
# 023
MPN: 13433370
COLLAR FOR SLEEVE
from £0.47
from £0.47
# 024
MPN: 187840
CLIP
- (Quantity defined during at assembly)
from £0.70
from £0.70
# 025
MPN: 190409
CLIP
- (Quantity defined during at assembly)
from £3.33
from £3.33
