maserati 4200 coupe (2002) exhaust system -variations for usa and cdn parts diagram

015 - Exhaust System -Variations for USA and CDN

Maserati 4200 Coupe (2002) Exhaust System -Variations for USA and CDN Parts Diagram

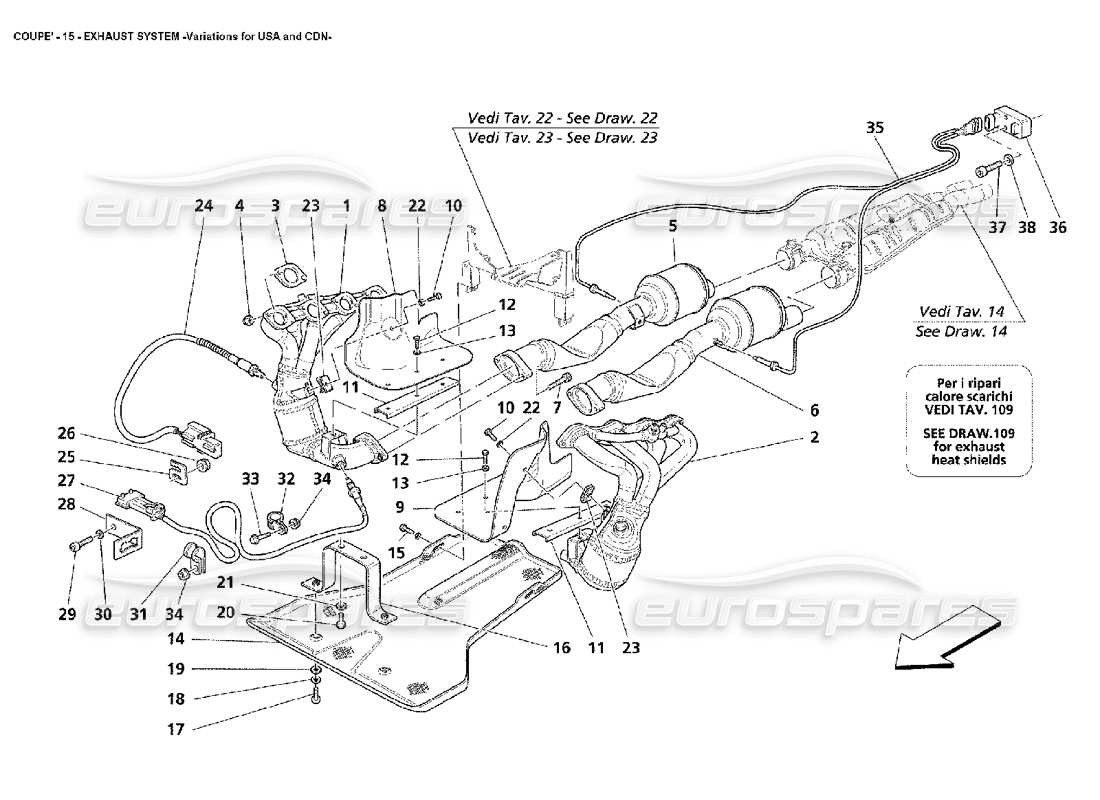

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 188103
                                                                            RH EXHAUST MANIFOLD
                                                                            from £1,509.29
                                                                            from £1,509.29
                                                                            # 002
                                                                            MPN: 188102
                                                                            LH EXHAUST MANIFOLD
                                                                            from £1,296.99
                                                                            from £1,296.99
                                                                            # 003
                                                                            MPN: 182868
                                                                            GASKET
                                                                            - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                            from £2.85
                                                                            from £2.85
                                                                            # 004
                                                                            MPN: 138392
                                                                            NUT
                                                                            from £0.73
                                                                            from £0.73
                                                                            # 005
                                                                            MPN: 188130
                                                                            RH CATALYST
                                                                            from £1,996.76
                                                                            from £1,996.76
                                                                            # 006
                                                                            MPN: 188131
                                                                            LH CATALYST
                                                                            from £1,996.76
                                                                            from £1,996.76
                                                                            # 007
                                                                            MPN: 195285
                                                                            SCREW
                                                                            from £7.73
                                                                            from £7.73
                                                                            This part replaces part number 14306934
                                                                            # 008
                                                                            MPN: 190192
                                                                            RH UNDERMOTOR SHIELD
                                                                            from £12.76
                                                                            from £12.76
                                                                            # 009
                                                                            MPN: 190122
                                                                            LH UNDERMOTOR SHIELD
                                                                            from £12.76
                                                                            from £12.76
                                                                            # 010
                                                                            MPN: 10902124
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 011
                                                                            MPN: 191320
                                                                            BRACKET
                                                                            from £11.82
                                                                            from £11.82
                                                                            # 012
                                                                            MPN: 10902124
                                                                            SCREW
                                                                            from £0.50
                                                                            from £0.50
                                                                            # 013
                                                                            MPN: 12620474
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 014
                                                                            MPN: 190270
                                                                            UNDER EXHAUST SHIELD
                                                                            from £222.59
                                                                            from £222.59
                                                                            # 015
                                                                            MPN: 10902024
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 010902024
                                                                            # 016
                                                                            MPN: 190271
                                                                            BRACKET
                                                                            from £31.38
                                                                            from £31.38
                                                                            # 017
                                                                            MPN: 14305724
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 018
                                                                            MPN: 12639724
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 019
                                                                            MPN: 12601274
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12601270
                                                                            # 020
                                                                            MPN: 16043224
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 021
                                                                            MPN: 14496524
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 022
                                                                            MPN: 12639724
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 023
                                                                            MPN: 66704600
                                                                            CLIP
                                                                            from £1.93
                                                                            from £1.93
                                                                            # 025
                                                                            MPN: 175856
                                                                            CONNECTORS FIXING BRACKET
                                                                            from £1.17
                                                                            from £1.17
                                                                            This part replaces part number 155752
                                                                            # 027
                                                                            MPN: 191412
                                                                            REAR LAMBDA FEELER
                                                                            from £106.94
                                                                            from £106.94
                                                                            # 028
                                                                            MPN: 178366
                                                                            CONNECTORS FIXING BRACKET
                                                                            from £2.32
                                                                            from £2.32
                                                                            # 029
                                                                            MPN: 14305724
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 030
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            # 031
                                                                            MPN: 10441590
                                                                            BRACKET WITH SHEATH
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 032
                                                                            MPN: 67190200
                                                                            BRACKET WITH SHEATH
                                                                            from £1.33
                                                                            from £1.33
                                                                            # 033
                                                                            MPN: 16296924
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 034
                                                                            MPN: 67190100
                                                                            NUT
                                                                            from £1.08
                                                                            from £1.08
                                                                            # 035
                                                                            MPN: 184926
                                                                            THERMOCOUPLES SET
                                                                            from £261.66
                                                                            from £261.66
                                                                            # 036
                                                                            MPN: 187866
                                                                            CATALYSTS CONTROL STATION
                                                                            from £171.08
                                                                            from £171.08
                                                                            # 037
                                                                            MPN: 15958407
                                                                            SCREW
                                                                            from £0.85
                                                                            from £0.85
                                                                            # 038
                                                                            MPN: 10519304
                                                                            WASHER
                                                                            from £0.85
                                                                            from £0.85
                                                                            This part replaces part number 14496304
