maserati 4200 coupe (2002) blow - by system parts diagram

016 - Blow - By System

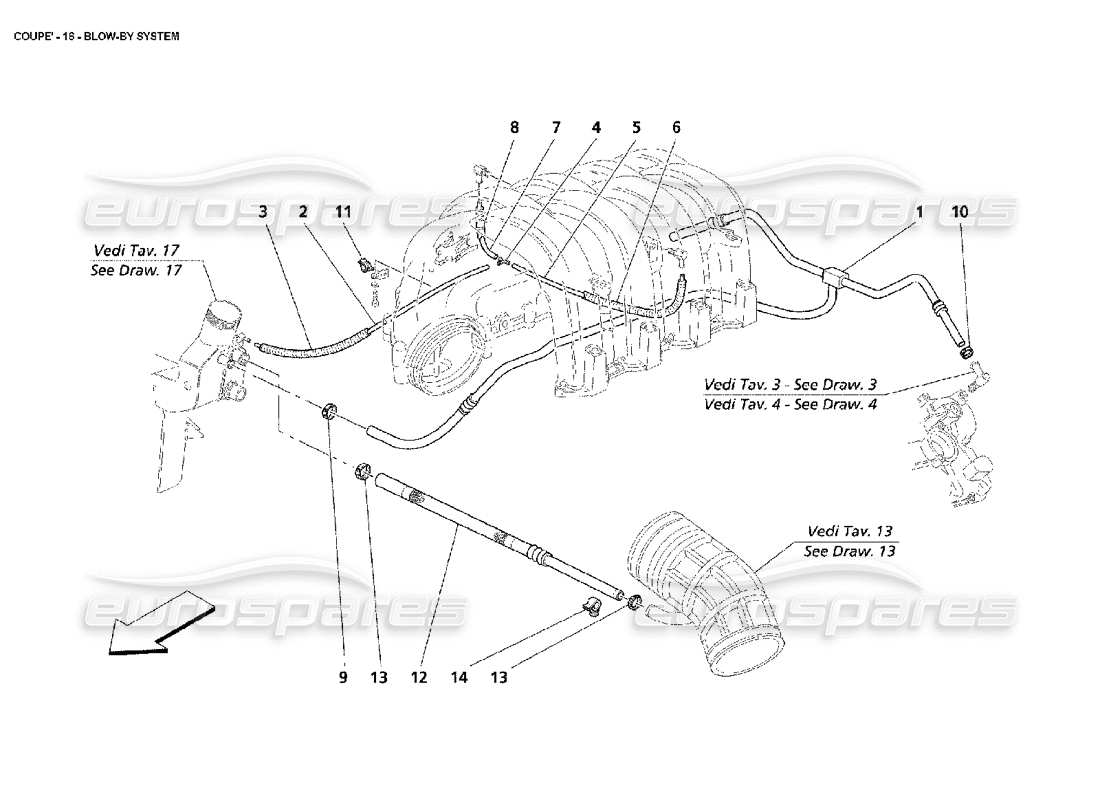

Maserati 4200 Coupe (2002) Blow - By System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 190120
                    HEAD COVERS VENT PIPE
                    from £32.55
                    from £32.55
                    # 001
                    MPN: 198346
                    HEAD COVERS VENT PIPE
                    - As an alternative
                    from £47.12
                    from £47.12
                    This part replaces part number 190120 which we have in stock - and 1 more. Click to view details
                    # 002
                    MPN: 169700
                    RUBBER HOSE
                    - Supplied in meters - (Minimum quantity 1m. or multiples)
                    from £7.18
                    from £7.18
                    # 003
                    MPN: 97218
                    PIPE
                    from £1.86
                    from £1.86
                    This part replaces part number 188340 - and 1 more. Click to view details
                    # 004
                    MPN: 146972
                    3-WAY UNION
                    from £2.78
                    from £2.78
                    # 005
                    MPN: 194323
                    RUBBER HOSE
                    - Supplied in meters - (Minimum quantity 1m. or multiples)
                    from £6.99
                    from £6.99
                    This part replaces part number 192445
                    # 006
                    MPN: 97218
                    PIPE
                    from £1.86
                    from £1.86
                    This part replaces part number 188340 - and 1 more. Click to view details
                    # 007
                    MPN: 165608
                    RUBBER HOSE
                    - Supplied in meters - (Minimum quantity 1m. or multiples)
                    from £1.48
                    from £1.48
                    This part replaces part number 235375
                    # 008
                    MPN: 97218
                    PIPE
                    from £1.86
                    from £1.86
                    This part replaces part number 188340 - and 1 more. Click to view details
                    # 010
                    MPN: 178052
                    CLAMP
                    from £0.85
                    from £0.85
                    # 011
                    MPN: 10441590
                    BRACKET WITH SHEATH
                    - Not for cars with bracket 191009 - (See draw 13 pos. 25)
                    from £0.47
                    from £0.47
                    # 011
                    MPN: 191273
                    CLIP
                    - Valid for cars with bracket 191009 - (See draw 13 pos. 25)
                    from £0.71
                    from £0.71
                    # 012
                    MPN: 184216
                    VENT PIPE
                    from £30.07
                    from £30.07
                    # 013
                    MPN: 13000490
                    SCREW COLLAR
                    from £0.53
                    from £0.53
                    This part replaces part number 13127870 - and 1 more. Click to view details
                    # 014
                    MPN: 187694
                    CLIP
                    from £0.70
                    from £0.70
                    This part replaces part number 98061
