021 - Cooling System Radiator

Maserati 4200 Coupe (2002) Cooling System Radiator Parts Diagram

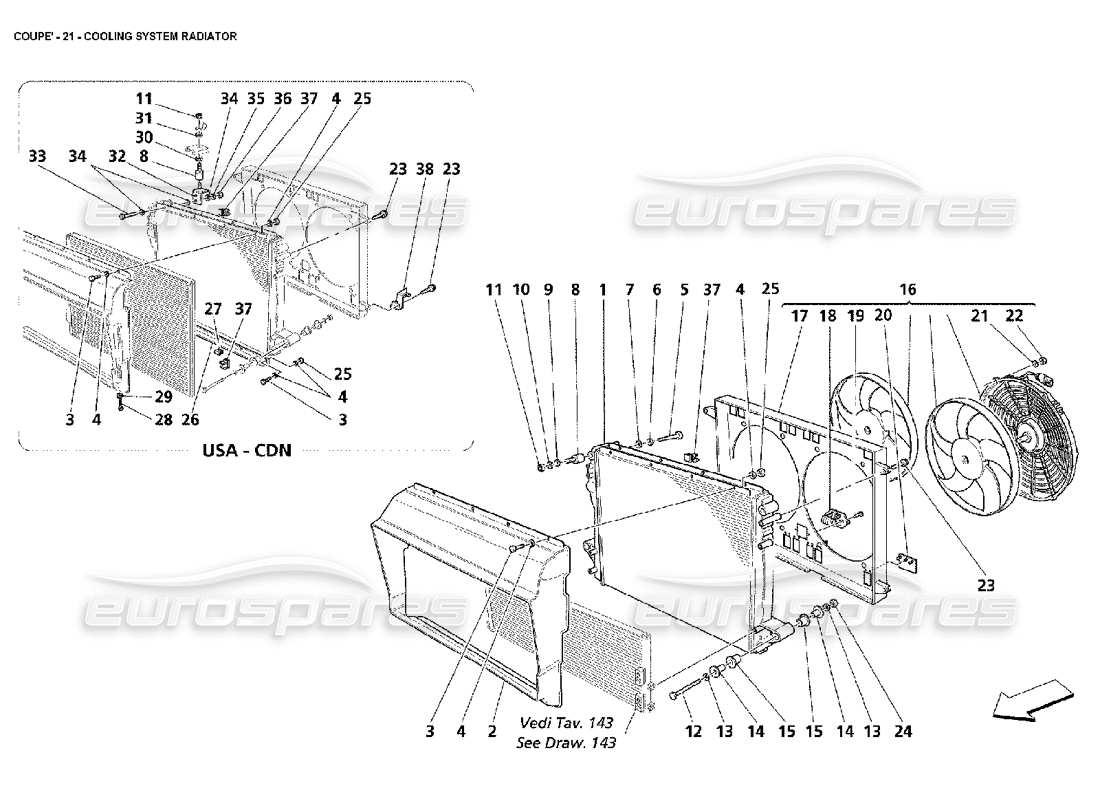

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 181097
                                    WATER RADIATOR
                                    from £354.00
                                    from £354.00
                                    # 002
                                    MPN: 199893
                                    AIR CONVEYOR
                                    from £127.27
                                    from £127.27
                                    This part replaces part number 193549
                                    # 002
                                    MPN: 66247300
                                    AIR CONVEYOR
                                    - Not for USA and CDN
                                    Supersession
                                    Supersession
                                    # 003
                                    MPN: 10977724
                                    SCREW
                                    from £0.48
                                    from £0.48
                                    # 004
                                    MPN: 13579101
                                    WASHER
                                    from £0.48
                                    from £0.48
                                    # 005
                                    MPN: 14308921
                                    SCREW
                                    - Not for USA and CDN
                                    from £0.54
                                    from £0.54
                                    # 006
                                    MPN: 12601379
                                    WASHER
                                    - Not for USA and CDN
                                    from £0.92
                                    from £0.92
                                    # 007
                                    MPN: 12646724
                                    WASHER
                                    - Not for USA and CDN
                                    from £0.54
                                    from £0.54
                                    # 008
                                    MPN: 181114
                                    PAD
                                    from £7.66
                                    from £7.66
                                    # 009
                                    MPN: 12647024
                                    WASHER
                                    - Not for USA and CDN
                                    Supersession
                                    Supersession
                                    # 010
                                    MPN: 127496
                                    WASHER
                                    - Not for USA and CDN
                                    from £0.54
                                    from £0.54
                                    This part replaces part number 384600330
                                    # 011
                                    MPN: 16100814
                                    NUT
                                    from £0.71
                                    from £0.71
                                    # 012
                                    MPN: 16044824
                                    SCREW
                                    from £1.43
                                    from £1.43
                                    # 013
                                    MPN: 12646724
                                    WASHER
                                    from £0.53
                                    from £0.53
                                    # 014
                                    MPN: 181111
                                    BUSHING
                                    from £5.52
                                    from £5.52
                                    # 015
                                    MPN: 181110
                                    RUBBER BUSHING
                                    from £1.54
                                    from £1.54
                                    # 016
                                    MPN: 221254
                                    COMPLETE ELECTROFAN SET
                                    from £291.70
                                    from £291.70
                                    This part replaces part number 219451 - and 1 more. Click to view details
                                    # 016
                                    MPN: 221254/A
                                    FAN + MOTOR ASSY
                                    # 017
                                    MPN: 181393
                                    HOOD FOR ELECTROFAN
                                    from £429.51
                                    from £429.51
                                    # 018
                                    MPN: 263140
                                    RESISTOR
                                    (replaces: 383300176)
                                    from £58.39
                                    from £58.39
                                    This part replaces part number 219453
                                    # 018
                                    MPN: 263140
                                    RESISTOR
                                    from £58.39
                                    from £58.39
                                    This part replaces part number 219453
                                    # 019
                                    MPN: 15688070
                                    SCREW
                                    from £0.54
                                    from £0.54
                                    # 020
                                    MPN: 373330320
                                    STRAP
                                    from £3.91
                                    from £3.91
                                    # 021
                                    MPN: 10519401
                                    WASHER
                                    from £0.71
                                    from £0.71
                                    # 023
                                    MPN: 15699804
                                    SCREW
                                    - (Quantity 3 for cars USA and CDN)
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 15534501
                                    # 024
                                    MPN: 14058511
                                    NUT
                                    from £0.53
                                    from £0.53
                                    # 025
                                    MPN: 14048615
                                    NUT
                                    from £0.71
                                    from £0.71
                                    # 026
                                    MPN: 193538
                                    AIR CONVEYOR SUPPORT BRACKET
                                    - Valid for USA and CDN
                                    from £14.25
                                    from £14.25
                                    # 027
                                    MPN: 67257100
                                    BRACKET
                                    - Valid for USA and CDN
                                    from £1.07
                                    from £1.07
                                    This part replaces part number 14370774
                                    # 028
                                    MPN: 10977724
                                    SCREW
                                    - Valid for USA and CDN
                                    from £0.51
                                    from £0.51
                                    # 029
                                    MPN: 13579101
                                    WASHER
                                    - Valid for USA and CDN
                                    from £0.51
                                    from £0.51
                                    # 030
                                    MPN: 12647024
                                    WASHER
                                    - Valid for USA and CDN
                                    Supersession
                                    Supersession
                                    # 031
                                    MPN: 12601374
                                    WASHER
                                    - Valid for USA and CDN
                                    from £0.54
                                    from £0.54
                                    # 032
                                    MPN: 193550
                                    RH BRACKET RADIATOR SUPPORTING
                                    - Valid for USA and CDN
                                    from £31.11
                                    from £31.11
                                    # 032
                                    MPN: 193611
                                    RH BRACKET RADIATOR SUPPORTING
                                    - Valid for USA and CDN
                                    from £6.75
                                    from £6.75
                                    # 033
                                    MPN: 16044524
                                    SCREW
                                    - Valid for USA and CDN
                                    from £0.57
                                    from £0.57
                                    # 034
                                    MPN: 12646724
                                    WASHER
                                    - Valid for USA and CDN
                                    from £0.53
                                    from £0.53
                                    # 035
                                    MPN: 12601374
                                    WASHER
                                    - Valid for USA and CDN
                                    from £0.54
                                    from £0.54
                                    # 036
                                    MPN: 16100814
                                    NUT
                                    - Valid for USA and CDN
                                    from £0.71
                                    from £0.71
                                    # 037
                                    MPN: 379290721
                                    CLIP
                                    - (Quantity 8 for cars USA and CDN)
                                    from £1.07
                                    from £1.07
                                    # 038
                                    MPN: 193555
                                    BRACKET
                                    - Valid for USA and CDN
                                    from £10.88
                                    from £10.88
