maserati 4200 coupe (2002) main shaft gears parts diagram

030 - Main Shaft Gears

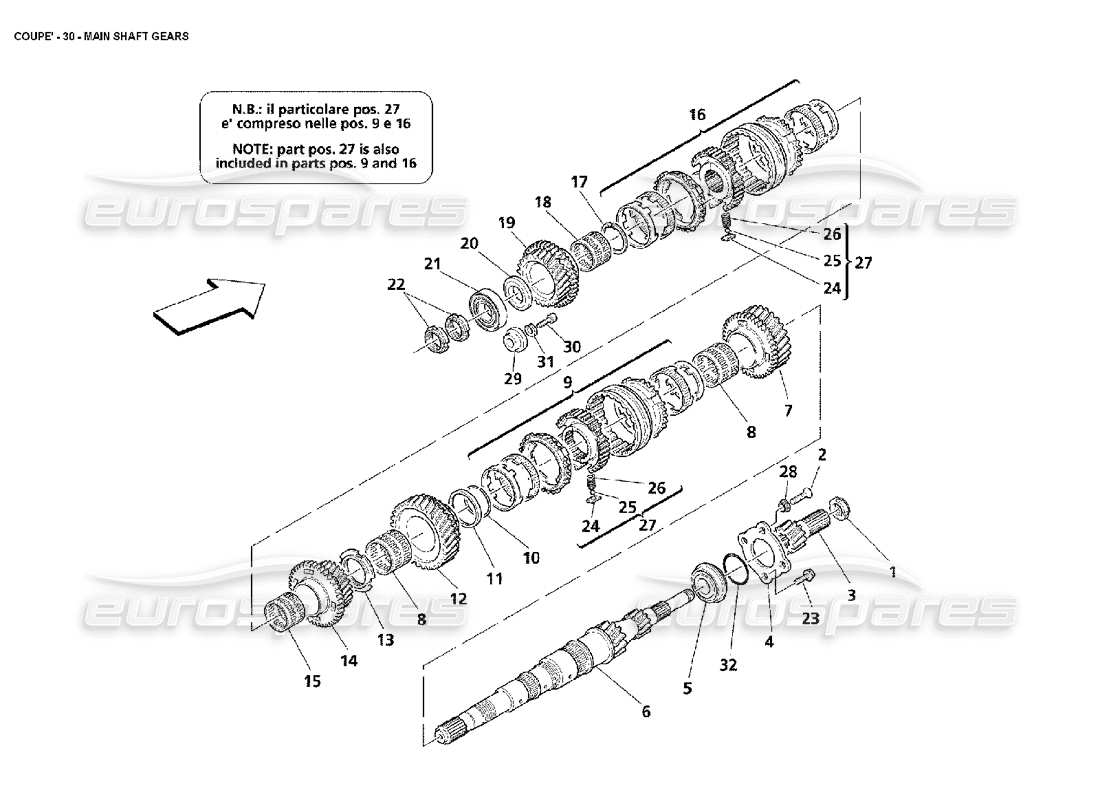

Maserati 4200 Coupe (2002) Main Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 182359
                                                            RING NUT
                                                            from £23.14
                                                            from £23.14
                                                            # 002
                                                            MPN: 14442027
                                                            SCREW
                                                            from £1.09
                                                            from £1.09
                                                            # 003
                                                            MPN: 182358
                                                            REVERSE DRIVING GEAR
                                                            from £69.70
                                                            from £69.70
                                                            # 005
                                                            MPN: 184019
                                                            BALL BEARING
                                                            from £44.30
                                                            from £44.30
                                                            # 006
                                                            MPN: 182327
                                                            MAIN SHAFT FOR GEAR LEVER
                                                            from £746.02
                                                            from £746.02
                                                            # 007
                                                            MPN: 182329
                                                            PINION FOR 5TH GEAR
                                                            from £132.94
                                                            from £132.94
                                                            # 008
                                                            MPN: 184015
                                                            ROLLER CAGE
                                                            from £29.12
                                                            from £29.12
                                                            # 009
                                                            MPN: 185166
                                                            5TH AND 6TH GEAR COMPLETE SYNCHRONIZER
                                                            from £788.09
                                                            from £788.09
                                                            # 010
                                                            MPN: 184011
                                                            FLEXIBLE RING
                                                            from £5.58
                                                            from £5.58
                                                            # 011
                                                            MPN: 183970
                                                            SPACER FOR PINION FOR 6TH GEAR
                                                            from £55.00
                                                            from £55.00
                                                            # 012
                                                            MPN: 182335
                                                            PINION FOR 6TH GEAR
                                                            from £132.94
                                                            from £132.94
                                                            # 013
                                                            MPN: 184010
                                                            RING NUT
                                                            from £94.84
                                                            from £94.84
                                                            # 014
                                                            MPN: 182338
                                                            PINION FOR 3RD GEAR
                                                            from £304.49
                                                            from £304.49
                                                            # 015
                                                            MPN: 184014
                                                            ROLLER CAGE
                                                            from £10.20
                                                            from £10.20
                                                            # 016
                                                            MPN: 185165
                                                            3RD AND 4TH GEAR COPLETE SYNCHRONIZER
                                                            from £891.91
                                                            from £891.91
                                                            # 017
                                                            MPN: 184042
                                                            FLEXIBLE RING
                                                            from £6.76
                                                            from £6.76
                                                            # 018
                                                            MPN: 184005
                                                            ROLLER CAGE
                                                            from £14.35
                                                            from £14.35
                                                            # 019
                                                            MPN: 182345
                                                            PINION FOR 4TH GEAR
                                                            from £135.24
                                                            from £135.24
                                                            # 020
                                                            MPN: 183973
                                                            WASHER
                                                            from £26.23
                                                            from £26.23
                                                            # 021
                                                            MPN: 184021
                                                            ROLLER BEARING
                                                            from £80.27
                                                            from £80.27
                                                            # 022
                                                            MPN: 184012
                                                            RING NUT
                                                            from £17.47
                                                            from £17.47
                                                            # 023
                                                            MPN: 16287124
                                                            SCREW
                                                            from £0.82
                                                            from £0.82
                                                            This part replaces part number 16297921
                                                            # 024
                                                            -
                                                            PAD FOR SYNCHRONIZER
                                                            # 025
                                                            -
                                                            BALL
                                                            # 026
                                                            -
                                                            SPRING FOR BALL
                                                            # 027
                                                            MPN: 188320
                                                            PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                            from £6.75
                                                            from £6.75
                                                            # 028
                                                            MPN: 12606979
                                                            WASHER
                                                            from £1.84
                                                            from £1.84
                                                            # 029
                                                            MPN: 183985
                                                            BUSHING
                                                            from £7.68
                                                            from £7.68
                                                            # 030
                                                            MPN: 14305721
                                                            SCREW
                                                            from £1.46
                                                            from £1.46
                                                            # 032
                                                            MPN: 14454281
                                                            O.R. GASKET
                                                            from £4.14
                                                            from £4.14
