maserati 4200 coupe (2002) lay shaft gears parts diagram

031 - Lay Shaft Gears

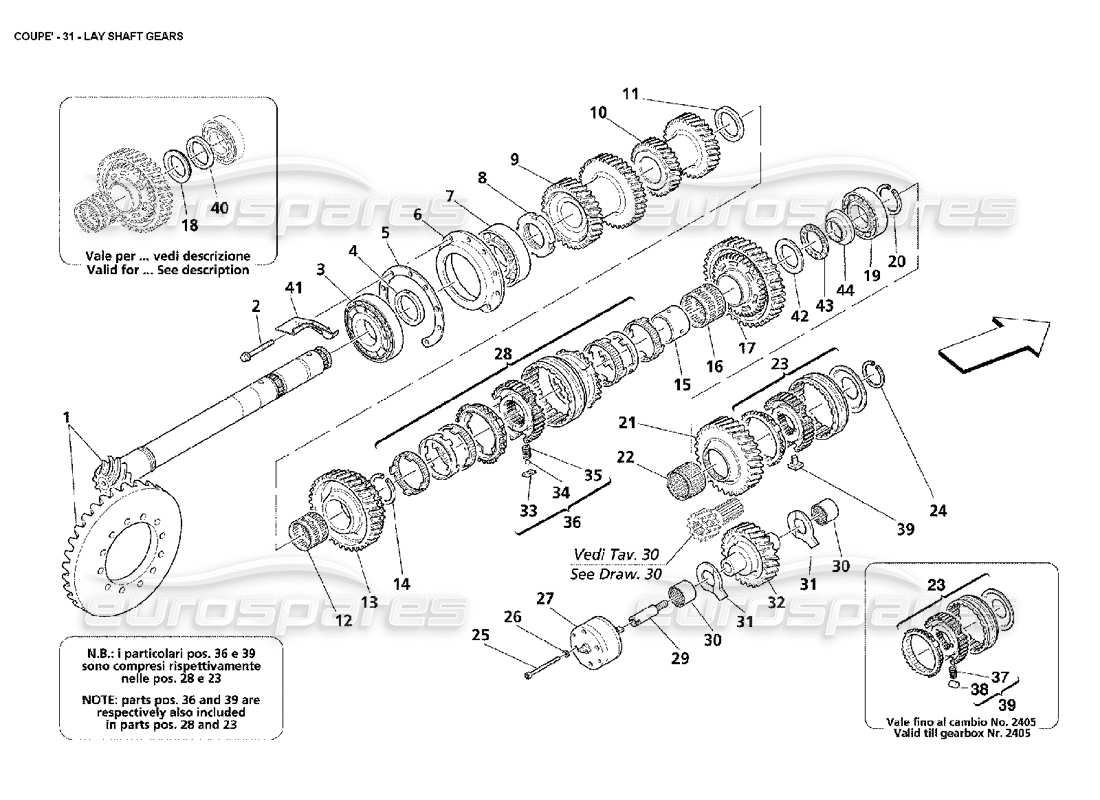

Maserati 4200 Coupe (2002) Lay Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 185679
                                                  COMPLETE BEVEL SET
                                                  from £584.65
                                                  from £584.65
                                                  # 002
                                                  MPN: 16287731
                                                  SCREW
                                                  from £1.38
                                                  from £1.38
                                                  # 003
                                                  MPN: 185022
                                                  ROLLER BEARING
                                                  from £85.26
                                                  from £85.26
                                                  # 004
                                                  MPN: 185045
                                                  REGISTER RING
                                                  - Thickness mm. 7,10
                                                  from £21.86
                                                  from £21.86
                                                  # 004
                                                  MPN: 185046
                                                  REGISTER RING
                                                  - Thickness mm. 6,85 - Possible fitting
                                                  from £21.86
                                                  from £21.86
                                                  # 004
                                                  MPN: 185047
                                                  REGISTER RING
                                                  - Thickness mm. 6,60 - Possible fitting
                                                  from £21.86
                                                  from £21.86
                                                  # 005
                                                  MPN: 185042
                                                  REGISTER RING
                                                  - Thickness mm. 2,8
                                                  from £6.91
                                                  from £6.91
                                                  # 005
                                                  MPN: 185043
                                                  REGISTER RING
                                                  - Thickness mm. 2,5 - Possible fitting
                                                  from £9.56
                                                  from £9.56
                                                  # 005
                                                  MPN: 185044
                                                  REGISTER RING
                                                  - Thickness mm. 2,2 - Possible fitting
                                                  from £14.77
                                                  from £14.77
                                                  # 006
                                                  MPN: 185020
                                                  BEARING SUPPORT
                                                  from £75.26
                                                  from £75.26
                                                  # 007
                                                  MPN: 185021
                                                  ROLLER BEARING
                                                  from £75.54
                                                  from £75.54
                                                  # 009
                                                  MPN: 182287
                                                  3RD AND 4TH DRIVEN GEAR
                                                  from £221.43
                                                  from £221.43
                                                  # 010
                                                  MPN: 182288
                                                  5TH AND 6TH DRIVEN GEAR
                                                  from £159.01
                                                  from £159.01
                                                  # 011
                                                  MPN: 183974
                                                  RING
                                                  - Thickness mm. 4,30
                                                  from £19.67
                                                  from £19.67
                                                  # 011
                                                  MPN: 185038
                                                  RING
                                                  - Thickness mm. 3,95 - Possible fitting
                                                  from £21.86
                                                  from £21.86
                                                  # 011
                                                  MPN: 185039
                                                  RING
                                                  - Thickness mm. 3,60 - Possible fitting
                                                  from £21.86
                                                  from £21.86
                                                  # 012
                                                  MPN: 184014
                                                  ROLLER CAGE
                                                  from £10.20
                                                  from £10.20
                                                  # 013
                                                  MPN: 182293
                                                  COMPLETE PINION FOR 2ND GEAR
                                                  - Till Ass. Nr. 10105 valid for all versions - Valid only F1 from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 185204 o 185062
                                                  from £147.42
                                                  from £147.42
                                                  # 013
                                                  MPN: 198263
                                                  COMPLETE PINION FOR 2ND GEAR
                                                  - Not for F1 - Valid from car Ass. Nr. 10106 - Valid for cars with complete gearbox cod. 198255
                                                  from £163.00
                                                  from £163.00
                                                  # 014
                                                  MPN: 183976
                                                  FLEXIBLE RING
                                                  - Thickness mm. 2,10
                                                  from £6.56
                                                  from £6.56
                                                  # 014
                                                  MPN: 185036
                                                  FLEXIBLE RING
                                                  - Thickness mm. 1,85 - Possible fitting
                                                  from £24.00
                                                  from £24.00
                                                  # 014
                                                  MPN: 185037
                                                  FLEXIBLE RING
                                                  - Thickness mm. 1,60 - Possible fitting
                                                  from £23.35
                                                  from £23.35
                                                  # 015
                                                  MPN: 183971
                                                  BUSHING
                                                  from £43.71
                                                  from £43.71
                                                  # 016
                                                  MPN: 184016
                                                  ROLLER CAGE
                                                  from £15.32
                                                  from £15.32
                                                  # 017
                                                  MPN: 182299
                                                  COMPLETE PINION FOR 1ST GEAR
                                                  from £342.93
                                                  from £342.93
                                                  # 018
                                                  MPN: 183972
                                                  RING
                                                  - Thickness mm. 5,10 - Till Ass. Nr. 10105 valid for all versions - Valid only F1 from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 185204 o 185062
                                                  from £42.04
                                                  from £42.04
                                                  # 018
                                                  MPN: 185040
                                                  RING
                                                  - Thickness mm. 4,85 - Possible fitting - Till Ass. Nr. 10105 valid for all versions - Valid only F1 from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 185204 o 185062
                                                  from £28.42
                                                  from £28.42
                                                  # 018
                                                  MPN: 185041
                                                  RING
                                                  - Thickness mm. 4,60 - Possible fitting - Till Ass. Nr. 10105 valid for all versions - Valid only F1 from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 185204 o 185062
                                                  from £20.13
                                                  from £20.13
                                                  # 019
                                                  MPN: 184020
                                                  ROLLER BEARING
                                                  from £77.23
                                                  from £77.23
                                                  # 020
                                                  MPN: 184042
                                                  FLEXIBLE RING
                                                  from £6.76
                                                  from £6.76
                                                  # 021
                                                  MPN: 185168
                                                  COMPLETE PINION FOR REVERSE GEAR
                                                  - Valid till gearbox Nr. 2405
                                                  from £173.06
                                                  from £173.06
                                                  # 021
                                                  MPN: 193438
                                                  COMPLETE PINION FOR REVERSE GEAR
                                                  - Valid from gearbox Nr. 2406
                                                  from £339.10
                                                  from £339.10
                                                  # 022
                                                  MPN: 184018
                                                  ROLLER CAGE
                                                  from £15.29
                                                  from £15.29
                                                  # 023
                                                  MPN: 185167
                                                  REVERSE GEAR COMPLETE SYNCHRONIZER
                                                  - Valid till gearbox Nr. 2405
                                                  from £299.48
                                                  from £299.48
                                                  # 023
                                                  MPN: 326260
                                                  REVERSE GEAR COMPLETE SYNCHRONIZER
                                                  - Valid from gearbox Nr. 2406
                                                  from £1,184.72
                                                  from £1,184.72
                                                  This part replaces part number 193439
                                                  # 024
                                                  MPN: 184041
                                                  FLEXIBLE RING
                                                  from £3.09
                                                  from £3.09
                                                  # 025
                                                  MPN: 14303624
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 026
                                                  MPN: 10571379
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  # 027
                                                  MPN: 182279
                                                  COMPLETE OIL PUMP
                                                  from £337.43
                                                  from £337.43
                                                  # 028
                                                  MPN: 185164
                                                  1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                  - Valid for F1
                                                  from £718.68
                                                  from £718.68
                                                  # 028
                                                  MPN: 194030
                                                  1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                  - Not for F1 - Valid till car Ass. Nr. 10105 - Valid for cars with complete gearbox cod. 185204
                                                  from £222.60
                                                  from £222.60
                                                  This part replaces part number 194926
                                                  # 028
                                                  MPN: 198267
                                                  1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
                                                  - Not for F1 - Valid from car Ass. Nr. 10106 - Valid for cars with complete gearbox cod. 198255
                                                  from £343.82
                                                  from £343.82
                                                  # 029
                                                  MPN: 182415
                                                  PIN
                                                  from £45.29
                                                  from £45.29
                                                  # 030
                                                  MPN: 184017
                                                  ROLLER CASING
                                                  from £4.88
                                                  from £4.88
                                                  # 031
                                                  MPN: 183975
                                                  RING
                                                  from £13.71
                                                  from £13.71
                                                  # 032
                                                  MPN: 183969
                                                  IDLE GEAR FOR REVERSE
                                                  from £173.86
                                                  from £173.86
                                                  # 033
                                                  -
                                                  PAD FOR SYNCHRONIZER
                                                  - Not as spare part suppliyed in the kit. 188320 and 194029
                                                  # 034
                                                  -
                                                  BALL
                                                  - Not as spare part suppliyed in the kit. 188320 and 194029
                                                  # 035
                                                  -
                                                  SPRING FOR BALL
                                                  - Not as spare part suppliyed in the kit. 188320 and 194029
                                                  # 036
                                                  MPN: 188320
                                                  PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                  - Valid for F1
                                                  from £6.75
                                                  from £6.75
                                                  # 036
                                                  MPN: 194029
                                                  PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                  - Not for F1 - Valid till car Ass. Nr. 10105 - Valid for cars with complete gearbox cod. 185204
                                                  from £11.28
                                                  from £11.28
                                                  # 036
                                                  MPN: 195991
                                                  PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT
                                                  - Not for F1 - Valid from car Ass. Nr. 10106 - Valid for cars with complete gearbox cod. 198255
                                                  from £10.84
                                                  from £10.84
                                                  This part replaces part number 194029
                                                  # 037
                                                  -
                                                  SPRING
                                                  - Not as spare part suppliyed in the kit. 188321 - Valid till gearbox Nr. 2405
                                                  # 038
                                                  -
                                                  ROLL
                                                  - Not as spare part suppliyed in the kit. 188321 - Valid till gearbox Nr. 2405
                                                  # 039
                                                  MPN: 188321
                                                  SPRING/ROLL/SYNCHRO REVERSE GEAR KIT
                                                  - Valid till gearbox Nr. 2405
                                                  from £1.77
                                                  from £1.77
                                                  # 039
                                                  MPN: 193440
                                                  PADS/SYNCHRO REVERSE GEAR KIT
                                                  - Valid from gearbox Nr. 2406
                                                  from £2.32
                                                  from £2.32
                                                  This part replaces part number 193484
                                                  # 040
                                                  MPN: 182326
                                                  SPACER
                                                  - Till Ass. Nr. 10105 valid for all versions - Valid only F1 from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 185204 o 185062
                                                  from £38.64
                                                  from £38.64
                                                  # 041
                                                  MPN: 185713
                                                  OIL CONVEYOR
                                                  from £15.71
                                                  from £15.71
                                                  # 042
                                                  MPN: 196524
                                                  RING
                                                  - Not for F1 - Valid from car Ass. Nr. 10106 - Valid for cars with complete gearbox cod. 198255
                                                  from £6.34
                                                  from £6.34
                                                  # 043
                                                  MPN: 196523
                                                  ROLLER CAGE
                                                  - Not for F1 - Valid from car Ass. Nr. 10106 - Valid for cars with complete gearbox cod. 198255
                                                  from £14.09
                                                  from £14.09
                                                  # 044
                                                  MPN: 196509
                                                  RING
                                                  - Thickness mm. 10,60 - Not for F1 - Valid from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 198255
                                                  from £57.19
                                                  from £57.19
                                                  # 044
                                                  MPN: 196663
                                                  RING
                                                  - Thickness mm. 10,10 - Possible fitting - Not for F1 - Valid from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 198255
                                                  from £66.00
                                                  from £66.00
                                                  # 044
                                                  MPN: 196664
                                                  RING
                                                  - Thickness mm. 10,35 - Possible fitting - Not for F1 - Valid from car Ass. Nr. 10106 - Valid For cars with complete gearbox cod. 198255
                                                  from £66.00
                                                  from £66.00
