032 - Inner Gearbox Controls

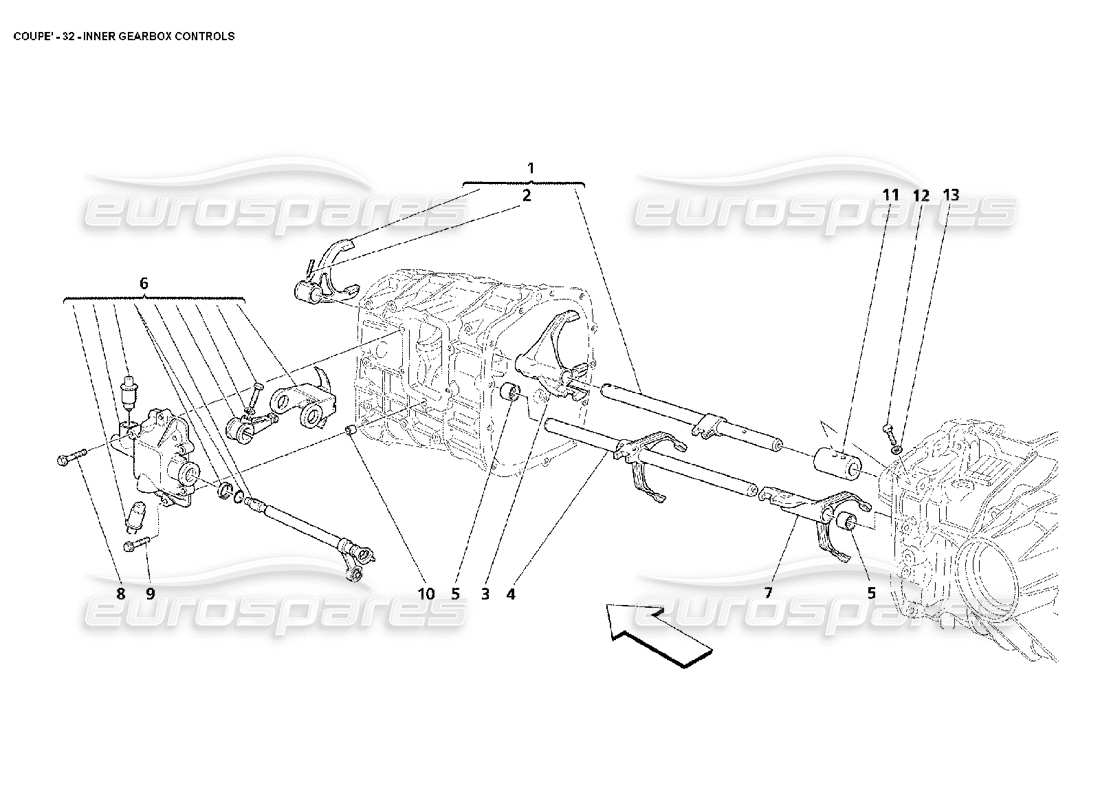

Maserati 4200 Coupe (2002) Inner Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 185708
                COMPLETE ROD FOR 1ST 2ND GEAR AND REVERSE
                from £718.14
                from £718.14
                # 002
                MPN: 13910470
                FLEXIBLE PIN
                from £1.44
                from £1.44
                # 003
                MPN: 183953
                CONTROL FORK FOR 1ST AND 2ND GEAR
                - Valid for F1
                from £159.99
                from £159.99
                # 003
                MPN: 189369
                CONTROL FORK FOR 1ST AND 2ND GEAR
                - Not for F1
                from £63.91
                from £63.91
                # 004
                MPN: 183955
                COMPLETE ROD FOR 5TH AND 6TH GEAR
                - Valid for F1
                from £222.49
                from £222.49
                # 004
                MPN: 189371
                COMPLETE ROD FOR 5TH AND 6TH GEAR
                - Not for F1
                from £188.03
                from £188.03
                # 005
                MPN: 183982
                BEARING BUSH
                from £21.73
                from £21.73
                # 006
                MPN: 190667
                COMPLETE OUTER CONTROL
                - Not for F1 - Valid till car Ass. Nr. 10105 - Valid for cars with complete gearbox cod. 185204
                Supersession
                Supersession
                This part replaces part number 187029
                # 006
                MPN: 198268
                COMPLETE OUTER CONTROL
                - Not for F1 - Valid from car Ass. Nr. 10106 - Valid for cars with complete gearbox cod. 198255
                Supersession
                Supersession
                This part replaces part number 190667
                # 007
                MPN: 189372
                CONTROL FORK FOR 3RD AND 4TH GEAR
                - Not for F1
                from £92.69
                from £92.69
                # 007
                MPN: 211473
                CONTROL FORK FOR 3RD AND 4TH GEAR
                - Valid for F1
                from £212.06
                from £212.06
                This part replaces part number 184646
                # 008
                MPN: 16286721
                SCREW
                - Not for F1
                from £0.79
                from £0.79
                # 009
                MPN: 16286321
                SCREW
                - Not for F1
                from £0.51
                from £0.51
                # 010
                MPN: 145992
                CENTERING DOWEL
                from £40.45
                from £40.45
                # 011
                MPN: 185707
                BUSHING
                from £67.27
                from £67.27
                # 012
                MPN: 10902224
                SCREW
                from £0.53
                from £0.53
                # 013
                MPN: 11194377
                WASHER
                from £0.71
                from £0.71
