036 - Brakes and Clutch Hydraulic Controls

Maserati 4200 Coupe (2002) Brakes and Clutch Hydraulic Controls Parts Diagram

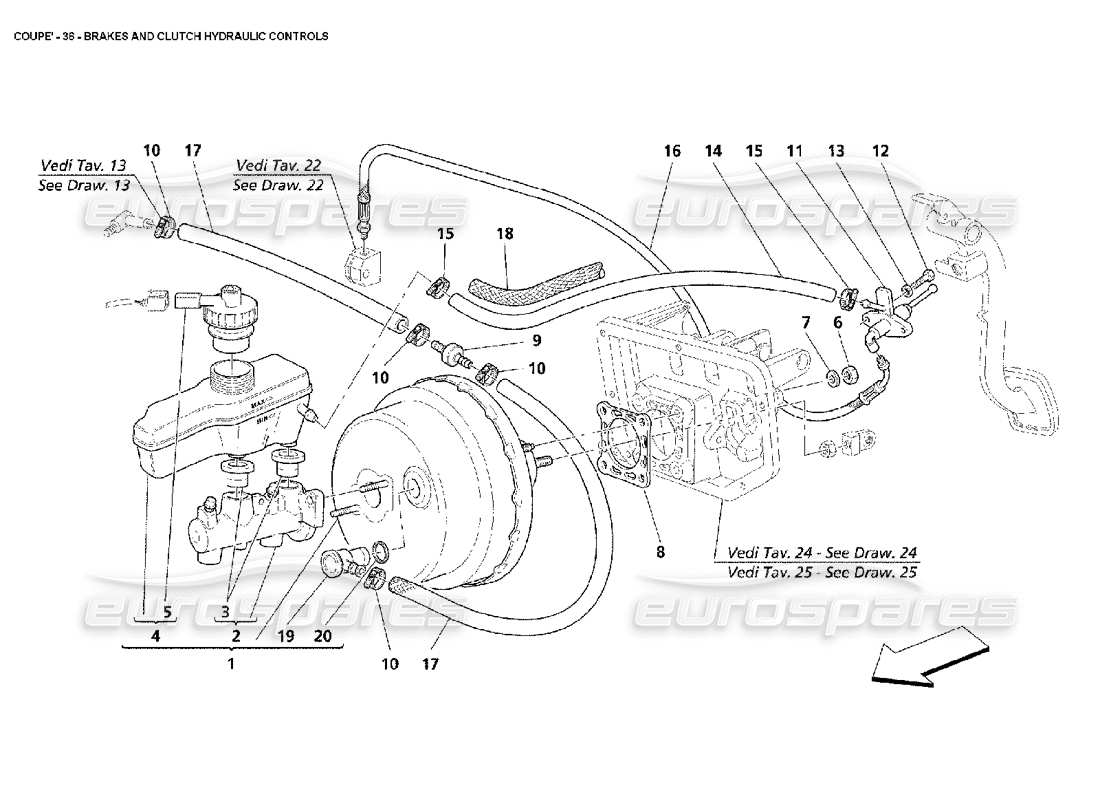

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 184744
                          COMPLETE BRAKE BOOSTER
                          from £339.41
                          from £339.41
                          This part replaces part number 185156
                          # 003
                          MPN: 171784
                          RUBBER BUSHING
                          from £5.10
                          from £5.10
                          # 004
                          MPN: 171783
                          OIL BRAKE TANK
                          from £50.74
                          from £50.74
                          # 005
                          MPN: 153592
                          PLUG
                          from £25.18
                          from £25.18
                          # 006
                          MPN: 16104421
                          NUT
                          from £0.81
                          from £0.81
                          # 007
                          MPN: 12601374
                          WASHER
                          from £0.47
                          from £0.47
                          # 008
                          MPN: 367402309
                          GASKET
                          from £1.55
                          from £1.55
                          # 009
                          MPN: 193186
                          DEPRESSION VALVE
                          from £7.05
                          from £7.05
                          # 010
                          MPN: 13000390
                          SCREW COLLAR
                          from £0.47
                          from £0.47
                          This part replaces part number 13121170 - and 1 more. Click to view details
                          # 011
                          MPN: 184753
                          Clutch Pump
                          - Not for F1
                          from £239.23
                          from £239.23
                          # 012
                          MPN: 16043621
                          SCREW
                          - Not for F1
                          from £1.08
                          from £1.08
                          # 013
                          MPN: 12601374
                          WASHER
                          - Not for F1
                          from £0.47
                          from £0.47
                          # 014
                          MPN: 19073289
                          BRAKE LIQUID PIPE
                          - Not for F1 - Valid for GD
                          from £67.20
                          from £67.20
                          # 014
                          MPN: 19073389
                          BRAKE LIQUID PIPE
                          - Not for F1 - Not for GD
                          from £2.61
                          from £2.61
                          # 015
                          MPN: 13000190
                          SCREW COLLAR
                          - Not for F1
                          from £0.53
                          from £0.53
                          # 016
                          MPN: 181769
                          CLUTCH CONTROL TUBE
                          - Not for F1 - Not for GD
                          from £261.70
                          from £261.70
                          # 016
                          MPN: 189061
                          CLUTCH CONTROL TUBE
                          - Not for F1 - Valid for GD
                          from £44.80
                          from £44.80
                          # 017
                          MPN: 302220611
                          RUBBER HOSE
                          - Supplied in meters - (Minimum quantity 1m. or multiples)
                          from £21.91
                          from £21.91
                          This part replaces part number 192978
                          # 018
                          MPN: 191839
                          PIPE PROTECTION
                          - Not for F1
                          Supersession
                          Supersession
                          # 019
                          MPN: 387401170
                          UNION
                          from £5.60
                          from £5.60
                          # 020
                          MPN: 387400304
                          RUBBER
                          from £2.31
                          from £2.31
