046 - Rear Suspension - Shock Absorber and Brake Disk

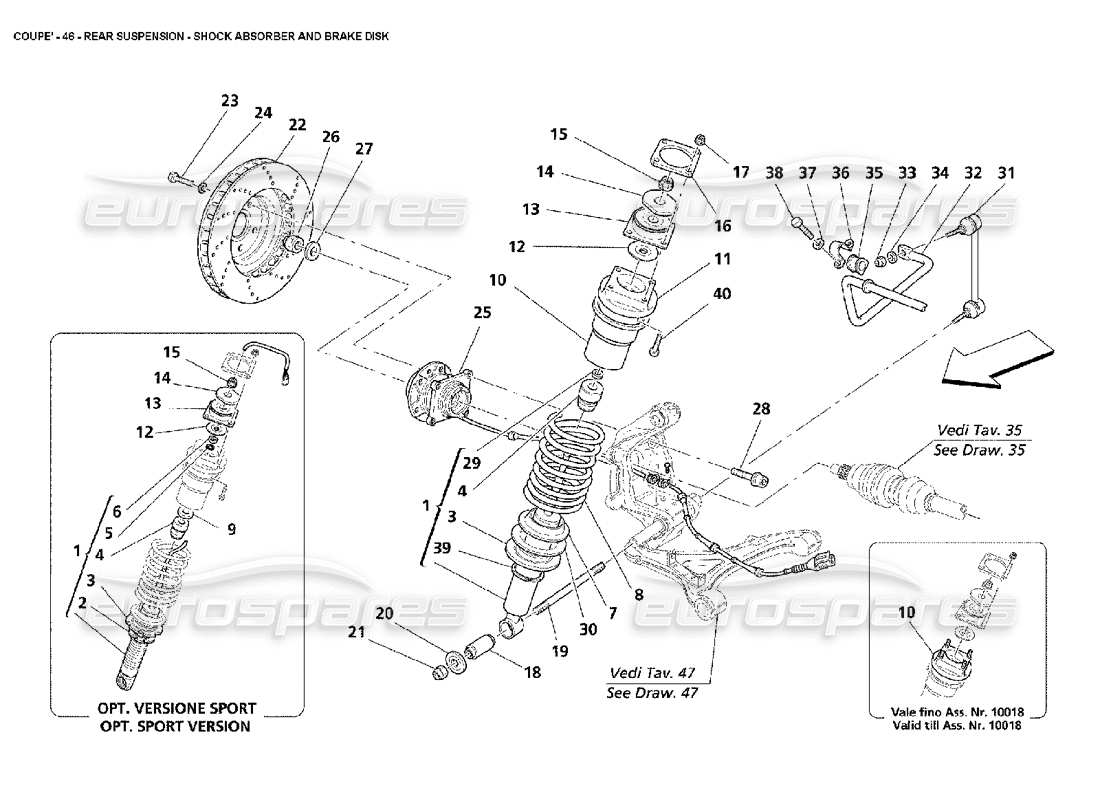

Maserati 4200 Coupe (2002) Rear Suspension - Shock Absorber and Brake Disk Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 182778
REAR SHOCK ABSORBER
- Optional - Version sport
from £1,007.06
from £1,007.06
# 001
MPN: 191391
REAR SHOCK ABSORBER
- Standard
from £292.72
from £292.72
# 001
MPN: 220939
REAR SHOCK ABSORBER
Optional - Version sport
from £986.53
from £986.53
# 001
MPN: 246271
REAR SHOCK ABSORBER
from £978.29
from £978.29
# 002
MPN: 174726
RING NUT
- Optional - Version sport
from £38.49
from £38.49
# 003
MPN: 183020
LOWER SPACER
- Optional - Version sport
from £381.48
from £381.48
# 003
MPN: 386601380
LOWER SPACER
- Standard
from £63.46
from £63.46
# 004
MPN: 189997
SHOCK ABSORBER PAD
- Optional - Version sport
from £21.14
from £21.14
# 004
MPN: 387000327
SHOCK ABSORBER PAD
- Standard
from £21.30
from £21.30
# 005
MPN: 183594
FLEXIBLE RING
- Optional - Version sport
from £21.56
from £21.56
# 006
MPN: 183595
BUSHING
- Optional - Version sport
from £32.38
from £32.38
# 007
MPN: 188996
LOWER SPACER
from £4.82
from £4.82
# 008
MPN: 163653
SUSPENSION SPRING
from £244.87
from £244.87
This part replaces part number 387000336
# 009
MPN: 189507
SPACER
- Optional - Version sport
from £13.52
from £13.52
# 010
MPN: 188995
UPPER SPACER
from £7.73
from £7.73
# 011
MPN: 191056
SPRING SUPPORT SPACER
- Valid till car Ass. Nr. 10018
from £39.53
from £39.53
# 011
MPN: 192645
SPRING SUPPORT SPACER
- Valid from car Ass. Nr. 10019
from £9.66
from £9.66
# 012
MPN: 183016
WASHER
- Optional - Version sport
from £15.54
from £15.54
# 012
MPN: 193235
WASHER
- Standard
from £3.16
from £3.16
# 013
MPN: 183015
HYPERBLOCK
- Optional - Version sport
from £42.96
from £42.96
# 013
MPN: 386600109
HYPERBLOCK
- Standard
from £83.87
from £83.87
This part replaces part number 114812 which we have in stock
# 014
MPN: 189110
WASHER
- Optional - Version sport
from £3.86
from £3.86
# 014
MPN: 387000340
WASHER
- Standard
from £3.16
from £3.16
# 015
MPN: 137826
NUT
- Standard
from £2.31
from £2.31
# 015
MPN: 183417
NUT
- Optional - Version sport
Supersession
Supersession
# 016
MPN: 191055
SPACER FOR SHOCK ABSORBER
from £25.51
from £25.51
# 017
MPN: 14058521
NUT
from £0.97
from £0.97
# 018
MPN: 163918
LOWER SHOCK ABSORBER BUSH
from £77.62
from £77.62
This part replaces part number 387000375
# 019
MPN: 13531734
STUD
from £17.16
from £17.16
This part replaces part number 13531634
# 020
MPN: 387000329
CUP
from £3.63
from £3.63
# 021
MPN: 14048825
NUT
from £4.57
from £4.57
# 022
MPN: 192996
REAR BRAKE DISC
from £166.31
from £166.31
This part replaces part number 387210351
# 022
MPN: 387210351
REAR BRAKE DISC
- Valid till stock exhaustion - on exhaustion use 192996
Supersession
Supersession
# 023
MPN: 16043421
SCREW
from £2.54
from £2.54
This part replaces part number 16043411
# 024
MPN: 10571779
WASHER
from £0.47
from £0.47
# 025
MPN: 185564
BEARING FOR WHEEL
(early 2002 model only)
from £773.59
from £773.59
# 026
MPN: 183320
NUT
from £5.09
from £5.09
# 027
MPN: 183321
WASHER
Supersession
Supersession
# 028
MPN: 190723
SCREW
from £5.26
from £5.26
This part replaces part number 14834021 - and 1 more. Click to view details
# 029
MPN: 386600329
SPACER FOR PAD SUPPORT
- Standard
from £17.78
from £17.78
# 030
MPN: 386601382
THICKNESS-MM. 2
- Standard
from £2.32
from £2.32
# 030
MPN: 386601397
THICKNESS-MM. 4
- Standard
from £4.09
from £4.09
# 031
MPN: 193729

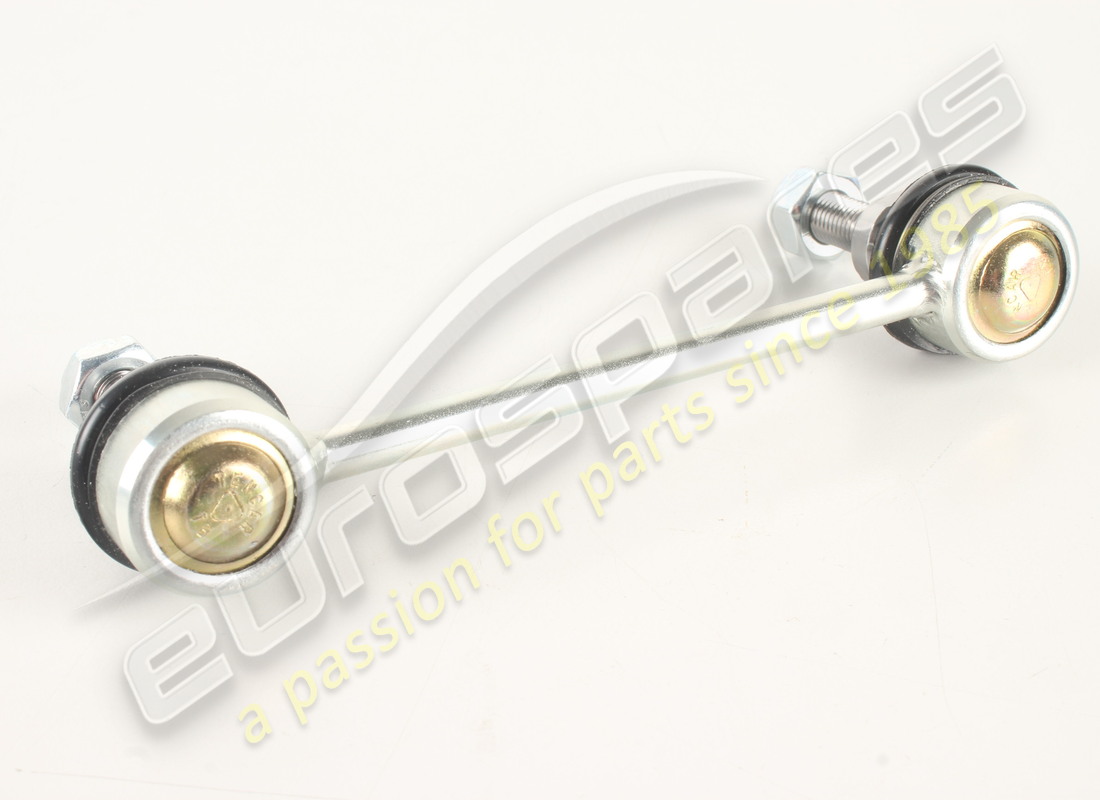

TIE-RODS
from £57.42
from £57.42
This part replaces part number 387000126
# 031
MPN: 193729
TIE-RODS
from £57.42
from £57.42
This part replaces part number 387000126
# 032
MPN: 188654
Rear Anti-Roll Bar
from £54.44
from £54.44
# 033
MPN: 12575621
NUT
from £1.41
from £1.41
This part replaces part number 98095 which we have in stock
# 034
MPN: 13550421
WASHER
from £0.47
from £0.47
# 035
MPN: 193662
RUBBER PAD
from £9.09
from £9.09
# 036
MPN: 397050368
RETAINER
from £2.85
from £2.85
# 037
MPN: 10571779
WASHER
from £0.47
from £0.47
# 038
MPN: 16043321
SCREW
from £1.08
from £1.08
# 039
MPN: 386601381
SPACER STOP RING
- Standard
from £4.17
from £4.17
# 040
MPN: 16044224
SCREW
- Valid from car Ass. Nr. 10019
from £0.51
from £0.51
