maserati 4200 coupe (2002) body - front outer trims parts diagram

100 - body - front outer trims

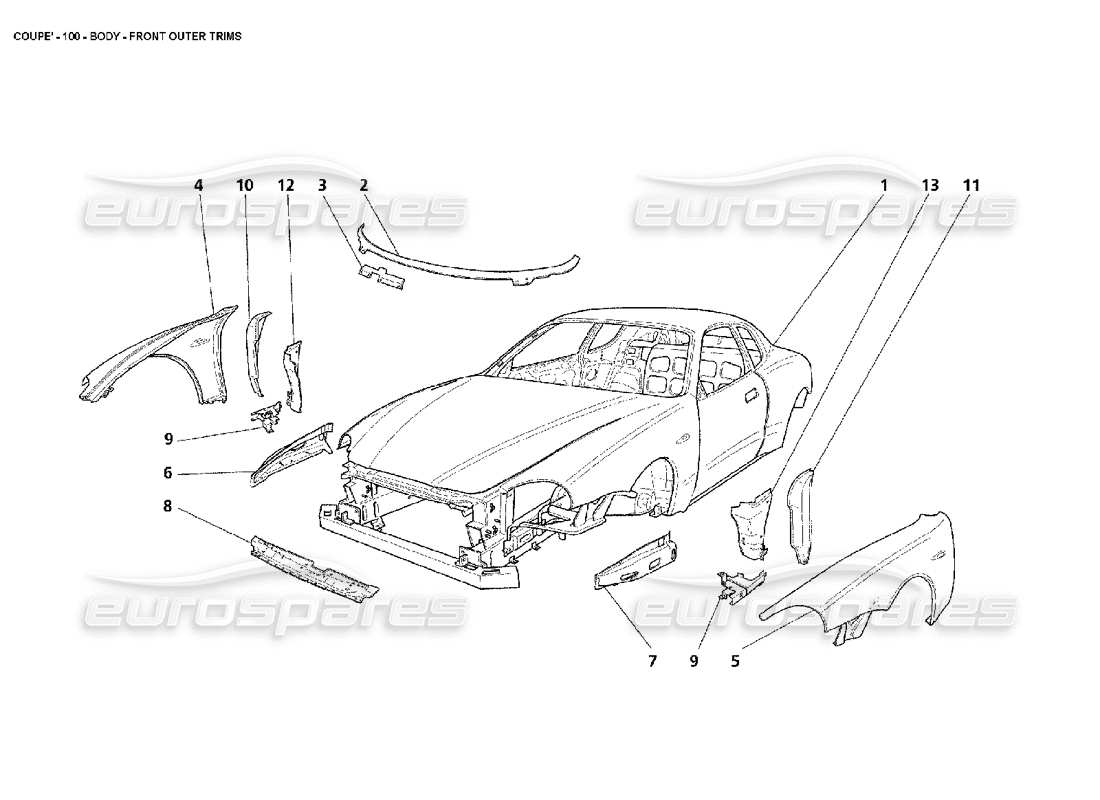

Maserati 4200 Coupe (2002) Body - Front Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 988138001
                COMPLETE BODY WORK FRAME
                - Not for USA, CDN and GD - For order specify car number
                from £13,573.60
                from £13,573.60
                # 001
                MPN: 988138002
                COMPLETE BODY WORK FRAME
                - Valid for GB - For order specify car number
                # 001
                MPN: 988138003
                COMPLETE BODY WORK FRAME
                - Valid for USA - For order specify car number
                # 001
                MPN: 988138004
                COMPLETE BODY WORK FRAME
                - Valid for CDN - For order specify car number
                # 001
                MPN: 988138005
                COMPLETE BODY WORK FRAME
                - Valid for AUS - For order specify car number
                # 002
                MPN: 66736500
                COMPLETE UNDERWINDSCREEN FRAME
                from £209.86
                from £209.86
                This part replaces part number 66196200
                # 003
                MPN: 66414000
                SHIELD FOR WATER FIXING PLATE
                - Not for GD
                from £18.76
                from £18.76
                # 003
                MPN: 66726500
                SHIELD FOR WATER FIXING PLATE
                - Valid for GD
                from £18.76
                from £18.76
                # 004
                MPN: 66605500
                RH COMPLETE FENDER
                STANDARD
                from £467.25
                from £467.25
                This part replaces part number 65966800 - and 1 more. Click to view details
                # 005
                MPN: 65966900
                LH COMPLETE FENDER
                STANDARD
                from £917.47
                from £917.47
                # 006
                MPN: 67236200
                RH COMPLETE FRONT SPRAG
                - Valid from car Nr. 7451
                from £851.98
                from £851.98
                This part replaces part number 382500306
                # 006
                MPN: 980001046
                RH COMPLETE FRONT SPRAG
                - Valid till car Nr. 7450
                from £233.95
                from £233.95
                # 007
                MPN: 67236300
                LH COMPLETE FRONT SPRAG
                - Valid from car Nr. 7451
                from £851.98
                from £851.98
                This part replaces part number 382501305
                # 007
                MPN: 980001045
                LH COMPLETE FRONT SPRAG
                - Valid till car Nr. 7450
                from £233.95
                from £233.95
                # 008
                MPN: 980001047
                COMPLETE FRONT CROSS MEMBER
                from £444.86
                from £444.86
                # 009
                MPN: 66247000
                BRACKET FOR LONGITUDINAL MEMBER
                from £131.51
                from £131.51
                # 010
                MPN: 382500308
                RH FRONT FENDER LINKING
                from £139.41
                from £139.41
                # 011
                MPN: 382500307
                LH FRONT FENDER LINKING
                from £121.09
                from £121.09
                # 012
                MPN: 980001174
                COMPLETE RH FRONT ROD REINFORCEMENT
                from £255.79
                from £255.79
                This part replaces part number 65957700
                # 013
                MPN: 980001173
                COMPLETE LH FRONT ROD REINFORCEMENT
                from £272.63
                from £272.63
                This part replaces part number 65957800
