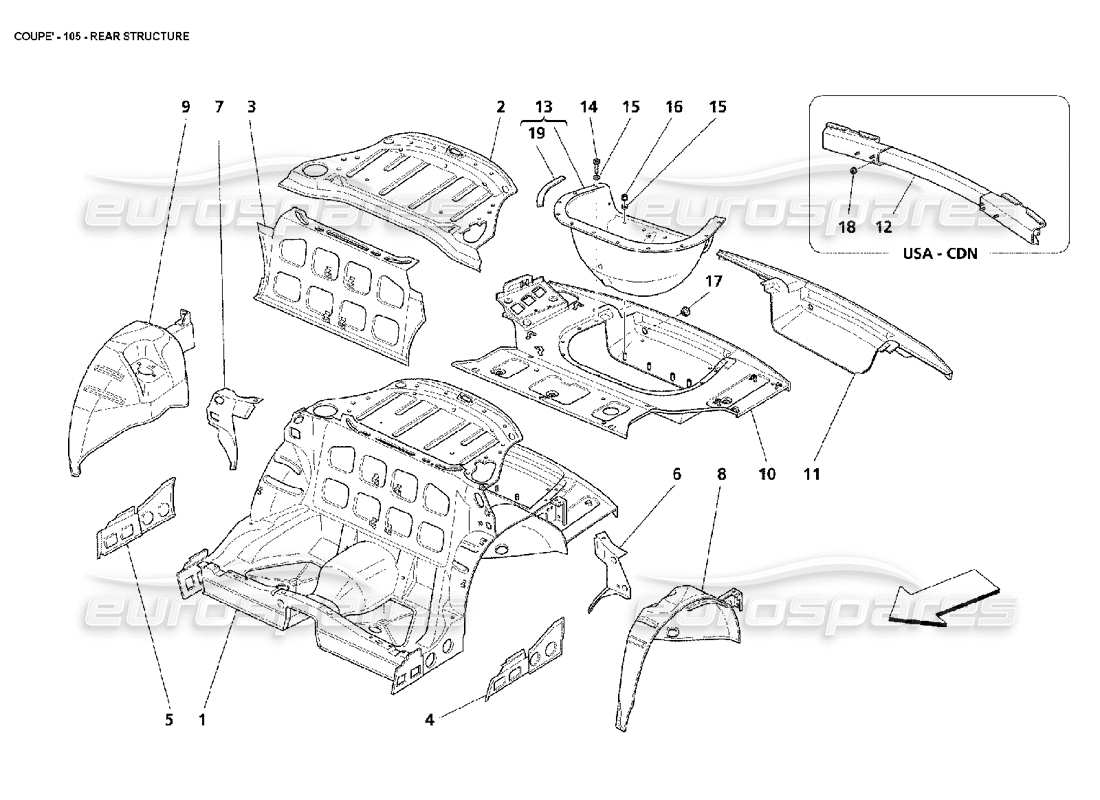

maserati 4200 coupe (2002) rear structure parts diagram

105 - rear structure

Maserati 4200 Coupe (2002) Rear Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 980138004
                              COMPLETE REAR FLOOR
                              - Not for USA, CDN and AUS
                              from £4,525.76
                              from £4,525.76
                              # 001
                              MPN: 980138020
                              COMPLETE REAR FLOOR
                              - Valid for USA, CDN and AUS
                              from £4,657.16
                              from £4,657.16
                              # 002
                              MPN: 980138002
                              COMPLETE REAR UNDER WINDOW PANEL
                              - Not for USA, CDN and AUS
                              from £119.96
                              from £119.96
                              # 002
                              MPN: 980138019
                              COMPLETE REAR UNDER WINDOW PANEL
                              - Valid for USA, CDN and AUS
                              from £164.29
                              from £164.29
                              # 003
                              MPN: 66313400
                              COMPLETE REAR PANEL
                              from £131.41
                              from £131.41
                              # 004
                              MPN: 66608400
                              LH SPAR REAR DIAPHRAGM
                              from £19.09
                              from £19.09
                              # 005
                              MPN: 66608300
                              RH SPAR REAR DIAPHRAGM
                              from £19.09
                              from £19.09
                              # 006
                              MPN: 66413300
                              LH LATERAL INSERT FOR REAR PANEL
                              from £22.49
                              from £22.49
                              # 007
                              MPN: 66245600
                              RH LATERAL INSERT FOR REAR PANEL
                              from £22.49
                              from £22.49
                              # 008
                              MPN: 980138017
                              COMPLETE LH INNER REAR WHEEL HOUSE
                              from £355.99
                              from £355.99
                              # 009
                              MPN: 980138018
                              COMPLETE RH INNER REAR WHEEL HOUSE
                              from £355.99
                              from £355.99
                              # 010
                              MPN: 980138003
                              COMPLETE TRUNK FLOOR
                              from £665.34
                              from £665.34
                              # 011
                              MPN: 980001060
                              COMPLETE REAR WALL
                              from £132.18
                              from £132.18
                              # 012
                              MPN: 66300700
                              REAR BULL BAR
                              - Valid for USA
                              from £447.29
                              from £447.29
                              # 012
                              MPN: 67021800
                              REAR BULL BAR
                              - Valid for CDN
                              from £461.04
                              from £461.04
                              # 013
                              MPN: 66491000
                              COMPLETE WHEEL HOUSING
                              - Valid till car Ass. Nr. 9813
                              Supersession
                              Supersession
                              # 013
                              MPN: 67245900
                              COMPLETE WHEEL HOUSING
                              - Valid from car Ass. Nr. 9814
                              from £276.85
                              from £276.85
                              This part replaces part number 66491000
                              # 014
                              MPN: 13274611
                              SCREW
                              from £0.71
                              from £0.71
                              This part replaces part number 13274517
                              # 015
                              MPN: 12638170
                              WASHER
                              from £1.08
                              from £1.08
                              # 016
                              MPN: 14058311
                              NUT
                              from £0.53
                              from £0.53
                              # 017
                              MPN: 14506987
                              PLUG
                              from £1.93
                              from £1.93
                              # 018
                              MPN: 14040715
                              NUT
                              - Valid for USA and CDN
                              from £1.08
                              from £1.08
                              # 019
                              MPN: 66134100
                              WHEEL HOUSING GASKET
                              from £119.01
                              from £119.01
                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
