maserati 4200 coupe (2002) inner covering - central and front post covering - side rail cover parts diagram

111 - Inner Covering - Central and Front Post Covering - Side Rail Cover

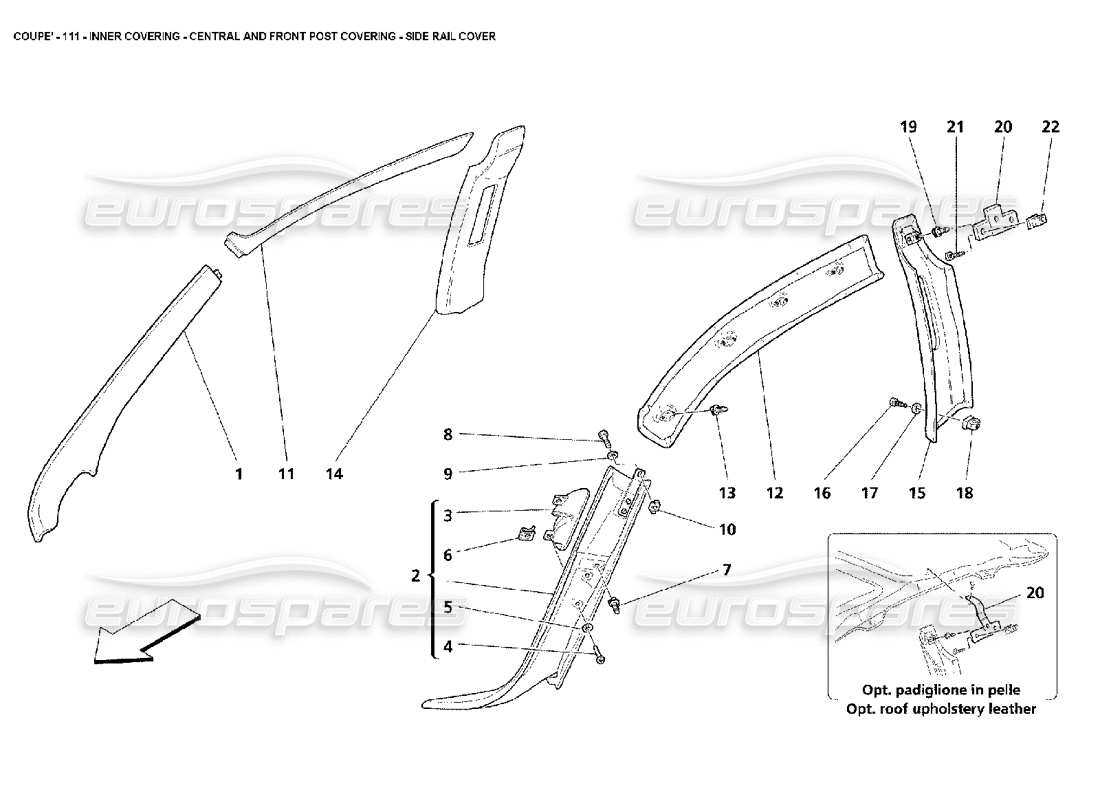

Maserati 4200 Coupe (2002) Inner Covering - Central and Front Post Covering - Side Rail Cover Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 9812102..
                                      COMPLETE FRONT RH POST COVERING
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      # 002
                                      MPN: 9812101..
                                      COMPLETE FRONT LH POST COVERING
                                      - For order specify car number
                                      Supersession
                                      Supersession
                                      # 003
                                      MPN: 388300607
                                      LH AIR DIFFUSER
                                      Supersession
                                      Supersession
                                      This part replaces part number 388300647
                                      # 003
                                      MPN: 388300608
                                      RH AIR DIFFUSER
                                      Supersession
                                      Supersession
                                      This part replaces part number 388300648
                                      # 004
                                      MPN: 15901401
                                      SCREW
                                      from £0.47
                                      from £0.47
                                      # 005
                                      MPN: 12639901
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      # 006
                                      MPN: 14368871
                                      FIXING CLIP
                                      from £3.24
                                      from £3.24
                                      # 007
                                      MPN: 14188181
                                      RETAINER
                                      from £0.51
                                      from £0.51
                                      # 008
                                      MPN: 10977724
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      # 009
                                      MPN: 12620374
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      # 010
                                      MPN: 14647490
                                      NUT WITH CAGE
                                      from £0.53
                                      from £0.53
                                      # 011
                                      MPN: 981210402
                                      RH LATERAL SIDE RAIL COVER
                                      (Ivory colour)
                                      from £178.48
                                      from £178.48
                                      # 012
                                      MPN: 981210300
                                      LH LATERAL SIDE RAIL COVER
                                      from £178.48
                                      from £178.48
                                      # 013
                                      MPN: 14188181
                                      RETAINER
                                      from £0.48
                                      from £0.48
                                      # 014
                                      MPN: 9812106..
                                      RH CENTRAL POST COVERING
                                      Supersession
                                      Supersession
                                      # 015
                                      MPN: 9812105..
                                      LH CENTRAL POST COVERING
                                      Supersession
                                      Supersession
                                      # 016
                                      MPN: 12678707
                                      SCREW
                                      from £1.08
                                      from £1.08
                                      # 017
                                      MPN: 388300580
                                      WASHER
                                      from £4.57
                                      from £4.57
                                      This part replaces part number 13336207
                                      # 018
                                      MPN: 7622606
                                      BLOCK
                                      from £0.69
                                      from £0.69
                                      # 019
                                      MPN: 14188181
                                      RETAINER
                                      from £0.51
                                      from £0.51
                                      # 020
                                      MPN: 388300387
                                      LH BRACKET
                                      - Valid for cars with leather roof upholstery
                                      from £5.09
                                      from £5.09
                                      # 020
                                      MPN: 388300388
                                      RH BRACKET
                                      - Valid for cars with leather roof upholstery
                                      from £5.09
                                      from £5.09
                                      # 020
                                      MPN: 66669400
                                      RH BRACKET
                                      - Not for cars with leather roof upholstery
                                      from £3.63
                                      from £3.63
                                      # 020
                                      MPN: 66669500
                                      LH BRACKET
                                      - Not for cars with leather roof upholstery
                                      from £3.63
                                      from £3.63
                                      # 021
                                      MPN: 15784101
                                      SCREW
                                      from £1.08
                                      from £1.08
                                      # 022
                                      MPN: 14211686
                                      BLOCK
                                      from £0.47
                                      from £0.47
