maserati 4200 coupe (2002) doors - framework and coverings parts diagram

116 - Doors - Framework and Coverings

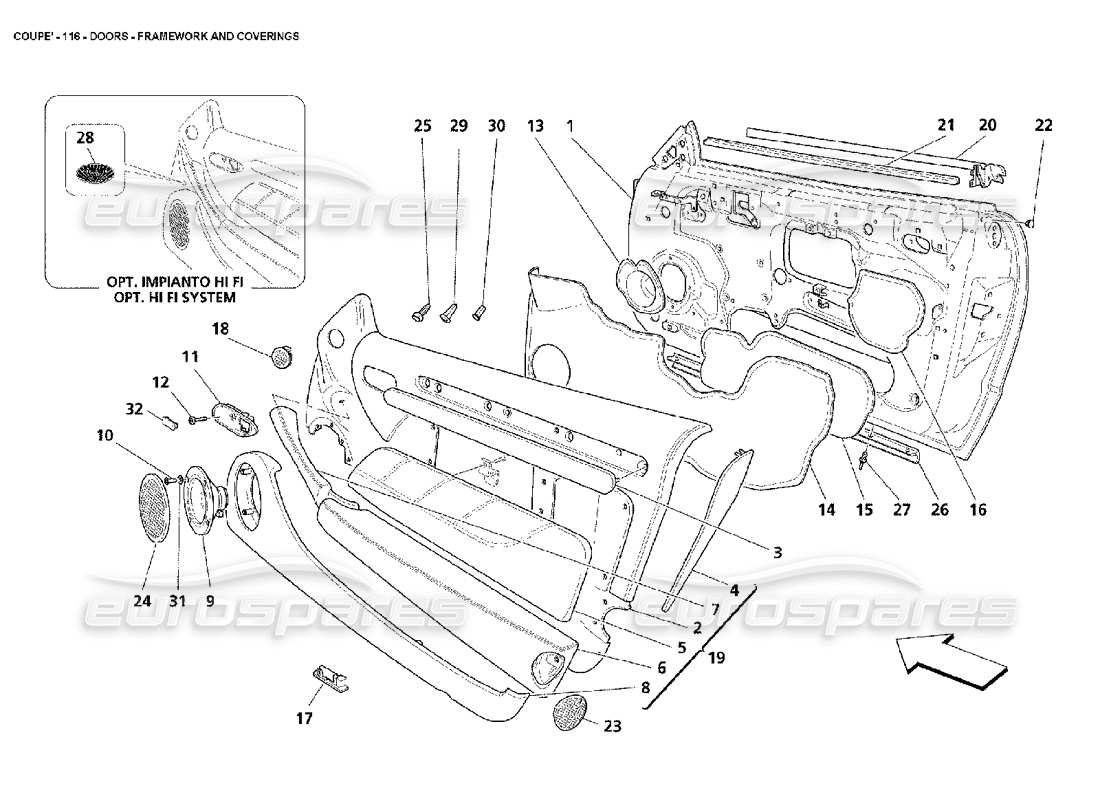

Maserati 4200 Coupe (2002) Doors - Framework and Coverings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 980001037
                                        COMPLETE LH DOOR
                                        from £787.50
                                        from £787.50
                                        # 001
                                        MPN: 980001038
                                        COMPLETE RH DOOR
                                        from £1,589.61
                                        from £1,589.61
                                        # 002
                                        MPN: 667740..
                                        RH DOOR PANEL UPHOLSTERED
                                        - For order specify car number
                                        from £262.50
                                        from £262.50
                                        # 002
                                        MPN: 667741..
                                        LH DOOR PANEL UPHOLSTERED
                                        - For order specify car number
                                        from £99.75
                                        from £99.75
                                        # 003
                                        MPN: 66112700
                                        RH DOOR MOULDING
                                        - Standard
                                        from £65.05
                                        from £65.05
                                        This part replaces part number 66198900
                                        # 003
                                        MPN: 66112800
                                        LH DOOR MOULDING
                                        - Standard
                                        from £35.78
                                        from £35.78
                                        This part replaces part number 66198800 - and 1 more. Click to view details
                                        # 003
                                        MPN: 67027600
                                        RH DOOR MOULDING
                                        - Optional - Carbon
                                        from £478.40
                                        from £478.40
                                        # 003
                                        MPN: 67027700
                                        LH DOOR MOULDING
                                        - Optional - Carbon
                                        from £332.53
                                        from £332.53
                                        # 003
                                        MPN: 67027800
                                        RH DOOR MOULDING
                                        - Optional - Brier
                                        from £294.45
                                        from £294.45
                                        # 003
                                        MPN: 67027900
                                        LH DOOR MOULDING
                                        - Optional - Brier
                                        from £324.18
                                        from £324.18
                                        # 003
                                        MPN: 67247000
                                        RH DOOR MOULDING
                                        Gray
                                        from £30.00
                                        from £30.00
                                        # 003
                                        MPN: 67247300
                                        LH DOOR MOULDING
                                        Gray
                                        from £30.00
                                        from £30.00
                                        # 004
                                        MPN: 663683..
                                        RH UPHOLSTERED TERMINAL PLUG
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 004
                                        MPN: 663684..
                                        LH UPHOLSTERED TERMINAL PLUG
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 005
                                        MPN: 663681..
                                        RH DOOR SIDE- BAG COVER
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 005
                                        MPN: 663682..
                                        LH DOOR SIDE BAG COVER
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 005
                                        MPN: 67288507
                                        RHS DOOR AIR BAG (BORDEAUX)
                                        Please note: (Collection or Delivery by road within Europe)
                                        from £579.02
                                        from £579.02
                                        This part replaces part number 66368107 - and 1 more. Click to view details
                                        # 006
                                        MPN: 663679..
                                        RH ARM REST DOOR
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 006
                                        MPN: 66368000
                                        LH ARM REST DOOR
                                        - For order specify car number
                                        from £228.48
                                        from £228.48
                                        # 007
                                        MPN: 667744..
                                        RH UPHOLSTERED HANDLE MOULDING
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 007
                                        MPN: 667746..
                                        LH UPHOLSTERED HANDLE MOULDING
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 008
                                        MPN: 667742..
                                        RH POCKET UPHOLSTERED
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 008
                                        MPN: 667743..
                                        LH POCKET UPHOLSTERED
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 009
                                        MPN: 189389
                                        LOUD SPEAKER WOOFER
                                        - Standard
                                        from £115.05
                                        from £115.05
                                        # 009
                                        MPN: 189390
                                        LOUD SPEAKER WOOFER
                                        - Optional - HI FI system
                                        from £57.17
                                        from £57.17
                                        # 010
                                        MPN: 13274014
                                        SCREW
                                        from £3.54
                                        from £3.54
                                        # 011
                                        MPN: 67393629
                                        RH HANDLE PLATE
                                        from £25.59
                                        from £25.59
                                        This part replaces part number 66112900
                                        # 011
                                        MPN: 67393729
                                        LH HANDLE PLATE
                                        from £34.59
                                        from £34.59
                                        This part replaces part number 66113000
                                        # 012
                                        MPN: 15689907
                                        SCREW
                                        from £1.08
                                        from £1.08
                                        # 013
                                        MPN: 66661100
                                        WATER SHIELD FOR LH LOUD SPEAKER
                                        from £16.17
                                        from £16.17
                                        # 013
                                        MPN: 66661200
                                        WATER SHIELD FOR RH LOUD SPEAKER
                                        from £15.24
                                        from £15.24
                                        # 014
                                        MPN: 66420100
                                        WATER SHIELD IN THE RH DOOR
                                        from £17.01
                                        from £17.01
                                        # 014
                                        MPN: 66420200
                                        WATER SHIELD IN THE LH DOOR
                                        from £17.01
                                        from £17.01
                                        # 015
                                        MPN: 66661300
                                        LH LOWER CENTRAL WATER FOR SHIELD
                                        from £16.17
                                        from £16.17
                                        # 015
                                        MPN: 66661400
                                        RH LOWER CENTRAL WATER FOR SHIELD
                                        from £14.94
                                        from £14.94
                                        # 016
                                        MPN: 66661500
                                        LH UPPER LATERAL WATER FOR SHIELD
                                        from £30.27
                                        from £30.27
                                        # 016
                                        MPN: 66661600
                                        RH UPPER LATERAL WATER FOR SHIELD
                                        from £12.56
                                        from £12.56
                                        # 017
                                        MPN: 60608165
                                        UNDER DOOR LAMP
                                        - Standard
                                        from £6.12
                                        from £6.12
                                        # 018
                                        MPN: 185969
                                        LOUD SPEAKER TWEETER
                                        from £27.79
                                        from £27.79
                                        # 018
                                        MPN: 185970
                                        LOUD SPEAKER TWEETER
                                        - Optional - HI FI system
                                        from £31.07
                                        from £31.07
                                        # 019
                                        MPN: 667738..
                                        COMPLETE RH DOOR PANEL UPHOLSTERED
                                        - For order specify car number
                                        from £99.75
                                        from £99.75
                                        # 019
                                        MPN: 667739..
                                        COMPLETE LH DOOR PANEL UPHOLSTERED
                                        - For order specify car number
                                        Supersession
                                        Supersession
                                        # 020
                                        MPN: 67820200
                                        RH OUTER GLASS SCRAPER GASKET
                                        from £252.27
                                        from £252.27
                                        This part replaces part number 387700324
                                        # 020
                                        MPN: 67820300
                                        LH Outer Glass Scraper Gasket
                                        from £138.75
                                        from £138.75
                                        This part replaces part number 387700323 - and 1 more. Click to view details
                                        # 021
                                        MPN: 67021400
                                        LH INNER GLASS SCRAPER GASKET
                                        - Valid till stock exhaustion
                                        Supersession
                                        Supersession
                                        # 021
                                        MPN: 67245400
                                        LH INNER GLASS SCRAPER GASKET
                                        - Valid after stock exhaustion of 67021400
                                        from £16.76
                                        from £16.76
                                        This part replaces part number 67021400
                                        # 022
                                        MPN: 388300805
                                        button
                                        from £0.86
                                        from £0.86
                                        # 023
                                        MPN: 46427291
                                        REFLECTOR FOR RH DOOR PANEL
                                        from £4.26
                                        from £4.26
                                        # 023
                                        MPN: 46427292
                                        REFLECTOR FOR LH DOOR PANEL
                                        from £4.26
                                        from £4.26
                                        # 024
                                        MPN: 388300600
                                        LOUD SPEAKER PLATE
                                        from £5.06
                                        from £5.06
                                        This part replaces part number 388300496
                                        # 025
                                        MPN: 66805100
                                        PIN
                                        from £0.70
                                        from £0.70
                                        # 026
                                        MPN: 384500441
                                        UNDERDOOR GASKET
                                        from £14.38
                                        from £14.38
                                        # 027
                                        MPN: 384500442
                                        RIVET
                                        from £1.08
                                        from £1.08
                                        # 028
                                        MPN: 388300398
                                        PLATE
                                        - Optional - HI FI system
                                        from £34.71
                                        from £34.71
                                        # 029
                                        MPN: 7745194
                                        BUSHING
                                        from £1.14
                                        from £1.14
                                        # 030
                                        MPN: 15180311
                                        RIVET
                                        from £1.86
                                        from £1.86
                                        # 031
                                        MPN: 12620374
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        # 032
                                        MPN: 388300603
                                        PLUG
                                        from £45.41
                                        from £45.41
                                        This part replaces part number 388300556
