maserati 4200 coupe (2002) front seat and seat belts parts diagram

120 - Front Seat and Seat Belts

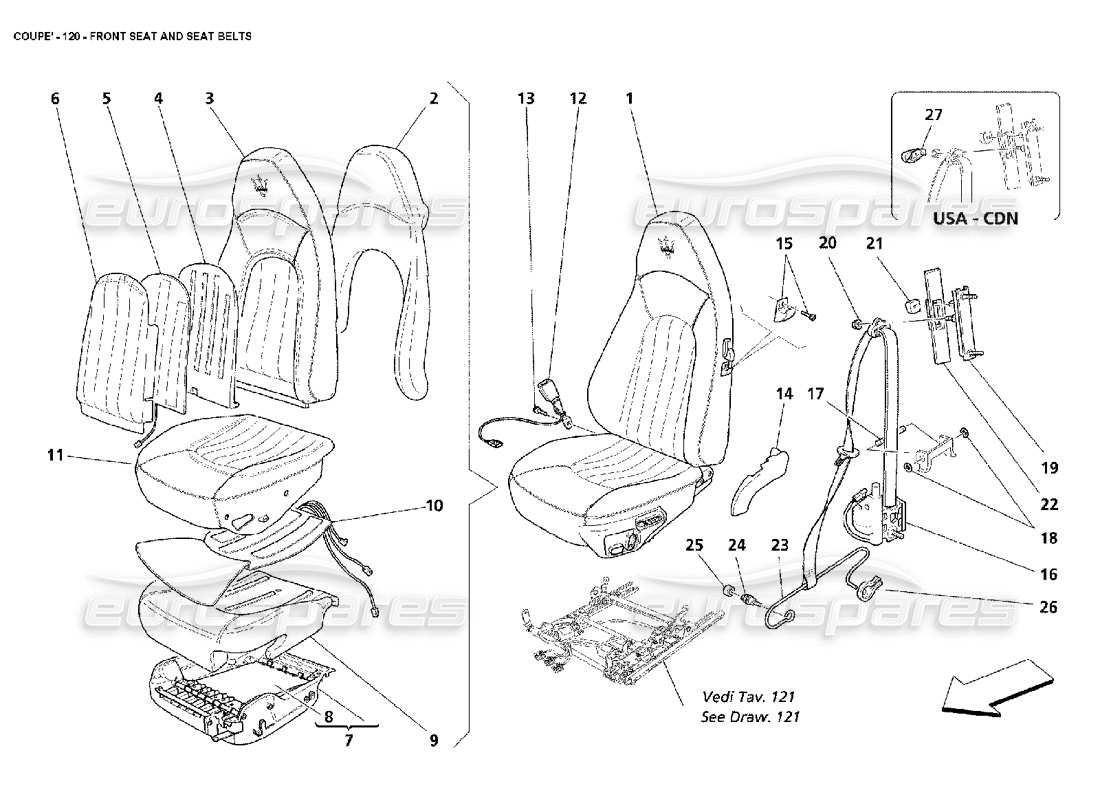

Maserati 4200 Coupe (2002) Front Seat and Seat Belts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 000
                                                MPN: 900114696
                                                COMPLETE SEATS IN BLACK
                                                # 001
                                                MPN: 9812007..
                                                COMPLETE LH FRONT SEAT
                                                - Standard - Not for GD
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 9812008..
                                                COMPLETE RH FRONT SEAT
                                                - Standard - Not for GD
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 9812009..
                                                COMPLETE LH FRONT SEAT
                                                - Optional - Heater - Not for GD
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 9812010..
                                                COMPLETE RH FRONT SEAT
                                                - Optional - Heater - Not for GD
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 9812017..
                                                COMPLETE LH FRONT SEAT
                                                - Standard - Valid for GD
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 9812018..
                                                COMPLETE RH FRONT SEAT
                                                - Standard - Valid for GD
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 9812019..
                                                COMPLETE LH FRONT SEAT
                                                - Optional - Heater - Valid for GD
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 9812020..
                                                COMPLETE RH FRONT SEAT
                                                - Optional - Heater - Valid for GD
                                                Supersession
                                                Supersession
                                                # 002
                                                MPN: 980138100
                                                SEATBACK PERIPHERAL PADDING
                                                from £993.05
                                                from £993.05
                                                # 003
                                                MPN: 9812000..
                                                BACKSEAT PERIPHERAL UPHOLSTERY
                                                Supersession
                                                Supersession
                                                # 004
                                                MPN: 980001118
                                                BACKSEAT CENTRAL PADDING
                                                from £58.36
                                                from £58.36
                                                # 005
                                                MPN: 980001121
                                                BACKSEAT HEATER
                                                from £52.07
                                                from £52.07
                                                # 006
                                                MPN: 9811000..
                                                BACKSEAT CENTRAL UPHOLSTERY
                                                Supersession
                                                Supersession
                                                # 007
                                                MPN: 66708500
                                                COMPLETE RH CUSHION BOTTOM
                                                - Valid till car Ass. Nr. 8480
                                                from £79.99
                                                from £79.99
                                                # 007
                                                MPN: 66709600
                                                COMPLETE LH CUSHION BOTTOM
                                                - Valid till car Ass. Nr. 8480
                                                from £79.99
                                                from £79.99
                                                # 007
                                                MPN: 980001179
                                                COMPLETE LH CUSHION BOTTOM
                                                - Valid from car Ass. Nr. 8481
                                                from £49.07
                                                from £49.07
                                                # 007
                                                MPN: 980001180
                                                COMPLETE RH CUSHION BOTTOM
                                                - Valid from car Ass. Nr. 8481
                                                from £49.07
                                                from £49.07
                                                # 008
                                                MPN: 980001122
                                                CUSHION BOTTOM MEMBRANE
                                                from £31.25
                                                from £31.25
                                                # 009
                                                MPN: 980138101
                                                LH CUSHION PADDING
                                                - Valid for GD
                                                from £993.05
                                                from £993.05
                                                # 009
                                                MPN: 980138102
                                                RH CUSHION PADDING
                                                - Not for GD
                                                from £993.05
                                                from £993.05
                                                # 009
                                                MPN: 980138103
                                                LH CUSHION PADDING
                                                - Not for GD
                                                from £993.05
                                                from £993.05
                                                # 009
                                                MPN: 980138104
                                                RH CUSHION PADDING
                                                - Valid for GD
                                                from £993.05
                                                from £993.05
                                                # 010
                                                MPN: 980001120
                                                CUSHION HEATER
                                                from £123.73
                                                from £123.73
                                                # 011
                                                MPN: 9812001..
                                                LH FRONT CUSHION UPHOLSTERY
                                                Supersession
                                                Supersession
                                                # 011
                                                MPN: 9812002..
                                                RH FRONT CUSHION UPHOLSTERY
                                                Supersession
                                                Supersession
                                                # 012
                                                MPN: 388100336
                                                PASSENGER SEAT BELT LOCK
                                                from £47.00
                                                from £47.00
                                                # 012
                                                MPN: 388100337
                                                PILOT SEAT BELT LOCK
                                                from £104.70
                                                from £104.70
                                                # 013
                                                MPN: 386900301
                                                SCREW
                                                from £13.44
                                                from £13.44
                                                # 014
                                                MPN: 980138105
                                                LH SEAT JOINT COVER
                                                from £14.12
                                                from £14.12
                                                # 014
                                                MPN: 980138106
                                                RH SEAT JOINT COVER
                                                from £14.12
                                                from £14.12
                                                # 015
                                                MPN: 980138107
                                                LEVER PROTECTION KIT
                                                from £15.38
                                                from £15.38
                                                # 016
                                                MPN: 66310300
                                                RH ROLLER
                                                - Not for USA and CDN
                                                from £78.75
                                                from £78.75
                                                # 016
                                                MPN: 66310400
                                                LH ROLLER
                                                - Not for USA e CDN
                                                from £168.50
                                                from £168.50
                                                # 016
                                                MPN: 66310500
                                                RH ROLLER
                                                - Valid for USA and CDN
                                                from £165.97
                                                from £165.97
                                                # 016
                                                MPN: 67190800
                                                LH ROLLER
                                                - Valid for USA e CDN
                                                from £157.80
                                                from £157.80
                                                # 017
                                                MPN: 30921336
                                                DOWEL BOLT
                                                from £3.63
                                                from £3.63
                                                # 018
                                                MPN: 11087770
                                                FLEXIBLE RING
                                                from £0.69
                                                from £0.69
                                                # 019
                                                MPN: 388100150
                                                SEAT BELT REGULATOR
                                                from £13.89
                                                from £13.89
                                                # 020
                                                MPN: 388100335
                                                NUT
                                                from £1.08
                                                from £1.08
                                                # 021
                                                MPN: 388100333
                                                KNOB
                                                from £1.08
                                                from £1.08

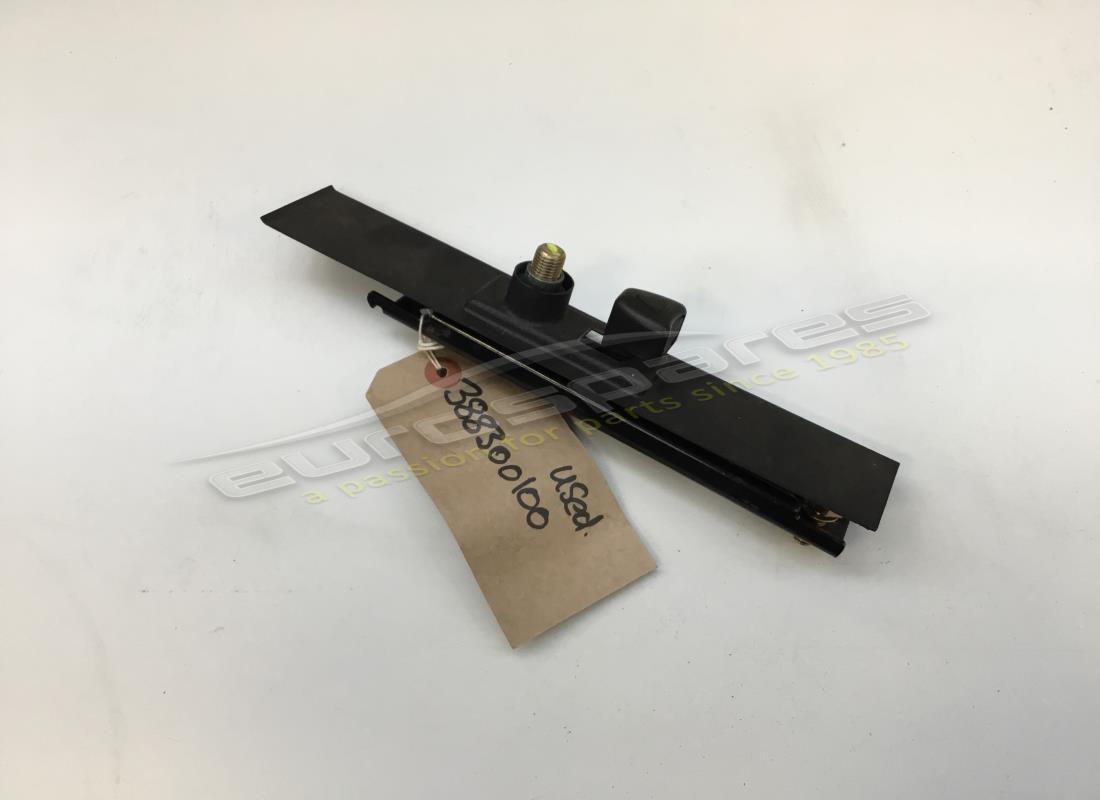

                                                # 022
                                                MPN: 388300100
                                                SLIT SHIELD
                                                from £5.16
                                                from £5.16
                                                # 023
                                                MPN: 386100369
                                                LH HOOK BAR FOR SEAT BELT
                                                from £5.31
                                                from £5.31
                                                # 023
                                                MPN: 386100370
                                                RH HOOK BAR FOR SEAT BELT
                                                from £5.31
                                                from £5.31
                                                # 024
                                                MPN: 388100331
                                                SCREW
                                                from £9.04
                                                from £9.04
                                                # 025
                                                MPN: 388100330
                                                CAP FOR SCREW
                                                from £0.69
                                                from £0.69
                                                # 026
                                                MPN: 568100343
                                                PLATE
                                                from £1.83
                                                from £1.83
                                                # 027
                                                MPN: 66663000
                                                COVER
                                                - Valid for USA and CDN - Valid till stock exhaustion
                                                Supersession
                                                Supersession
                                                # 027
                                                MPN: 67418700
                                                COVER
                                                - Valid for USA and CDN - Valid after stock exhaustion of 66663000
                                                from £8.20
                                                from £8.20
                                                This part replaces part number 66663000
