maserati 4200 coupe (2002) front seat - guide and movement parts diagram

121 - Front Seat - Guide and Movement

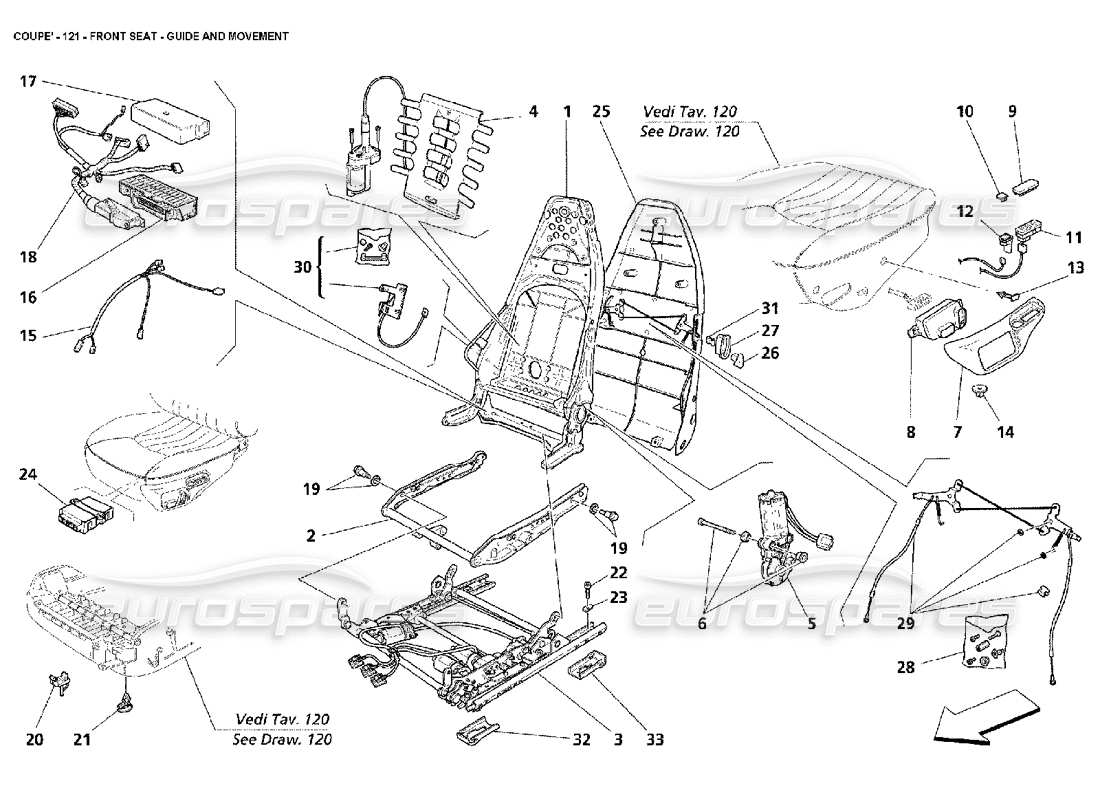

Maserati 4200 Coupe (2002) Front Seat - Guide and Movement Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 980001142
                                                              BACKSEAT FRAME
                                                              from £307.23
                                                              from £307.23
                                                              # 002
                                                              MPN: 980001145
                                                              LH CUSHION FRAME
                                                              - Valid till car Ass. Nr. 8480 - Valid till stock exhaustion - After stock exhaustion replaced by 980001177
                                                              Supersession
                                                              Supersession
                                                              # 002
                                                              MPN: 980001146
                                                              RH CUSHION FRAME
                                                              - Valid till car Ass. Nr. 8480 - Valid till stock exhaustion - After stock exhaustion replaced by 980001178
                                                              Supersession
                                                              Supersession
                                                              # 002
                                                              MPN: 980001177
                                                              LH CUSHION FRAME
                                                              - Valid from car Ass. Nr. 8481
                                                              from £94.45
                                                              from £94.45
                                                              This part replaces part number 980001145
                                                              # 002
                                                              MPN: 980001178
                                                              RH CUSHION FRAME
                                                              - Valid from car Ass. Nr. 8481
                                                              from £95.37
                                                              from £95.37
                                                              This part replaces part number 980001146
                                                              # 003
                                                              MPN: 980001111
                                                              PILOT SEAT MOVEMENT
                                                              from £1,216.86
                                                              from £1,216.86
                                                              # 003
                                                              MPN: 980138112
                                                              PASSENGER SEAT MOVEMENT
                                                              from £2,044.64
                                                              from £2,044.64
                                                              # 004
                                                              MPN: 386900100
                                                              LUMBAR ADJUST
                                                              from £123.91
                                                              from £123.91
                                                              # 005
                                                              MPN: 386900402
                                                              PASSENGERS BACKSEAT ADJUST ENGINE
                                                              from £124.51
                                                              from £124.51
                                                              # 005
                                                              MPN: 386901402
                                                              PILOT BACKSEAT ADJUST ENGINE
                                                              from £275.50
                                                              from £275.50
                                                              # 006
                                                              MPN: 386900403
                                                              ENGINE FIXINGS
                                                              from £37.55
                                                              from £37.55
                                                              # 007
                                                              MPN: 66710400
                                                              RH SEAT CARTER
                                                              from £7.30
                                                              from £7.30
                                                              This part replaces part number 66711800 - and 1 more. Click to view details
                                                              # 007
                                                              MPN: 66710700
                                                              LH SEAT CARTER
                                                              from £20.84
                                                              from £20.84
                                                              This part replaces part number 66712900
                                                              # 008
                                                              MPN: 386900223
                                                              LH SEAT MOVEMENT CONTROL JOISTICK
                                                              from £87.25
                                                              from £87.25
                                                              # 008
                                                              MPN: 386900224
                                                              RH SEAT MOVEMENT CONTROL JOISTICK
                                                              from £82.77
                                                              from £82.77
                                                              # 009
                                                              MPN: 980001124
                                                              PLUG FOR MEMORIES BUTTON
                                                              from £5.56
                                                              from £5.56
                                                              # 010
                                                              MPN: 980001123
                                                              PLUG FOR HEATER BUTTON
                                                              from £5.10
                                                              from £5.10
                                                              # 011
                                                              MPN: 386901225
                                                              MEMORIER BUTTON PANEL
                                                              from £59.45
                                                              from £59.45
                                                              # 012
                                                              MPN: 386901226
                                                              HEATHER CONTROL BUTTON
                                                              from £59.82
                                                              from £59.82
                                                              # 013
                                                              MPN: 386900404
                                                              CARTER FIXING CLIP
                                                              from £11.29
                                                              from £11.29
                                                              # 014
                                                              MPN: 386900405
                                                              CARTER FIXING NUT
                                                              from £3.25
                                                              from £3.25
                                                              # 015
                                                              MPN: 980001117
                                                              PILOT SEAT CABLE
                                                              from £72.74
                                                              from £72.74
                                                              # 015
                                                              MPN: 980138113
                                                              PASSENGER SEAT CABLE
                                                              - Valid for GD
                                                              from £267.55
                                                              from £267.55
                                                              # 015
                                                              MPN: 980138114
                                                              PASSENGER SEAT CABLE
                                                              - Not for GD
                                                              from £267.55
                                                              from £267.55
                                                              # 016
                                                              MPN: 980001115
                                                              PILOT SIDE MEMORIES CONTROL UNIT
                                                              from £908.50
                                                              from £908.50
                                                              # 017
                                                              MPN: 980001116
                                                              PILOT SIDE CONTROL UNIT COVER
                                                              from £32.38
                                                              from £32.38
                                                              # 018
                                                              MPN: 980001129
                                                              PILOT SIDE MEMORY CABLE
                                                              - Not for GD
                                                              from £565.38
                                                              from £565.38
                                                              # 018
                                                              MPN: 980001130
                                                              PILOT SIDE MEMORY CABLE
                                                              - Valid for GD
                                                              from £319.93
                                                              from £319.93
                                                              # 019
                                                              MPN: 980001023
                                                              PILOT SEAT MOVEMENT FIXING KIT
                                                              from £72.79
                                                              from £72.79
                                                              # 020
                                                              MPN: 386900406
                                                              CLIP
                                                              from £5.10
                                                              from £5.10
                                                              # 021
                                                              MPN: 386900407
                                                              CLIP
                                                              from £6.41
                                                              from £6.41
                                                              # 022
                                                              MPN: 376900302
                                                              SCREW
                                                              from £4.25
                                                              from £4.25
                                                              # 023
                                                              MPN: 386900302
                                                              ELASTIC PLATE
                                                              from £0.78
                                                              from £0.78
                                                              # 024
                                                              MPN: 386900200
                                                              EASY ENTRY CONTROL STATION
                                                              Supersession
                                                              Supersession
                                                              # 025
                                                              MPN: 66710000
                                                              SEAT BACK PANEL
                                                              from £201.27
                                                              from £201.27
                                                              # 026
                                                              MPN: 980138109
                                                              SEAT RELEASE LEVER
                                                              from £3.64
                                                              from £3.64
                                                              # 027
                                                              MPN: 980138108
                                                              SEAT RELEASE LEVER PLATE
                                                              from £45.55
                                                              from £45.55
                                                              # 028
                                                              MPN: 980138111
                                                              PANEL FIXING KIT
                                                              from £56.33
                                                              from £56.33
                                                              # 029
                                                              MPN: 980138110
                                                              SEAT RELEASE CABLE KIT
                                                              from £61.58
                                                              from £61.58
                                                              # 030
                                                              MPN: 386900309
                                                              KIT FOR LH EASY ENTRY MICROSWITCH
                                                              from £74.94
                                                              from £74.94
                                                              # 030
                                                              MPN: 386900310
                                                              KIT FOR RH EASY ENTRY MICROSWITCH
                                                              Supersession
                                                              Supersession
                                                              # 031
                                                              MPN: 386900313
                                                              CLIP
                                                              from £2.85
                                                              from £2.85
                                                              # 032
                                                              MPN: 388100472
                                                              FRONT SHIELD FOR FRONT SEAT GUIDE
                                                              from £16.86
                                                              from £16.86
                                                              # 033
                                                              MPN: 388100474
                                                              REAR SHIELD FOR FRONT SEAT GUIDE
                                                              from £9.14
                                                              from £9.14
