maserati 4200 coupe (2002) rear seat and seat belt parts diagram

122 - Rear Seat and Seat Belt

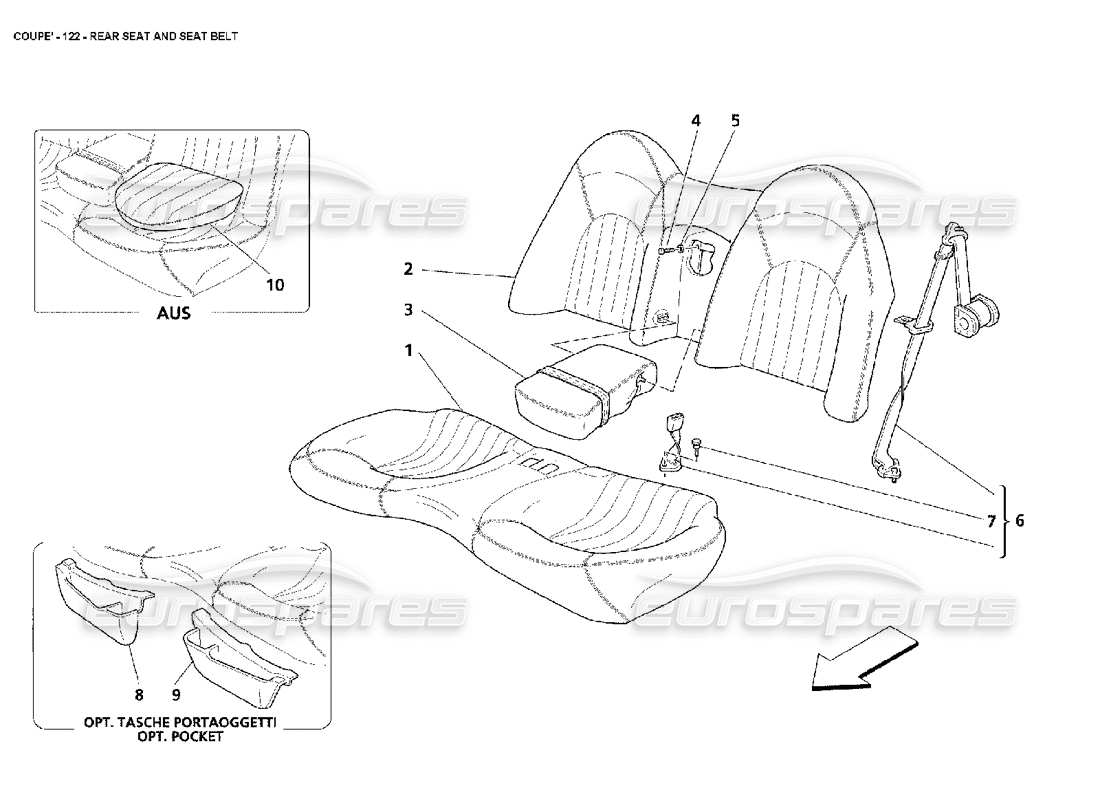

Maserati 4200 Coupe (2002) Rear Seat and Seat Belt Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 9812030..
              COMPLETE REAR SEAT CUSHION
              Supersession
              Supersession
              # 002
              MPN: 9812031..
              COMPLETE REAR SEAT BACK
              Supersession
              Supersession
              # 003
              MPN: 9812032..
              COMPLETE REAR ARM-REST
              Supersession
              Supersession
              # 004
              MPN: 16288321
              SCREW
              from £0.53
              from £0.53
              # 005
              MPN: 12646821
              WASHER
              from £0.53
              from £0.53
              # 006
              MPN: 66193900
              COMPLETE SEAT BELT
              - Valid for USA and CDN
              from £101.23
              from £101.23
              # 006
              MPN: 66311700
              COMPLETE SEAT BELT
              - Not for USA and CDN
              from £84.95
              from £84.95
              # 007
              MPN: 66414600
              SCREW
              from £1.85
              from £1.85
              This part replaces part number 80521300
              # 008
              MPN: 388300292
              RH REAR POCKET
              - Optional - Pockets - Specify the color in the order
              from £457.53
              from £457.53
              # 009
              MPN: 388300293
              LH REAR POCKET
              - Optional - Pockets - Specify the color in the order
              from £457.53
              from £457.53
              # 010
              MPN: 675071..
              CUSHION
              - Valid for AUS
              Supersession
              Supersession
              # 010
              MPN: 675072..
              CUSHION
              - Valid for AUS
              Supersession
              Supersession
