124 - Dashboard -Valid for GD

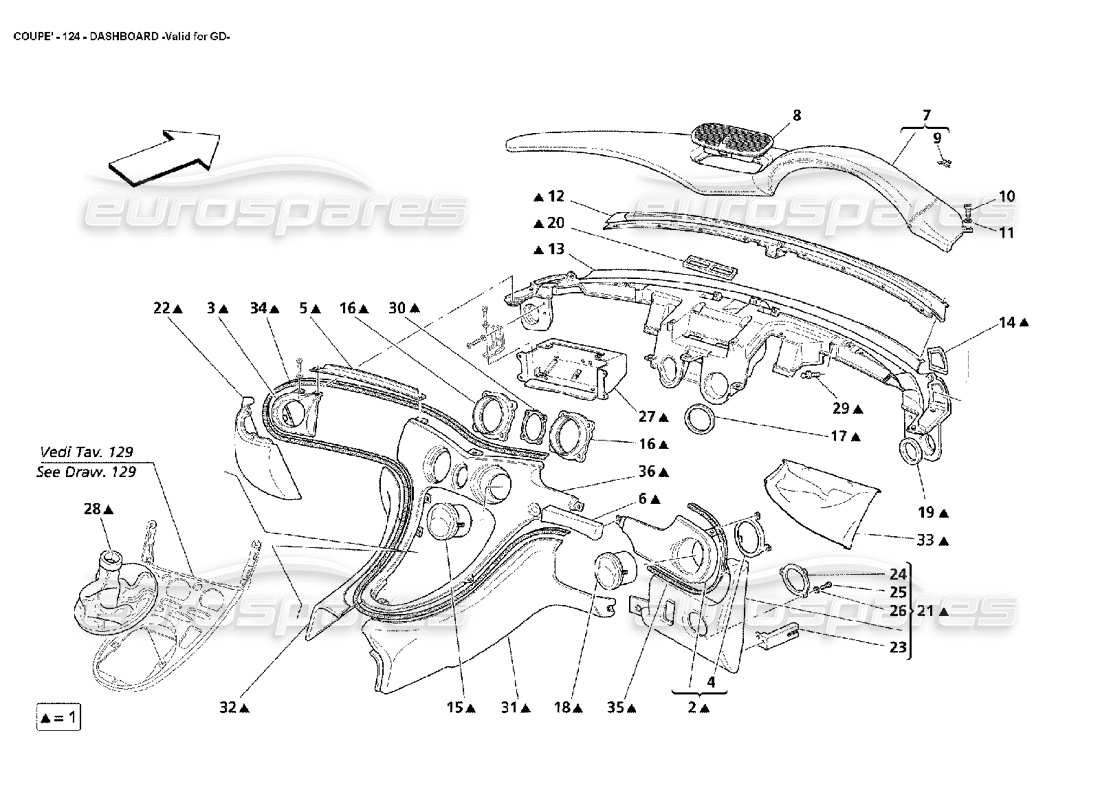

Maserati 4200 Coupe (2002) Dashboard -Valid for GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 9811031..
                                          COMPLETE DASHBOARD
                                          - Standard - For order specify car number
                                          Supersession
                                          Supersession
                                          # 001
                                          MPN: 9811032..
                                          COMPLETE DASHBOARD
                                          - Optional - Xeno Headlight - For order specify car number
                                          Supersession
                                          Supersession
                                          # 002
                                          MPN: 9811038..
                                          RH LATERAL BODY IN THE DASHBOARD
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 003
                                          MPN: 9811037..
                                          LH LATERAL BODY IN THE DASHBOARD
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 004
                                          MPN: 382300427
                                          PLATE
                                          from £6.49
                                          from £6.49
                                          # 005
                                          MPN: 382300395
                                          CROSS MEMBER
                                          from £2.39
                                          from £2.39
                                          # 006
                                          MPN: 9811040..
                                          SUBINSTRUMENT
                                          - For order specify car number
                                          from £414.75
                                          from £414.75
                                          # 007
                                          MPN: 9810004..
                                          COMPLETE UPPER INSERT IN THE DASHBOARD
                                          - For order specify car number
                                          from £446.25
                                          from £446.25
                                          # 008
                                          MPN: 382300805
                                          AIR DIFFUSER
                                          from £490.34
                                          from £490.34
                                          This part replaces part number 382300325
                                          # 009
                                          MPN: 382300415
                                          CLIP
                                          Supersession
                                          Supersession
                                          # 010
                                          MPN: 13274077
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          # 010
                                          MPN: 13274177
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          # 011
                                          MPN: 12637821
                                          WASHER
                                          from £0.84
                                          from £0.84
                                          # 011
                                          MPN: 382310614
                                          UPPER FRAME
                                          - Valid till car Ass. Nr. 8862
                                          Supersession
                                          Supersession
                                          # 012
                                          MPN: 67293500
                                          UPPER FRAME
                                          - Valid from car Ass. Nr. 8863
                                          from £136.41
                                          from £136.41
                                          This part replaces part number 382310614
                                          # 013
                                          MPN: 382300006
                                          COMPLETE AIR DUCTING
                                          Supersession
                                          Supersession
                                          # 014
                                          MPN: 382300602
                                          RH AUTO-ADHESIVE SPONGE
                                          from £1.98
                                          from £1.98
                                          # 014
                                          MPN: 382300603
                                          LH AUTO-ADHESIVE SPONGE
                                          from £1.98
                                          from £1.98
                                          # 015
                                          MPN: 382300800
                                          CENTRAL OPENING IN THE DASHBOARD
                                          from £149.20
                                          from £149.20
                                          This part replaces part number 382300318
                                          # 016
                                          MPN: 382300803
                                          CHROME AIR VENT SURROUND
                                          from £80.56
                                          from £80.56
                                          This part replaces part number 382300444
                                          # 017
                                          MPN: 382300372
                                          GASKET
                                          from £2.31
                                          from £2.31
                                          # 018
                                          MPN: 382300802
                                          LATERAL OPENING IN THE DASHBOARD
                                          from £122.49
                                          from £122.49
                                          This part replaces part number 382300596
                                          # 019
                                          MPN: 382300371
                                          GASKET
                                          from £14.49
                                          from £14.49
                                          # 020
                                          MPN: 382300374
                                          GASKET
                                          from £2.85
                                          from £2.85
                                          # 021
                                          MPN: 666958..
                                          COMPLETE RH LATERAL INSERT
                                          - Optional - Xeno headlights - For order specify car number
                                          Supersession
                                          Supersession
                                          # 021
                                          MPN: 666966..
                                          COMPLETE RH LATERAL INSERT
                                          - Standard - For order specify car number
                                          Supersession
                                          Supersession
                                          # 022
                                          MPN: 9811042..
                                          COMPLETE LH LATERAL INSERT
                                          - For order specify car number
                                          from £78.75
                                          from £78.75
                                          # 023
                                          MPN: 382300319
                                          BRACKET
                                          from £81.67
                                          from £81.67
                                          # 024
                                          MPN: 66306900
                                          RING NUT
                                          from £68.70
                                          from £68.70
                                          # 025
                                          MPN: 10977524
                                          SCREW
                                          from £0.52
                                          from £0.52
                                          # 026
                                          MPN: 10519378
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          # 027
                                          MPN: 382310283
                                          COMPLETE AIR BAG FRAMEWORK
                                          from £24.17
                                          from £24.17
                                          # 028
                                          MPN: 672339..
                                          COMPLETE BOOT
                                          - Not for F1
                                          Supersession
                                          Supersession
                                          # 029
                                          MPN: 66224800
                                          PIN
                                          Supersession
                                          Supersession
                                          # 030
                                          MPN: 382300512
                                          PLATE
                                          from £5.18
                                          from £5.18
                                          # 031
                                          MPN: 9810010..
                                          COMPLETE RH LOWER DASHBOARD COVER
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 032
                                          MPN: 9810009..
                                          COMPLETE LH LOWER DASHBOARD COVER
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 033
                                          MPN: 9810011..
                                          STEERING COLUMN BELLOWS LEATHER
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 034
                                          MPN: 9811043..
                                          CENTRAL GASKET
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 035
                                          MPN: 9811044..
                                          LATERAL GASKET
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 036
                                          MPN: 666954..
                                          CENTRAL BODY IN THE DASHBOARD
                                          - For order specify car number
                                          Supersession
                                          Supersession
