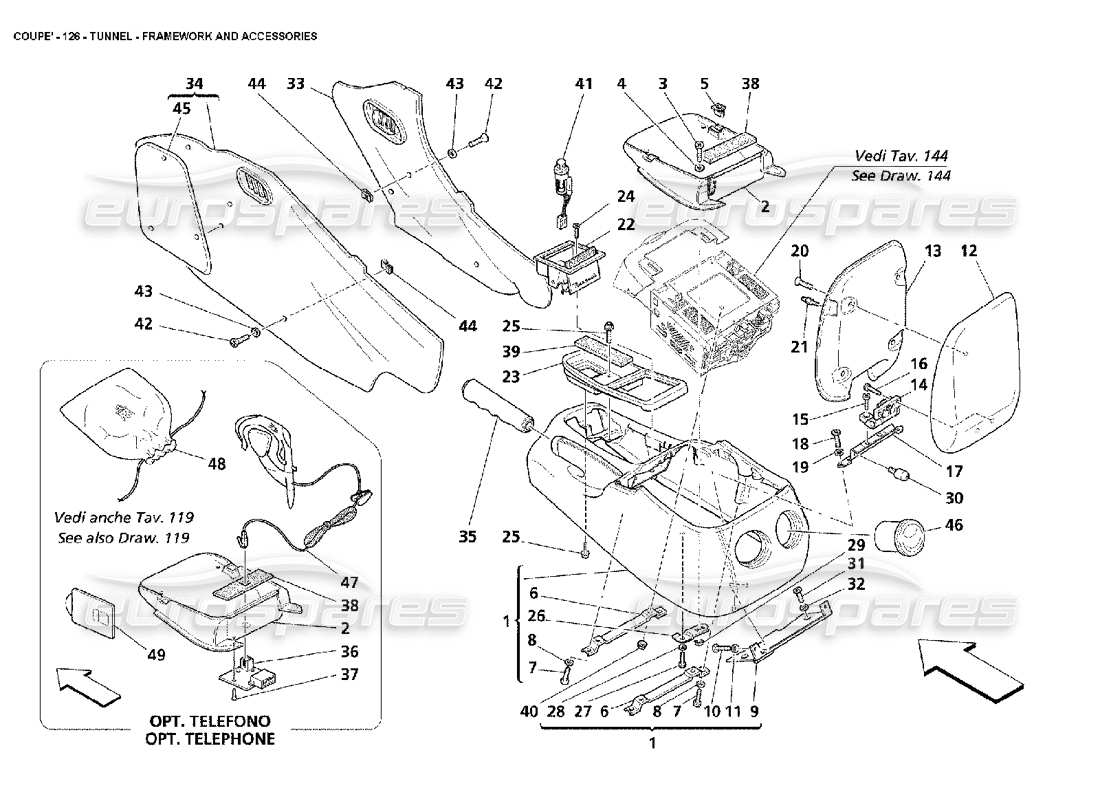

126 - Tunnel - Framework and Accessories

Maserati 4200 Coupe (2002) Tunnel - Framework and Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 661370..
                                                                      COMPLETE TUNNEL COVER CONSOLE
                                                                      - For order specify car number
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 66240900
                                                                      CONTAINER BOX
                                                                      - Standard
                                                                      from £75.75
                                                                      from £75.75
                                                                      # 002
                                                                      MPN: 66724100
                                                                      CONTAINER BOX
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      Supersession
                                                                      Supersession
                                                                      # 003
                                                                      MPN: 13274014
                                                                      SCREW
                                                                      from £3.54
                                                                      from £3.54
                                                                      # 004
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 005
                                                                      MPN: 66498900
                                                                      CLIP
                                                                      from £1.55
                                                                      from £1.55
                                                                      # 006
                                                                      MPN: 66060100
                                                                      BRACKET
                                                                      from £4.17
                                                                      from £4.17
                                                                      # 007
                                                                      MPN: 13273811
                                                                      SCREW
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 008
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 009
                                                                      MPN: 388300403
                                                                      BRACKET
                                                                      from £5.10
                                                                      from £5.10
                                                                      # 010
                                                                      MPN: 15901501
                                                                      SCREW
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 011
                                                                      MPN: 12639924
                                                                      WASHER
                                                                      from £0.84
                                                                      from £0.84
                                                                      # 012
                                                                      MPN: 66772800
                                                                      UPPER GLOVE BOX SHUTTER
                                                                      - For order specify car number
                                                                      from £120.75
                                                                      from £120.75
                                                                      # 013
                                                                      MPN: 66191400
                                                                      Door Frame
                                                                      Supersession
                                                                      Supersession
                                                                      # 014
                                                                      MPN: 66493600
                                                                      BOX HINGE
                                                                      from £57.17
                                                                      from £57.17
                                                                      # 017
                                                                      MPN: 66061700
                                                                      BRACKET
                                                                      from £130.67
                                                                      from £130.67
                                                                      # 018
                                                                      MPN: 13273911
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 019
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 020
                                                                      MPN: 13299177
                                                                      SCREW
                                                                      from £1.85
                                                                      from £1.85
                                                                      # 021
                                                                      MPN: 66498800
                                                                      PIN
                                                                      from £3.17
                                                                      from £3.17
                                                                      # 022
                                                                      MPN: 67520000
                                                                      COMPLETE FRONT ASH TRAY
                                                                      from £237.81
                                                                      from £237.81
                                                                      This part replaces part number 66137400
                                                                      # 023
                                                                      MPN: 66190900
                                                                      FRONT UTILTY PLATE
                                                                      from £43.26
                                                                      from £43.26
                                                                      # 025
                                                                      MPN: 64460500
                                                                      SCREW
                                                                      from £0.61
                                                                      from £0.61
                                                                      # 026
                                                                      MPN: 66609000
                                                                      BRACKET
                                                                      from £5.10
                                                                      from £5.10
                                                                      # 027
                                                                      MPN: 13273911
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 028
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 029
                                                                      MPN: 14074490
                                                                      NUT WITH CAGE
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 030
                                                                      MPN: 66734000
                                                                      ADJUSTMENT PIN
                                                                      from £16.06
                                                                      from £16.06
                                                                      # 031
                                                                      MPN: 13273911
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 032
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 033
                                                                      MPN: 664276..
                                                                      RH TUNNEL LATERAL COVER
                                                                      - Not for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 033
                                                                      MPN: 667316..
                                                                      RH TUNNEL LATERAL COVER
                                                                      - Valid for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 034
                                                                      MPN: 664271..
                                                                      LH TUNNEL LATERAL COVER
                                                                      - Not for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 034
                                                                      MPN: 667317..
                                                                      LH TUNNEL LATERAL COVER
                                                                      - Valid for GD
                                                                      Supersession
                                                                      Supersession
                                                                      # 035
                                                                      MPN: 191830
                                                                      HAND BRAKE KNOB
                                                                      from £59.97
                                                                      from £59.97
                                                                      This part replaces part number 388000110
                                                                      # 036
                                                                      MPN: 189555
                                                                      INTIMITY BOOT DEVICE SHEETS
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      from £22.57
                                                                      from £22.57
                                                                      # 037
                                                                      MPN: 15901401
                                                                      SCREW
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 038
                                                                      MPN: 66241000
                                                                      CARPET
                                                                      - Standard
                                                                      from £8.31
                                                                      from £8.31
                                                                      # 038
                                                                      MPN: 66728600
                                                                      CARPET
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      from £12.29
                                                                      from £12.29
                                                                      # 039
                                                                      MPN: 66304300
                                                                      CARPET
                                                                      from £8.93
                                                                      from £8.93
                                                                      # 041
                                                                      MPN: 373380115
                                                                      ELECTRONIC CIGAR LIGHTER
                                                                      from £19.46
                                                                      from £19.46
                                                                      # 042
                                                                      MPN: 15908807
                                                                      SCREW
                                                                      - Valid for GD
                                                                      from £1.10
                                                                      from £1.10
                                                                      # 042
                                                                      MPN: 15909977
                                                                      SCREW
                                                                      - Not for GD
                                                                      from £1.08
                                                                      from £1.08
                                                                      # 043
                                                                      MPN: 13336207
                                                                      WASHER
                                                                      - Valid for GD
                                                                      from £4.56
                                                                      from £4.56
                                                                      # 043
                                                                      MPN: 388300580
                                                                      WASHER
                                                                      - Not for GD
                                                                      from £4.56
                                                                      from £4.56
                                                                      This part replaces part number 13336207
                                                                      # 044
                                                                      MPN: 14371971
                                                                      CLIP
                                                                      - Valid for GD
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 044
                                                                      MPN: 386300326
                                                                      CLIP
                                                                      - Not for GD
                                                                      from £3.25
                                                                      from £3.25
                                                                      # 045
                                                                      MPN: 382300295
                                                                      ACCELERATOR PROTECTION PLATE
                                                                      - Not for GD
                                                                      from £56.17
                                                                      from £56.17
                                                                      # 046
                                                                      MPN: 382300802
                                                                      REAR AIR OPENING
                                                                      from £122.49
                                                                      from £122.49
                                                                      This part replaces part number 382300596
                                                                      # 047
                                                                      MPN: 193493
                                                                      BOOT INTIMITY
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      from £178.64
                                                                      from £178.64
                                                                      # 048
                                                                      MPN: 193495
                                                                      CASE FOR BOOT INTIMITY
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      from £21.50
                                                                      from £21.50
                                                                      # 049
                                                                      MPN: 193494
                                                                      ADAPTER FOR SIM CARD
                                                                      - Optional - Telephone - Not for USA, CDN and J
                                                                      from £25.41
                                                                      from £25.41
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
