maserati 4200 coupe (2002) air-bags parts diagram

127 - Air-Bags

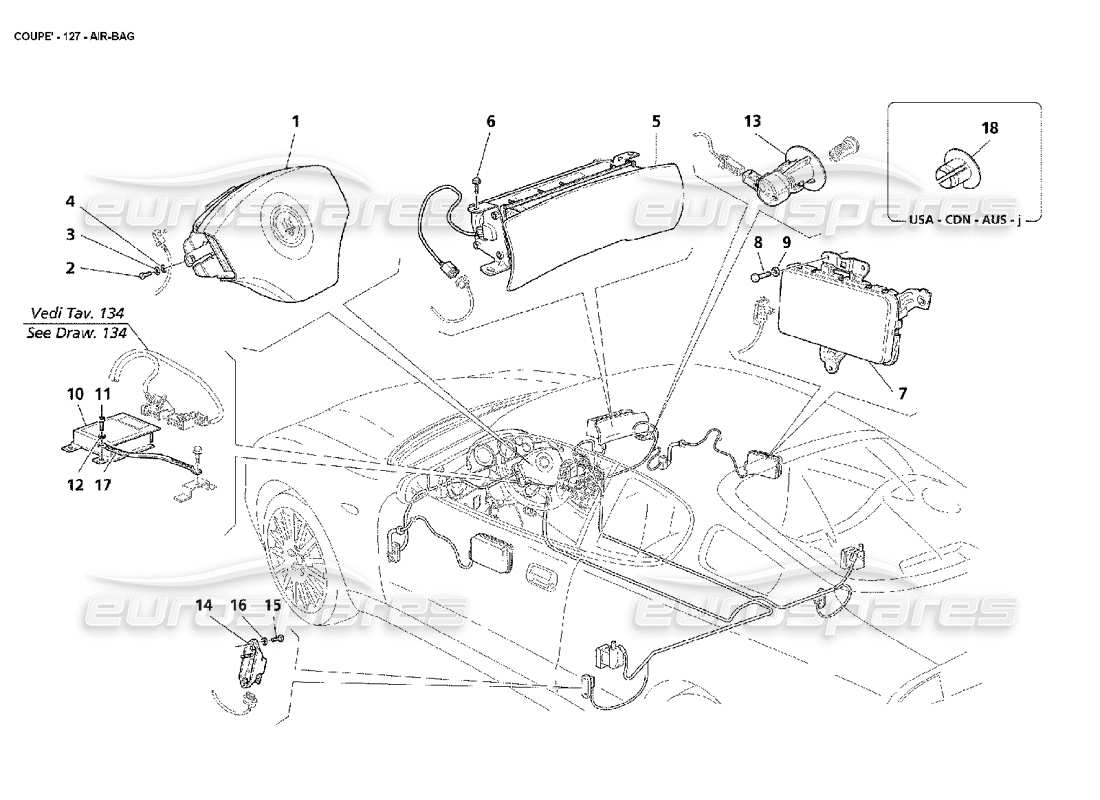

Maserati 4200 Coupe (2002) Air-Bags Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 387800105
                            AIR BAG IN BLACK
                            Please note: (Collection or Delivery by road within Europe)
                            from £472.50
                            from £472.50
                            This part replaces part number 387800103 - and 1 more. Click to view details
                            # 001
                            MPN: 980001014
                            DRIVER SIDE AIR-BAG
                            Please note: (Collection or Shipping by Road within Europe)
                            from £435.75
                            from £435.75
                            # 002
                            MPN: 64882800
                            SCREW
                            from £0.61
                            from £0.61
                            # 003
                            MPN: 14499324
                            WASHER
                            from £0.47
                            from £0.47
                            # 004
                            MPN: 127494
                            WASHER
                            from £0.53
                            from £0.53
                            # 005
                            MPN: 665861..
                            PASSENGER SIDE AIR-BAG
                            - Not for GD
                            Supersession
                            Supersession
                            # 005
                            MPN: 666967..
                            PASSENGER SIDE AIR-BAG
                            - Valid for GD
                            from £504.00
                            from £504.00
                            # 005
                            MPN: 9810006..
                            PASSENGER SIDE AIR-BAG RHD
                            from £525.00
                            from £525.00
                            # 006
                            MPN: 11730624
                            SCREW
                            from £0.53
                            from £0.53
                            # 007
                            MPN: 66113100
                            RH SIDE BAG MODULE
                            from £313.72
                            from £313.72
                            # 007
                            MPN: 66224700
                            LH SIDE BAG MODULE
                            from £310.51
                            from £310.51
                            # 008
                            MPN: 13833011
                            SCREW
                            from £0.47
                            from £0.47
                            # 009
                            MPN: 12620374
                            WASHER
                            from £0.47
                            from £0.47
                            # 010
                            MPN: 198674
                            AIR-BAG CONTROL UNIT
                            - With passenger deactivation - Not for USA, CDN, J, AUS and cars GB opt. japan version
                            from £298.41
                            from £298.41
                            This part replaces part number 182230
                            # 010
                            MPN: 198675
                            AIR-BAG CONTROL UNIT
                            - Not passenger deactivation - Valid for USA, CDN, J, AUS and cars GB opt. japan version
                            from £262.47
                            from £262.47
                            This part replaces part number 186043
                            # 011
                            MPN: 64882800
                            SCREW
                            from £0.61
                            from £0.61
                            # 012
                            MPN: 127494
                            WASHER
                            from £0.53
                            from £0.53
                            # 013
                            MPN: 383310168
                            AIR-BAG DEACTIVATION
                            - Valid for GB - Not for cars GB opt. japan version
                            from £26.09
                            from £26.09
                            # 013
                            MPN: 383330030
                            AIR-BAG DEACTIVATION
                            - Valid for USA, CDN, J e AUS - Valid till car Ass. Nr. 8387 - Valid till stock exhaustion - After stock exhaustion replaced by 67233800 (pos. 18)
                            from £37.71
                            from £37.71
                            # 013
                            MPN: 46481878
                            AIR-BAG DEACTIVATION
                            - Not for USA, CDN, GD and J
                            from £27.67
                            from £27.67
                            # 014
                            MPN: 189062
                            SIDE IMPACT SENSOR
                            from £42.69
                            from £42.69
                            # 015
                            MPN: 10977814
                            SCREW
                            from £1.55
                            from £1.55
                            # 016
                            MPN: 11199274
                            WASHER
                            from £0.54
                            from £0.54
                            # 017
                            MPN: 160855
                            GROUND CABLE
                            from £6.58
                            from £6.58
                            # 018
                            MPN: 67233800
                            PLUG
                            - Valid for USA, CDN, J, AUS and cars GB opt. japan version - Valid from car Ass. Nr. 8388
                            from £61.73
                            from £61.73
