maserati 4200 coupe (2002) evaporator group parts diagram

142 - Evaporator Group

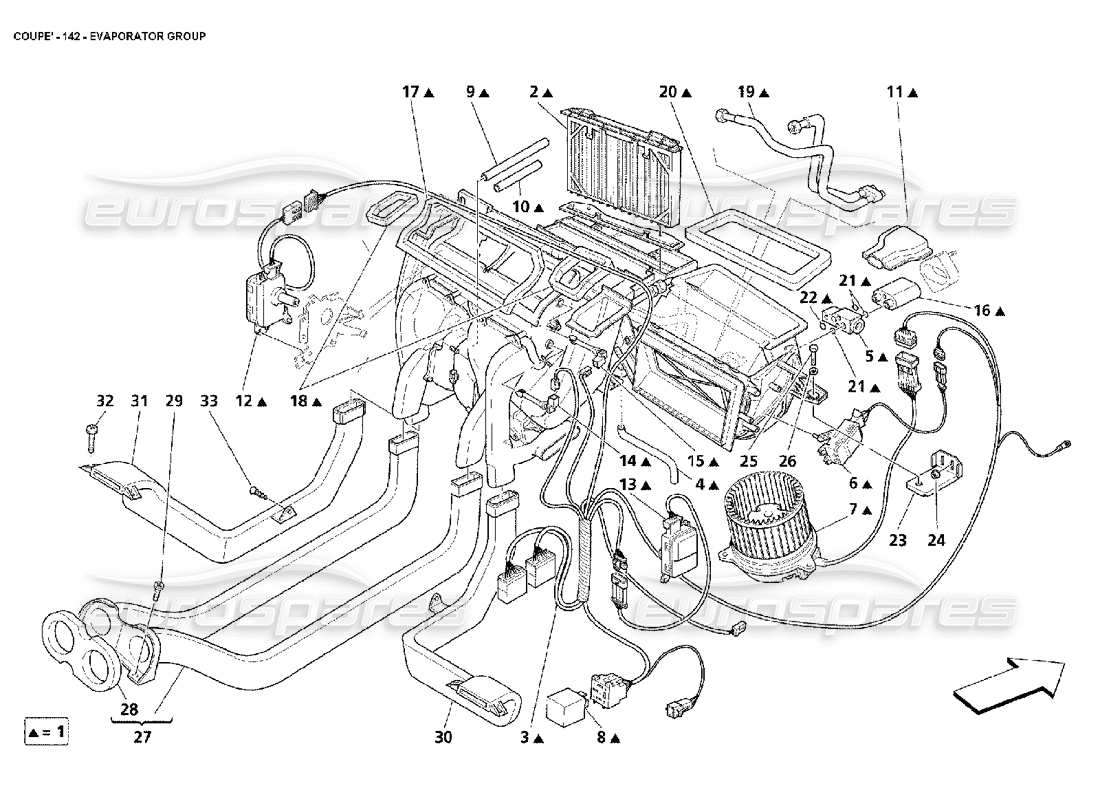

Maserati 4200 Coupe (2002) Evaporator Group Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 66731300
COMPLETE EVAPORATOR SET
- Valid for GD
Supersession
Supersession
# 001

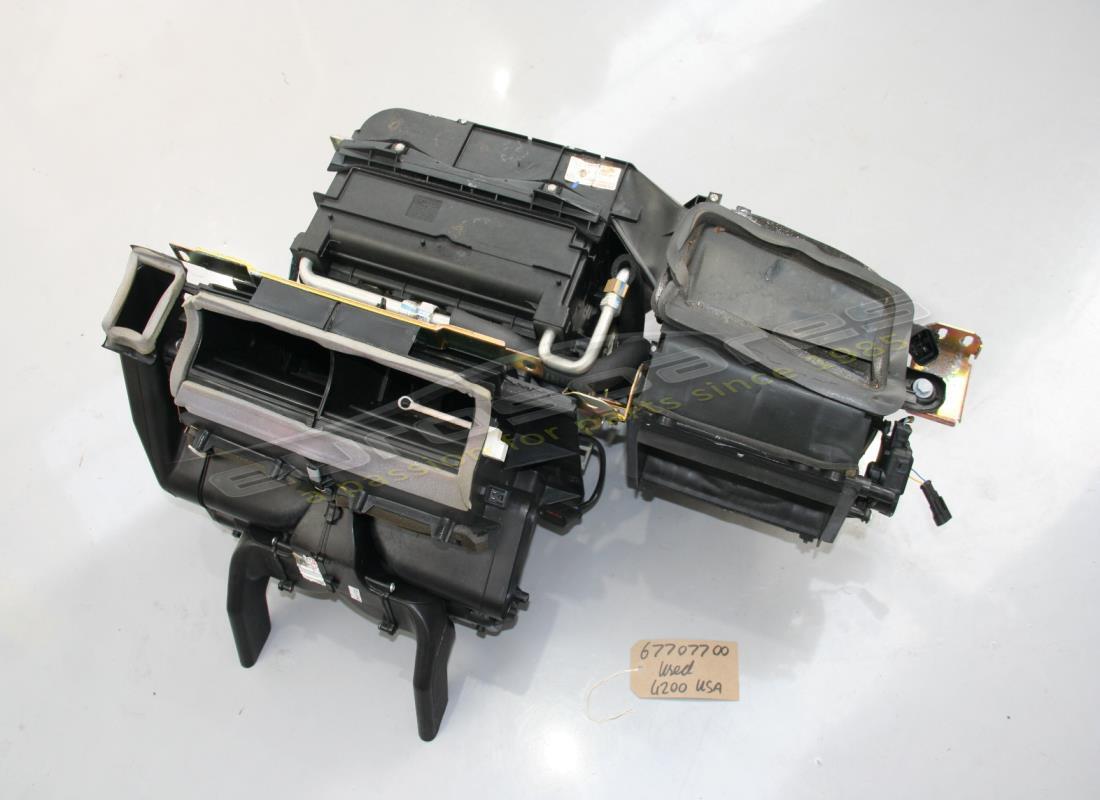

MPN: 67707700
COMPLETE EVAPORATOR SET
- Not for GD
from £749.12
from £749.12
This part replaces part number 66306100 - and 1 more. Click to view details
# 002
MPN: 382400304
ANTIPOLLEN FILTER
from £26.55
from £26.55
# 003
MPN: 980001125
RELAY COMPLETE CABLE
- Not for GD
from £120.85
from £120.85
# 003
MPN: 980001200
RELAY COMPLETE CABLE
- Valid for GD
from £140.86
from £140.86
# 004
MPN: 980000979
EXAUST PIPE
from £2.25
from £2.25
# 005
MPN: 375530166
EXPANSION VALVLE
from £192.86
from £192.86
# 006
MPN: 980000975
RICIRCLE ACTUATOR
from £50.39
from £50.39
# 007
MPN: 980010980
ELECTROFAN
from £354.77
from £354.77
This part replaces part number 980000980
# 008
MPN: 46451295
RELAY
from £32.13
from £32.13
# 009
MPN: 385500479
WATER INLET DUCT
- Not for GD
from £16.77
from £16.77
# 009
MPN: 385510479
WATER INLET DUCT
- Valid for GD
from £14.73
from £14.73
# 010
MPN: 385500481
WATER OUTLET DUCT
- Not for GD
from £15.64
from £15.64
# 010
MPN: 385510481
WATER OUTLET DUCT
- Valid for GD
from £15.71
from £15.71
# 011
MPN: 980000984
FREON VALVLE GASKET
from £5.96
from £5.96
# 012
MPN: 980000974
ACTUATOR
from £84.50
from £84.50
# 013
MPN: 980000999
ACTUATOR
from £88.86
from £88.86
# 014
MPN: 980000977
TT2 AIR SENSOR
from £12.95
from £12.95
# 015
MPN: 980000976
TT1 AIR SENSOR
from £12.95
from £12.95
# 016
MPN: 980001126
FLANGE FOR VALVLE
from £31.38
from £31.38
# 017
MPN: 385500501
GASKET
from £1.55
from £1.55
# 018
MPN: 385500502
GASKET
from £2.85
from £2.85
# 019
MPN: 980001127
FREON PIPES
- Not for GD
from £64.96
from £64.96
# 019
MPN: 980001201
FREON PIPES
- Valid for GD
from £92.74
from £92.74
# 020
MPN: 385500503
UPPER GASKET FOR ADAPTATOR
from £3.24
from £3.24
# 021
MPN: 375500458
RUBBER
from £5.28
from £5.28
# 022
MPN: 375500457
RUBBER
from £3.60
from £3.60
# 023
MPN: 66412200
BRACKET
from £38.10
from £38.10
# 024
MPN: 14059214
NUT M6
from £0.53
from £0.53
This part replaces part number 12578121
# 025
MPN: 16043124
SCREW
from £0.30
from £0.30
SCREW Genuine Ferrari Part - Used In stock
Removed from 458 engine 178999
# 026
MPN: 12646724
WASHER
from £0.54
from £0.54
# 027
MPN: 66661700
COMPLETE CENTRAL AIR DUCTING
from £85.10
from £85.10
# 028
MPN: 382300375
AIR OPENING GASKET
from £1.93
from £1.93
# 029
MPN: 14778010
SCREW
from £1.08
from £1.08
This part replaces part number 1477810
# 030
MPN: 382300467
RH SIDE AIR DUCT
from £26.82
from £26.82
# 031
MPN: 382300466
LH LATERAL AIR DUCTING
from £26.82
from £26.82
# 032
MPN: 15530107
SCREW
from £2.47
from £2.47
# 033
MPN: 15917217
SCREW
from £1.08
from £1.08
