maserati 4200 coupe (2003) air intake manifold parts diagram

013 - Air Intake Manifold

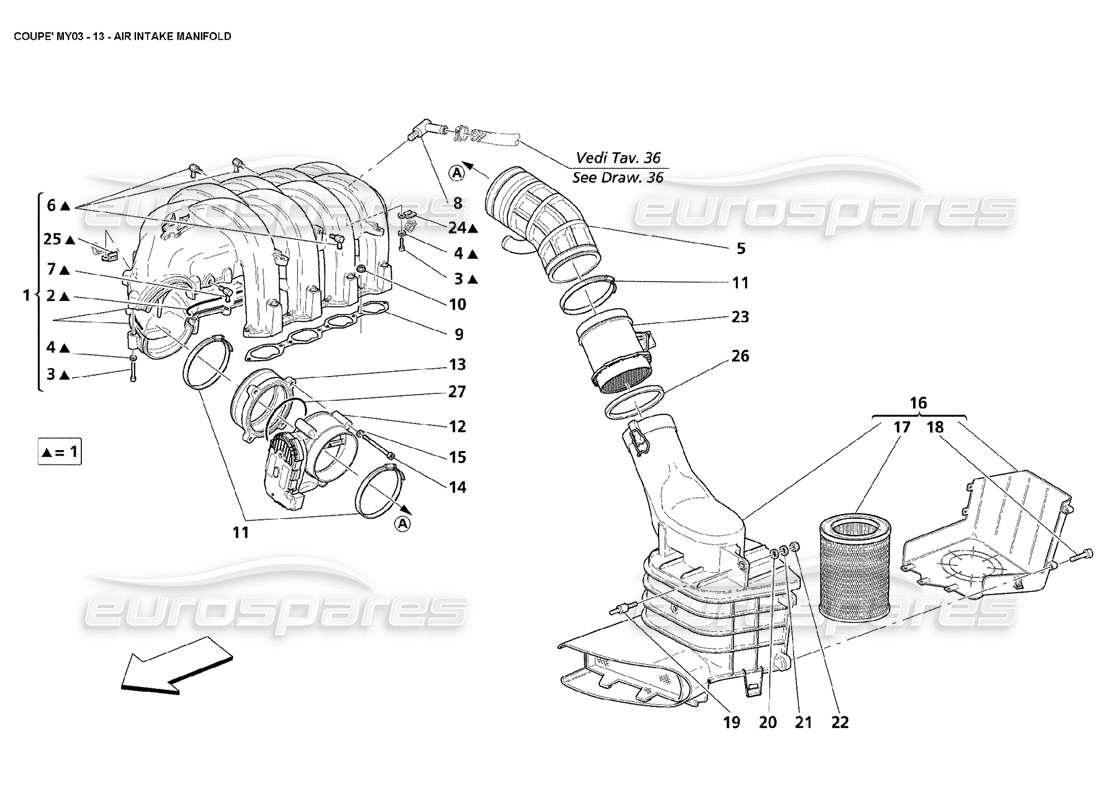

Maserati 4200 Coupe (2003) Air Intake Manifold Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 186239
                                                COMPLETE SUCTION MANIFOLD
                                                from £586.40
                                                from £586.40
                                                # 002
                                                MPN: 180830
                                                GASKET
                                                from £15.24
                                                from £15.24
                                                # 003
                                                MPN: 14305524
                                                SCREW M6X30
                                                from £0.52
                                                from £0.52
                                                # 003
                                                MPN: 14305824
                                                SCREW M6X40
                                                from £0.53
                                                from £0.53
                                                # 003
                                                MPN: 14432224
                                                SCREW M6X22
                                                from £0.49
                                                from £0.49
                                                # 003
                                                MPN: 14441424
                                                SCREW M6X20
                                                from £1.15
                                                from £1.15
                                                # 004
                                                MPN: 11197774
                                                WASHER
                                                from £0.52
                                                from £0.52
                                                # 005
                                                MPN: 180047
                                                SLEEVE
                                                from £28.98
                                                from £28.98
                                                # 006
                                                MPN: 128016
                                                THREADED UNION
                                                from £6.74
                                                from £6.74
                                                # 007
                                                MPN: 174818
                                                THREADED UNION
                                                from £9.10
                                                from £9.10
                                                # 008
                                                MPN: 124342
                                                THREADED UNION
                                                from £3.56
                                                from £3.56
                                                # 009
                                                MPN: 219459
                                                GASKET
                                                - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                from £6.75
                                                from £6.75
                                                This part replaces part number 185824
                                                # 010
                                                MPN: 159601
                                                NUT
                                                from £0.52
                                                from £0.52
                                                # 011
                                                MPN: 190151
                                                CLAMP
                                                from £2.01
                                                from £2.01
                                                # 013
                                                MPN: 179671
                                                SPACER
                                                - Valid till engine Nr. 73458
                                                from £136.98
                                                from £136.98
                                                # 013
                                                MPN: 240262
                                                SPACER
                                                - Valid from engine Nr. 73459
                                                from £61.82
                                                from £61.82
                                                This part replaces part number 195206
                                                # 014
                                                MPN: 14305924
                                                SCREW
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 14305921 - and 1 more. Click to view details
                                                # 015
                                                MPN: 11197774
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                # 016
                                                MPN: 196832
                                                COMPLETE FILTER BOX
                                                - Valid till stock exhaustion
                                                from £413.56
                                                from £413.56
                                                This part replaces part number 189757
                                                # 016
                                                MPN: 196832
                                                COMPLETE FILTER BOX
                                                - Valid after stock exhaustion of 189757
                                                from £413.56
                                                from £413.56
                                                This part replaces part number 189757
                                                # 017
                                                MPN: 186183
                                                AIR FILTER
                                                from £30.52
                                                from £30.52
                                                # 018
                                                MPN: 184829
                                                SCREW
                                                from £4.83
                                                from £4.83
                                                # 019
                                                MPN: 184824
                                                PAD
                                                from £9.46
                                                from £9.46
                                                # 020
                                                MPN: 12643724
                                                WASHER
                                                from £0.52
                                                from £0.52
                                                # 021
                                                MPN: 12544274
                                                WASHER
                                                from £1.84
                                                from £1.84
                                                # 022
                                                MPN: 15896224
                                                NUT
                                                from £0.53
                                                from £0.53
                                                # 024
                                                MPN: 190509
                                                PIPES SUPPORTING BRACKET
                                                from £129.55
                                                from £129.55
                                                # 025
                                                MPN: 191009
                                                PIPES SUPPORTING BRACKET
                                                from £59.76
                                                from £59.76
                                                # 026
                                                MPN: 193113
                                                GASKET
                                                from £4.82
                                                from £4.82
                                                # 027
                                                MPN: 150302
                                                O.R. GASKET
                                                - Valid from engine Nr. 73459
                                                from £1.66
                                                from £1.66
