maserati 4200 coupe (2003) clutch and controls - not for f1 parts diagram

022 - Clutch and Controls - Not for F1

Maserati 4200 Coupe (2003) Clutch and Controls - Not for F1 Parts Diagram

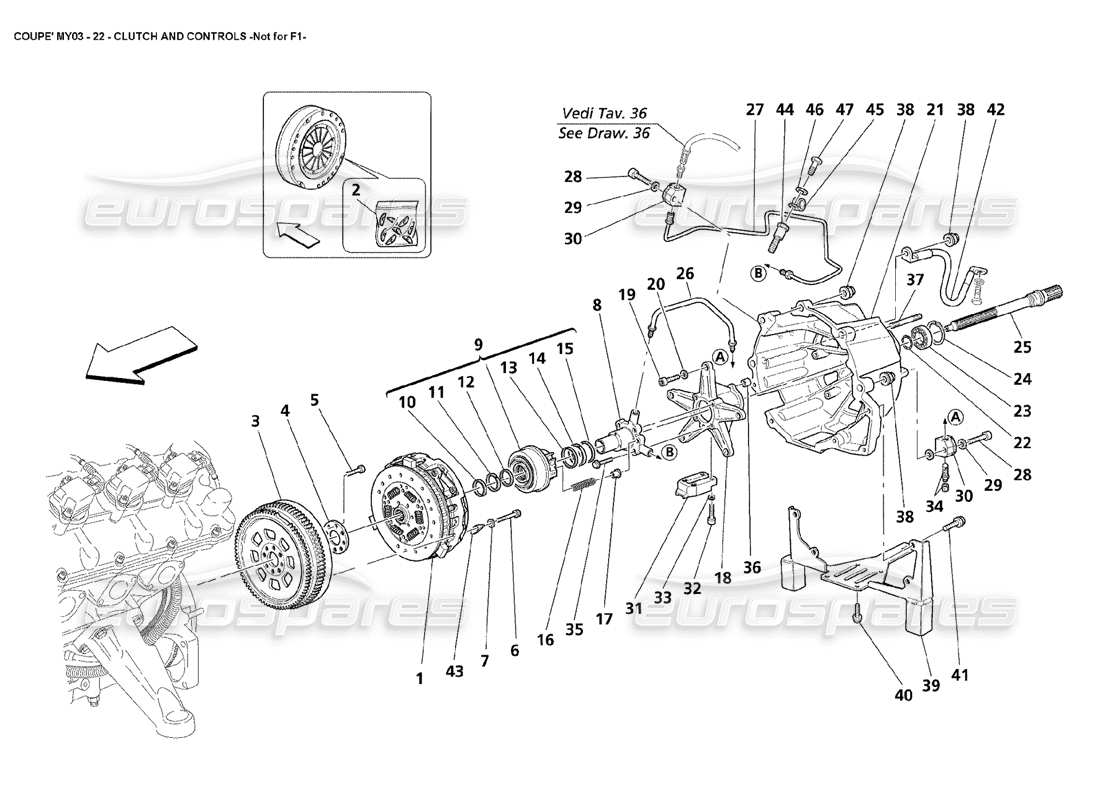

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 196021
                                                                                        COMPLETE CLUTCH
                                                                                        from £1,371.73
                                                                                        from £1,371.73
                                                                                        # 002
                                                                                        MPN: 980001166
                                                                                        CLUTCH BALANCING KIT
                                                                                        from £966.00
                                                                                        from £966.00
                                                                                        # 003
                                                                                        MPN: 230426
                                                                                        FLYWHEEL
                                                                                        from £401.38
                                                                                        from £401.38
                                                                                        This part replaces part number 185983
                                                                                        # 004
                                                                                        MPN: 103876
                                                                                        FLYWHEEL FIXING WASHER
                                                                                        from £2.74
                                                                                        from £2.74
                                                                                        # 006
                                                                                        MPN: 185206
                                                                                        SCREW
                                                                                        from £1.42
                                                                                        from £1.42
                                                                                        # 007
                                                                                        MPN: 11194377
                                                                                        WASHER
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 008
                                                                                        MPN: 182952
                                                                                        BEARING SUPPORTING FLANGE
                                                                                        from £357.74
                                                                                        from £357.74
                                                                                        # 009
                                                                                        MPN: 171886
                                                                                        COMPLETE THRUST BEARING (MANUAL)
                                                                                        from £469.19
                                                                                        from £469.19
                                                                                        # 010
                                                                                        MPN: 172970
                                                                                        SCRAPER RING
                                                                                        from £12.41
                                                                                        from £12.41
                                                                                        # 011
                                                                                        MPN: 170416
                                                                                        RING
                                                                                        (replaces: 181839)
                                                                                        from £1.21
                                                                                        from £1.21
                                                                                        This part replaces part number 181839
                                                                                        # 011
                                                                                        MPN: 181839
                                                                                        RING
                                                                                        not as spare part - use part number: 170416
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 012
                                                                                        MPN: 172972
                                                                                        SEAL RING
                                                                                        from £12.78
                                                                                        from £12.78
                                                                                        # 013
                                                                                        MPN: 154508
                                                                                        SEAL RING
                                                                                        from £22.87
                                                                                        from £22.87
                                                                                        # 014
                                                                                        MPN: 154507
                                                                                        RING
                                                                                        (replaces: 181829)
                                                                                        from £2.01
                                                                                        from £2.01
                                                                                        This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
                                                                                        # 014
                                                                                        MPN: 181829
                                                                                        RING
                                                                                        not as spare part - use part number 154507
                                                                                        from £4.03
                                                                                        from £4.03
                                                                                        # 015
                                                                                        MPN: 154551
                                                                                        SCRAPER RING
                                                                                        from £16.63
                                                                                        from £16.63
                                                                                        # 016
                                                                                        MPN: 155207
                                                                                        PRELOAD SPRING
                                                                                        from £2.25
                                                                                        from £2.25
                                                                                        # 017
                                                                                        MPN: 155206
                                                                                        SPACER FOR SPRING
                                                                                        from £1.82
                                                                                        from £1.82
                                                                                        # 018
                                                                                        MPN: 184970
                                                                                        CLUTCH CONTROL FLANGE SUPPORT
                                                                                        from £308.85
                                                                                        from £308.85
                                                                                        # 019
                                                                                        MPN: 14305334
                                                                                        SCREW
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 020
                                                                                        MPN: 12604274
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 021
                                                                                        MPN: 184763
                                                                                        CLUTCH HOUSING
                                                                                        from £1,044.75
                                                                                        from £1,044.75
                                                                                        # 022
                                                                                        MPN: 144511
                                                                                        STOP RING
                                                                                        from £1.55
                                                                                        from £1.55
                                                                                        # 023
                                                                                        MPN: 174470
                                                                                        BEARING
                                                                                        from £29.78
                                                                                        from £29.78
                                                                                        # 024
                                                                                        MPN: 182963
                                                                                        STOP RING
                                                                                        from £2.37
                                                                                        from £2.37
                                                                                        # 025
                                                                                        MPN: 182587
                                                                                        CLUTCH SHAFT
                                                                                        from £215.88
                                                                                        from £215.88
                                                                                        # 026
                                                                                        MPN: 182584
                                                                                        CLUTCH OIL BLEED PIPE
                                                                                        from £10.84
                                                                                        from £10.84
                                                                                        # 027
                                                                                        MPN: 182583
                                                                                        CLUTCH OIL DELIVERY TUBE
                                                                                        from £29.04
                                                                                        from £29.04
                                                                                        # 028
                                                                                        MPN: 14305434
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 029
                                                                                        MPN: 12604274
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 030
                                                                                        MPN: 139471
                                                                                        TWO WAY UNION
                                                                                        from £12.84
                                                                                        from £12.84
                                                                                        # 031
                                                                                        MPN: 184900
                                                                                        F1 SENSOR SUPPORT
                                                                                        from £152.93
                                                                                        from £152.93
                                                                                        # 032
                                                                                        MPN: 14304424
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 033
                                                                                        MPN: 10519378
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 034
                                                                                        MPN: 121699
                                                                                        BLEEDER SCREW
                                                                                        from £11.66
                                                                                        from £11.66
                                                                                        # 035
                                                                                        MPN: 16286224
                                                                                        SCREW
                                                                                        from £1.55
                                                                                        from £1.55
                                                                                        # 036
                                                                                        MPN: 102725
                                                                                        CENTERING DOWEL
                                                                                        from £0.64
                                                                                        from £0.64
                                                                                        # 037
                                                                                        MPN: 13546334
                                                                                        STUD
                                                                                        from £0.60
                                                                                        from £0.60
                                                                                        # 039
                                                                                        MPN: 187799
                                                                                        EXHAUST FRONT SUPPORT
                                                                                        - Not for USA, CDN, J, AUS and cars GB opt. japan version
                                                                                        from £79.19
                                                                                        from £79.19
                                                                                        # 039
                                                                                        MPN: 191399
                                                                                        EXHAUST FRONT SUPPORT
                                                                                        - Valid for USA, CDN, J, AUS and cars GB opt. japan version
                                                                                        from £77.83
                                                                                        from £77.83
                                                                                        # 040
                                                                                        MPN: 11730624
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 041
                                                                                        MPN: 16288121
                                                                                        SCREW
                                                                                        from £2.47
                                                                                        from £2.47
                                                                                        # 041
                                                                                        MPN: 16297721
                                                                                        SCREW
                                                                                        from £1.85
                                                                                        from £1.85
                                                                                        # 043
                                                                                        MPN: 191329
                                                                                        BALANCING MASS
                                                                                        - Grams 1 - As necessary
                                                                                        from £25.22
                                                                                        from £25.22
                                                                                        # 043
                                                                                        MPN: 191330
                                                                                        BALANCING MASS
                                                                                        - Grams 2 - As necessary
                                                                                        from £23.10
                                                                                        from £23.10
                                                                                        # 043
                                                                                        MPN: 191331
                                                                                        BALANCING MASS
                                                                                        - Grams 4 - As necessary
                                                                                        from £30.15
                                                                                        from £30.15
                                                                                        # 043
                                                                                        MPN: 191333
                                                                                        BALANCING MASS
                                                                                        - Grams 5 - As necessary
                                                                                        from £8.04
                                                                                        from £8.04
                                                                                        # 043
                                                                                        MPN: 191334
                                                                                        BALANCING MASS
                                                                                        - Grams 6 - As necessary
                                                                                        from £15.87
                                                                                        from £15.87
                                                                                        # 043
                                                                                        MPN: 191335
                                                                                        BALANCING MASS
                                                                                        - Grams 7 - As necessary
                                                                                        from £19.80
                                                                                        from £19.80
                                                                                        # 043
                                                                                        MPN: 191336
                                                                                        BALANCING MASS
                                                                                        - Grams 8 - As necessary
                                                                                        from £46.51
                                                                                        from £46.51
                                                                                        # 043
                                                                                        MPN: 191337
                                                                                        BALANCING MASS
                                                                                        - Grams 9 - As necessary
                                                                                        from £36.78
                                                                                        from £36.78
                                                                                        # 043
                                                                                        MPN: 191338
                                                                                        BALANCING MASS
                                                                                        - Grams 10 - As necessary
                                                                                        from £41.23
                                                                                        from £41.23
                                                                                        # 043
                                                                                        MPN: 191339
                                                                                        BALANCING MASS
                                                                                        - Grams 11 - As necessary
                                                                                        from £8.88
                                                                                        from £8.88
                                                                                        # 043
                                                                                        MPN: 191340
                                                                                        BALANCING MASS
                                                                                        - Grams 12 - As necessary
                                                                                        from £41.23
                                                                                        from £41.23
                                                                                        # 043
                                                                                        MPN: 191341
                                                                                        BALANCING MASS
                                                                                        - Grams 13 - As necessary
                                                                                        from £9.29
                                                                                        from £9.29
                                                                                        # 043
                                                                                        MPN: 191342
                                                                                        BALANCING MASS
                                                                                        - Grams 14 - As necessary
                                                                                        from £96.75
                                                                                        from £96.75
                                                                                        # 043
                                                                                        MPN: 191343
                                                                                        BALANCING MASS
                                                                                        - Grams 15 - As necessary
                                                                                        from £9.29
                                                                                        from £9.29
                                                                                        # 043
                                                                                        MPN: 191344
                                                                                        BALANCING MASS
                                                                                        - Grams 16 - As necessary
                                                                                        from £90.47
                                                                                        from £90.47
                                                                                        # 043
                                                                                        MPN: 191345
                                                                                        BALANCING MASS
                                                                                        - Grams 17 - As necessary
                                                                                        from £10.84
                                                                                        from £10.84
                                                                                        # 043
                                                                                        MPN: 191346
                                                                                        BALANCING MASS
                                                                                        - Grams 18 - As necessary
                                                                                        from £10.84
                                                                                        from £10.84
                                                                                        # 043
                                                                                        MPN: 191347
                                                                                        BALANCING MASS
                                                                                        - Grams 19 - As necessary
                                                                                        from £8.88
                                                                                        from £8.88
                                                                                        # 043
                                                                                        MPN: 191395
                                                                                        BALANCING MASS
                                                                                        - Grams 20 - As necessary
                                                                                        from £90.47
                                                                                        from £90.47
                                                                                        # 044
                                                                                        MPN: 190876
                                                                                        STUD
                                                                                        from £14.19
                                                                                        from £14.19
                                                                                        This part replaces part number 585412900
                                                                                        # 045
                                                                                        MPN: 10441190
                                                                                        BRACKET WITH SHEATH
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 046
                                                                                        MPN: 127494
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 047
                                                                                        MPN: 10979414
                                                                                        SCREW
                                                                                        from £0.51
                                                                                        from £0.51
