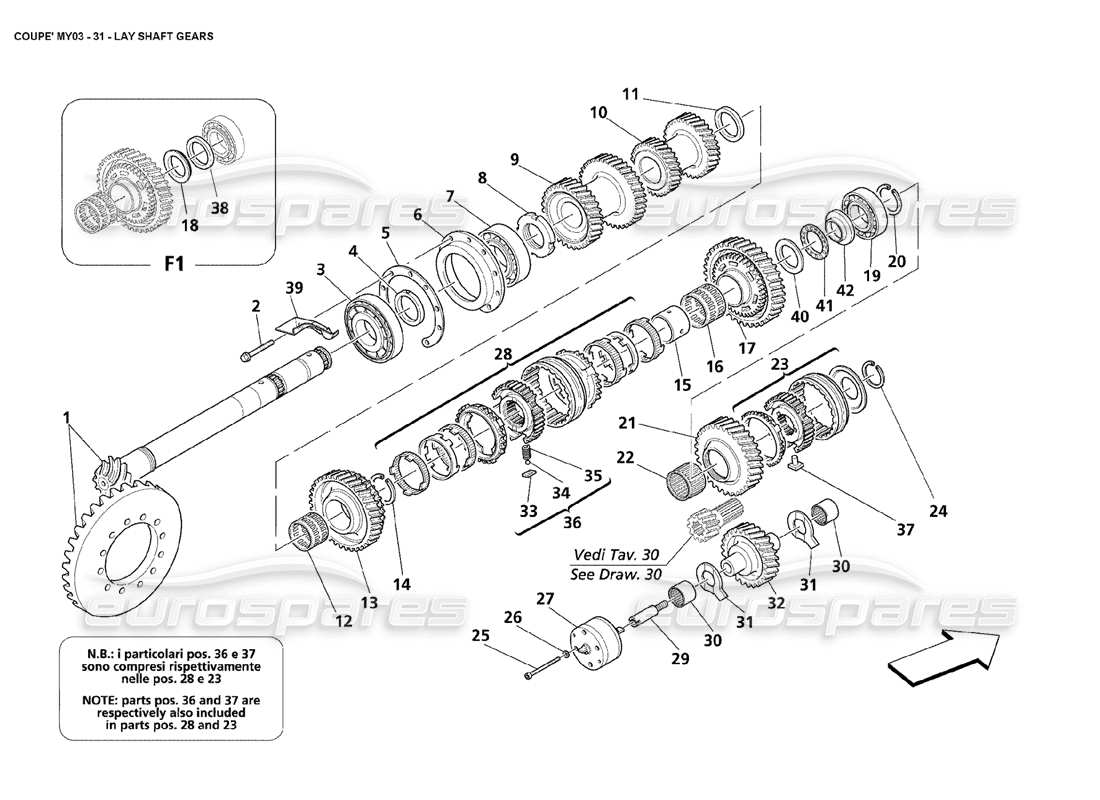

Maserati 4200 Coupe (2003) Lay Shaft Gears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 185679
COMPLETE BEVEL SET
from £584.65
from £584.65
# 002
MPN: 16287731
SCREW
from £1.38
from £1.38
# 003
MPN: 185022
ROLLER BEARING
from £85.26
from £85.26
# 004
MPN: 185045
REGISTER RING
- Thickness mm. 7,10
from £21.86
from £21.86
# 004
MPN: 185046
REGISTER RING
- Thickness mm. 6,85 - Possible fitting
from £21.86
from £21.86
# 004
MPN: 185047
REGISTER RING
- Thickness mm. 6,60 - Possible fitting
from £21.86
from £21.86
# 005
MPN: 185042
REGISTER RING
- Thickness mm. 2,8
from £6.91
from £6.91
# 005
MPN: 185043
REGISTER RING
- Thickness mm. 2,5 - Possible fitting
from £9.56
from £9.56
# 005
MPN: 185044
REGISTER RING
- Thickness mm. 2,2 - Possible fitting
from £14.77
from £14.77
# 006
MPN: 185020
BEARING SUPPORT
from £75.26
from £75.26
# 007
MPN: 185021
ROLLER BEARING
from £75.54
from £75.54
# 008
MPN: 185019
RING NUT
from £13.13
from £13.13
# 009
MPN: 182287
3RD AND 4TH DRIVEN GEAR
from £221.43
from £221.43
# 010
MPN: 182288
5TH AND 6TH DRIVEN GEAR
from £159.01
from £159.01
# 011
MPN: 183974
RING
- Thickness mm. 4,30
from £19.67
from £19.67
# 011
MPN: 185038
RING
- Thickness mm. 3,95 - Possible fitting
from £21.86
from £21.86
# 011
MPN: 185039
RING
- Thickness mm. 3,60 - Possible fitting
from £21.86
from £21.86
# 012
MPN: 184014
ROLLER CAGE
from £10.20
from £10.20
# 013
MPN: 182293
COMPLETE PINION FOR 2ND GEAR
- Valid for F1
from £147.42
from £147.42
# 013
MPN: 198263
COMPLETE PINION FOR 2ND GEAR
- Not for F1
from £163.00
from £163.00
# 014
MPN: 183976
FLEXIBLE RING
- Thickness mm. 2,10
from £6.56
from £6.56
# 014
MPN: 185036
FLEXIBLE RING
- Thickness mm. 1,85 - Possible fitting
from £24.00
from £24.00
# 014
MPN: 185037
FLEXIBLE RING
- Thickness mm. 1,60 - Possible fitting
from £23.35
from £23.35
# 015
MPN: 183971
BUSHING
from £43.71
from £43.71
# 016
MPN: 184016
ROLLER CAGE
from £15.32
from £15.32
# 017
MPN: 182299
COMPLETE PINION FOR 1ST GEAR
from £342.93
from £342.93
# 018
MPN: 183972
RING
- Thickness mm. 5,10 - Valid for F1
from £42.04
from £42.04
# 018
MPN: 185040
RING
- Thickness mm. 4,85 - Possible fitting - Valid for F1
from £28.42
from £28.42
# 018
MPN: 185041
RING
- Thickness mm. 4,60 - Possible fitting - Valid for F1
from £20.13
from £20.13
# 019
MPN: 184020
ROLLER BEARING
from £77.23
from £77.23
# 020
MPN: 184042
FLEXIBLE RING
from £6.76
from £6.76
# 021
MPN: 193438
COMPLETE PINION FOR REVERSE GEAR
from £339.10
from £339.10
# 022
MPN: 184018
ROLLER CAGE
from £15.29
from £15.29
# 023
MPN: 326260
REVERSE GEAR COMPLETE SYNCHRONIZER
from £1,184.72
from £1,184.72
This part replaces part number 193439
# 024
MPN: 184041
FLEXIBLE RING
from £3.09
from £3.09
# 025
MPN: 14303624
SCREW
from £0.47
from £0.47
# 026
MPN: 10571379
WASHER
from £0.53
from £0.53
# 027
MPN: 182279
COMPLETE OIL PUMP
from £337.43
from £337.43
# 028
MPN: 185164
1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
- Valid for F1
from £718.68
from £718.68
# 028
MPN: 198267
1ST AND 2ND GEAR COMPLETE SYNCHRONIZER
- Not for F1
from £343.82
from £343.82
# 029
MPN: 182415
PIN
from £45.29
from £45.29
# 030
MPN: 184017
ROLLER CASING
from £4.88
from £4.88
# 031
MPN: 183975
RING
from £13.71
from £13.71
# 032
MPN: 183969
IDLE GEAR FOR REVERSE
from £173.86
from £173.86
# 033
-
PAD FOR SYNCHRONIZER
- Not as spare part suppliyed in the kit. 188320 and 195991
# 034
-
BALL
- Not as spare part suppliyed in the kit. 188320 and 195991
# 035
-
SPRING FOR BALL
- Not as spare part suppliyed in the kit. 188320 and 195991
# 036
MPN: 188320
PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
- Valid for F1
from £6.75
from £6.75
# 036
MPN: 195991
PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
- Not for F1
from £10.84
from £10.84
This part replaces part number 194029
# 037
MPN: 193440
PADS/SYNCHRO REVERSE GEAR KIT
from £2.32
from £2.32
This part replaces part number 193484
# 038
MPN: 182326
SPACER
- Valid for F1
from £38.64
from £38.64
# 039
MPN: 185713
OIL CONVEYOR
from £15.71
from £15.71
# 040
MPN: 196524
RING
- Not for F1
from £6.34
from £6.34
# 041
MPN: 196523
ROLLER CAGE
- Not for F1
from £14.09
from £14.09
# 042
MPN: 196509
RING
- Thickness mm. 10,60 - Not for F1
from £57.19
from £57.19
# 042
MPN: 196663
RING
- Thickness mm. 10,10 - Possible fitting - Not for F1
from £66.00
from £66.00
# 042
MPN: 196664
RING
- Thickness mm. 10,35 - Possible fitting - Not for F1
from £66.00
from £66.00
