maserati 4200 coupe (2003) differential & axle shafts parts diagram

035 - Differential & Axle Shafts

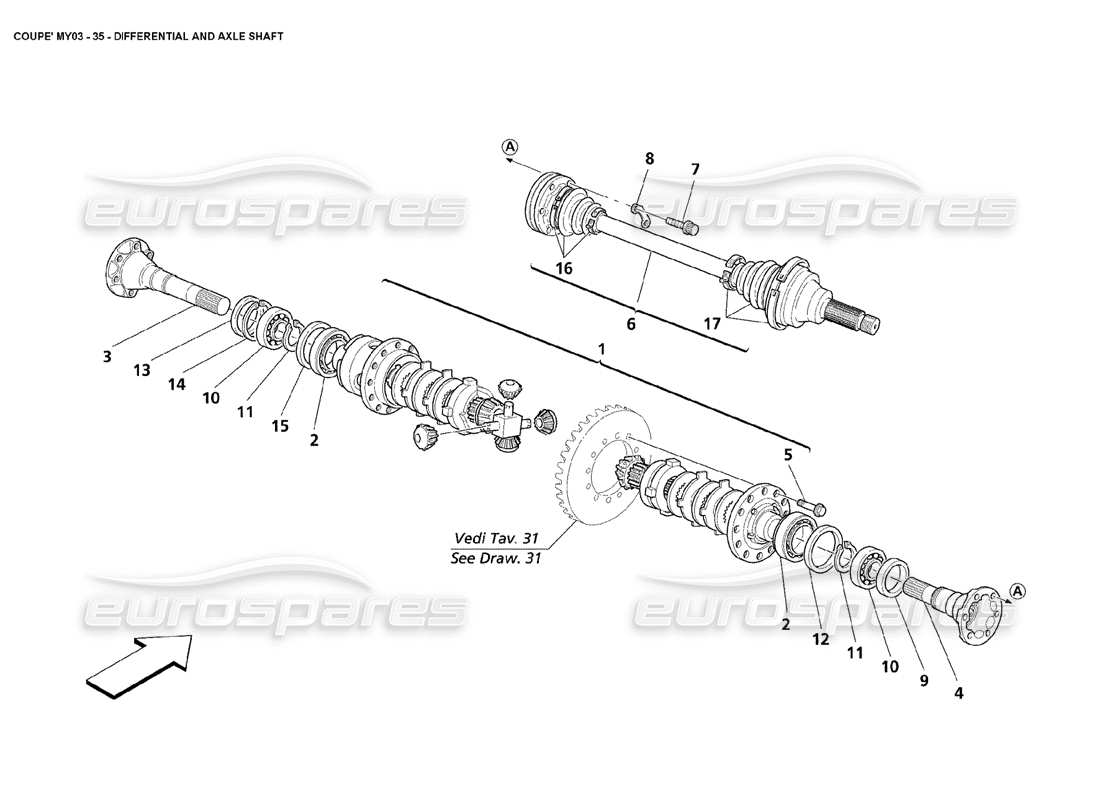

Maserati 4200 Coupe (2003) Differential & Axle Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 192735
                        COMPLETE SELF LOCKING DIFFERENTIAL
                        from £1,999.54
                        from £1,999.54
                        This part replaces part number 185680
                        # 002
                        MPN: 184998
                        ROLLER BEARING
                        from £72.34
                        from £72.34
                        This part replaces part number 376200124
                        # 003
                        MPN: 185014
                        LH LONG DIFFERENTIAL OUTLET SHAFT
                        - Valid till stock exhaustion
                        Supersession
                        Supersession
                        # 003
                        MPN: 199055
                        LH LONG DIFFERENTIAL OUTLET SHAFT
                        - Valid after stock exhaustion of 185014
                        from £618.19
                        from £618.19
                        This part replaces part number 185014
                        # 004
                        MPN: 182322
                        RH SHORT DIFFERENTIAL OUTLET SHAFT
                        - Valid till stock exhaustion
                        Supersession
                        Supersession
                        # 004
                        MPN: 199056
                        RH SHORT DIFFERENTIAL OUTLET SHAFT
                        - Valid after stock exhaustion of 182322
                        from £615.00
                        from £615.00
                        This part replaces part number 182322
                        # 005
                        MPN: 183909
                        SCREW
                        from £3.36
                        from £3.36
                        # 006
                        MPN: 218163
                        AXLE SHAFT
                        from £261.45
                        from £261.45
                        This part replaces part number 184540 - and 1 more. Click to view details
                        # 006
                        MPN: 218163
                        AXLE SHAFT
                        from £261.45
                        from £261.45
                        This part replaces part number 184540 - and 1 more. Click to view details
                        # 007
                        MPN: 181910
                        SCREW
                        from £2.31
                        from £2.31
                        This part replaces part number 211027 - and 1 more. Click to view details
                        # 008
                        MPN: 149415
                        PLATE
                        from £1.00
                        from £1.00
                        # 009
                        MPN: 181618
                        RH OIL RING
                        from £29.17
                        from £29.17
                        # 011
                        MPN: 184994
                        SEEGER RING
                        from £3.64
                        from £3.64
                        # 012
                        MPN: 185026
                        REGISTER RING
                        - Thickness mm. 6,8
                        from £23.32
                        from £23.32
                        # 012
                        MPN: 185027
                        REGISTER RING
                        - Thickness mm. 6,4
                        from £26.90
                        from £26.90
                        # 012
                        MPN: 185028
                        REGISTER RING
                        - Thickness mm. 6
                        from £26.90
                        from £26.90
                        # 013
                        MPN: 185722
                        LH OIL RING
                        from £35.85
                        from £35.85
                        # 014
                        MPN: 185723
                        SEEGER RING
                        from £2.24
                        from £2.24
                        # 015
                        MPN: 185029
                        REGISTER RING
                        - Thickness mm. 3,30
                        from £21.51
                        from £21.51
                        # 015
                        MPN: 185033
                        REGISTER RING
                        - Thickness mm. 2,95
                        from £21.51
                        from £21.51
                        # 015
                        MPN: 185034
                        REGISTER RING
                        - Thickness mm. 2,60
                        from £21.51
                        from £21.51
                        # 016
                        MPN: 70006022

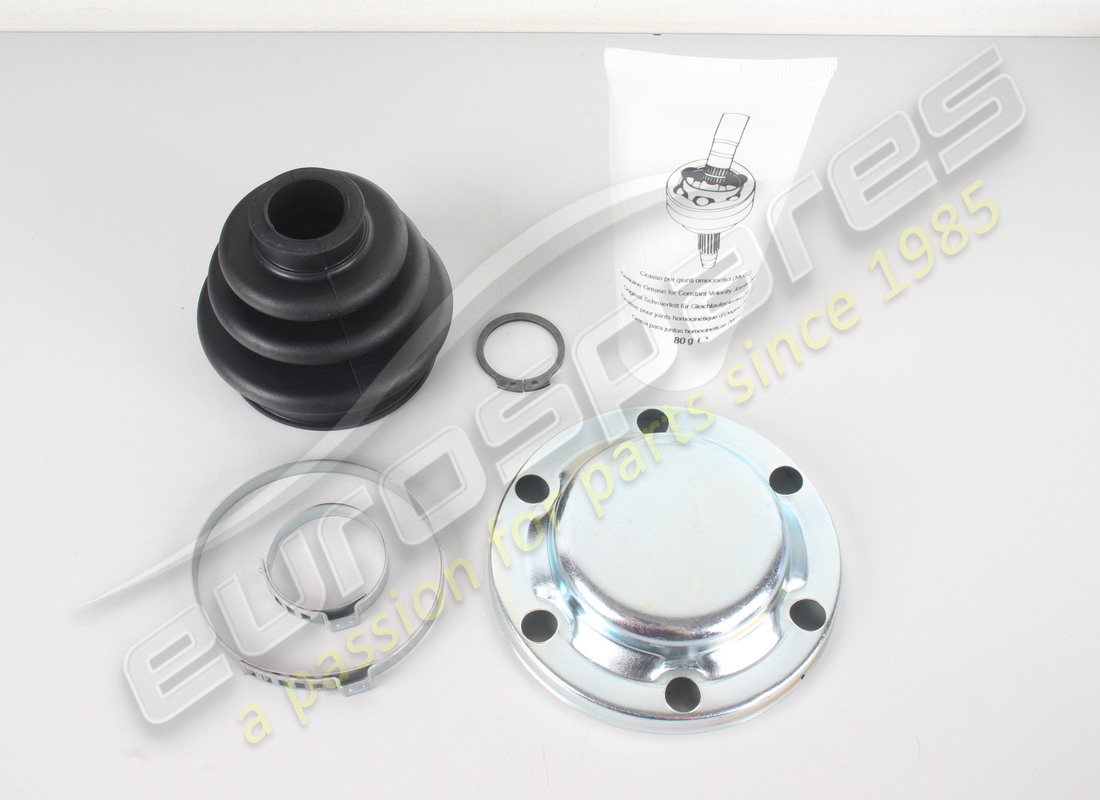

                        CLAMP AND PROTECTION REPLACEMENT SET
                        - Differential side
                        from £54.95
                        from £54.95
                        This part replaces part number 70000867
                        # 017
                        MPN: 70000868
                        CLAMP AND PROTECTION REPLACEMENT SET
                        - Wheel side
                        from £68.38
                        from £68.38
