maserati 4200 coupe (2003) brakes and clutch hydraulic controls parts diagram

036 - Brakes and Clutch Hydraulic Controls

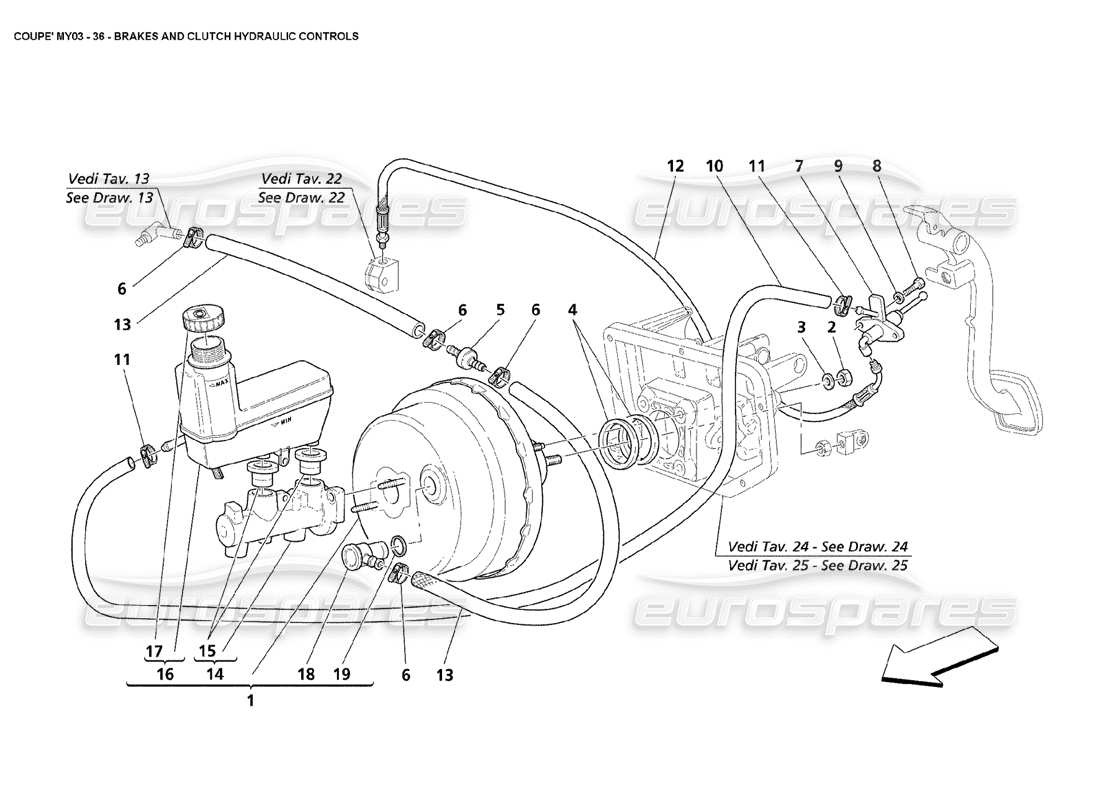

Maserati 4200 Coupe (2003) Brakes and Clutch Hydraulic Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 195560
                      COMPLETE BRAKE BOOSTER
                      - Not for F1
                      from £637.96
                      from £637.96
                      # 001
                      MPN: 196150
                      COMPLETE BRAKE BOOSTER
                      - Valid for F1
                      from £185.01
                      from £185.01
                      # 002
                      MPN: 16104421
                      NUT
                      from £0.81
                      from £0.81
                      # 003
                      MPN: 14496521
                      WASHER
                      from £0.47
                      from £0.47
                      # 004
                      MPN: 367402309
                      GASKET
                      from £1.55
                      from £1.55
                      # 005
                      MPN: 193186
                      DEPRESSION VALVE
                      from £7.05
                      from £7.05
                      # 006
                      MPN: 13000390
                      SCREW COLLAR
                      from £0.51
                      from £0.51
                      This part replaces part number 13121170 - and 1 more. Click to view details
