maserati 4200 coupe (2003) braking system - valid for gd parts diagram

038 - Braking System - Valid for GD

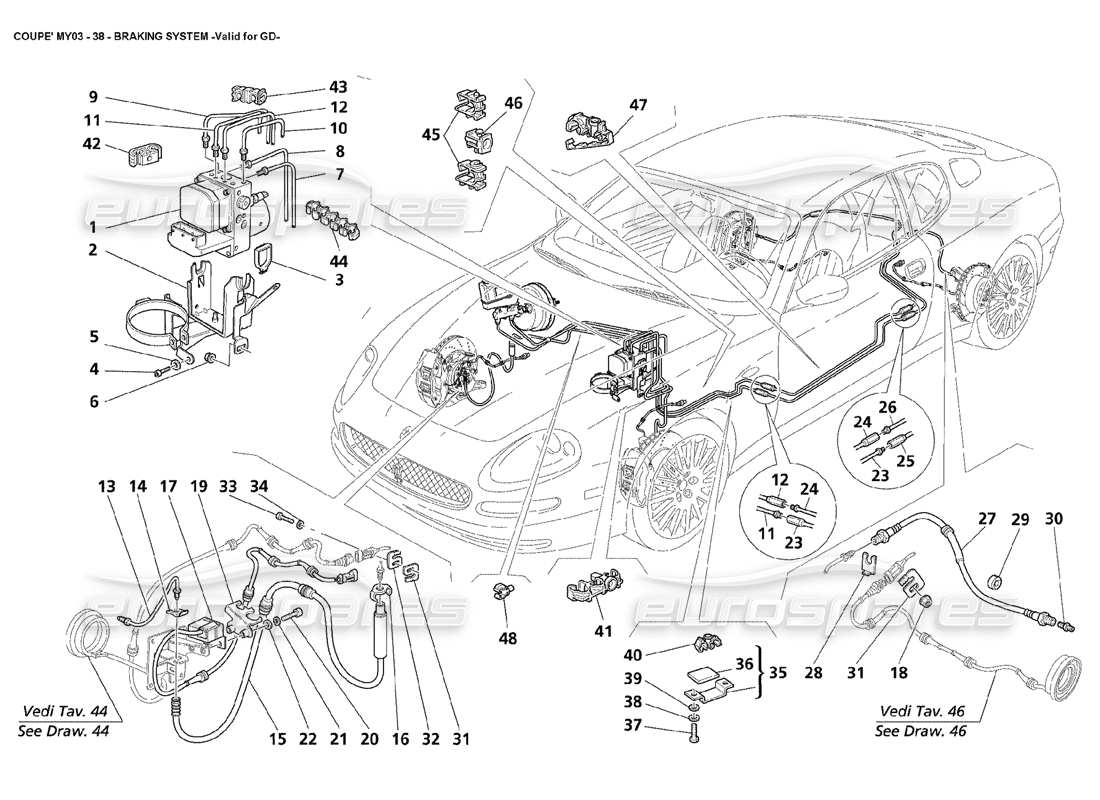

Maserati 4200 Coupe (2003) Braking System - Valid for GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 192444
                                                                                        hydraulic unit
                                                                                        from £2,880.37
                                                                                        from £2,880.37
                                                                                        This part replaces part number 192443
                                                                                        # 001
                                                                                        MPN: 198982
                                                                                        hydraulic unit
                                                                                        from £963.79
                                                                                        from £963.79
                                                                                        # 002
                                                                                        MPN: 195570
                                                                                        CONTROL UNIT FIXING BRACKET
                                                                                        from £31.25
                                                                                        from £31.25
                                                                                        # 003
                                                                                        MPN: 193877
                                                                                        CONTROL UNIT FIXING CLIP
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 004
                                                                                        MPN: 14433124
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 005
                                                                                        MPN: 12646604
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 006
                                                                                        MPN: 14040611
                                                                                        NUT
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 007
                                                                                        MPN: 196616
                                                                                        BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 008
                                                                                        MPN: 195800
                                                                                        RH FRONT BRAKE PIPE
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 009
                                                                                        MPN: 196845
                                                                                        FRONT BRAKE PIPE FROM PUMP TO UNIT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 010
                                                                                        MPN: 196844
                                                                                        REAR BRAKE PIPE FROM PUMP TO UNIT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 011
                                                                                        MPN: 195581
                                                                                        LH REAR BRAKE PIPE
                                                                                        from £18.53
                                                                                        from £18.53
                                                                                        # 012
                                                                                        MPN: 195582
                                                                                        RH REAR BRAKE PIPE
                                                                                        from £15.79
                                                                                        from £15.79
                                                                                        # 013
                                                                                        MPN: 185954
                                                                                        RH FRONT CALIPER RIGID PIPE
                                                                                        from £14.73
                                                                                        from £14.73
                                                                                        # 013
                                                                                        MPN: 185955
                                                                                        LH FRONT CALIPER RIGID PIPE
                                                                                        from £16.63
                                                                                        from £16.63
                                                                                        # 014
                                                                                        MPN: 181897
                                                                                        CLIP
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        This part replaces part number 252814
                                                                                        # 015
                                                                                        MPN: 185956
                                                                                        BRAKE FLEXIBLE PIPE TO FRONT CALIPERS
                                                                                        from £98.99
                                                                                        from £98.99
                                                                                        # 016
                                                                                        MPN: 228185
                                                                                        CLIP
                                                                                        from £2.85
                                                                                        from £2.85
                                                                                        This part replaces part number 387400301
                                                                                        # 017
                                                                                        MPN: 232160
                                                                                        VERTICAL ACCELERATION SENSOR
                                                                                        - Optional - Sport version
                                                                                        from £124.56
                                                                                        from £124.56
                                                                                        This part replaces part number 183580
                                                                                        # 018
                                                                                        MPN: 14084111
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 019
                                                                                        MPN: 185792
                                                                                        RH BRAKE PIPE SUPPORT BRACKET
                                                                                        from £6.42
                                                                                        from £6.42
                                                                                        # 019
                                                                                        MPN: 185793
                                                                                        LH BRAKE PIPE SUPPORT BRACKET
                                                                                        from £6.81
                                                                                        from £6.81
                                                                                        # 020
                                                                                        MPN: 14305324
                                                                                        SCREW
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 14305321
                                                                                        # 021
                                                                                        MPN: 12604274
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 022
                                                                                        MPN: 14496424
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 14496421
                                                                                        # 023
                                                                                        MPN: 187477
                                                                                        LH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 024
                                                                                        MPN: 187478
                                                                                        RH REAR CALIPER INTERMEDIATE BRAKE PIPE
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 025
                                                                                        MPN: 190512
                                                                                        LH REAR CALIPER RIGID PIPE
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 026
                                                                                        MPN: 190513
                                                                                        RH REAR CALIPER RIGID PIPE
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 027
                                                                                        MPN: 387401155
                                                                                        BRAKE FLEXIBLE PIPE TO REAR CALIPERS
                                                                                        from £152.55
                                                                                        from £152.55
                                                                                        This part replaces part number 387400155
                                                                                        # 028
                                                                                        MPN: 181897
                                                                                        CLIP
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        This part replaces part number 252814
                                                                                        # 029
                                                                                        MPN: 327456313
                                                                                        SPACER RING
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 030
                                                                                        MPN: 387400330
                                                                                        UNION
                                                                                        from £17.16
                                                                                        from £17.16
                                                                                        This part replaces part number 387400333
                                                                                        # 031
                                                                                        MPN: 162606
                                                                                        CLIP
                                                                                        from £0.82
                                                                                        from £0.82
                                                                                        # 032
                                                                                        MPN: 156198
                                                                                        CLIP
                                                                                        from £10.41
                                                                                        from £10.41
                                                                                        # 033
                                                                                        MPN: 10977687
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 034
                                                                                        MPN: 12638177
                                                                                        WASHER
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 035
                                                                                        MPN: 187464
                                                                                        PIPES PROTECTION BRACKET
                                                                                        - Not for USA and CDN
                                                                                        from £8.20
                                                                                        from £8.20
                                                                                        This part replaces part number 387400102
                                                                                        # 035
                                                                                        MPN: 193617
                                                                                        PIPES PROTECTION BRACKET
                                                                                        - Valid for USA and CDN
                                                                                        from £126.51
                                                                                        from £126.51
                                                                                        # 036
                                                                                        MPN: 387400402
                                                                                        GASKET
                                                                                        from £1.55
                                                                                        from £1.55
                                                                                        # 037
                                                                                        MPN: 10977824
                                                                                        SCREW
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        This part replaces part number 16130321 which we have in stock
                                                                                        # 038
                                                                                        MPN: 11181574
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 039
                                                                                        MPN: 14447025
                                                                                        WASHER
                                                                                        from £1.39
                                                                                        from £1.39
                                                                                        # 040
                                                                                        MPN: 379200408
                                                                                        CLIP
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 041
                                                                                        MPN: 188335
                                                                                        CLIP
                                                                                        - (Quantity defined during at assembly)
                                                                                        from £1.28
                                                                                        from £1.28
                                                                                        # 042
                                                                                        MPN: 169476
                                                                                        CLIP
                                                                                        - (Quantity defined during at assembly)
                                                                                        from £1.75
                                                                                        from £1.75
                                                                                        # 043
                                                                                        MPN: 377430340
                                                                                        BLOCK
                                                                                        from £0.69
                                                                                        from £0.69
                                                                                        # 044
                                                                                        MPN: 198641
                                                                                        CLIP
                                                                                        from £3.63
                                                                                        from £3.63
                                                                                        # 045
                                                                                        MPN: 377400341
                                                                                        CLIP
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 046
                                                                                        MPN: 155781
                                                                                        ANCHORAGE FOR CLIP
                                                                                        - (Quantity defined during at assembly)
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 047
                                                                                        MPN: 190409
                                                                                        CLIP
                                                                                        from £3.24
                                                                                        from £3.24
                                                                                        # 048
                                                                                        MPN: 377430346
                                                                                        CLIP
                                                                                        from £1.08
                                                                                        from £1.08
