042 - Steering box

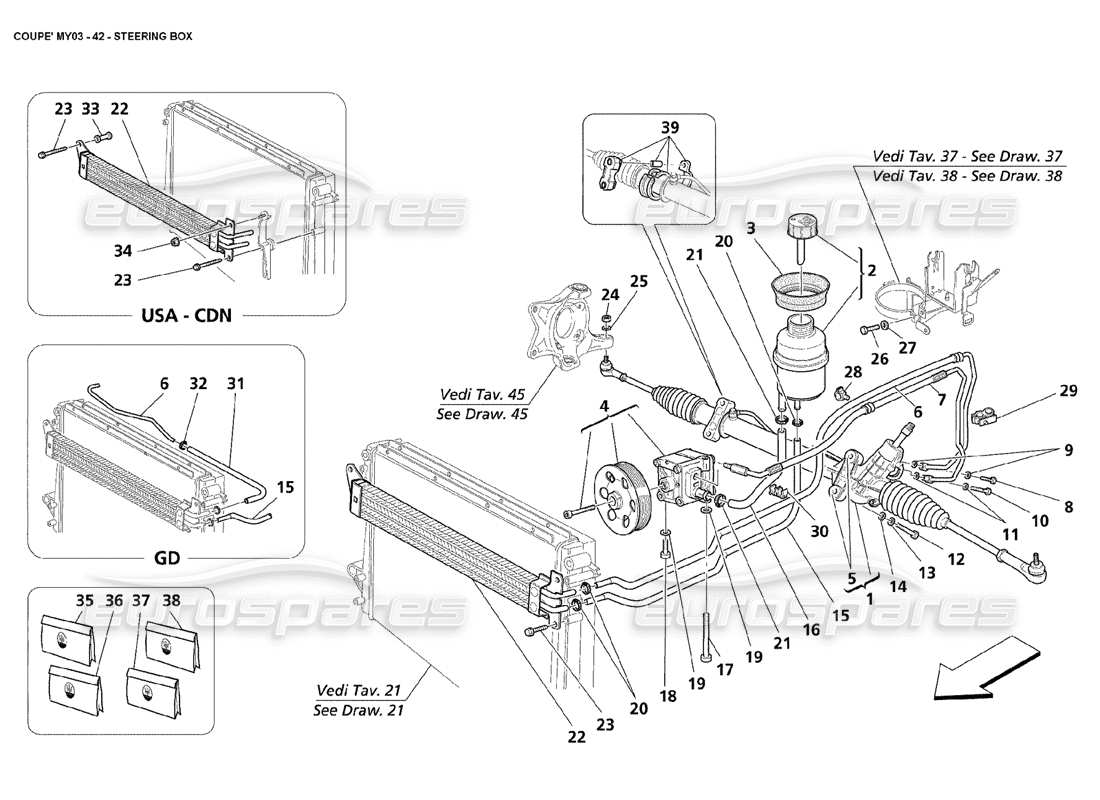

Maserati 4200 Coupe (2003) Steering Box Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 207275
STEERING BOX WITH POWER STEERING
- Valid for GD
from £2,047.50
from £2,047.50
This part replaces part number 195593 - and 1 more. Click to view details
# 001
MPN: 207276
STEERING BOX WITH POWER
- Not for GD
from £1,234.82
from £1,234.82
This part replaces part number 195592 - and 1 more. Click to view details
# 002
MPN: 185820
COMPLETE OIL TANK FOR SERVOSTEERING
from £10.45
from £10.45
# 004
MPN: 187920
COMPLETE HYDRAULIC SERVO CONTROL PUMP
from £215.09
from £215.09
# 005
MPN: 980138228
SILENTBLOCK
from £13.52
from £13.52
# 006
MPN: 188970
PIPE FROM HYDRODRIVE TO EXCHANGER
- Not for GD
from £40.07
from £40.07
# 006
MPN: 193191
PIPE FROM HYDRODRIVE TO EXCHANGER
- Valid for GD
from £147.19
from £147.19
# 007
MPN: 191070
PIPE FROM PUMP TO DRIVING BOX
- Not for GD
from £51.45
from £51.45
# 007
MPN: 193190
PIPE FROM PUMP TO DRIVING BOX
- Valid for GD
from £88.05
from £88.05
# 008
MPN: 193264
UNION
from £38.17
from £38.17
# 009
MPN: 10298460
GASKET
from £0.47
from £0.47
# 010
MPN: 193018
UNION
from £41.96
from £41.96
# 011
MPN: 10280060
GASKET
from £0.53
from £0.53
# 012
MPN: 11343821
SCREW
from £0.61
from £0.61
# 013
MPN: 11190574
WASHER
from £0.47
from £0.47
# 014
MPN: 12641021
WASHER
from £1.39
from £1.39
# 015
MPN: 188969
PIPE FROM EXCHANGER TO TANK
from £15.19
from £15.19
# 016
MPN: 192205
PIPE FROM TANK TO HYDRODRIVE
from £47.55
from £47.55
This part replaces part number 188968 - and 1 more. Click to view details
# 017
MPN: 160531
SCREW
from £5.49
from £5.49
This part replaces part number 180604
# 018
MPN: 198519
SCREW
from £3.62
from £3.62
# 019
MPN: 11193874
WASHER
from £0.54
from £0.54
# 020
MPN: 13000390
SCREW COLLAR
from £0.52
from £0.52
This part replaces part number 13121170 - and 1 more. Click to view details
# 021
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 13127870 - and 1 more. Click to view details
# 022
MPN: 231013
POWER STEERING EXCHANGER
- Not for USA and CDN
from £1,462.01
from £1,462.01
This part replaces part number 199892 - and 1 more. Click to view details
# 023
MPN: 15698504
SCREW
- Valid for USA and CDN
from £6.04
from £6.04
# 023
MPN: 15699804
SCREW
- Not for USA and CDN
from £0.54
from £0.54
This part replaces part number 15534501
# 024
MPN: 14047421
NUT
from £1.31
from £1.31
# 025
MPN: 12626221
WASHER
from £0.47
from £0.47
# 026
MPN: 10902621
SCREW
Supersession
Supersession
# 027
MPN: 10523401
WASHER
from £0.53
from £0.53
# 028
MPN: 14631387
CLIP
from £0.47
from £0.47
# 029
MPN: 177805
CLIP
from £1.28
from £1.28
This part replaces part number 377890660
# 030
MPN: 190953
CLIP
- Valid for GD
from £2.85
from £2.85
# 031
MPN: 193192
SLEEVE FROM HYDRODRIVE TO EXCHANGER
- Valid for GD
from £21.14
from £21.14
# 032
MPN: 13000390
SCREW COLLAR
- Valid for USA and CDN
from £0.53
from £0.53
This part replaces part number 13121170 - and 1 more. Click to view details
# 033
MPN: 193719
SPACER
- Valid for USA and CDN
from £5.96
from £5.96
# 034
MPN: 14040614
NUT
from £0.54
from £0.54
# 035
MPN: 980001703
PIPES REPLACEMENT KIT FOR STEERING BOX
- Not for GD
from £133.60
from £133.60
This part replaces part number 980001701
# 035
MPN: 980001704
PIPES REPLACEMENT KIT FOR STEERING BOX
- Valid for GD
from £126.76
from £126.76
This part replaces part number 980001702
# 036
MPN: 980001705
STEERING ARM
from £203.40
from £203.40
This part replaces part number 980000967
# 037
MPN: 980001706
TRACK ROD END
from £88.98
from £88.98
This part replaces part number 980000968
# 038
MPN: 980001707
STEERING RACK BOOTS KIT
Pair
from £90.49
from £90.49
This part replaces part number 980000969
# 039
MPN: 980138275
STEERING BOX FIXING KIT
from £117.39
from £117.39
