maserati 4200 coupe (2003) wheels parts diagram

048 - Wheels

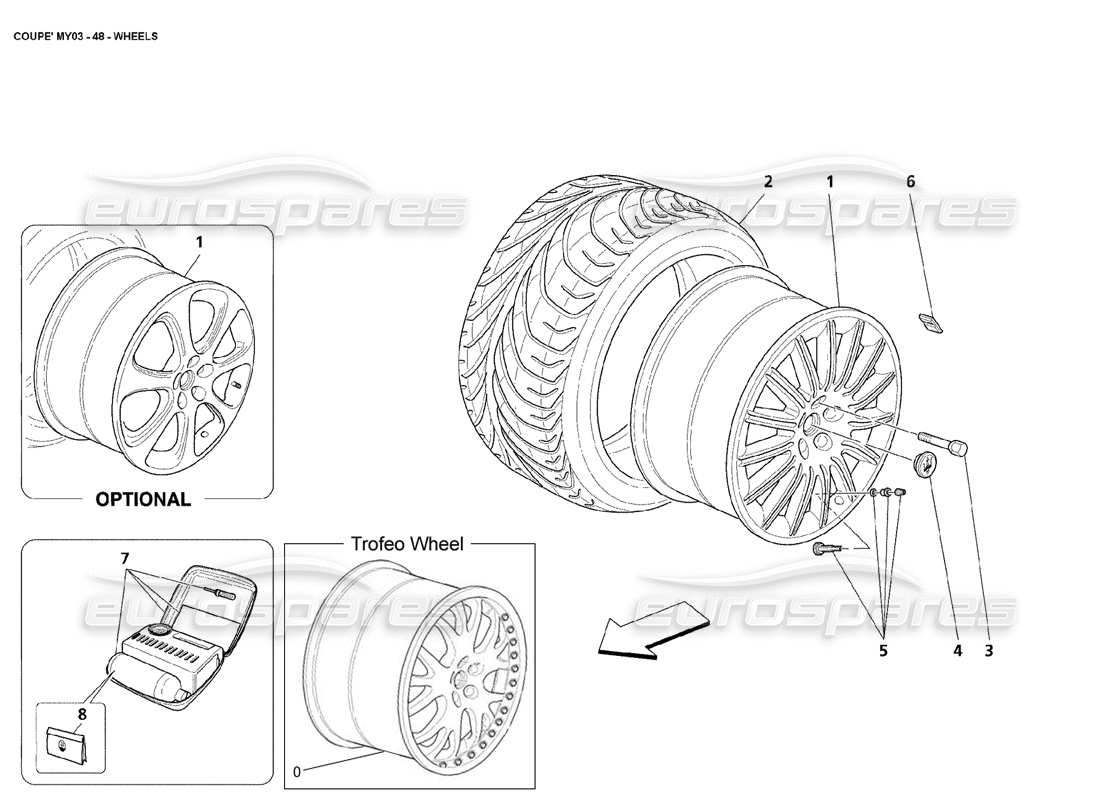

Maserati 4200 Coupe (2003) Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 200473/A
19 GRANSPORT WHEEL SET (SILVER)
Front's 8jx19, Rear's 9.5jx19, Alloy (Remanufactured) Suitable for all 4200 models
from £1,145.00
from £1,145.00
# 001
MPN: 19035000
7 SPOKES WHEELS SET 18''
# 001
MPN: 192149
FRONT WHEEL RIM
- Optional - Front wheel rim 7 spoke - Standard for cars USA and CDN
from £498.75
from £498.75
# 001
MPN: 192150
REAR WHEEL RIM 18
from £420.59
from £420.59
This part replaces part number 194289
# 001
MPN: 194104
REAR WHEEL RIM
- Standard - Not for USA and CDN
from £371.34
from £371.34
# 001
MPN: 199033
FRONT WHEEL
- Optional - Front wheel rim 7 spokes mercury grey
from £381.83
from £381.83
# 001
MPN: 199035
REAR WHEEL RIM
- Optional - Front wheel rim 7 spoke mercury green
from £580.97
from £580.97
# 001
MPN: 387200382
FRONT WHEEL RIM
- Standard - Not for USA and CDN
from £367.35
from £367.35
# 002
-
FRONT TYRE PIRELLI 235/40
# 002
-
FRONT TYRE MICHELIN 235/40
# 002
-
REAR TYRE PIRELLI 265/35
# 002
-
REAR TYRE MICHELIN 265/35
# 003
MPN: 108954
WHEEL STUD
- Valid for optional version front wheel rim - 7 spoke mercury gree
from £31.46
from £31.46
# 003
MPN: 193025
WHEEL STUD
- Not for optional version front wheel rim - 7 spoke mercury gree
from £10.50
from £10.50
# 004
MPN: 189953
WHEEL TRIM CUP WITH MARK
- Valid for optional version front wheel rim - 7 spoke mercury gree
from £16.64
from £16.64
# 004
MPN: 192052
WHEEL RIM CUP WITH MARK
- Not for optional version front wheel rim - 7 spoke mercury gree
from £13.32
from £13.32
# 005
MPN: 184240
VALVE
- 50 gramme
from £9.58
from £9.58
# 006
MPN: 192934
COUNTER WEIGHT
from £2.25
from £2.25
# 007
MPN: 301585
TYRE REPAIR KIT
(UK shipment only or Collection)
from £58.64
from £58.64
This part replaces part number 238901 - and 1 more. Click to view details
# 008
MPN: 207807
TYRE REPAIR CYLINDER BOTTLE
(UK shipment only or Collection)
from £39.98
from £39.98
