101 - Body - Central Outer Trims

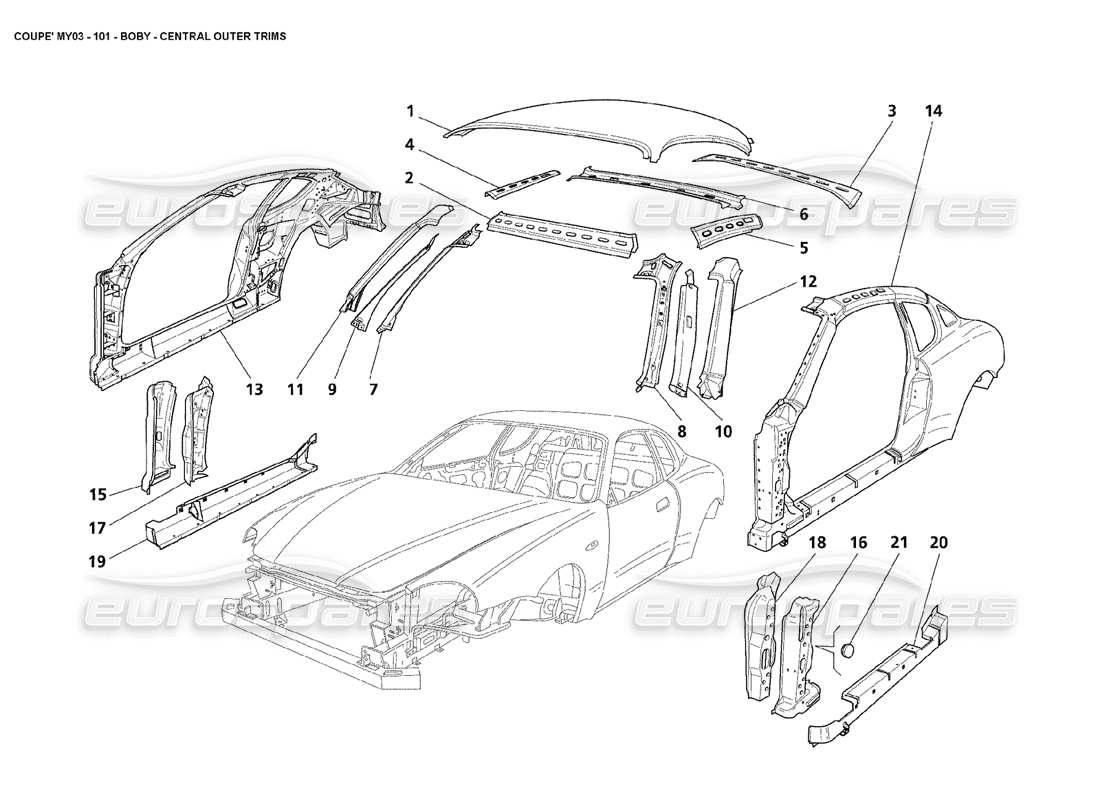

Maserati 4200 Coupe (2003) Body - Central Outer Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 382500465
ROOF EXTERNAL TRIM
from £1,782.36
from £1,782.36
# 002
MPN: 980138009
COMPLETE ROOF LINING FRONT CROSS MEMBER
from £53.97
from £53.97
# 003
MPN: 980138010
COMPLETE ROOF LINING REAR CROSS MEMBER
from £53.97
from £53.97
# 004
MPN: 980138012
COMPLETE RH SIDE RAIL
from £80.19
from £80.19
# 005
MPN: 980138011
COMPLETE LH SIDE RAIL
from £80.19
from £80.19
# 006
MPN: 382500434
INNER FRAME FOR ROOF LINING
Supersession
Supersession
# 007
MPN: 66736700
RH FRAME FOR WINDSHIELD VERTICAL ROD
from £197.64
from £197.64
This part replaces part number 66364800
# 008
MPN: 66736800
LH FRAME FOR WINDSHIELD VERTICAL ROD
from £197.64
from £197.64
This part replaces part number 66364900
# 009
MPN: 66055500
RH DIAPHRAGM FOR WINDSHIELD VERTICAL ROD
from £174.67
from £174.67
This part replaces part number 382500314
# 010
MPN: 66055600
LH DIAPHRAGM FOR WINDSHIELD VERTICAL ROD
from £174.67
from £174.67
This part replaces part number 382500313
# 011
MPN: 66058800
RH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
from £253.67
from £253.67
# 012
MPN: 66058900
LH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
from £253.67
from £253.67
# 013
MPN: 980138006
COMPLETE RH SIDE
from £6,433.27
from £6,433.27
# 014
MPN: 980138005
COMPLETE LH SIDE
from £5,388.67
from £5,388.67
# 015
MPN: 67236400
RH FRONT ROD
from £131.00
from £131.00
# 016
MPN: 67236500
LH FRONT ROD
from £131.00
from £131.00
# 017
MPN: 65825300
RH FRONT INNER ROD REINFORCEMENT
from £154.73
from £154.73
# 018
MPN: 65825400
LH FRONT INNER ROD REINFORCEMENT
from £154.73
from £154.73
# 019
MPN: 980138008
COMPLETE RH SPAR
from £454.97
from £454.97
# 020
MPN: 980138007
COMPLETE LH SPAR
from £454.97
from £454.97
# 021
MPN: 14507687
PLUG
from £0.58
from £0.58
