120 - Front Seat and Seat Belts

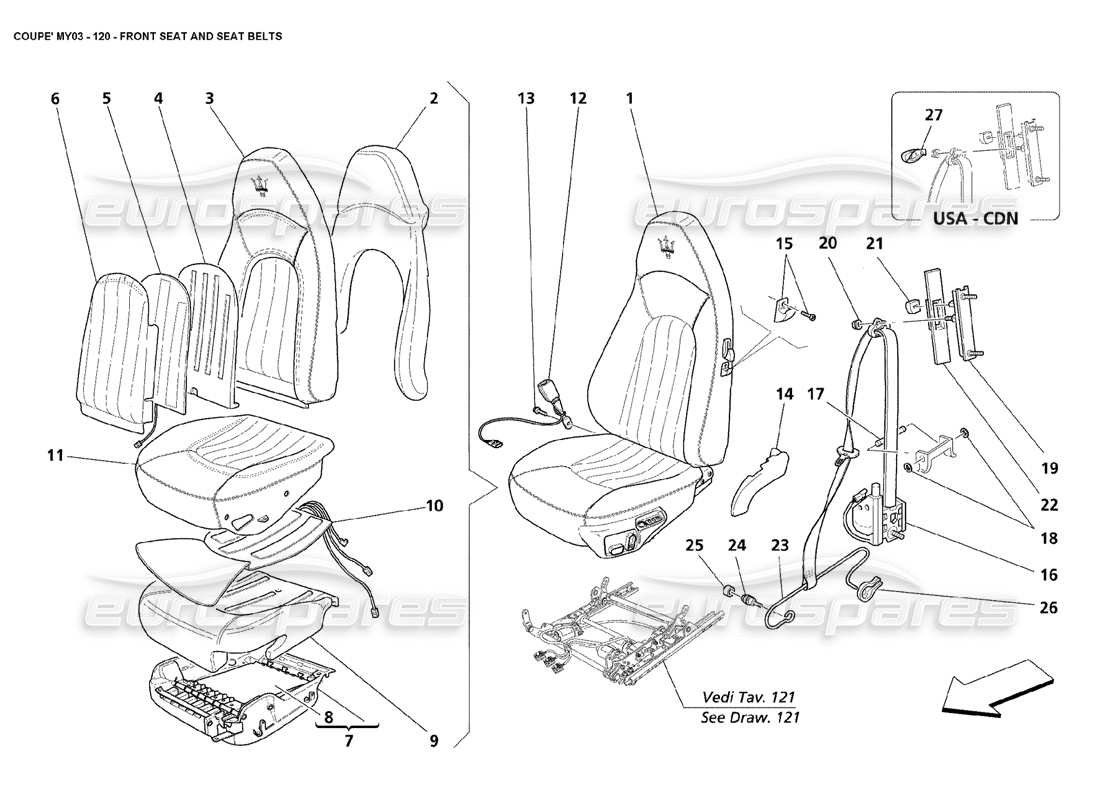

Maserati 4200 Coupe (2003) Front Seat and Seat Belts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 675128..
COMPLETE RH FRONT SEAT
- Optional - Leather drilled - Valid for GD
# 001
MPN: 675129..
COMPLETE RH FRONT SEAT
- Optional - Leather drilled and heater - Valid for GD
# 001
MPN: 675132..
COMPLETE LH FRONT SEAT
- Optional - Leather drilled - Valid for GD
# 001
MPN: 675133..
COMPLETE LH FRONT SEAT
- Optional - Leather drilled and heater - Valid for GD
# 001
MPN: 675137..
COMPLETE RH FRONT SEAT
- Optional - Leather drilled - Not for GD
# 001
MPN: 675139..
COMPLETE RH FRONT SEAT
- Optional - Leather drilled and heater - Not for GD
Supersession
Supersession
# 001
MPN: 675140..
COMPLETE LH FRONT SEAT
- Optional - Leather drilled - Not for GD
# 001
MPN: 675141..
COMPLETE LH FRONT SEAT
- Optional - Leather drilled and heater - Not for GD
Supersession
Supersession
# 001
MPN: 9812007..
COMPLETE LH FRONT SEAT
- Standard - Not for GD
Supersession
Supersession
# 001
MPN: 9812008..
COMPLETE RH FRONT SEAT
- Standard - Not for GD
Supersession
Supersession
# 001
MPN: 9812009..
COMPLETE LH FRONT SEAT
- Optional - Heater - Not for GD
Supersession
Supersession
# 001
MPN: 9812010..
COMPLETE RH FRONT SEAT
- Optional - Heater - Not for GD
Supersession
Supersession
# 001
MPN: 9812017..
COMPLETE LH FRONT SEAT
- Standard - Valid for GD
Supersession
Supersession
# 001
MPN: 9812018..
COMPLETE RH FRONT SEAT
- Standard - Valid for GD
Supersession
Supersession
# 001
MPN: 9812019..
COMPLETE LH FRONT SEAT
- Optional - Heater - Valid for GD
Supersession
Supersession
# 001
MPN: 9812020..
COMPLETE RH FRONT SEAT
- Optional - Heater - Valid for GD
Supersession
Supersession
# 002
MPN: 980138100
SEATBACK PERIPHERAL PADDING
from £993.05
from £993.05
# 003
MPN: 9812000..
BACKSEAT PERIPHERAL UPHOLSTERY
Supersession
Supersession
# 004
MPN: 980001118
BACKSEAT CENTRAL PADDING
from £58.36
from £58.36
# 005
MPN: 980001121
BACKSEAT HEATER
from £52.07
from £52.07
# 006
MPN: 9811000..
BACKSEAT CENTRAL UPHOLSTERY
- Not for cars with leather drilled seats
Supersession
Supersession
# 006
MPN: 9812003..
BACKSEAT CENTRAL UPHOLSTERY
- Valid for cars with leather drilled seats
Supersession
Supersession
# 007
MPN: 980001179
COMPLETE LH CUSHION BOTTOM
from £49.07
from £49.07
# 007
MPN: 980001180
COMPLETE RH CUSHION BOTTOM
from £49.07
from £49.07
# 008
MPN: 980001122
CUSHION BOTTOM MEMBRANE
from £31.25
from £31.25
# 009
MPN: 980138101
LH CUSHION PADDING
- Valid for GD
from £993.05
from £993.05
# 009
MPN: 980138102
RH CUSHION PADDING
- Not for GD
from £993.05
from £993.05
# 009
MPN: 980138103
LH CUSHION PADDING
- Not for GD
from £993.05
from £993.05
# 009
MPN: 980138104
RH CUSHION PADDING
- Valid for GD
from £993.05
from £993.05
# 010
MPN: 980001120
CUSHION HEATER
from £123.73
from £123.73
# 011
MPN: 9812001..
LH FRONT CUSHION UPHOLSTERY
- Not for cars with leather drilled seats
Supersession
Supersession
# 011
MPN: 9812002..
RH FRONT CUSHION UPHOLSTERY
- Not for cars with leather drilled seats
Supersession
Supersession
# 011
MPN: 9812004..
LH FRONT CUSHION UPHOLSTERY
- Valid for cars with leather drilled seats
Supersession
Supersession
# 011
MPN: 9812005..
RH FRONT CUSHION UPHOLSTERY
- Valid for cars with leather drilled seats
Supersession
Supersession
# 012
MPN: 388100336
PASSENGER SEAT BELT LOCK
from £47.00
from £47.00
# 012
MPN: 388100337
PILOT SEAT BELT LOCK
from £104.70
from £104.70
# 013
MPN: 386900301
SCREW
from £13.44
from £13.44
# 014
MPN: 980138105
LH SEAT JOINT COVER
from £14.12
from £14.12
# 014
MPN: 980138106
RH SEAT JOINT COVER
from £14.12
from £14.12
# 015
MPN: 980138107
LEVER PROTECTION KIT
from £15.38
from £15.38
# 016
MPN: 66310300
RH ROLLER
- Not for USA and CDN
from £78.75
from £78.75
# 016
MPN: 66310400
LH ROLLER
- Not for USA e CDN
from £168.50
from £168.50
# 016
MPN: 66310500
RH ROLLER
- Valid for USA and CDN
from £165.97
from £165.97
# 016
MPN: 67190800
LH ROLLER
- Valid for USA e CDN
from £157.80
from £157.80
# 017
MPN: 30921336
DOWEL BOLT
from £3.63
from £3.63
# 018
MPN: 11087770
FLEXIBLE RING
from £0.69
from £0.69
# 019
MPN: 66873400
SEAT BELT REGULATOR
from £9.56
from £9.56
# 020
MPN: 388100335
NUT
from £1.08
from £1.08
# 021
MPN: 388100333
KNOB
from £1.08
from £1.08
# 022
MPN: 388300100
SLIT SHIELD
from £5.16
from £5.16
# 023
MPN: 386100369
LH HOOK BAR FOR SEAT BELT
from £5.31
from £5.31
# 023
MPN: 386100370
RH HOOK BAR FOR SEAT BELT
from £5.31
from £5.31
# 024
MPN: 388100331
SCREW
from £9.04
from £9.04
# 025
MPN: 388100330
CAP FOR SCREW
from £0.69
from £0.69
# 026
MPN: 568100343
PLATE
from £1.83
from £1.83
# 027
MPN: 67418700
COVER
- Valid for USA and CDN
from £8.20
from £8.20
This part replaces part number 66663000
