maserati 4200 coupe (2003) electrical system parts diagram

135 - electrical system

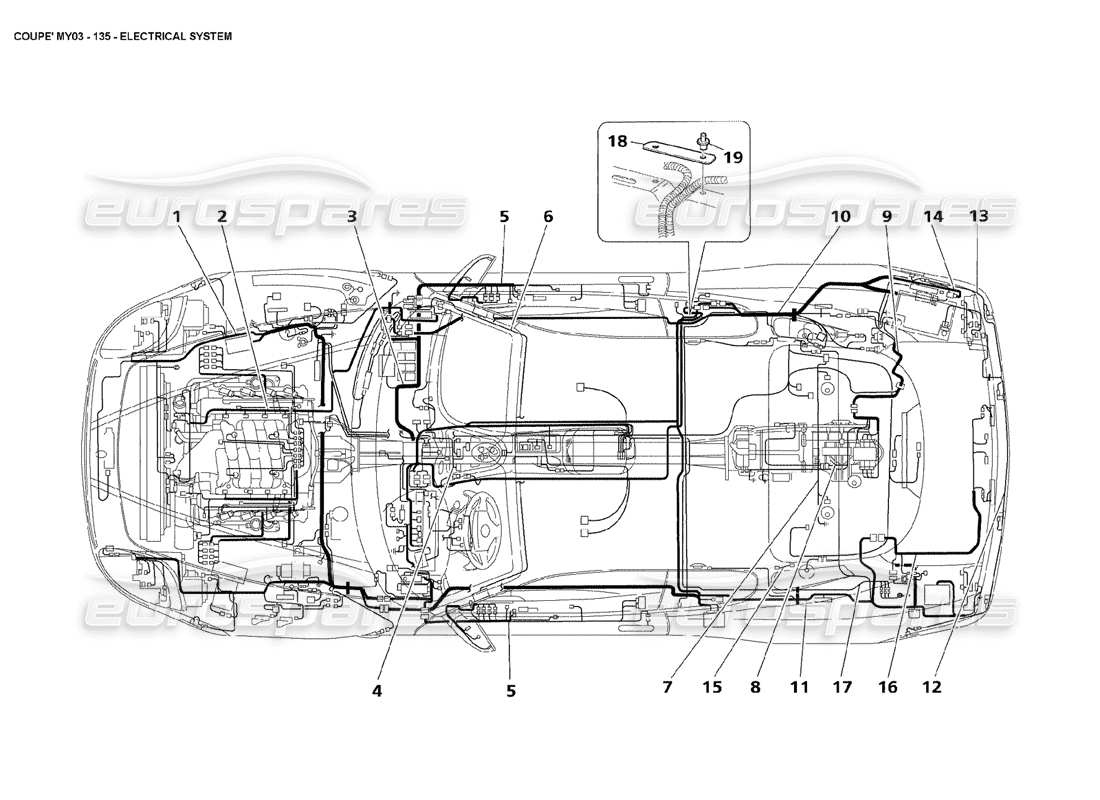

Maserati 4200 Coupe (2003) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 195842
      ENGINE COMPARTMENT CABLES
      - Valid for USA and CDN
      from £568.46
      from £568.46
      ENGINE COMPT. WIRING,COUPE USA Genuine Maserati Part - New (to order)
      # 001
      MPN: 196119
      ENGINE COMPARTMENT CABLES
      - Not for USA, CDN and GD - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 001
      MPN: 196120
      ENGINE COMPARTMENT CABLES
      - Valid for GD - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 001
      MPN: 200488
      ENGINE COMPARTMENT CABLES
      - Not for USA, CDN and GD - Valid after stock exhaustion of 196119
      from £640.32
      from £640.32
      This part replaces part number 196119
      ENGINE COMPT. WIRING,COUPE-EU. Genuine Maserati Part - New (to order)
      # 001
      MPN: 200496
      ENGINE COMPARTMENT CABLES
      - Valid for GD - Valid after stock exhaustion of 196120
      from £346.45
      from £346.45
      This part replaces part number 196120 - and 1 more. Click to view details
      CAVO VANO MOTORE M138EB GDX Genuine Maserati Part - New (to order)
      CAVO VANO MOTORE M138EB GDX Genuine Maserati Part - Used In stock
      # 002
      MPN: 190041
      IGNITION DEVICE CABLES
      - Valid for USA and CDN - Valid till engine Nr. 73454
      from £667.72
      from £667.72
      CABLAGGIO INIEZIONE MOTORE M Genuine Maserati Part - New In stock
      # 002
      MPN: 195032
      INJECTION DEVICE CABLES
      - Not for USA, CDN and GD
      from £2,356.50
      from £2,356.50
      CABLAGGIO INIEZIONE MOTORE M Genuine Maserati Part - New In stock
      # 002
      MPN: 195034
      INJECTION DEVICE CABLES
      - Valid for GD
      from £701.09
      from £701.09
      ENGINE INJECTION WIRING M13 Genuine Maserati Part - New (to order)
      # 002
      MPN: 196332
      IGNITION DEVICE CABLES
      - Valid for USA and CDN - Valid from engine Nr. 73455
      from £1,348.67
      from £1,348.67
      IGNITION CABLE SPYDER Genuine Maserati Part - New (to order)

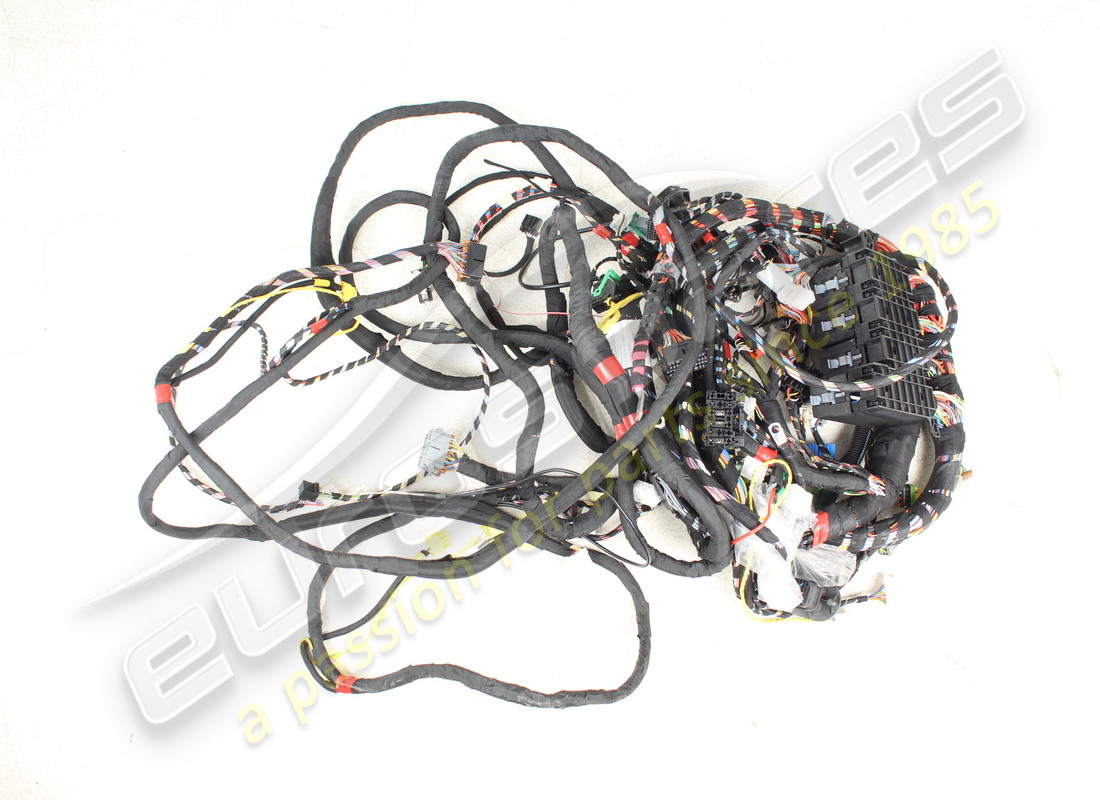

      # 003
      MPN: 195843
      DASHBOARD CABLE
      - Not for GD - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 003
      MPN: 196121
      DASHBOARD CABLE
      - Valid for GD - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 003
      MPN: 200487
      DASHBOARD CABLE
      - Not for GD - Valid after stock exhaustion of 195843
      from £1,267.21
      from £1,267.21
      This part replaces part number 195843
      DASHBOARD WIRING,M138 COUPE-EU Genuine Maserati Part - New (to order)
      # 003
      MPN: 200495
      DASHBOARD CABLE
      - Valid for GD - Valid after stock exhaustion of 196121
      from £1,593.27
      from £1,593.27
      This part replaces part number 196121
      DASHBOARD CABLE. Genuine Maserati Part - New In stock
      # 004
      MPN: 197026
      NAVIGATION SYSTEM CABLES
      - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 004
      MPN: 200501
      NAVIGATION SYSTEM CABLES
      - Valid after stock exhaustion of 197026
      from £99.90
      from £99.90
      This part replaces part number 197026 - and 1 more. Click to view details
      NAVI TRIM PANEL CONNECTION WIRING Genuine Maserati Part - New (to order)
      NAVI TRIM PANEL CONNECTION WIRING Genuine Maserati Part - Used In stock
      # 005
      MPN: 182221
      DOOR CABLE
      - Valid for USA and CDN
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 005
      MPN: 200490
      DOOR CABLE
      - Not for USA and CDN
      from £141.46
      from £141.46
      This part replaces part number 182221 - and 1 more. Click to view details
      DOOR WIRING Genuine Maserati Part - New (to order)
      DOOR WIRING Genuine Maserati Part - Used In stock
      # 006
      MPN: 182217
      ROOF LIGHT CABLE
      - Not for GD - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 006
      MPN: 191306
      ROOF LIGHT CABLE
      - Valid for GD - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 006
      MPN: 200491
      ROOF LIGHT CABLE
      - Not for GD - Valid after stock exhaustion of 182217
      from £20.01
      from £20.01
      This part replaces part number 182217 - and 1 more. Click to view details
      CABLAGGIO PLAFONIERA E SPECC Genuine Maserati Part - New (to order)
      CABLAGGIO PLAFONIERA E SPECC Genuine Maserati Part - Used In stock
      # 006
      MPN: 200498
      ROOF LIGHT CABLE
      - Valid for GD - Valid after stock exhaustion of 191306
      from £23.93
      from £23.93
      This part replaces part number 191306 - and 1 more. Click to view details
      ROOF LIGHT CABLE. Genuine Maserati Part - New (to order)
      ROOF LIGHT CABLE. Genuine Maserati Part - Used In stock
      # 007
      MPN: 193166
      TANK CABLE
      - Not for USA and CDN - Valid till stock exhaustion
      Supersession
      Supersession
      This part replaces part number 189166
      Genuine Maserati Part (no longer available to order)
      # 007
      MPN: 193167
      TANK CABLE
      - Valid for USA and CDN
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 007
      MPN: 200499
      TANK CABLE
      - Not for USA and CDN - Valid after stock exhaustion of 193166
      from £282.46
      from £282.46
      This part replaces part number 193166 - and 1 more. Click to view details
      FUEL PUMP AND TANK WIRING,COUPE Genuine Maserati Part - New (to order)
      FUEL PUMP AND TANK WIRING,COUPE Genuine Maserati Part - Used In stock
      # 008
      MPN: 184916
      F1 GEAR CABLE ON GEARBOX
      - Valid for F1
      from £170.81
      from £170.81
      F1 GEARBOX WIRING ON GEARBOX Genuine Maserati Part - New (to order)
      F1 GEARBOX WIRING ON GEARBOX Genuine Maserati Part - Used In stock
      # 009
      MPN: 184915
      F1 GEAR CABLE ON BODYWORK
      - Valid for F1 - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 009
      MPN: 200502
      F1 GEAR CABLE ON BODYWORK
      - Valid for F1 - Valid after stock exhaustion of 184915
      from £173.48
      from £173.48
      This part replaces part number 184915
      F1 GEARBOX WIRING ON BODYWORK Genuine Maserati Part - New (to order)
      # 010
      MPN: 191305
      RH LONGITUDINAL CABLE
      - Valid for GD - Valid till stock exhaustion
      from £313.95
      from £313.95
      Genuine Maserati Part (no longer available to order)
      CABLE Genuine Maserati Part - Used In stock
      # 010
      MPN: 192409
      RH LONGITUDINAL CABLE
      - Not for GD - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 010
      MPN: 200489
      RH LONGITUDINAL CABLE
      - Not for GD - Valid after stock exhaustion of 192409
      from £645.46
      from £645.46
      This part replaces part number 192409
      RH LONGIT. WIRING,COUPE Genuine Maserati Part - New (to order)
      # 010
      MPN: 200497
      RH LONGITUDINAL CABLE
      - Valid for GD - Valid after stock exhaustion of 191305
      from £586.20
      from £586.20
      This part replaces part number 191305 which we have in stock
      RH LONGITUDINAL CABLE. Genuine Maserati Part - New (to order)
      # 011
      MPN: 184936
      LH LONGITUDINAL CABLE
      - Optional - Version sport - Valid for USA and CDN
      from £86.05
      from £86.05
      LH DOOR CABLE Genuine Maserati Part - New (to order)
      # 011
      MPN: 200507
      LH LONGITUDINAL CABLE
      - Optional - Version sport - Not for USA and CDN
      from £86.44
      from £86.44
      LH LONGITUDINAL CABLE. Genuine Maserati Part - New (to order)
      LH LONGITUDINAL CABLE. Genuine Maserati Part - Used In stock
      # 012
      MPN: 186662
      BUMPER PARKING SENSOR CABLE
      - Optional - Parking sensor - Not for USA and CDN - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 012
      MPN: 186663
      SIDE MARKERS AND PARKING SENSOR CABLE
      - Optional - Parking sensor - Valid for USA and CDN
      from £293.51
      from £293.51
      SIDE MARKER/PARKING SENSO Genuine Maserati Part - New In stock
      # 012
      MPN: 200505
      BUMPER PARKING SENSOR CABLE
      - Optional - Parking sensor - Not for USA and CDN - Valid after stock exhaustion of 186662
      from £115.76
      from £115.76
      This part replaces part number 186662 - and 1 more. Click to view details
      BUMPER PARK. SENSOR BRIDG. CABLE Genuine Maserati Part - New In stock
      BUMPER PARK. SENSOR BRIDG. CABLE Genuine Maserati Part - Used In stock
      # 013
      MPN: 186674
      SIDE MARKER CABLE
      - Valid for USA and CDN
      from £25.14
      from £25.14
      ELECTRICAL WIRING HARNESS Genuine Maserati Part - New (to order)
      # 014
      MPN: 192417
      AMPLIFIER CABLES
      - Optional - HI FI system - Valid till stock exhaustion
      Supersession
      Supersession
      This part replaces part number 186265
      Genuine Maserati Part (no longer available to order)
      # 014
      MPN: 200647
      AMPLIFIER CABLES
      - Optional - HI FI system - Valid after stock exhaustion of 192417
      from £64.81
      from £64.81
      This part replaces part number 192417
      HI-FI AMPLIF.BRIDGING CABLE HARNE Genuine Maserati Part - New (to order)
      # 015
      MPN: 182227
      REAR WINDOW GROUND CABLE
      - Valid till stock exhaustion
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      # 015
      MPN: 200493
      REAR WINDOW GROUND CABLE
      - Valid after stock exhaustion of 182227
      from £4.37
      from £4.37
      This part replaces part number 182227 - and 1 more. Click to view details
      REAR-WINDOW GROUND CABLE. Genuine Maserati Part - New (to order)
      REAR-WINDOW GROUND CABLE. Genuine Maserati Part - Used In stock
      # 016
      MPN: 200492
      TRUNK CABLE
      from £29.99
      from £29.99
      This part replaces part number 190152 - and 1 more. Click to view details
      CAVO PORTELLONE BAULE M138EB Genuine Maserati Part - New (to order)
      CAVO PORTELLONE BAULE M138EB Genuine Maserati Part - Used In stock
      # 016
      MPN: 200492
      TRUNK CABLE
      - Valid after stock exhaustion of 190152
      from £29.99
      from £29.99
      This part replaces part number 190152 - and 1 more. Click to view details
      CAVO PORTELLONE BAULE M138EB Genuine Maserati Part - New (to order)
      CAVO PORTELLONE BAULE M138EB Genuine Maserati Part - Used In stock
      # 017
      MPN: 195535
      LH LONGITUDINAL CABLE
      - Valid for GB and GS opt. Germany version
      from £197.18
      from £197.18
      CAVO LONG SX M138BB GDX CD C Genuine Maserati Part - New (to order)
      # 017
      MPN: 195536
      LH LONGITUDINAL CABLE
      - Valid for USA and CDN
      from £119.35
      from £119.35
      LH LONG.WIRING CP FOR EXT.ANTENNA Genuine Maserati Part - New (to order)
      # 018
      MPN: 329232405
      CABLES FIXING BRACKET
      from £3.24
      from £3.24
      STAFFA FISS.CAVI LONGITUD. Genuine Maserati Part - New (to order)
      # 019
      MPN: 312025509
      button
      Supersession
      Supersession
      Genuine Maserati Part (no longer available to order)
      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
