maserati 4200 coupe (2003) anti theft electrical boards and devices parts diagram

141 - Anti Theft Electrical Boards and Devices

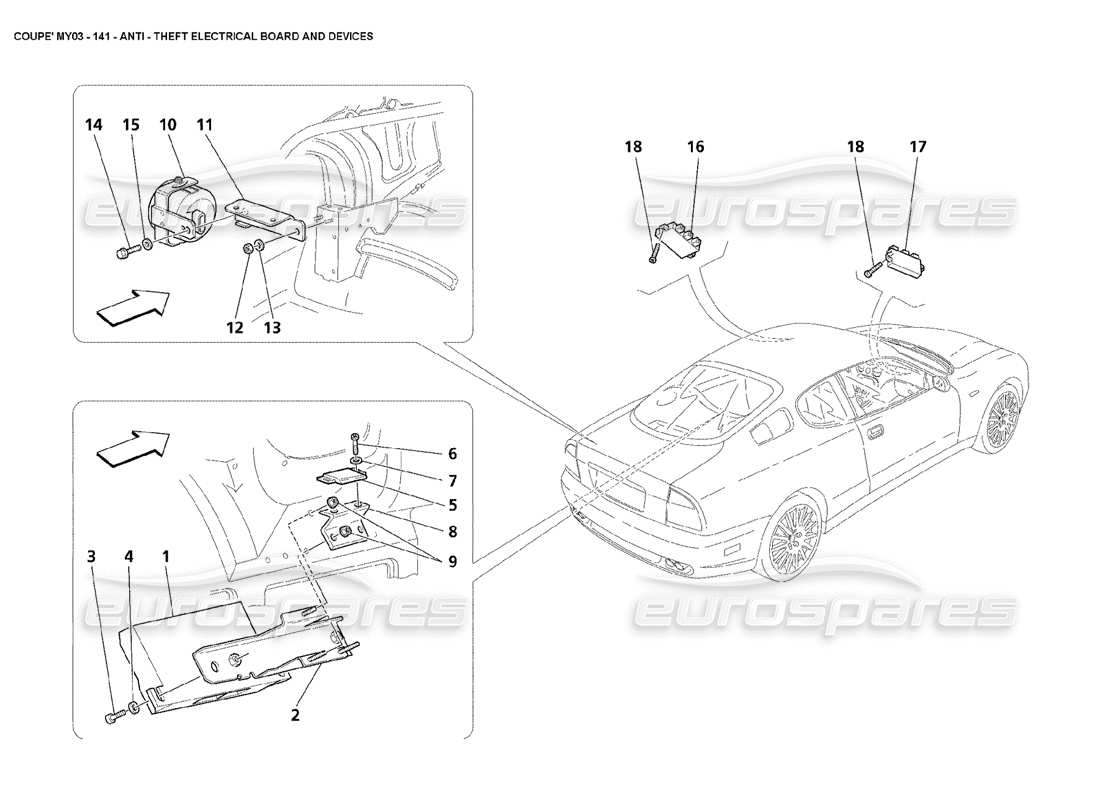

Maserati 4200 Coupe (2003) Anti Theft Electrical Boards and Devices Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  -
                                  ALARM CONTROL STATION
                                  - Not as spare parts supplyed in the alarm kit - (See draw 142)
                                  # 002
                                  MPN: 186282
                                  CONTROL STATION FIXING BRACKET
                                  from £11.82
                                  from £11.82
                                  # 003
                                  MPN: 14303124
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 004
                                  MPN: 14497704
                                  WASHER
                                  from £0.53
                                  from £0.53
                                  # 005
                                  MPN: 186594
                                  ANTILIFTING SENSOR
                                  from £135.28
                                  from £135.28
                                  # 006
                                  MPN: 14303124
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  # 007
                                  MPN: 14497704
                                  WASHER
                                  from £0.53
                                  from £0.53
                                  # 008
                                  MPN: 186283
                                  BRACKET
                                  from £5.09
                                  from £5.09
                                  # 009
                                  MPN: 14059111
                                  NUT
                                  from £0.47
                                  from £0.47
                                  # 011
                                  MPN: 186276
                                  BRACKET
                                  - Not for cars with CD charger bracket cod. 67668300 (See draw 146 pos. 20)
                                  from £47.45
                                  from £47.45
                                  # 011
                                  MPN: 67668200
                                  BRACKET
                                  - Valid for cars with CD charger bracket cod. 67668300 (See draw 146 pos. 20)
                                  from £10.51
                                  from £10.51
                                  # 012
                                  MPN: 10788811
                                  NUT
                                  from £0.71
                                  from £0.71
                                  # 013
                                  MPN: 12637801
                                  WASHER
                                  from £0.53
                                  from £0.53
                                  # 014
                                  MPN: 10977724
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  # 015
                                  MPN: 13577707
                                  WASHER
                                  from £0.71
                                  from £0.71
                                  # 016
                                  MPN: 186595
                                  MASTER SUPERHIGH FREQUENCY SENSOR
                                  from £63.20
                                  from £63.20
                                  # 017
                                  MPN: 186596
                                  SLAVE SUPERHIGH FREQUENCY SENSOR
                                  from £75.03
                                  from £75.03
                                  # 018
                                  MPN: 13272017
                                  SCREW
                                  from £0.53
                                  from £0.53
