maserati 4200 coupe (2004) crankcase parts diagram

001 - crankcase

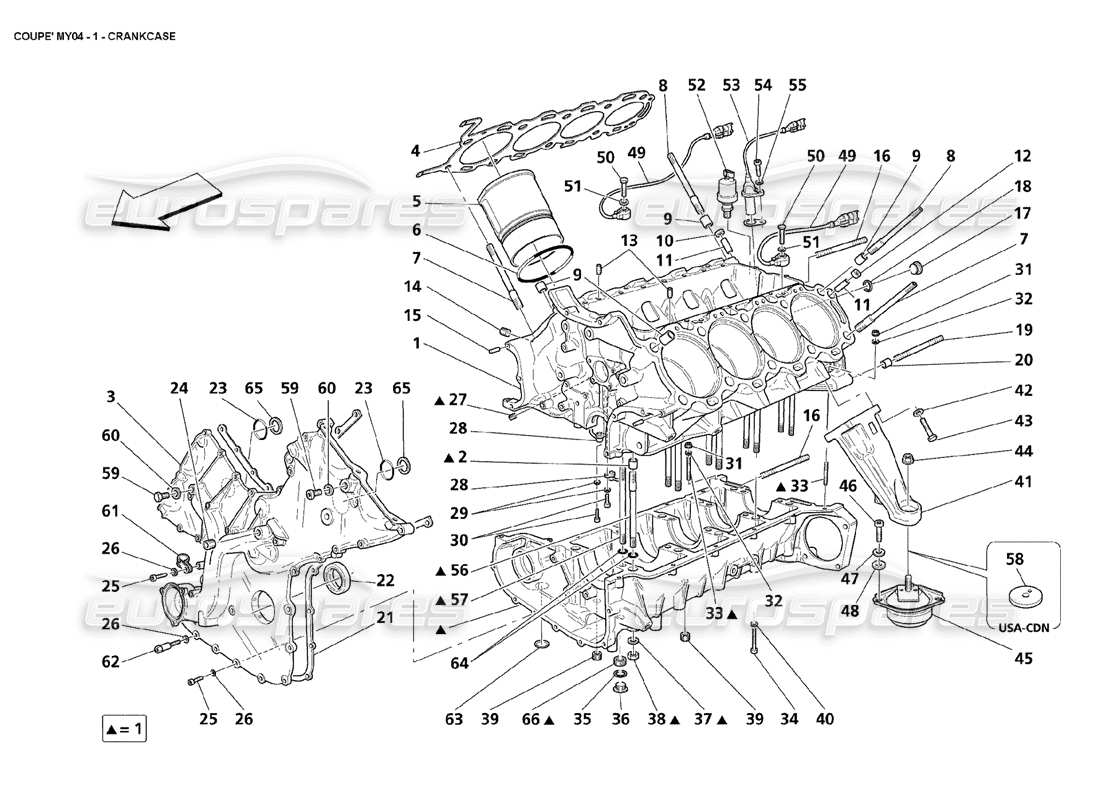

Maserati 4200 Coupe (2004) Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 000
                                                                                                                  MPN: 980020001
                                                                                                                  HEAD OVERHAUL GASKET KIT
                                                                                                                  Valid till stock exhaustion
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 000
                                                                                                                  MPN: 980020004
                                                                                                                  CRANKCASE GASKET KIT
                                                                                                                  Valid after stock exhaustion of 980020002
                                                                                                                  from £109.51
                                                                                                                  from £109.51
                                                                                                                  This part replaces part number 980020002
                                                                                                                  # 000
                                                                                                                  MPN: 980020006
                                                                                                                  HEAD OVERHAUL GASKET KIT
                                                                                                                  Valid after stock exhaustion of 980020001
                                                                                                                  from £55.42
                                                                                                                  from £55.42
                                                                                                                  This part replaces part number 980020001
                                                                                                                  # 001
                                                                                                                  MPN: 199422
                                                                                                                  COMPLETE CRANKCASE
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 192423
                                                                                                                  # 002
                                                                                                                  MPN: 176421
                                                                                                                  CENTERING DOWEL
                                                                                                                  from £2.55
                                                                                                                  from £2.55
                                                                                                                  # 003
                                                                                                                  MPN: 221366
                                                                                                                  FRONT COVER
                                                                                                                  not available as spare parts
                                                                                                                  from £194.25
                                                                                                                  from £194.25
                                                                                                                  This part replaces part number 188710 - and 1 more. Click to view details
                                                                                                                  # 004
                                                                                                                  MPN: 184966
                                                                                                                  RH HEAD GASKET
                                                                                                                  - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                                                                                  from £41.59
                                                                                                                  from £41.59
                                                                                                                  # 004
                                                                                                                  MPN: 184967
                                                                                                                  LH HEAD GASKET
                                                                                                                  - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                                                                                  from £41.59
                                                                                                                  from £41.59
                                                                                                                  # 005
                                                                                                                  MPN: 190770
                                                                                                                  CYLINDER LINER
                                                                                                                  from £109.50
                                                                                                                  from £109.50
                                                                                                                  # 006
                                                                                                                  MPN: 186251
                                                                                                                  GASKET
                                                                                                                  - Supplied also in the crankcase - gasket revision kit (cod. 980020004)
                                                                                                                  from £1.57
                                                                                                                  from £1.57
                                                                                                                  # 007
                                                                                                                  MPN: 194754
                                                                                                                  STUD
                                                                                                                  from £11.44
                                                                                                                  from £11.44
                                                                                                                  # 008
                                                                                                                  MPN: 194755
                                                                                                                  STUD
                                                                                                                  from £10.05
                                                                                                                  from £10.05
                                                                                                                  # 009
                                                                                                                  MPN: 185360
                                                                                                                  CENTERING DOWEL
                                                                                                                  from £1.75
                                                                                                                  from £1.75
                                                                                                                  # 010
                                                                                                                  MPN: 194773
                                                                                                                  DOWEL
                                                                                                                  from £5.57
                                                                                                                  from £5.57
                                                                                                                  # 011
                                                                                                                  MPN: 156862
                                                                                                                  NONRETURN VALVE
                                                                                                                  from £5.14
                                                                                                                  from £5.14
                                                                                                                  # 012
                                                                                                                  MPN: 184045
                                                                                                                  DOWEL
                                                                                                                  from £5.57
                                                                                                                  from £5.57
                                                                                                                  # 013
                                                                                                                  MPN: 177727
                                                                                                                  CENTERING DOWEL
                                                                                                                  from £1.68
                                                                                                                  from £1.68
                                                                                                                  # 014
                                                                                                                  MPN: 164400
                                                                                                                  THREADED PLUG
                                                                                                                  from £2.16
                                                                                                                  from £2.16
                                                                                                                  # 015
                                                                                                                  MPN: 175611
                                                                                                                  CENTERING DOWEL
                                                                                                                  from £1.14
                                                                                                                  from £1.14
                                                                                                                  # 016
                                                                                                                  MPN: 13546734
                                                                                                                  STUD
                                                                                                                  from £0.77
                                                                                                                  from £0.77
                                                                                                                  # 016
                                                                                                                  MPN: 13546834
                                                                                                                  STUD
                                                                                                                  from £0.90
                                                                                                                  from £0.90
                                                                                                                  # 017
                                                                                                                  MPN: 193885
                                                                                                                  THREADED PLUG
                                                                                                                  from £1.90
                                                                                                                  from £1.90
                                                                                                                  # 018
                                                                                                                  MPN: 10263460
                                                                                                                  GASKET
                                                                                                                  - Supplied also in the crankcase - gasket revision kit (cod. 980020004)
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 10261830
                                                                                                                  # 019
                                                                                                                  MPN: 13546934
                                                                                                                  STUD
                                                                                                                  from £1.20
                                                                                                                  from £1.20
                                                                                                                  # 019
                                                                                                                  MPN: 13547034
                                                                                                                  STUD
                                                                                                                  from £1.81
                                                                                                                  from £1.81
                                                                                                                  # 020
                                                                                                                  MPN: 100052
                                                                                                                  CENTERING DOWEL
                                                                                                                  from £1.52
                                                                                                                  from £1.52
                                                                                                                  # 021
                                                                                                                  MPN: 323979
                                                                                                                  FRONT COVER GASKET
                                                                                                                  from £29.52
                                                                                                                  from £29.52
                                                                                                                  This part replaces part number 245464
                                                                                                                  # 022
                                                                                                                  MPN: 188717
                                                                                                                  FRONT CRANKSHAFT SEAL
                                                                                                                  from £15.77
                                                                                                                  from £15.77
                                                                                                                  This part replaces part number 186883
                                                                                                                  # 023
                                                                                                                  MPN: 183010
                                                                                                                  O.R. GASKET
                                                                                                                  - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                                                                                  from £1.04
                                                                                                                  from £1.04
                                                                                                                  # 024
                                                                                                                  MPN: 14324940
                                                                                                                  THREADED PLUG
                                                                                                                  from £1.08
                                                                                                                  from £1.08
                                                                                                                  # 025
                                                                                                                  MPN: 14303924
                                                                                                                  SCREW
                                                                                                                  - M 6X70
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 025
                                                                                                                  MPN: 14305524
                                                                                                                  SCREW
                                                                                                                  - M 6X30
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 025
                                                                                                                  MPN: 14305624
                                                                                                                  SCREW
                                                                                                                  - M 6X35
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 025
                                                                                                                  MPN: 14305924
                                                                                                                  SCREW
                                                                                                                  - M 6X45
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 14305921 - and 1 more. Click to view details
                                                                                                                  # 025
                                                                                                                  MPN: 14306024
                                                                                                                  SCREW
                                                                                                                  - M 6X50
                                                                                                                  from £1.31
                                                                                                                  from £1.31
                                                                                                                  This part replaces part number 14306034 which we have in stock
                                                                                                                  # 025
                                                                                                                  MPN: 14432224
                                                                                                                  SCREW
                                                                                                                  - M 6X22
                                                                                                                  from £0.52
                                                                                                                  from £0.52
                                                                                                                  # 025
                                                                                                                  MPN: 14433124
                                                                                                                  SCREW
                                                                                                                  - M 6X18
                                                                                                                  from £0.49
                                                                                                                  from £0.49
                                                                                                                  # 026
                                                                                                                  MPN: 11197774
                                                                                                                  WASHER
                                                                                                                  from £0.50
                                                                                                                  from £0.50
                                                                                                                  # 027
                                                                                                                  MPN: 13525770
                                                                                                                  THREADED INSERT
                                                                                                                  from £1.50
                                                                                                                  from £1.50
                                                                                                                  # 028
                                                                                                                  MPN: 175657
                                                                                                                  PISTONS COOLING NOZZLE
                                                                                                                  from £5.28
                                                                                                                  from £5.28
                                                                                                                  # 029
                                                                                                                  MPN: 11181474
                                                                                                                  WASHER
                                                                                                                  from £0.51
                                                                                                                  from £0.51
                                                                                                                  # 030
                                                                                                                  MPN: 14302921
                                                                                                                  SCREW
                                                                                                                  from £0.51
                                                                                                                  from £0.51
                                                                                                                  # 031
                                                                                                                  MPN: 132877
                                                                                                                  NUT
                                                                                                                  from £1.75
                                                                                                                  from £1.75
                                                                                                                  # 032
                                                                                                                  MPN: 12604274
                                                                                                                  WASHER
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 033
                                                                                                                  MPN: 13541624
                                                                                                                  STUD
                                                                                                                  from £9.20
                                                                                                                  from £9.20
                                                                                                                  # 034
                                                                                                                  MPN: 14305324
                                                                                                                  SCREW
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 14305321
                                                                                                                  # 034
                                                                                                                  MPN: 14305424
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 035
                                                                                                                  MPN: 10261860
                                                                                                                  GASKET
                                                                                                                  - Supplied also in the crankcase - gasket revision kit (cod. 980020004)
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 036
                                                                                                                  MPN: 104280
                                                                                                                  THREADED PLUG
                                                                                                                  from £4.95
                                                                                                                  from £4.95
                                                                                                                  # 037
                                                                                                                  MPN: 178348
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 038
                                                                                                                  MPN: 133988
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 186261
                                                                                                                  # 039
                                                                                                                  MPN: 14325140
                                                                                                                  THREADED PLUG
                                                                                                                  from £1.01
                                                                                                                  from £1.01
                                                                                                                  # 040
                                                                                                                  MPN: 11197774
                                                                                                                  WASHER
                                                                                                                  from £0.52
                                                                                                                  from £0.52
                                                                                                                  # 041
                                                                                                                  MPN: 186029
                                                                                                                  RH ENGINE FIXING SUPPORT
                                                                                                                  from £42.09
                                                                                                                  from £42.09
                                                                                                                  # 041
                                                                                                                  MPN: 186030
                                                                                                                  LH ENGINE FIXING SUPPORT
                                                                                                                  from £42.09
                                                                                                                  from £42.09
                                                                                                                  # 042
                                                                                                                  MPN: 11190574
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 043
                                                                                                                  MPN: 11306934
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 044
                                                                                                                  MPN: 177018
                                                                                                                  NUT
                                                                                                                  from £0.65
                                                                                                                  from £0.65
                                                                                                                  # 045
                                                                                                                  MPN: 185361
                                                                                                                  ENGINE PAD
                                                                                                                  Alternative : 225839
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 046
                                                                                                                  MPN: 14307334
                                                                                                                  SCREW
                                                                                                                  from £5.49
                                                                                                                  from £5.49
                                                                                                                  # 047
                                                                                                                  MPN: 11198374
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 675000618
                                                                                                                  # 048
                                                                                                                  MPN: 14496624
                                                                                                                  WASHER
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 049
                                                                                                                  MPN: 187739

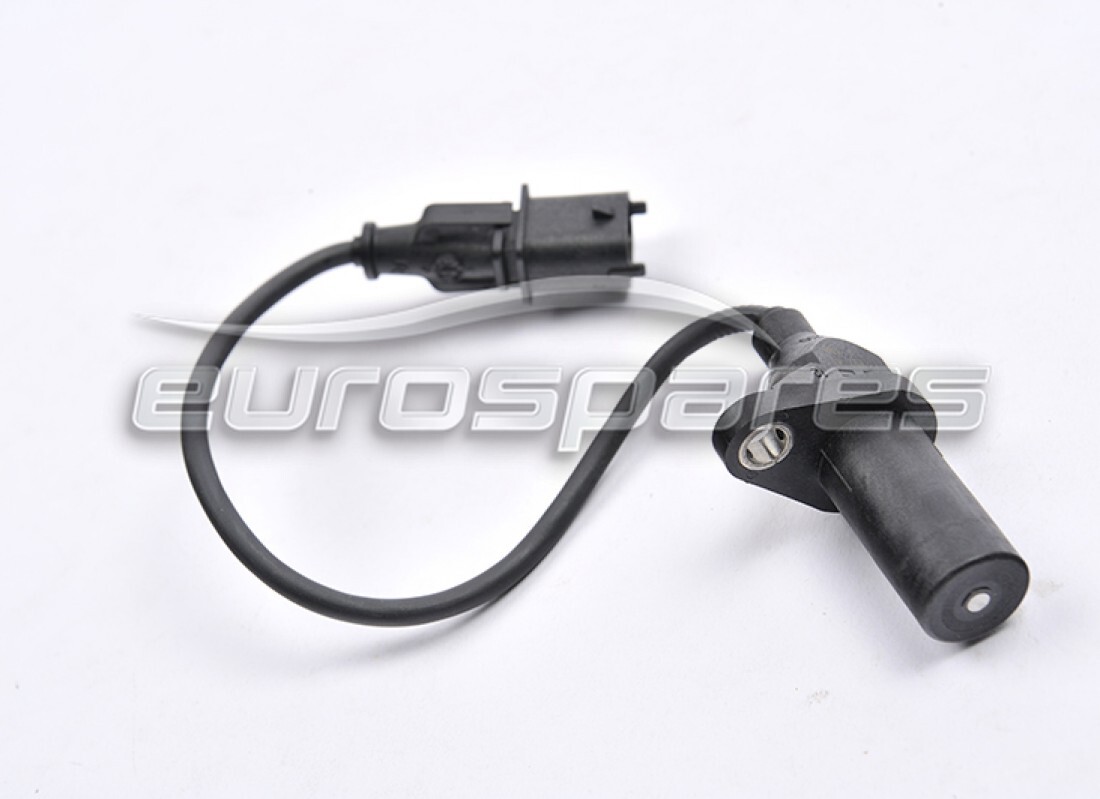

                                                                                                                  SENSOR FOR FIRING
                                                                                                                  - Flywheel side
                                                                                                                  from £55.69
                                                                                                                  from £55.69
                                                                                                                  This part replaces part number 182266 - and 1 more. Click to view details
                                                                                                                  # 049
                                                                                                                  MPN: 187740
                                                                                                                  SENSOR FOR FIRING
                                                                                                                  - Timing side
                                                                                                                  from £32.74
                                                                                                                  from £32.74
                                                                                                                  This part replaces part number 181809
                                                                                                                  # 050
                                                                                                                  MPN: 16043834
                                                                                                                  SCREW
                                                                                                                  from £0.51
                                                                                                                  from £0.51
                                                                                                                  This part replaces part number 16043824
                                                                                                                  # 051
                                                                                                                  MPN: 11198074
                                                                                                                  WASHER
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 052
                                                                                                                  MPN: 135940
                                                                                                                  OIL PRESSURE TRANSMITTER
                                                                                                                  from £89.32
                                                                                                                  from £89.32
                                                                                                                  # 053
                                                                                                                  MPN: 182194
                                                                                                                  ANGOLAR SPEED SENSOR
                                                                                                                  from £48.44
                                                                                                                  from £48.44
                                                                                                                  # 054
                                                                                                                  MPN: 14305724
                                                                                                                  SCREW
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 055
                                                                                                                  MPN: 11197774
                                                                                                                  WASHER
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 056
                                                                                                                  MPN: 194756
                                                                                                                  STUD
                                                                                                                  from £35.87
                                                                                                                  from £35.87
                                                                                                                  # 057
                                                                                                                  MPN: 194757
                                                                                                                  STUD
                                                                                                                  from £4.02
                                                                                                                  from £4.02
                                                                                                                  # 058
                                                                                                                  MPN: 191791
                                                                                                                  PAD UPPER SHIELD
                                                                                                                  - Valid for USA and CDN
                                                                                                                  from £2.83
                                                                                                                  from £2.83
                                                                                                                  # 059
                                                                                                                  MPN: 187718
                                                                                                                  BLEEDER PLUG
                                                                                                                  from £3.65
                                                                                                                  from £3.65
                                                                                                                  # 060
                                                                                                                  MPN: 10284460
                                                                                                                  GASKET
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 061
                                                                                                                  MPN: 10441590
                                                                                                                  BRACKET WITH SHEATH
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 062
                                                                                                                  MPN: 190876
                                                                                                                  STUD
                                                                                                                  from £14.19
                                                                                                                  from £14.19
                                                                                                                  This part replaces part number 585412900
                                                                                                                  # 063
                                                                                                                  MPN: 10158801
                                                                                                                  PLUG
                                                                                                                  from £0.81
                                                                                                                  from £0.81
                                                                                                                  # 064
                                                                                                                  MPN: 134704
                                                                                                                  O.R. GASKET
                                                                                                                  from £0.94
                                                                                                                  from £0.94
                                                                                                                  # 065
                                                                                                                  MPN: 191620
                                                                                                                  REDUCTION
                                                                                                                  from £12.21
                                                                                                                  from £12.21
                                                                                                                  # 066
                                                                                                                  MPN: 112254
                                                                                                                  THREADED INSERT
                                                                                                                  from £2.41
                                                                                                                  from £2.41
