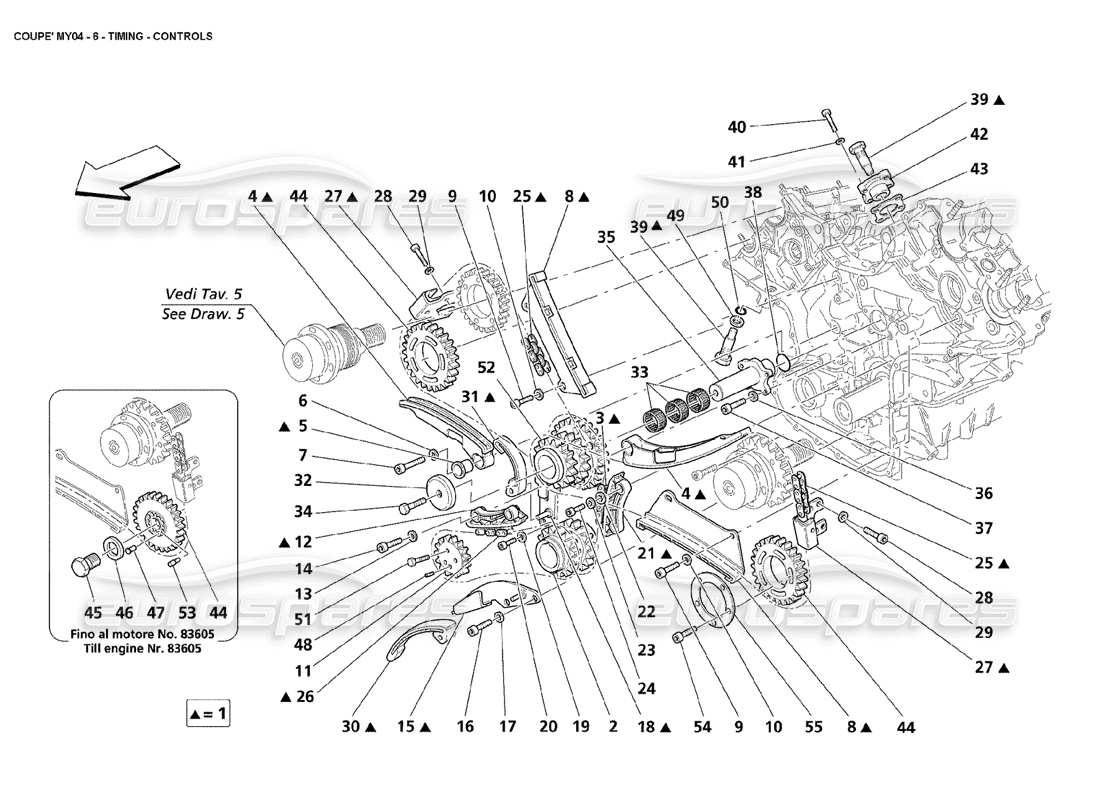

Maserati 4200 Coupe (2004) Timing Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 196902
                                                                                              TIMING CONTROL ASSEMBLY
                                                                                              from £579.55
                                                                                              from £579.55
                                                                                              This part replaces part number 193716
                                                                                              # 003
                                                                                              MPN: 175286
                                                                                              TRANSMISSION CHAIN
                                                                                              from £24.30
                                                                                              from £24.30
                                                                                              # 004
                                                                                              MPN: 186184
                                                                                              MOBILE GUIDE SHOE
                                                                                              from £69.62
                                                                                              from £69.62
                                                                                              # 005
                                                                                              MPN: 175303
                                                                                              BUSHING
                                                                                              from £13.13
                                                                                              from £13.13
                                                                                              # 006
                                                                                              MPN: 10569373
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 007
                                                                                              MPN: 14306424
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 14306421
                                                                                              # 008
                                                                                              MPN: 186185
                                                                                              FIXED TENSION
                                                                                              from £33.00
                                                                                              from £33.00
                                                                                              # 009
                                                                                              MPN: 14306224
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 010
                                                                                              MPN: 11193874
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 012
                                                                                              MPN: 186186
                                                                                              FIXED TENSION
                                                                                              from £15.90
                                                                                              from £15.90
                                                                                              # 013
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 014
                                                                                              MPN: 14305424
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 015
                                                                                              MPN: 185724
                                                                                              GUIDE SHOE SUPPORT
                                                                                              from £10.50
                                                                                              from £10.50
                                                                                              # 016
                                                                                              MPN: 14305724
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 017
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 019
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 020
                                                                                              MPN: 14305724
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 021
                                                                                              MPN: 306094
                                                                                              FIXED TENSION
                                                                                              from £21.56
                                                                                              from £21.56
                                                                                              This part replaces part number 186181
                                                                                              # 022
                                                                                              MPN: 12647624
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12647601
                                                                                              # 023
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              # 024
                                                                                              MPN: 14432224
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 025
                                                                                              MPN: 193616
                                                                                              TIMING CONTROL CHAIN
                                                                                              from £53.11
                                                                                              from £53.11
                                                                                              # 028
                                                                                              MPN: 14305934
                                                                                              SCREW
                                                                                              from £0.81
                                                                                              from £0.81
                                                                                              # 029
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 030
                                                                                              MPN: 185725
                                                                                              CHAIN TENSIONER
                                                                                              from £30.14
                                                                                              from £30.14
                                                                                              # 031
                                                                                              MPN: 196683
                                                                                              CHAIN TENSIONER
                                                                                              from £24.32
                                                                                              from £24.32
                                                                                              # 032
                                                                                              MPN: 194262
                                                                                              SHOULDER
                                                                                              from £10.46
                                                                                              from £10.46
                                                                                              # 034
                                                                                              MPN: 16043124
                                                                                              SCREW
                                                                                              from £0.26
                                                                                              from £0.26
                                                                                              # 035
                                                                                              MPN: 194261
                                                                                              SUPPORT
                                                                                              from £80.43
                                                                                              from £80.43
                                                                                              # 036
                                                                                              MPN: 11181574
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 037
                                                                                              MPN: 14304224
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 038
                                                                                              MPN: 104212
                                                                                              O.R. GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 039
                                                                                              MPN: 180316
                                                                                              HYDRAULIC TIGHTENER
                                                                                              from £33.62
                                                                                              from £33.62
                                                                                              # 040
                                                                                              MPN: 14432224
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 041
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 043
                                                                                              MPN: 323282
                                                                                              GASKET
                                                                                              - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                                                              from £1.15
                                                                                              from £1.15
                                                                                              This part replaces part number 247147
                                                                                              # 044
                                                                                              MPN: 187530
                                                                                              TOOTHED WHEEL FOR SHAFT
                                                                                              - Valid till engine Nr. 83605
                                                                                              from £25.80
                                                                                              from £25.80
                                                                                              # 044
                                                                                              MPN: 195511
                                                                                              TOOTHED WHEEL FOR SHAFT
                                                                                              - Valid from engine Nr. 83606
                                                                                              from £799.53
                                                                                              from £799.53
                                                                                              # 045
                                                                                              MPN: 193831
                                                                                              SCREW
                                                                                              - Valid till engine Nr. 83605
                                                                                              from £7.13
                                                                                              from £7.13
                                                                                              # 046
                                                                                              MPN: 175751
                                                                                              WASHER
                                                                                              - Valid till engine Nr. 83605
                                                                                              from £3.10
                                                                                              from £3.10
                                                                                              # 047
                                                                                              MPN: 176610
                                                                                              CENTERING DOWEL
                                                                                              - Valid till engine Nr. 83605
                                                                                              from £3.25
                                                                                              from £3.25
                                                                                              # 048
                                                                                              MPN: 189779
                                                                                              DOWEL
                                                                                              from £1.29
                                                                                              from £1.29
                                                                                              # 050
                                                                                              MPN: 192069
                                                                                              O.R. GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 053
                                                                                              MPN: 194191
                                                                                              DOWEL
                                                                                              - Valid till engine Nr. 83605
                                                                                              from £4.17
                                                                                              from £4.17
                                                                                              # 054
                                                                                              MPN: 14305170
                                                                                              SCREW
                                                                                              - Valid from engine Nr. 83606
                                                                                              from £2.47
                                                                                              from £2.47
                                                                                              This part replaces part number 14305770
                                                                                              # 055
                                                                                              MPN: 195649
                                                                                              WASHER
                                                                                              - Valid from engine Nr. 83606
                                                                                              from £3.40
                                                                                              from £3.40
