maserati 4200 coupe (2004) lubrication system tank heater exchanger parts diagram

017 - Lubrication System Tank Heater Exchanger

Maserati 4200 Coupe (2004) Lubrication System Tank Heater Exchanger Parts Diagram

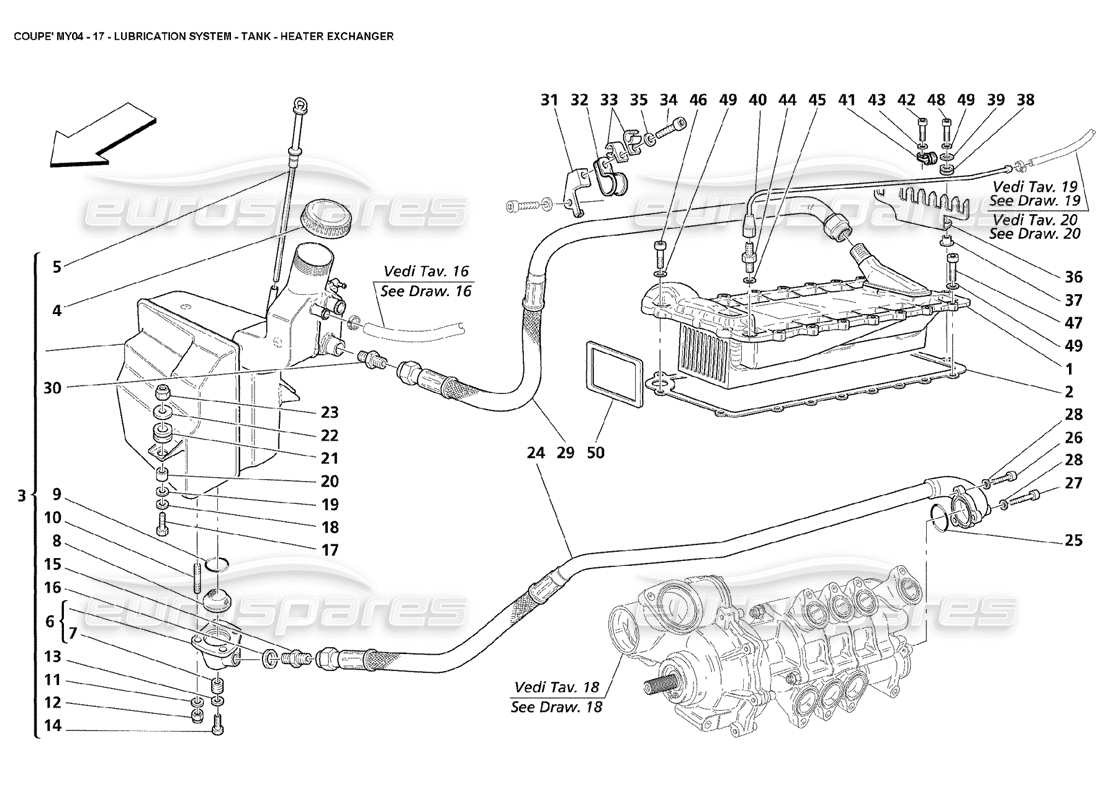

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 186356
                                                                                  WATER AND OIL EXCHANGER
                                                                                  from £1,346.60
                                                                                  from £1,346.60
                                                                                  # 002
                                                                                  MPN: 185581
                                                                                  GASKET
                                                                                  - Supplied also in the crankcase - gasket revision kit (cod. 980020004)
                                                                                  from £26.18
                                                                                  from £26.18
                                                                                  # 003
                                                                                  MPN: 211465
                                                                                  COMPLETE OIL TANK
                                                                                  from £476.99
                                                                                  from £476.99
                                                                                  This part replaces part number 189163 - and 1 more. Click to view details
                                                                                  # 004
                                                                                  MPN: 189116
                                                                                  FUEL FILLER CAP
                                                                                  from £63.92
                                                                                  from £63.92
                                                                                  This part replaces part number 113401
                                                                                  # 005
                                                                                  MPN: 192510
                                                                                  OIL LEVEL ROD
                                                                                  from £5.85
                                                                                  from £5.85
                                                                                  This part replaces part number 188627 - and 1 more. Click to view details
                                                                                  # 006
                                                                                  MPN: 151684
                                                                                  OIL SUCTION FAN
                                                                                  from £73.47
                                                                                  from £73.47
                                                                                  # 007
                                                                                  MPN: 111352
                                                                                  THREADED INSERT
                                                                                  from £67.48
                                                                                  from £67.48
                                                                                  # 008
                                                                                  MPN: 100332
                                                                                  OIL SUCTION FILTER
                                                                                  from £9.15
                                                                                  from £9.15
                                                                                  # 010
                                                                                  MPN: 11500424
                                                                                  STUD
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  # 011
                                                                                  MPN: 12601274
                                                                                  WASHER
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 12601270
                                                                                  # 012
                                                                                  MPN: 102948
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 013
                                                                                  MPN: 675000691
                                                                                  GASKET
                                                                                  from £1.08
                                                                                  from £1.08
                                                                                  This part replaces part number 10257060 which we have in stock
                                                                                  # 014
                                                                                  MPN: 10300771
                                                                                  THREADED PLUG
                                                                                  from £0.69
                                                                                  from £0.69
                                                                                  # 015
                                                                                  MPN: 186746
                                                                                  THREADED UNION
                                                                                  from £42.07
                                                                                  from £42.07
                                                                                  # 016
                                                                                  MPN: 144485
                                                                                  GASKET
                                                                                  from £12.40
                                                                                  from £12.40
                                                                                  # 017
                                                                                  MPN: 16043834
                                                                                  SCREW
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  This part replaces part number 16043824
                                                                                  # 018
                                                                                  MPN: 14496524
                                                                                  WASHER
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 019
                                                                                  MPN: 127496
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 384600330
                                                                                  # 020
                                                                                  MPN: 107980
                                                                                  SPACER
                                                                                  from £1.55
                                                                                  from £1.55
                                                                                  # 021
                                                                                  MPN: 184519
                                                                                  PAD
                                                                                  from £1.53
                                                                                  from £1.53
                                                                                  # 022
                                                                                  MPN: 107979
                                                                                  CUP
                                                                                  from £1.08
                                                                                  from £1.08
                                                                                  # 023
                                                                                  MPN: 16104411
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 024
                                                                                  MPN: 194456
                                                                                  PIPE FROM TANK TO OIL PUMP
                                                                                  - Valid for USA and CDN
                                                                                  from £304.95
                                                                                  from £304.95
                                                                                  # 024
                                                                                  MPN: 194457
                                                                                  PIPE FROM TANK TO OIL PUMP
                                                                                  - Not for USA and CDN
                                                                                  from £345.90
                                                                                  from £345.90
                                                                                  # 025
                                                                                  MPN: 109649
                                                                                  GASKET
                                                                                  from £0.70
                                                                                  from £0.70
                                                                                  # 026
                                                                                  MPN: 14305424
                                                                                  SCREW
                                                                                  - Not for USA and CDN
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 026
                                                                                  MPN: 14433124
                                                                                  SCREW
                                                                                  - Valid for USA and CDN
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 027
                                                                                  MPN: 14303824
                                                                                  SCREW
                                                                                  - Not for USA and CDN
                                                                                  from £1.28
                                                                                  from £1.28
                                                                                  # 027
                                                                                  MPN: 14304821
                                                                                  SCREW
                                                                                  - Valid for USA and CDN
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 028
                                                                                  MPN: 11197774
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 029
                                                                                  MPN: 186060
                                                                                  PIPE FROM HEAT EXCHANGER TO OIL TANK
                                                                                  from £131.88
                                                                                  from £131.88
                                                                                  # 030
                                                                                  MPN: 170157
                                                                                  UNION
                                                                                  from £27.69
                                                                                  from £27.69
                                                                                  # 031
                                                                                  MPN: 184821
                                                                                  BRACKET
                                                                                  from £9.20
                                                                                  from £9.20
                                                                                  # 032
                                                                                  MPN: 10441890
                                                                                  BRACKET WITH SHEATH
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 033
                                                                                  MPN: 187713
                                                                                  CLIP
                                                                                  from £3.16
                                                                                  from £3.16
                                                                                  This part replaces part number 98055
                                                                                  # 034
                                                                                  MPN: 14305724
                                                                                  SCREW
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 035
                                                                                  MPN: 11197774
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 036
                                                                                  MPN: 191396
                                                                                  BRACKET
                                                                                  from £4.51
                                                                                  from £4.51
                                                                                  # 037
                                                                                  MPN: 149707
                                                                                  SPACER
                                                                                  from £0.78
                                                                                  from £0.78
                                                                                  # 038
                                                                                  MPN: 177576
                                                                                  CABLE GROMMET
                                                                                  from £1.48
                                                                                  from £1.48
                                                                                  # 039
                                                                                  MPN: 12643724
                                                                                  WASHER
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 040
                                                                                  MPN: 185469
                                                                                  COMPLETE VENT PIPE
                                                                                  - Valid till engine Nr. 79340
                                                                                  from £126.76
                                                                                  from £126.76
                                                                                  # 040
                                                                                  MPN: 192326
                                                                                  COMPLETE VENT PIPE
                                                                                  - Valid from engine Nr. 79341
                                                                                  from £388.39
                                                                                  from £388.39
                                                                                  # 041
                                                                                  MPN: 10440890
                                                                                  BRACKET WITH SHEATH
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 042
                                                                                  MPN: 14305024
                                                                                  SCREW
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 043
                                                                                  MPN: 11197774
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 044
                                                                                  MPN: 182496
                                                                                  UNION
                                                                                  - Valid till engine Nr. 79340
                                                                                  from £34.45
                                                                                  from £34.45
                                                                                  # 044
                                                                                  MPN: 192327
                                                                                  UNION
                                                                                  - Valid from engine Nr. 79341
                                                                                  from £2.78
                                                                                  from £2.78
                                                                                  # 045
                                                                                  MPN: 10284460
                                                                                  GASKET
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 046
                                                                                  MPN: 14305524
                                                                                  SCREW
                                                                                  - M 6X30
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 047
                                                                                  MPN: 14305424
                                                                                  SCREW
                                                                                  - M 6X25
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 047
                                                                                  MPN: 14432224
                                                                                  SCREW
                                                                                  - M 6X22
                                                                                  from £0.49
                                                                                  from £0.49
                                                                                  # 048
                                                                                  MPN: 14305624
                                                                                  SCREW
                                                                                  - M 6X35
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 049
                                                                                  MPN: 11197774
                                                                                  WASHER
                                                                                  from £0.51
                                                                                  from £0.51
                                                                                  # 050
                                                                                  MPN: 174600
                                                                                  GASKET
                                                                                  - Supplied also in the crankcase - gasket revision kit (cod. 980020004)
                                                                                  from £4.48
                                                                                  from £4.48
