maserati 4200 coupe (2004) main shaft gears parts diagram

030 - Main Shaft Gears

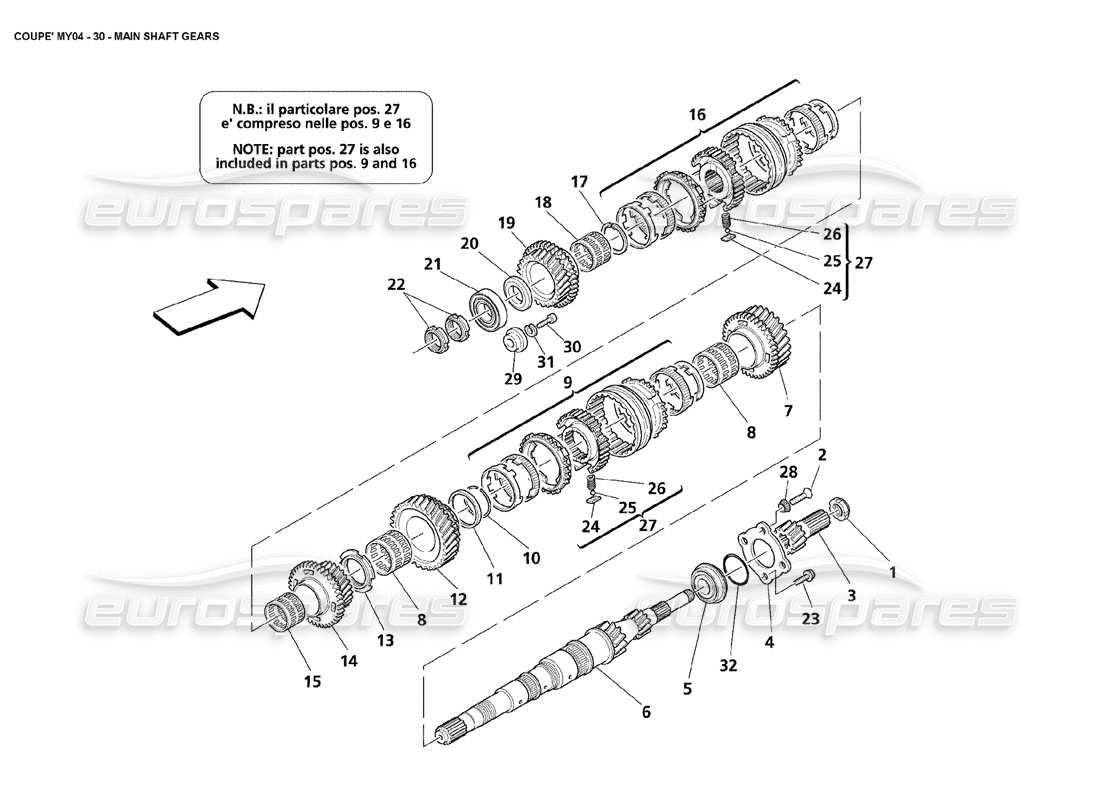

Maserati 4200 Coupe (2004) Main Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 182359
                                                        RING NUT
                                                        from £23.35
                                                        from £23.35
                                                        # 002
                                                        MPN: 14442027
                                                        SCREW
                                                        from £1.09
                                                        from £1.09
                                                        # 003
                                                        MPN: 199531
                                                        REVERSE DRIVING GEAR
                                                        from £505.14
                                                        from £505.14
                                                        # 004
                                                        MPN: 183984
                                                        PLATE
                                                        from £6.45
                                                        from £6.45
                                                        # 005
                                                        MPN: 184019
                                                        BALL BEARING
                                                        from £44.30
                                                        from £44.30
                                                        # 006
                                                        MPN: 182327
                                                        MAIN SHAFT FOR GEAR LEVER
                                                        - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                        from £752.56
                                                        from £752.56
                                                        # 006
                                                        MPN: 182327
                                                        MAIN SHAFT FOR GEAR LEVER
                                                        - Valid for F1
                                                        from £752.56
                                                        from £752.56
                                                        # 006
                                                        MPN: 208624
                                                        MAIN SHAFT FOR GEAR LEVER
                                                        - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
                                                        from £800.03
                                                        from £800.03
                                                        # 007
                                                        MPN: 182329
                                                        PINION FOR 5TH GEAR
                                                        from £134.10
                                                        from £134.10
                                                        # 008
                                                        MPN: 184015
                                                        ROLLER CAGE
                                                        from £29.12
                                                        from £29.12
                                                        # 009
                                                        MPN: 185166
                                                        5TH AND 6TH GEAR COMPLETE SYNCHRONIZER
                                                        from £795.01
                                                        from £795.01
                                                        # 010
                                                        MPN: 184011
                                                        FLEXIBLE RING
                                                        from £5.58
                                                        from £5.58
                                                        # 011
                                                        MPN: 183970
                                                        SPACER FOR PINION FOR 6TH GEAR
                                                        from £55.00
                                                        from £55.00
                                                        # 012
                                                        MPN: 182335
                                                        PINION FOR 6TH GEAR
                                                        from £134.10
                                                        from £134.10
                                                        # 013
                                                        MPN: 184010
                                                        RING NUT
                                                        from £95.67
                                                        from £95.67
                                                        # 014
                                                        MPN: 182338
                                                        PINION FOR 3RD GEAR
                                                        from £307.17
                                                        from £307.17
                                                        # 015
                                                        MPN: 184014
                                                        ROLLER CAGE
                                                        from £10.20
                                                        from £10.20
                                                        # 016
                                                        MPN: 185165
                                                        3RD AND 4TH GEAR COPLETE SYNCHRONIZER
                                                        - Not for F1 - Valid till car Ass. Nr. 13598 - Not for cars with complete gearbox code 203017
                                                        from £891.91
                                                        from £891.91
                                                        # 016
                                                        MPN: 185165
                                                        3RD AND 4TH GEAR COPLETE SYNCHRONIZER
                                                        - Valid for F1
                                                        from £891.91
                                                        from £891.91
                                                        # 016
                                                        MPN: 208628
                                                        3RD AND 4TH GEAR COMPLETE SYNCHRONIZER
                                                        - Not for F1 - Valid from car Ass. Nr. 13599 - Valid for cars with complete gearbox code 203017
                                                        from £247.93
                                                        from £247.93
                                                        # 017
                                                        MPN: 184042
                                                        FLEXIBLE RING
                                                        from £6.76
                                                        from £6.76
                                                        # 018
                                                        MPN: 184005
                                                        ROLLER CAGE
                                                        from £14.35
                                                        from £14.35
                                                        # 019
                                                        MPN: 182345
                                                        PINION FOR 4TH GEAR
                                                        from £136.42
                                                        from £136.42
                                                        # 020
                                                        MPN: 183973
                                                        WASHER
                                                        from £26.23
                                                        from £26.23
                                                        # 021
                                                        MPN: 184021
                                                        ROLLER BEARING
                                                        from £80.27
                                                        from £80.27
                                                        # 022
                                                        MPN: 184012
                                                        RING NUT
                                                        from £17.47
                                                        from £17.47
                                                        # 023
                                                        MPN: 16287124
                                                        SCREW
                                                        from £0.82
                                                        from £0.82
                                                        This part replaces part number 16297921
                                                        # 024
                                                        -
                                                        PAD FOR SYNCHRONIZER
                                                        - Not as spare part suppliyed in the kit. 188320
                                                        # 025
                                                        -
                                                        BALL
                                                        - Not as spare part suppliyed in the kit. 188320
                                                        # 026
                                                        -
                                                        SPRING FOR BALL
                                                        - Not as spare part suppliyed in the kit. 188320
                                                        # 027
                                                        MPN: 188320
                                                        PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
                                                        from £6.75
                                                        from £6.75
                                                        # 028
                                                        MPN: 12606979
                                                        WASHER
                                                        from £1.85
                                                        from £1.85
                                                        # 029
                                                        MPN: 183985
                                                        BUSHING
                                                        from £7.68
                                                        from £7.68
                                                        # 030
                                                        MPN: 14305721
                                                        SCREW
                                                        from £1.47
                                                        from £1.47
                                                        # 032
                                                        MPN: 14454281
                                                        O.R. GASKET
                                                        from £4.17
                                                        from £4.17
