maserati 4200 coupe (2004) brakes and clutch hydraulic controls parts diagram

036 - Brakes and Clutch Hydraulic Controls

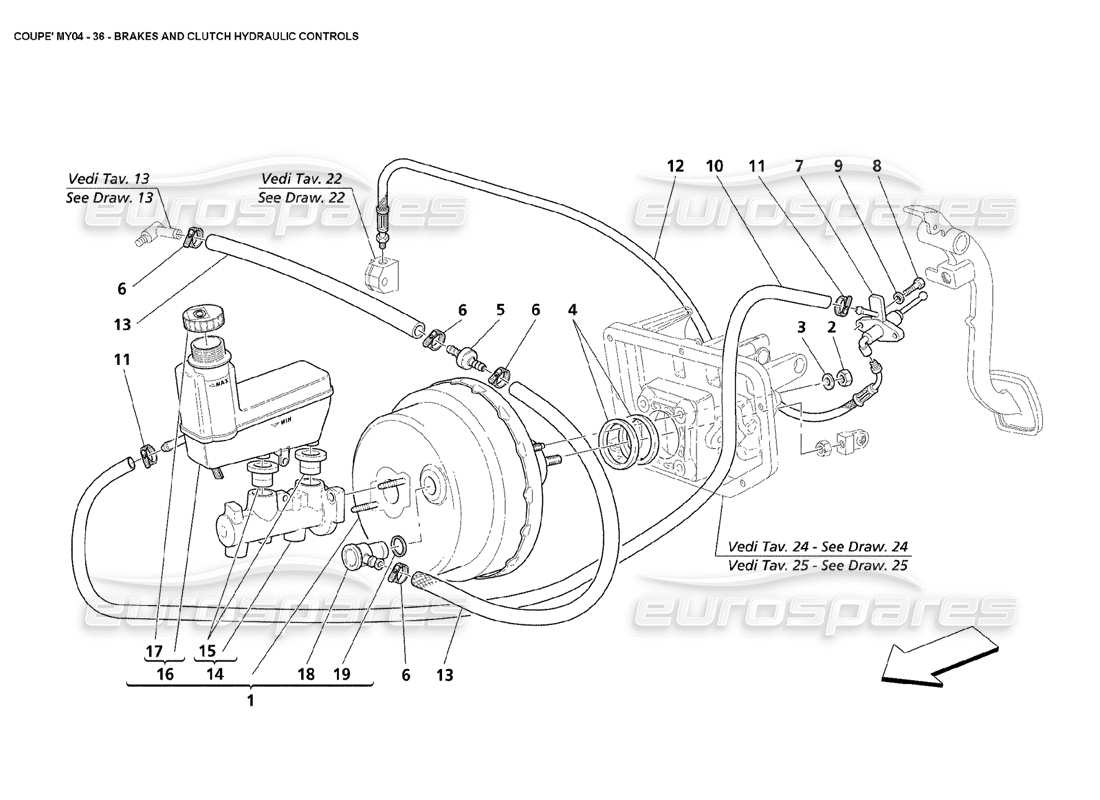

Maserati 4200 Coupe (2004) Brakes and Clutch Hydraulic Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 195560
                        COMPLETE BRAKE BOOSTER
                        - Not for F1
                        from £637.96
                        from £637.96
                        # 001
                        MPN: 196150
                        COMPLETE BRAKE BOOSTER
                        - Valid for F1
                        from £185.01
                        from £185.01
                        # 002
                        MPN: 16104421
                        NUT
                        from £0.81
                        from £0.81
                        # 003
                        MPN: 14496521
                        WASHER
                        from £0.47
                        from £0.47
                        # 004
                        MPN: 367402309
                        GASKET
                        from £1.55
                        from £1.55
                        # 005
                        MPN: 193186
                        DEPRESSION VALVE
                        from £7.05
                        from £7.05
                        # 006
                        MPN: 13000390
                        SCREW COLLAR
                        from £0.51
                        from £0.51
                        This part replaces part number 13121170 - and 1 more. Click to view details
                        # 007
                        MPN: 184753
                        Clutch Pump
                        - Not for F1
                        from £239.29
                        from £239.29
                        # 008
                        MPN: 16043621
                        SCREW
                        - Not for F1
                        from £1.08
                        from £1.08
                        # 009
                        MPN: 12601374
                        WASHER
                        - Not for F1
                        from £0.54
                        from £0.54
                        # 010
                        MPN: 197127
                        BRAKE LIQUID PIPE
                        - Not for F1 - Not for GD
                        from £37.28
                        from £37.28
                        # 010
                        MPN: 197130
                        BRAKE LIQUID PIPE
                        - Not for F1 - Valid for GD
                        from £34.81
                        from £34.81
                        # 011
                        MPN: 13000190
                        SCREW COLLAR
                        - Not for F1
                        from £0.53
                        from £0.53
                        # 012
                        MPN: 181769
                        CLUTCH CONTROL TUBE
                        - Not for F1 - Not for GD
                        from £261.76
                        from £261.76
                        # 012
                        MPN: 189061
                        CLUTCH CONTROL TUBE
                        - Not for F1 - Valid for GD -Supplied in meters - (Minimum quantity 1m. or multiples)
                        from £44.82
                        from £44.82
                        # 013
                        MPN: 302220611
                        RUBBER HOSE
                        from £21.92
                        from £21.92
                        This part replaces part number 192978
                        # 014
                        MPN: 980138133
                        BRAKE PUMP
                        from £671.08
                        from £671.08
                        # 015
                        MPN: 980138134
                        BRAKE PUMP RUBBER
                        from £5.09
                        from £5.09
                        # 016
                        MPN: 197024
                        OIL TANK
                        - Not for F1
                        from £487.19
                        from £487.19
                        # 016
                        MPN: 197025
                        OIL TANK
                        - Valid for F1
                        from £52.57
                        from £52.57
                        # 017
                        MPN: 980138135
                        OIL TANK PLUG
                        from £19.01
                        from £19.01
                        # 018
                        MPN: 980138136
                        UNION
                        from £16.00
                        from £16.00
                        # 019
                        MPN: 980138137
                        GASKET
                        from £8.20
                        from £8.20
